2017 TOYOTA HILUX Owners Manual (in English)

6578-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

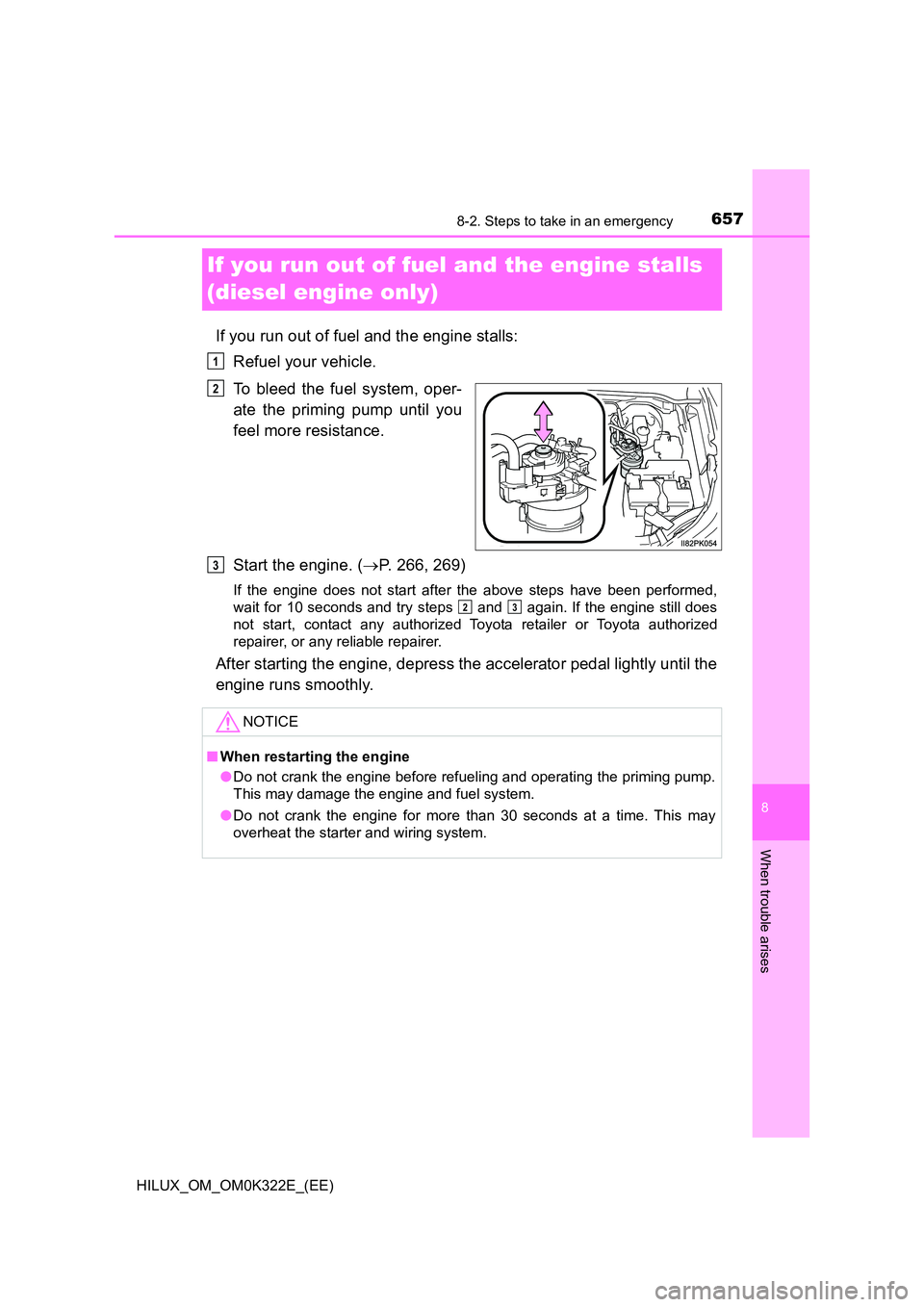

If you run out of fuel and the engine stalls
(diesel engine only)
If you run out of fuel and the engine stalls:
Refuel your vehicle.
To bleed the fuel system, oper-
ate the priming pump until you
feel more resistance.
Start the engine. ( P. 266, 269)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try steps and again. If the engine still does
not start, contact any authorized Toyo ta retailer or Toyota authorized
repairer, or any reliable repairer.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
1
2
NOTICE
■ When restarting the engine
● Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
● Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
3
23

6588-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Vehicles with rear differential lock system: Lock the rear differential.
( P. 373)
Shift the shift lever to the D or R position (automatic transmission)
or 1 or R position (manual transmission) and carefully apply the
accelerator to free the vehicle.
■ When it is difficult to free the vehicle (vehicles with TRC/A-TRC system)
Press to turn off TRC/A-TRC.
Vehicles without multi-information display
Vehicles with multi-information display
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5
6

6598-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

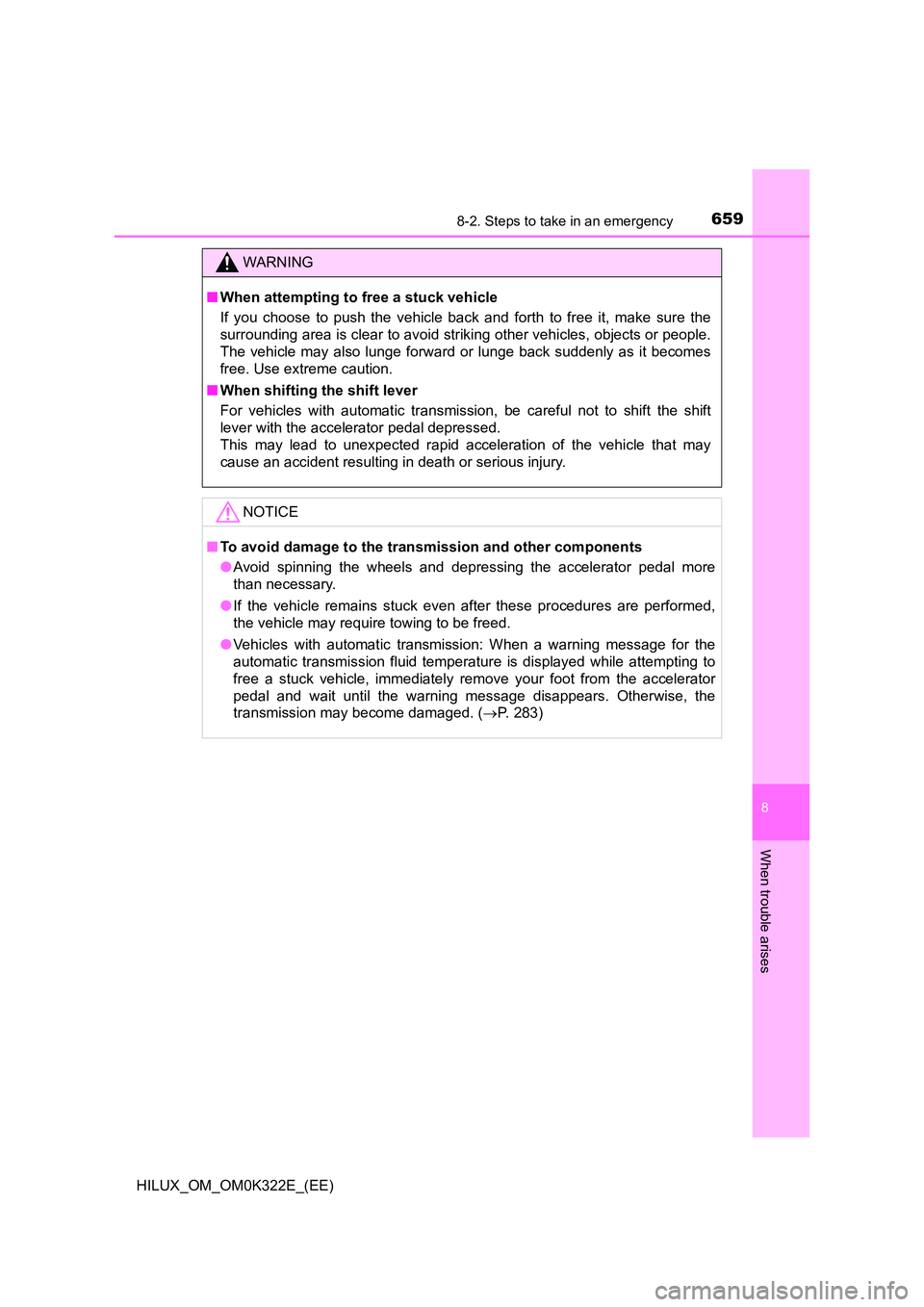

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
● Vehicles with automatic transmission: When a warning message for the
automatic transmission fluid temperature is displayed while attempting to
free a stuck vehicle, immediately remove your foot from the accelerator
pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 283)

6608-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)

661

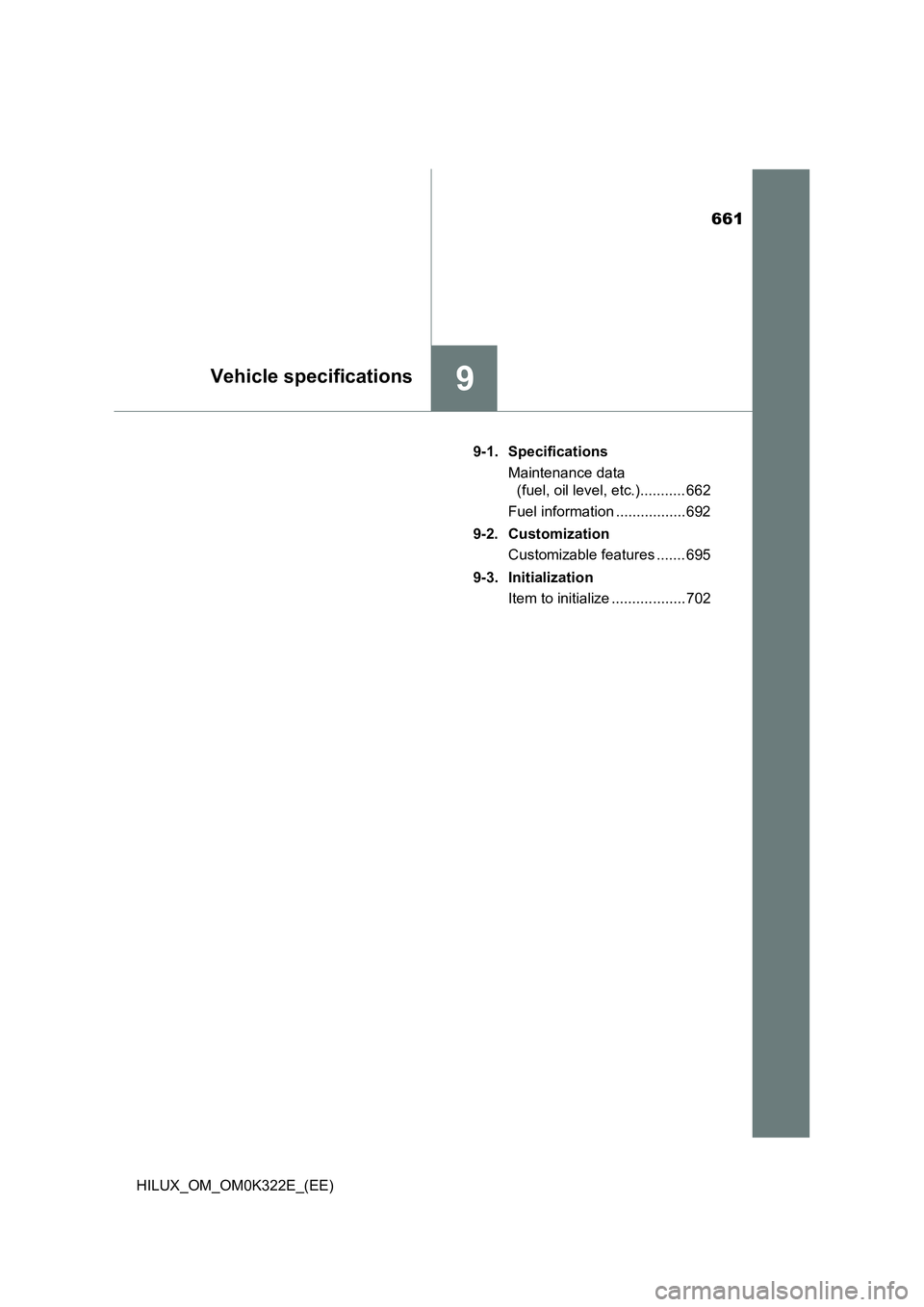

9Vehicle specifications
HILUX_OM_OM0K322E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 662
Fuel information ................. 692
9-2. Customization
Customizable features ....... 695
9-3. Initialization
Item to initialize .................. 702

6629-1. Specifications
HILUX_OM_OM0K322E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 181)
*3: With tailgate type B (P. 181)
*4: Without side step
*5: With side step
*6: With 205R16C tires
*7: With 225/70R17C tires
*8: With 265/65R17 or 265/60R18 tires
Dimensions
Overall lengthWithout rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper 5335 mm (210.0 in.)
Overall widthWithout over fender1800 mm (70.9 in.)*4
1815 mm (71.5 in.)*5
With over fender 1855 mm (73.0 in.)
Overall height*1
Single-cab models 1795 mm (70.7 in.)
Smart-cab models 1810 mm (71.3 in.)
Double-cab models 1815 mm (71.5 in.)
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*6
1495 mm (58.9 in.)*7
1535 mm (60.4 in.)*8
Rear tread
1520 mm (59.8 in.)*6
1510 mm (59.4 in.)*7
1550 mm (61.0 in.)*8

663
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)

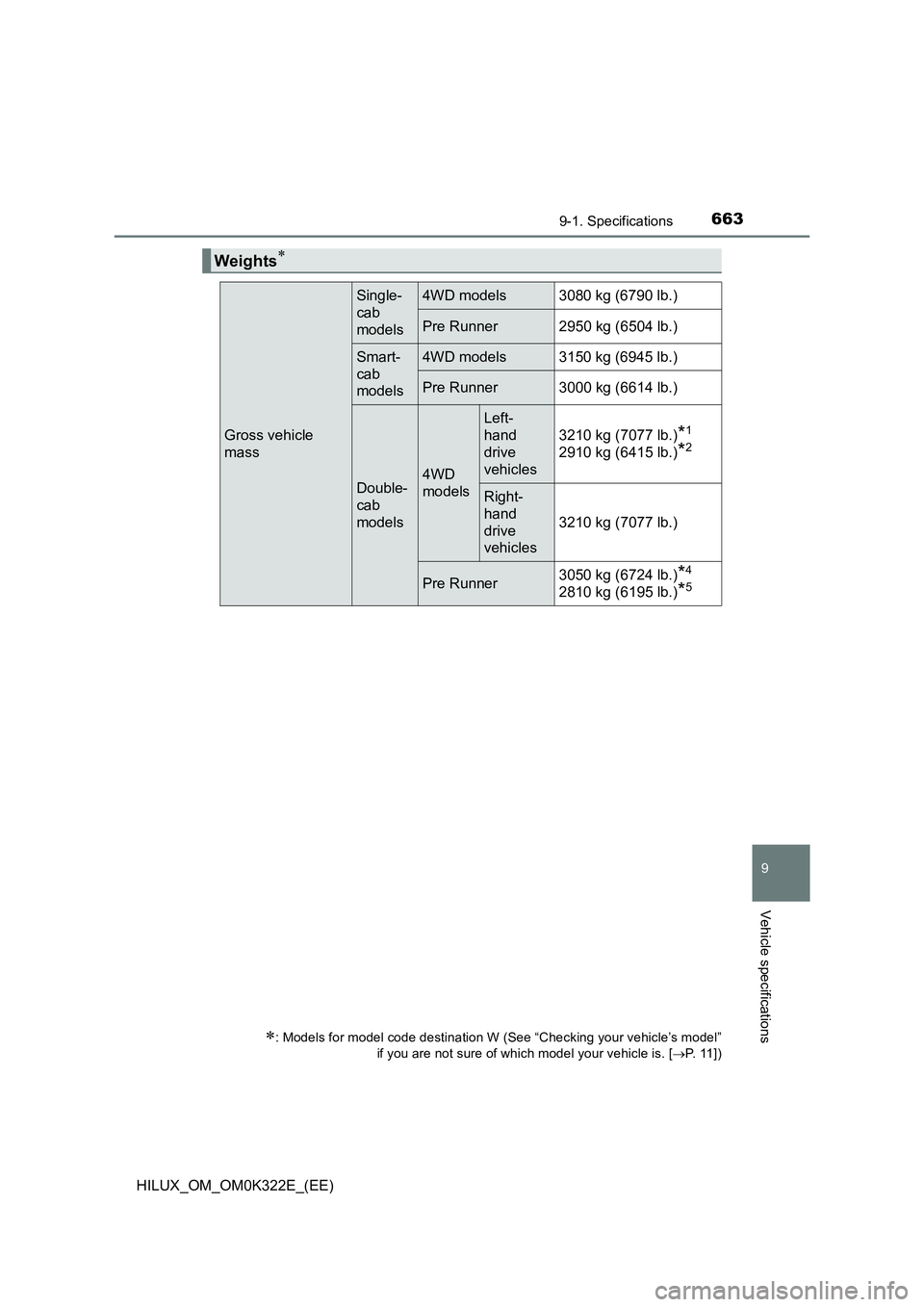

Weights
: Models for model code destination W (See “Checking your vehicle’s model”
if you are not sure of which model your vehicle is. [ P. 11])
Gross vehicle
mass
Single-
cab
models
4WD models 3080 kg (6790 lb.)
Pre Runner 2950 kg (6504 lb.)
Smart-
cab
models
4WD models 3150 kg (6945 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD
models
Left-
hand
drive
vehicles
3210 kg (7077 lb.)*1
2910 kg (6415 lb.)*2
Right-
hand
drive
vehicles
3210 kg (7077 lb.)
Pre Runner 3050 kg (6724 lb.)*4
2810 kg (6195 lb.)*5

6649-1. Specifications
HILUX_OM_OM0K322E_(EE)
Maximum
permissi-
ble axle
capacity
Front 1420 kg (3131 lb.)
Rear
Single-cab models 1850 kg (4079 lb.)
Smart-cab and
double-cab
models
Left-
hand
drive
vehicles
1920 kg (4233 lb.)*1
1650 kg (3638 lb.)*2
Right-
hand
drive
vehicles
1920 kg (4233 lb.)
Drawbar load
Single-
cab
models
4WD models 140 kg (309 lb.)
Pre Runner 115 kg (254 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSHW3 model*6
140 kg (309 lb.)*7
130 kg (287 lb.)*8
For GUN125L-
CNFSHW3 model*6
140 kg (309 lb.)
Pre Runner 120 kg (265 lb.)
Double-
cab
models
4WD models 130 kg (287 lb.)
Pre Runner
Except for GUN135L-
DNFMHW model*6
120 kg (265 lb.)*9
115 kg (254 lb.)*10
For GUN135L-
DNFMHW model*6
120 kg (265 lb.)*11
115 kg (254 lb.)*12
