2017 TOYOTA HILUX Owners Manual (in English)

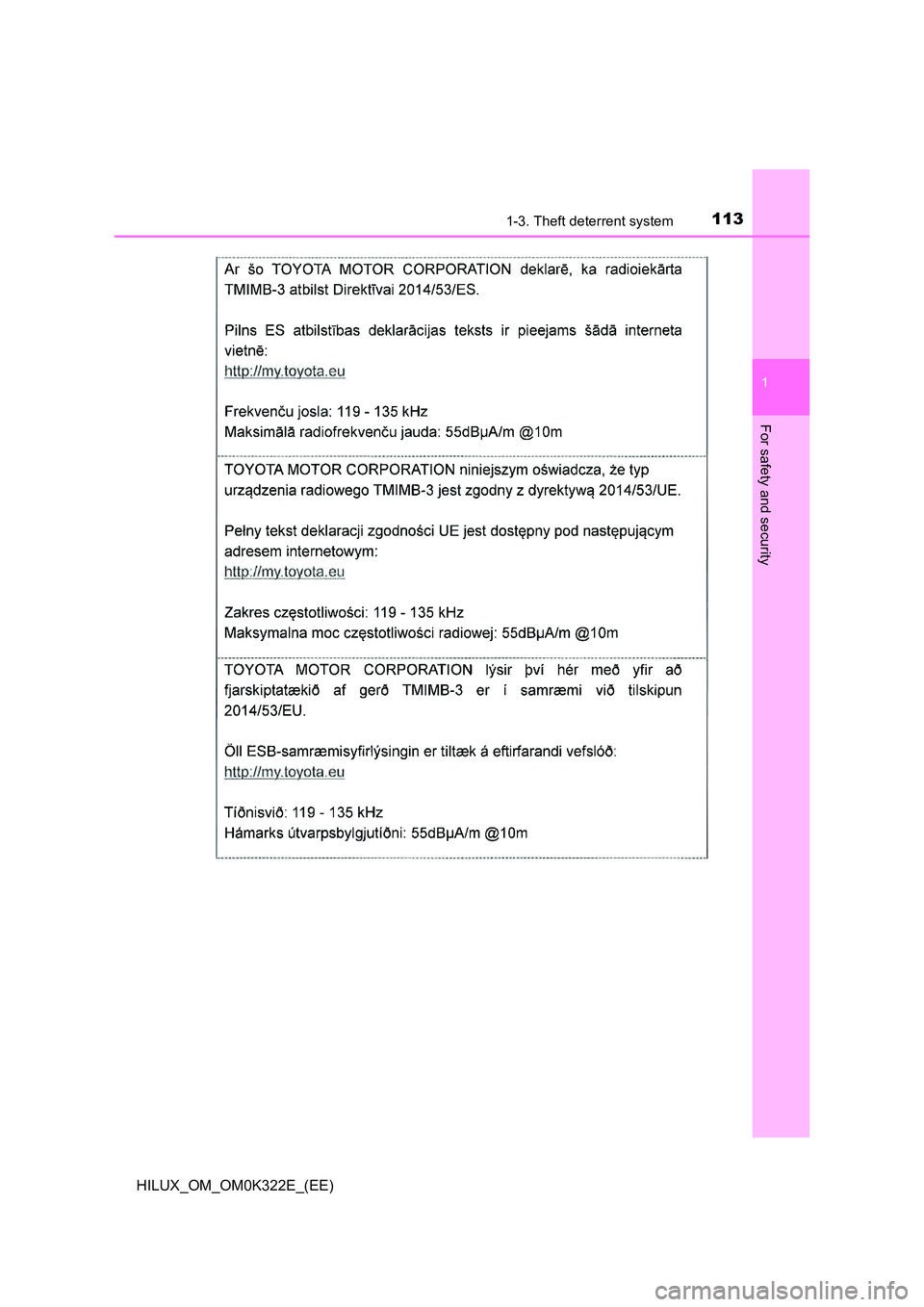

1131-3. Theft deterrent system
1
HILUX_OM_OM0K322E_(EE)
For safety and security

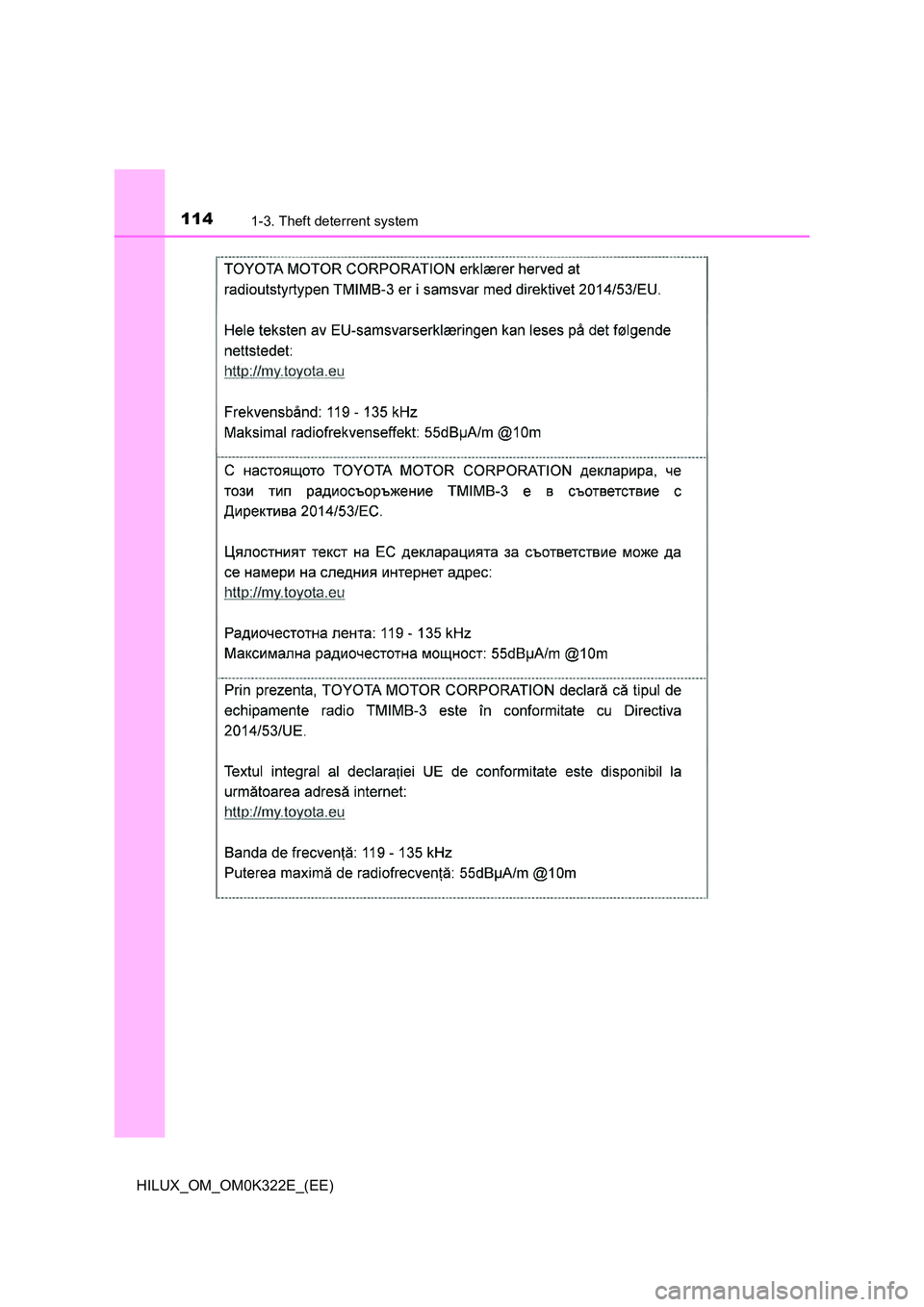

1141-3. Theft deterrent system
HILUX_OM_OM0K322E_(EE)

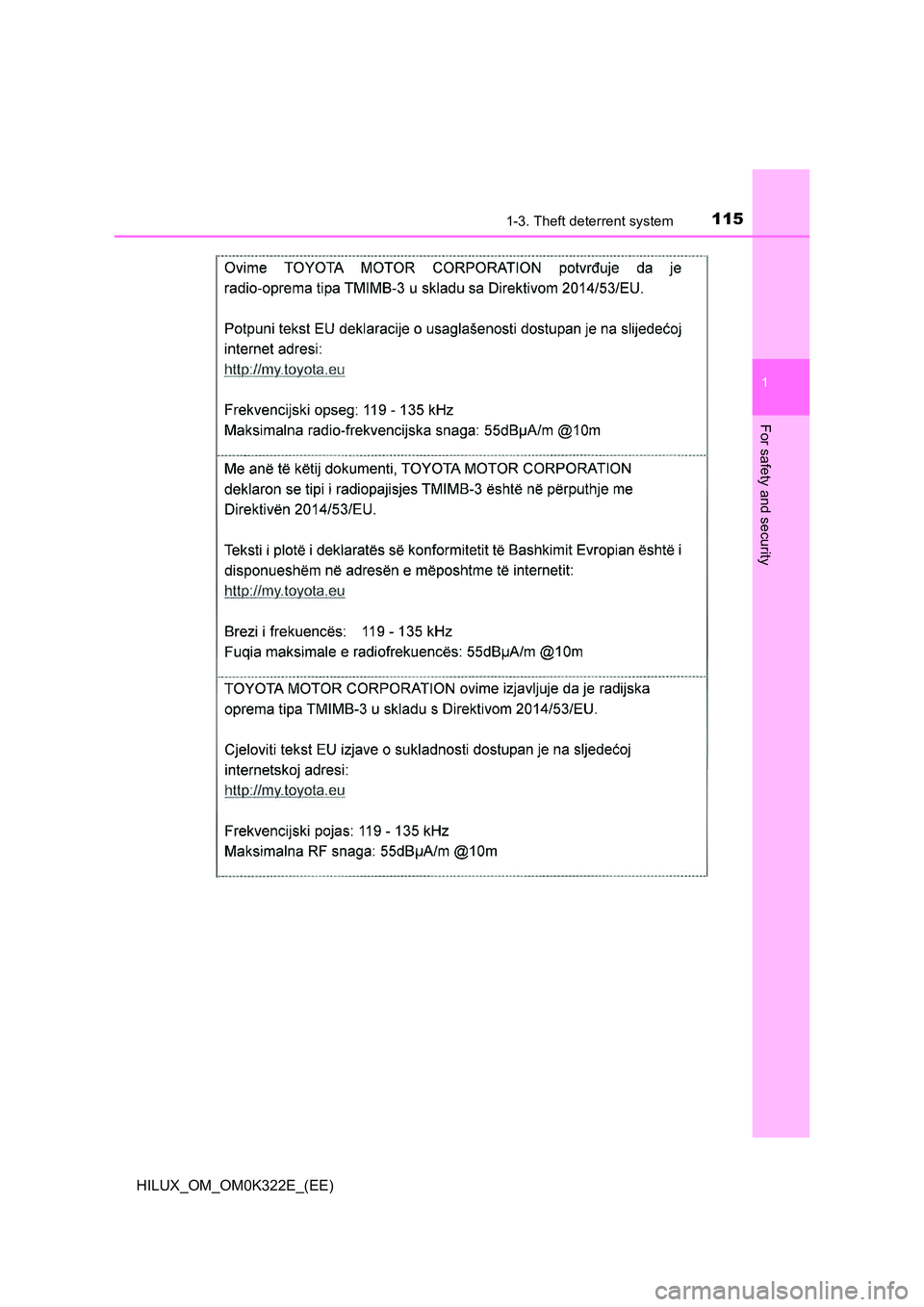

1151-3. Theft deterrent system
1
HILUX_OM_OM0K322E_(EE)
For safety and security

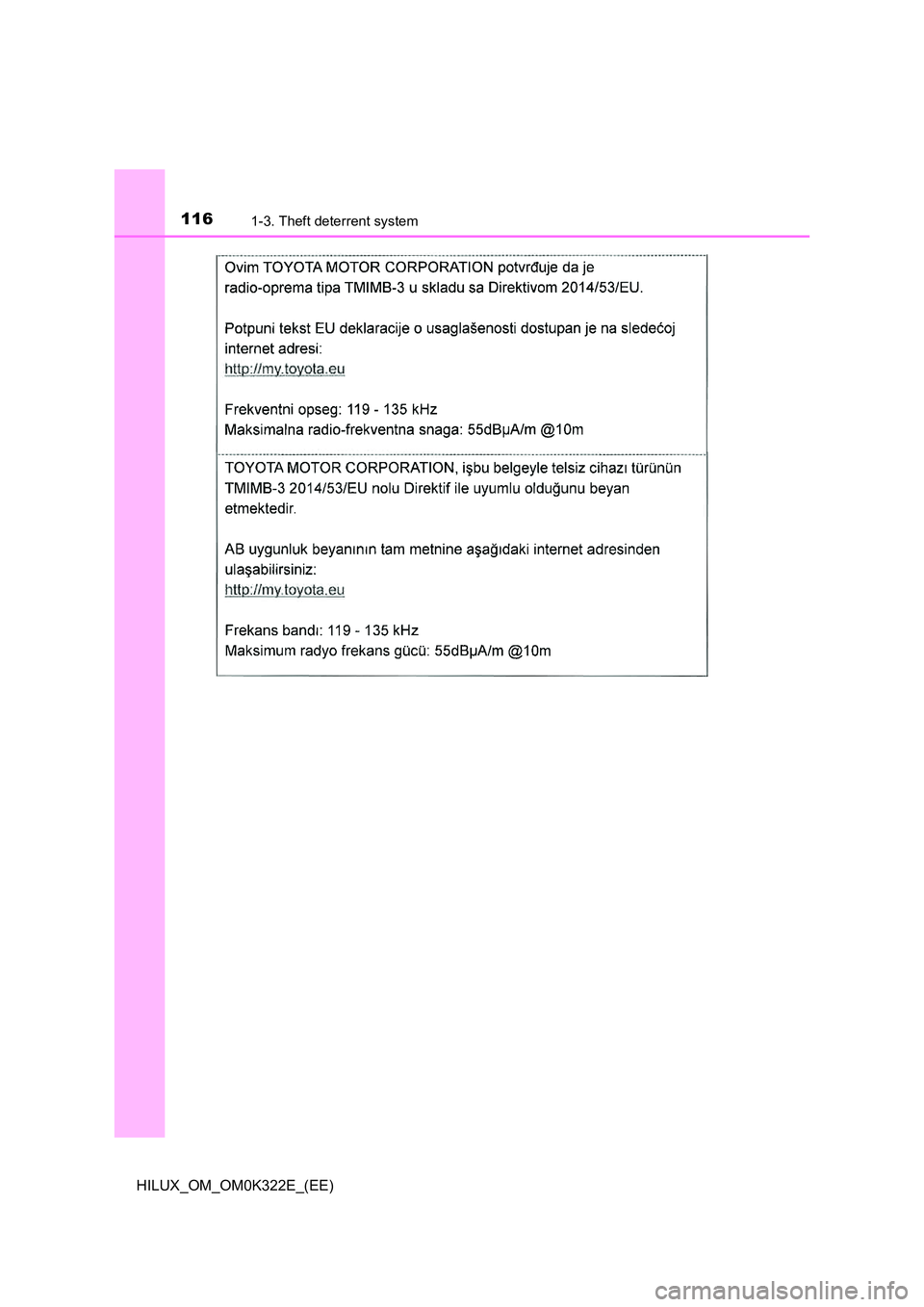

1161-3. Theft deterrent system
HILUX_OM_OM0K322E_(EE)

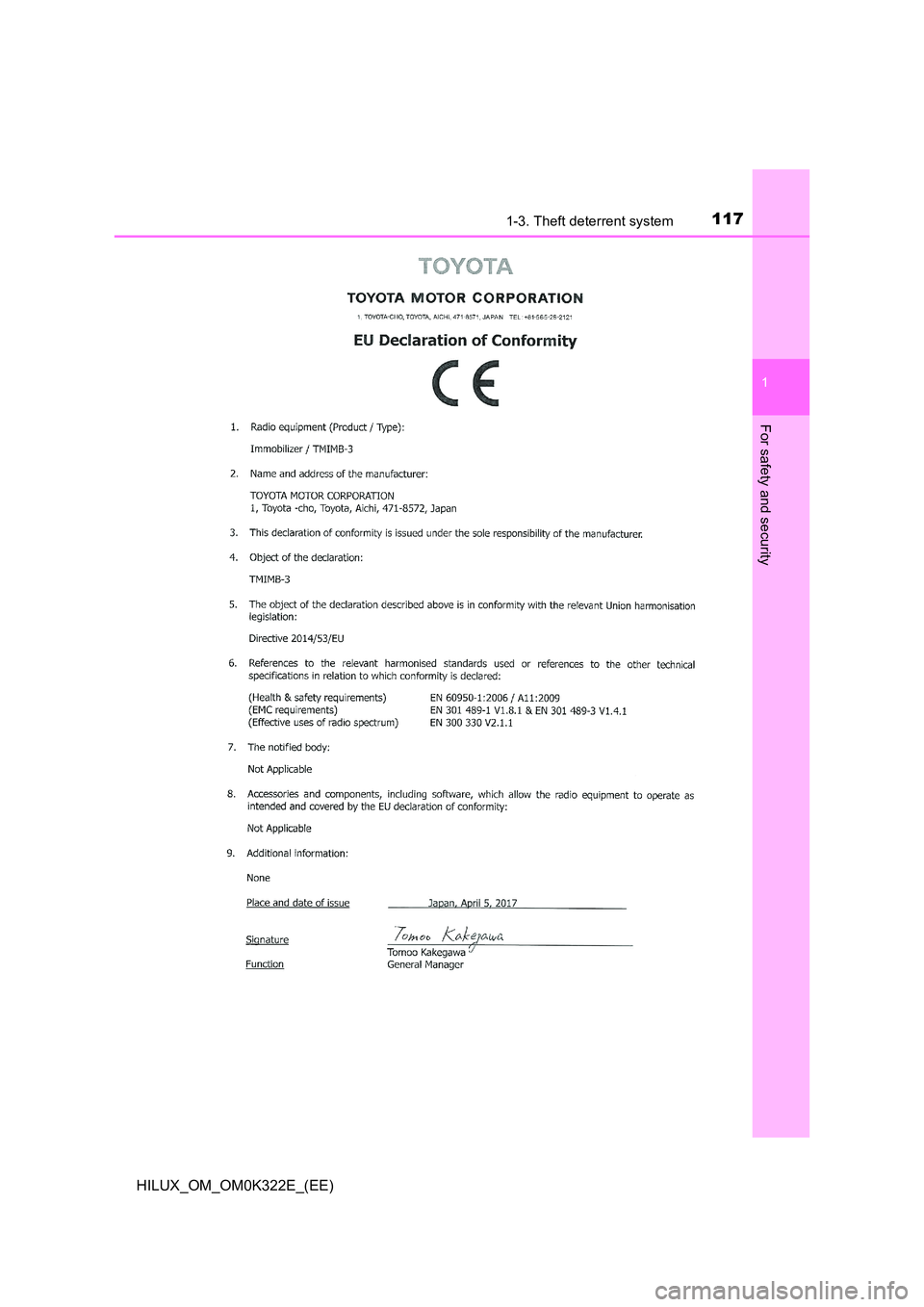

1171-3. Theft deterrent system
1
HILUX_OM_OM0K322E_(EE)
For safety and security

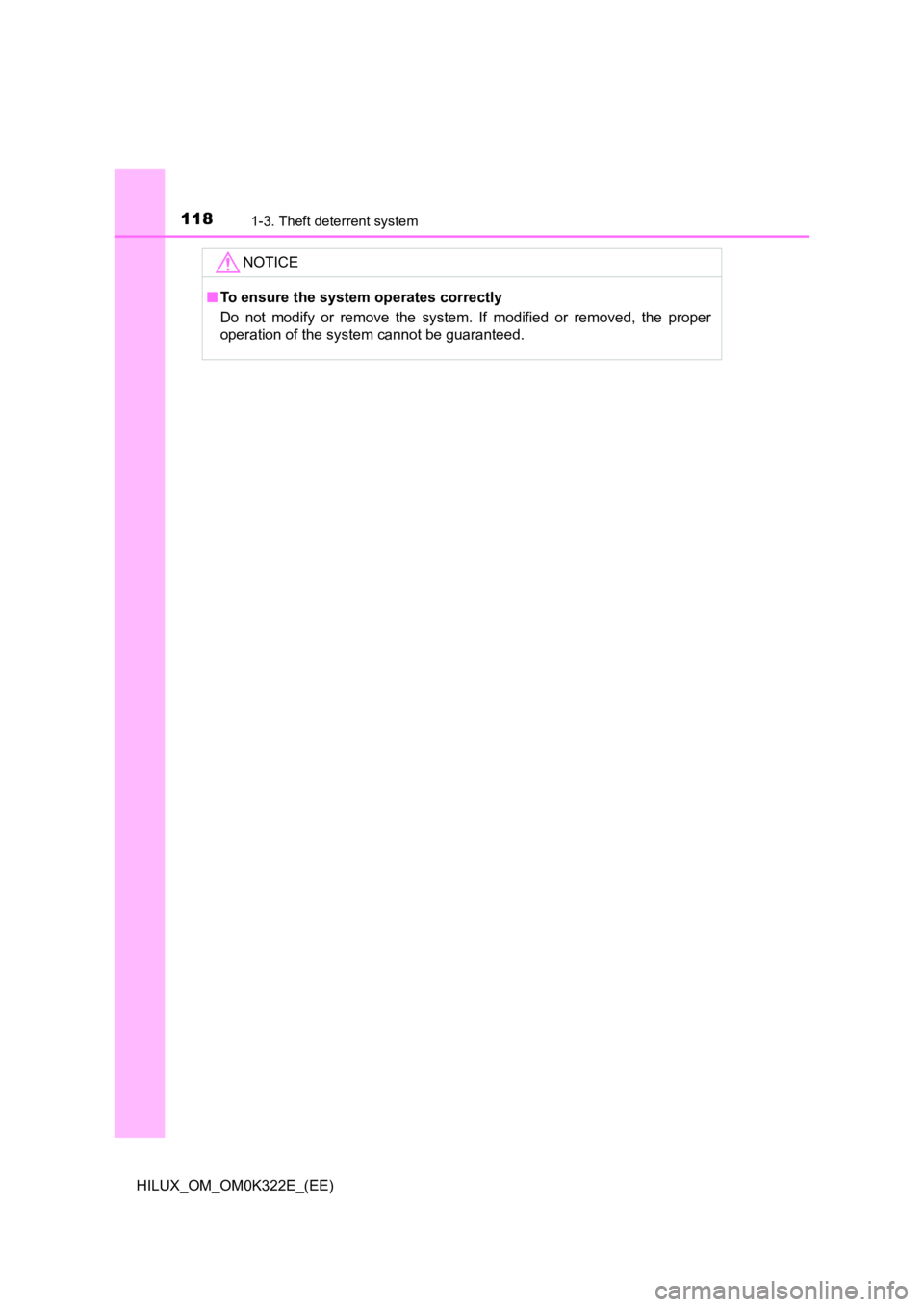

1181-3. Theft deterrent system
HILUX_OM_OM0K322E_(EE)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

119
1
1-3. Theft deterrent system
HILUX_OM_OM0K322E_(EE)
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
Except for Kazakhstan, Armenia, Georgia, Turkmenistan and
Morocco
● A locked door is opened in any way other than using the entry func-
tion (vehicles with smart entry & start system), wireless remote con-
trol or mechanical key.
● The hood is opened.
For Kazakhstan, Armenia, Georgia, Turkmenistan and Morocco
● A locked door is opened in any way other than using the entry func-
tion (vehicles with smart entry & start system) or wireless remote
control.
● The hood is opened.
Close the doors and hood, and
lock all the doors using the entry
function (vehicles with smart entry
& start system) or wireless remote
control. The system will be set
automatically after 30 seconds.
Except for Kazakhstan, Armenia,
Georgia, Turkmenistan and
Morocco: The alarm can also be
set using the mechanical key.
The indicator light changes from being on to flashing when the system is
set.
: If equipped
The alarm
Setting the alarm system

1201-3. Theft deterrent system
HILUX_OM_OM0K322E_(EE)
Do one of the following to deactivate or stop the alarms:
Except for Kazakhstan, Armenia, Georgia, Turkmenistan and
Morocco
● Unlock the doors.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
For Kazakhstan, Armenia, Georgia, Turkmenistan and Morocco
● Unlock the doors using the entry function (vehicles with smart
entry & start system) or the wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
