2017 TOYOTA HILUX Owners Manual (in English)

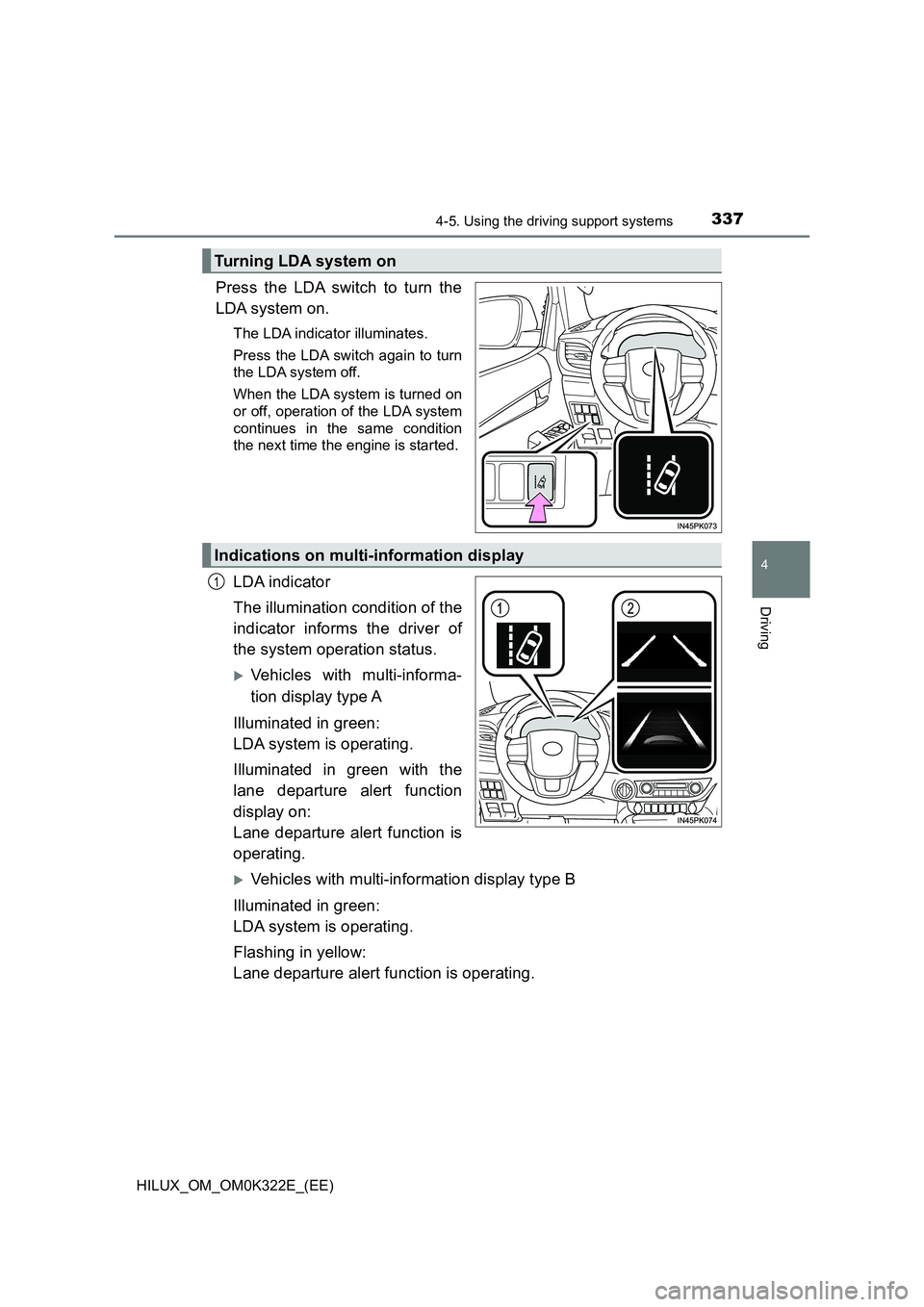

3374-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K322E_(EE)
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the engine is started.
LDA indicator
The illumination condition of the
indicator informs the driver of
the system operation status.
Vehicles with multi-informa-
tion display type A
Illuminated in green:
LDA system is operating.
Illuminated in green with the
lane departure alert function
display on:
Lane departure alert function is
operating.
Vehicles with multi-information display type B
Illuminated in green:
LDA system is operating.
Flashing in yellow:
Lane departure alert function is operating.
Turning LDA system on
Indications on multi-information display
1

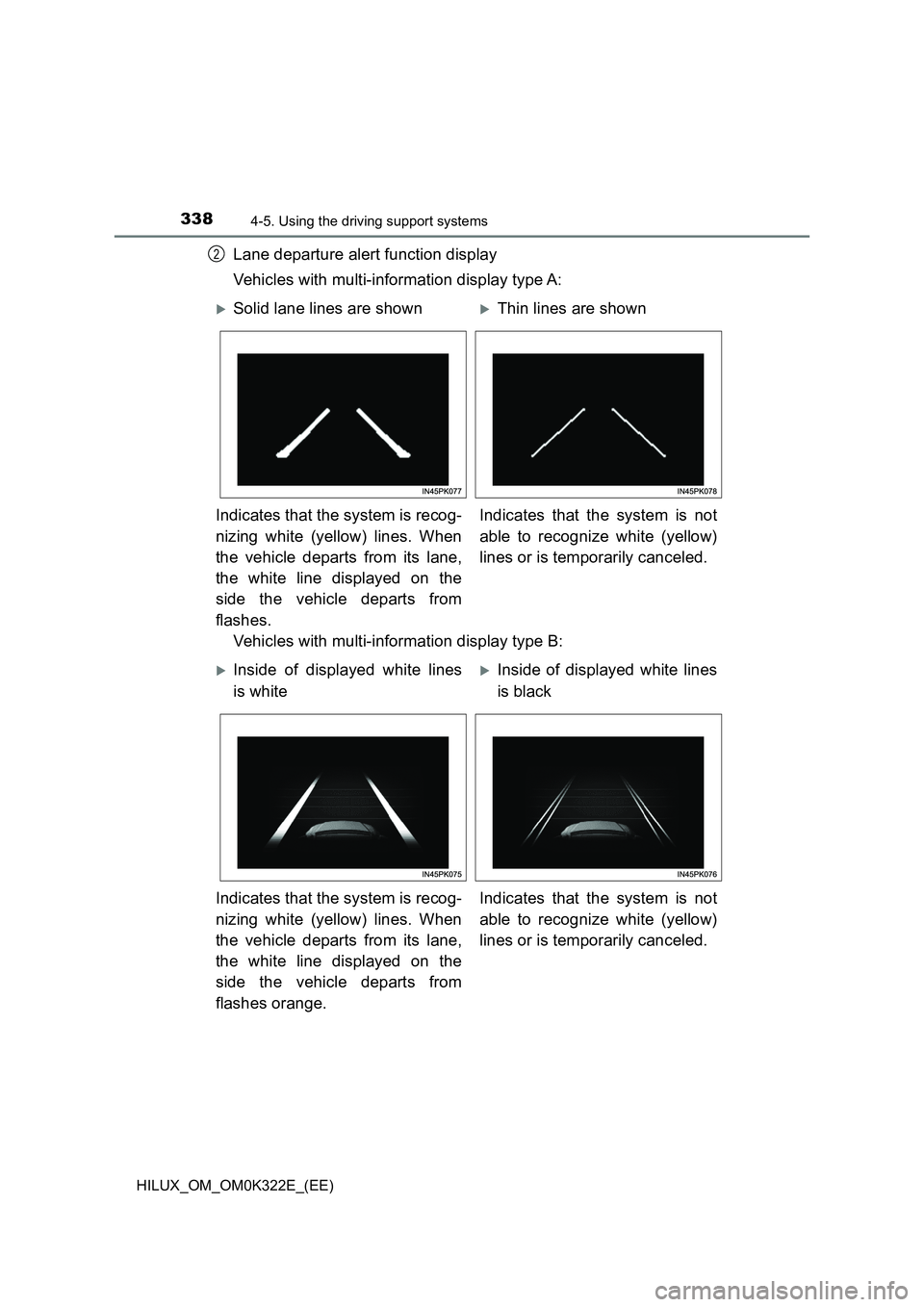

3384-5. Using the driving support systems
HILUX_OM_OM0K322E_(EE)
Lane departure alert function display
Vehicles with multi-information display type A:
Vehicles with multi-information display type B:
2
Solid lane lines are shownThin lines are shown
Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes.
Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.
Inside of displayed white lines
is white
Inside of displayed white lines
is black
Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes orange.
Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.

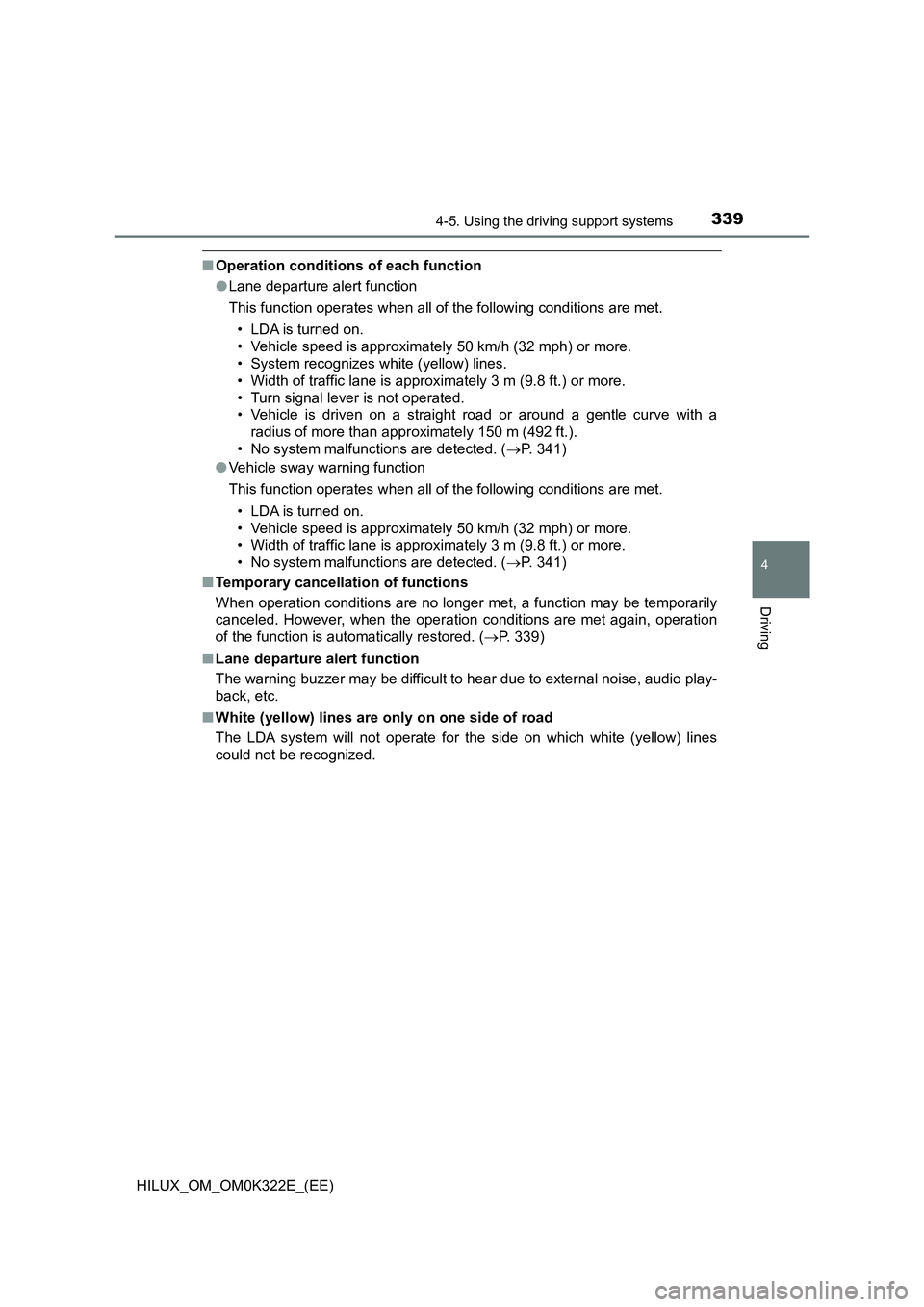

3394-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K322E_(EE)
■Operation conditions of each function
● Lane departure alert function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a
radius of more than approximately 150 m (492 ft.).
• No system malfunctions are detected. ( P. 341)
● Vehicle sway warning function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• No system malfunctions are detected. ( P. 341)
■ Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored. ( P. 339)
■ Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.
■ White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.

3404-5. Using the driving support systems
HILUX_OM_OM0K322E_(EE)
■ Conditions in which functions may not operate properly
In the following situations, the camera sensor may not detect white (yellow)
lines and various functions may not operate normally.
● There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.
● The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.
● The white (yellow) lines are cracked, or “Raised pavement marker” or
stones are present.
● The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.
● The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
● The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).
● The white (yellow) lines cross over a curb, etc.
● The vehicle is driven on a bright surface, such as concrete.
● The vehicle is driven on a surface that is bright due to reflected light, etc.
● The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.
● Light from the headlights of an oncoming vehicle, the sun, etc., enters the
camera.
● The vehicle is driven where the road diverges, merges, etc.
● The vehicle is driven on a slope.
● The vehicle is driven on a road which tilts left or right, or a winding road.
● The vehicle is driven on an unpaved or rough road.
● The vehicle is driven around a sharp curve.
● The traffic lane is excessively narrow or wide.
● The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.
● The distance to the preceding vehicle is extremely short.
● The vehicle is moving up and down a large amount due to road conditions
during driving (poor r oads or road seams).
● The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.
● The vehicle has just changed lanes or crossed an intersection.

3414-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K322E_(EE)
■ Warning message
If the following warning message is displayed on the multi-information dis-
play, follow the appropriate troubleshooting procedure.
Warning messageDetails/Actions
“LDA MALFUNCTION
VISIT YOUR DEALER”/
“LDA malfunction
Visit your dealer”
The system may not be operating
properly.
 Have the vehicle inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
“FRONT CAMERA
VISION BLOCKED
CLEAN AND DEMIST
WINDSHIELD”/
“Front Camera
Vision Blocked
Clean and Demist
Windshield”
Dirt, rain, condensation, ice, snow,
etc., are present on the windshield in
front of the camera sensor.
 Turn the LDA system off, remove
any dirt, rain, condensation, ice,
snow, etc., from the windshield, and
then turn the LDA system back on.
“FRONT CAMERA
U N AVA I L A B L E ” /
“Front Camera
Unavailable”
The operation conditions of the cam-
era sensor (temperature, etc.) are not
met.
 When the operation conditions of
the camera sensor (temperature,
etc.) are met, the LDA system will
become available. Turn the LDA
system off, wait for a little while,
and then turn the LDA system back
on.

3424-5. Using the driving support systems
HILUX_OM_OM0K322E_(EE)
If a different warning message is displayed, follow the instructions displayed
on the screen.
“LDA UNAVAILABLE”/
“LDA unavailable”
The LDA system is temporarily can-
celed due to a malfunction in a sensor
other than the camera sensor.
 Turn the LDA system off and follow
the appropriate troubleshooting
procedures for the warning mes-
sage. Afterward, drive the vehicle
for a short time, and then turn the
LDA system back on.
“LDA UNAVAILABLE
BELOW APPROX
50km/h”/
“LDA unavailable
Below approx
50km/h”
The LDA system cannot be used as
the vehicle speed is less than approxi-
mately 50 km/h (32 mph).
 Drive the vehicle at approximately
50 km/h (32 mph) or more.
“LDA UNAVAILABLE
BELOW APPROX
32MPH”/
“LDA unavailable
Below approx
32MPH”
“LDA UNAVAILABLE
AT CURRENT SPEED”/
“LDA unavailable
at current speed”
The LDA system cannot be used as
the vehicle speed is too high.
 Reduce the vehicle speed.
Warning messageDetails/Actions

343
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K322E_(EE)
RSA (Road Sign Assist)
RSA recognizes specific road
signs using the camera sensor
and provides information to the
driver via the multi-information
display.
If the system judges that the vehicle is being driven over the speed
limit, performing prohibited actions, etc., in relation to the recognized
road signs, it alerts the driver using a warning display and warning
buzzer*.
*: This setting needs to be customized.
: If equipped
Summary of function
camera sensor
WARNING
■ Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.

3444-5. Using the driving support systems
HILUX_OM_OM0K322E_(EE)
After the camera sensor recognizes a sign, it is displayed on the multi-
information display when the vehicle passes the sign.
● When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. ( P. 141)
● When other than the driving
assist system information is
selected, a speed limit sign, a
highway sign or an all canceled
sign can be displayed.
( P. 141)
A no overtaking sign and a
speed limit sign with supple-
mental mark are not displayed.
However, if signs other than
speed limit signs are recog-
nized, they are mentioned in a
stack under the current speed
limit sign.
Indication on the multi-information display
