2017 TOYOTA HILUX Owners Manual (in English)

4014-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K322E_(EE)

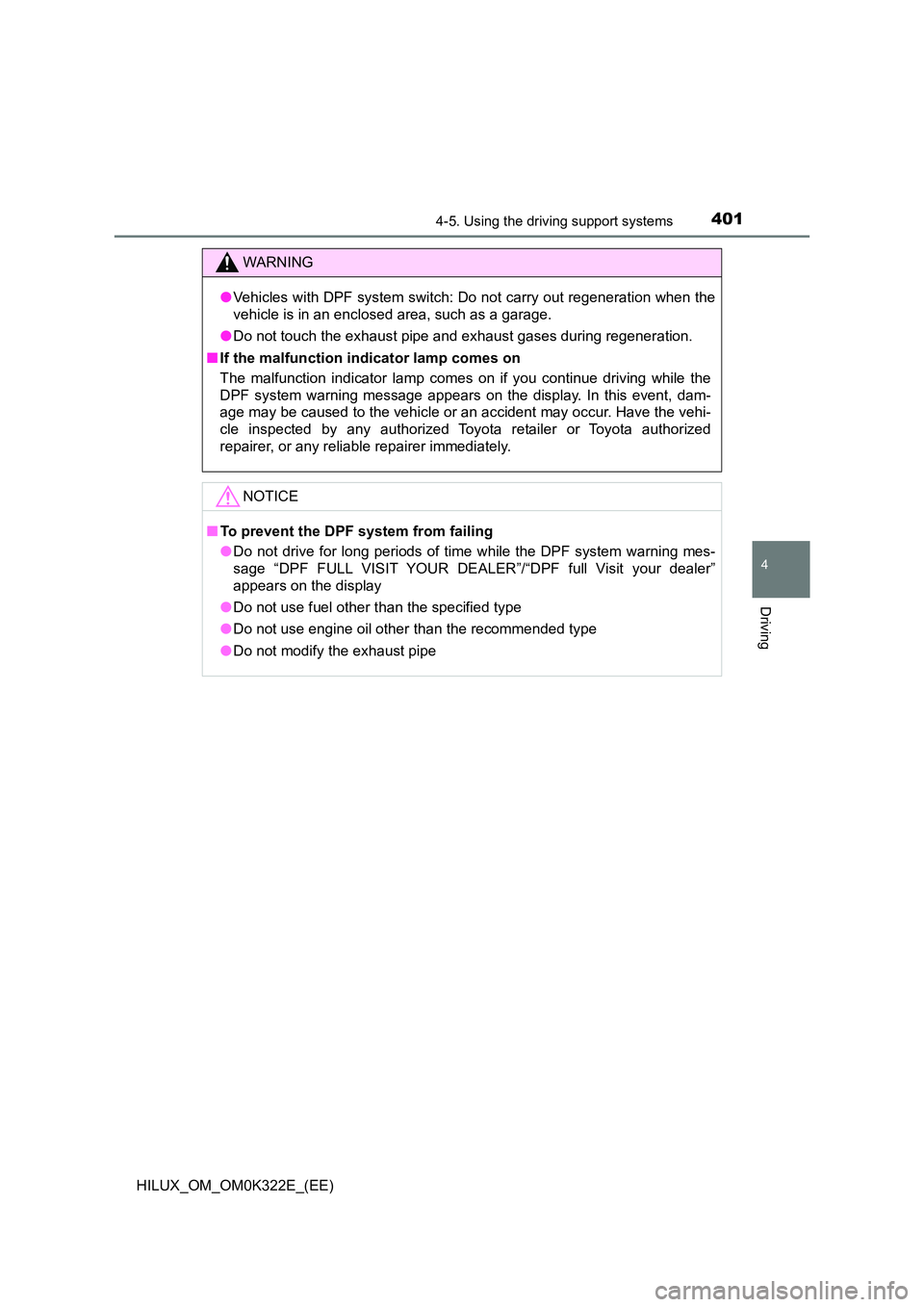

WARNING
●Vehicles with DPF system switch: Do not carry out regeneration when the
vehicle is in an enclosed area, such as a garage.
● Do not touch the exhaust pipe and exhaust gases during regeneration.
■ If the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if you continue driving while the
DPF system warning message appears on the display. In this event, dam-
age may be caused to the vehicle or an accident may occur. Have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
NOTICE
■ To prevent the DPF system from failing
● Do not drive for long periods of time while the DPF system warning mes-
sage “DPF FULL VISIT YOUR DEALER”/“DPF full Visit your dealer”
appears on the display
● Do not use fuel other than the specified type
● Do not use engine oil other than the recommended type
● Do not modify the exhaust pipe

4024-6. Driving tips
HILUX_OM_OM0K322E_(EE)
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

4034-6. Driving tips
4
Driving
HILUX_OM_OM0K322E_(EE)
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
● Park the vehicle and move the shift lever to P (automatic transmis-
sion) or 1 or R (manual transmission) without setting the parking
brake. The parking brake may freeze up, preventing it from being
released. If the vehicle is parked without setting the parking brake,
make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
● Vehicles with automatic transmission: If the vehicle is parked with-
out setting the parking brake, confirm that the shift lever cannot be
moved out of P*.
*: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
When driving the vehicle
When parking the vehicle (in the winter time or in the cold lati-
tudes)
Selecting tire chains
Regulations on the use of tire chains

4044-6. Driving tips
HILUX_OM_OM0K322E_(EE)

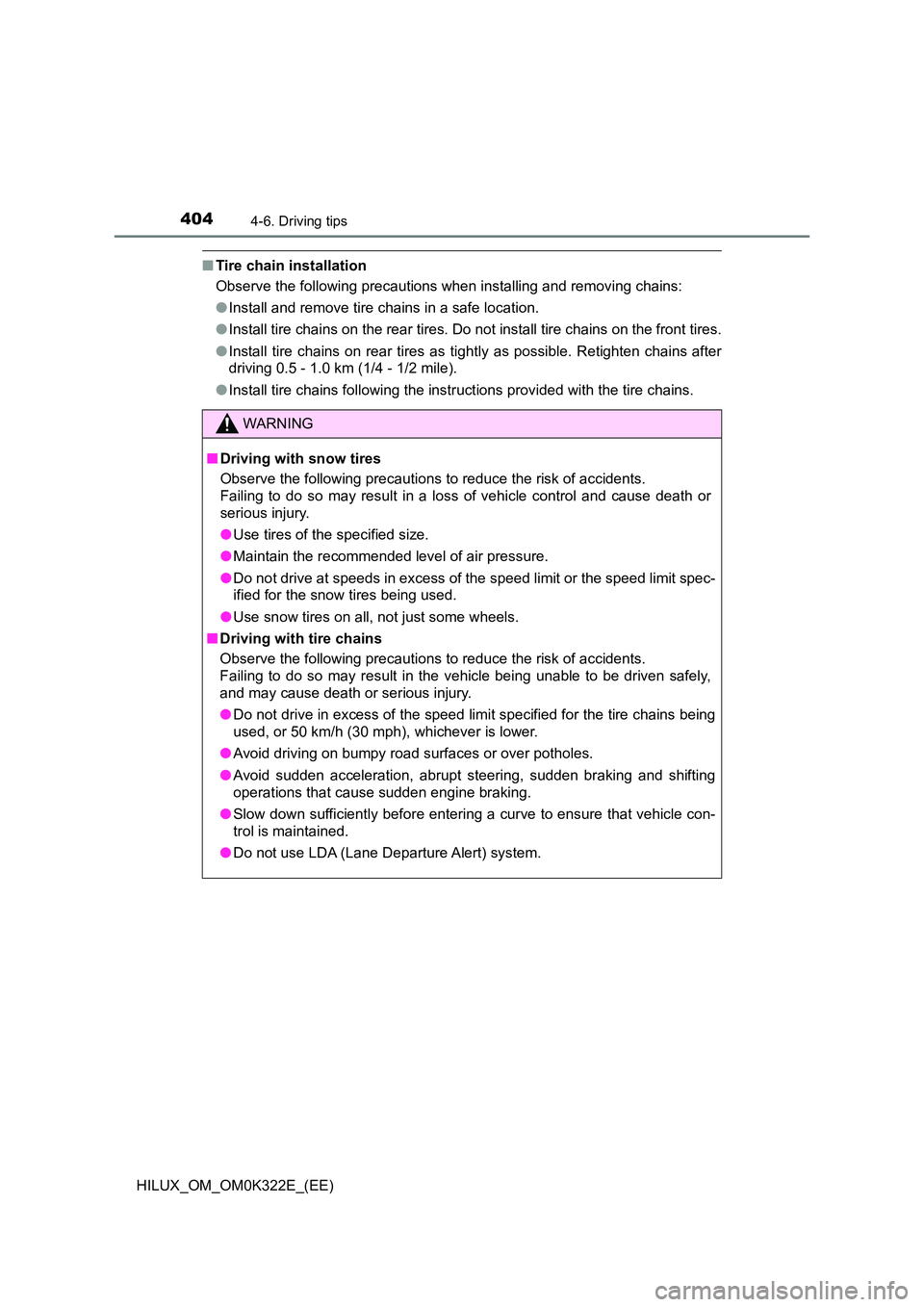

■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the rear tires. Do not install tire chains on the front tires.
● Install tire chains on rear tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert) system.

405

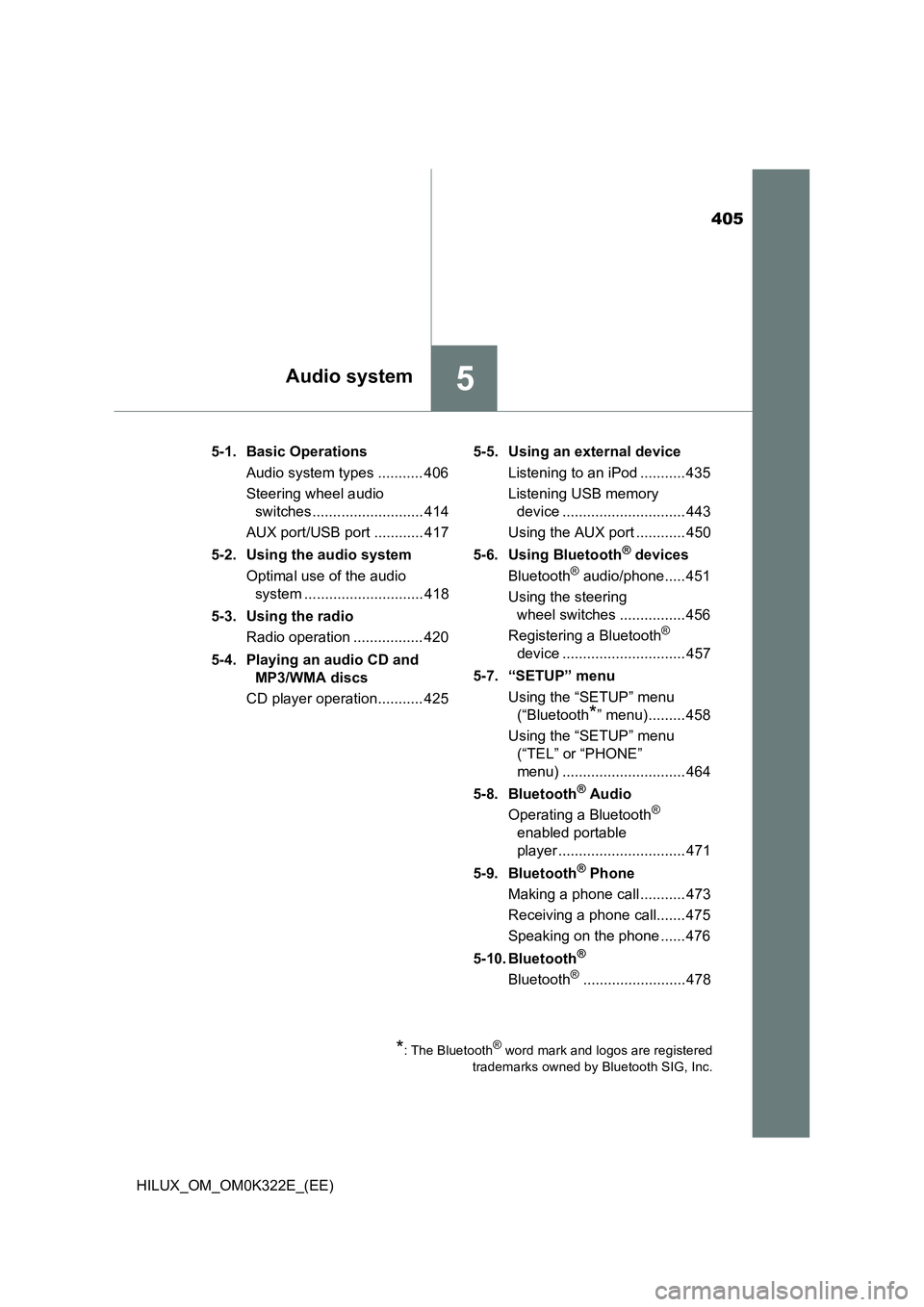

5Audio system
HILUX_OM_OM0K322E_(EE)
5-1. Basic Operations
Audio system types ........... 406
Steering wheel audio
switches ........................... 414
AUX port/USB port ............ 417
5-2. Using the audio system
Optimal use of the audio
system ............................. 418
5-3. Using the radio
Radio operation ................. 420
5-4. Playing an audio CD and
MP3/WMA discs
CD player operation........... 425
5-5. Using an external device
Listening to an iPod ........... 435
Listening USB memory
device .............................. 443
Using the AUX port ............ 450
5-6. Using Bluetooth® devices
Bluetooth® audio/phone..... 451
Using the steering
wheel switches ................ 456
Registering a Bluetooth®
device .............................. 457
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu)......... 458
Using the “SETUP” menu
(“TEL” or “PHONE”
menu) .............................. 464
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ............................... 471
5-9. Bluetooth® Phone
Making a phone call ........... 473
Receiving a phone call....... 475
Speaking on the phone ...... 476
5-10. Bluetooth®
Bluetooth®......................... 478
*: The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.

4065-1. Basic Operations
HILUX_OM_OM0K322E_(EE)

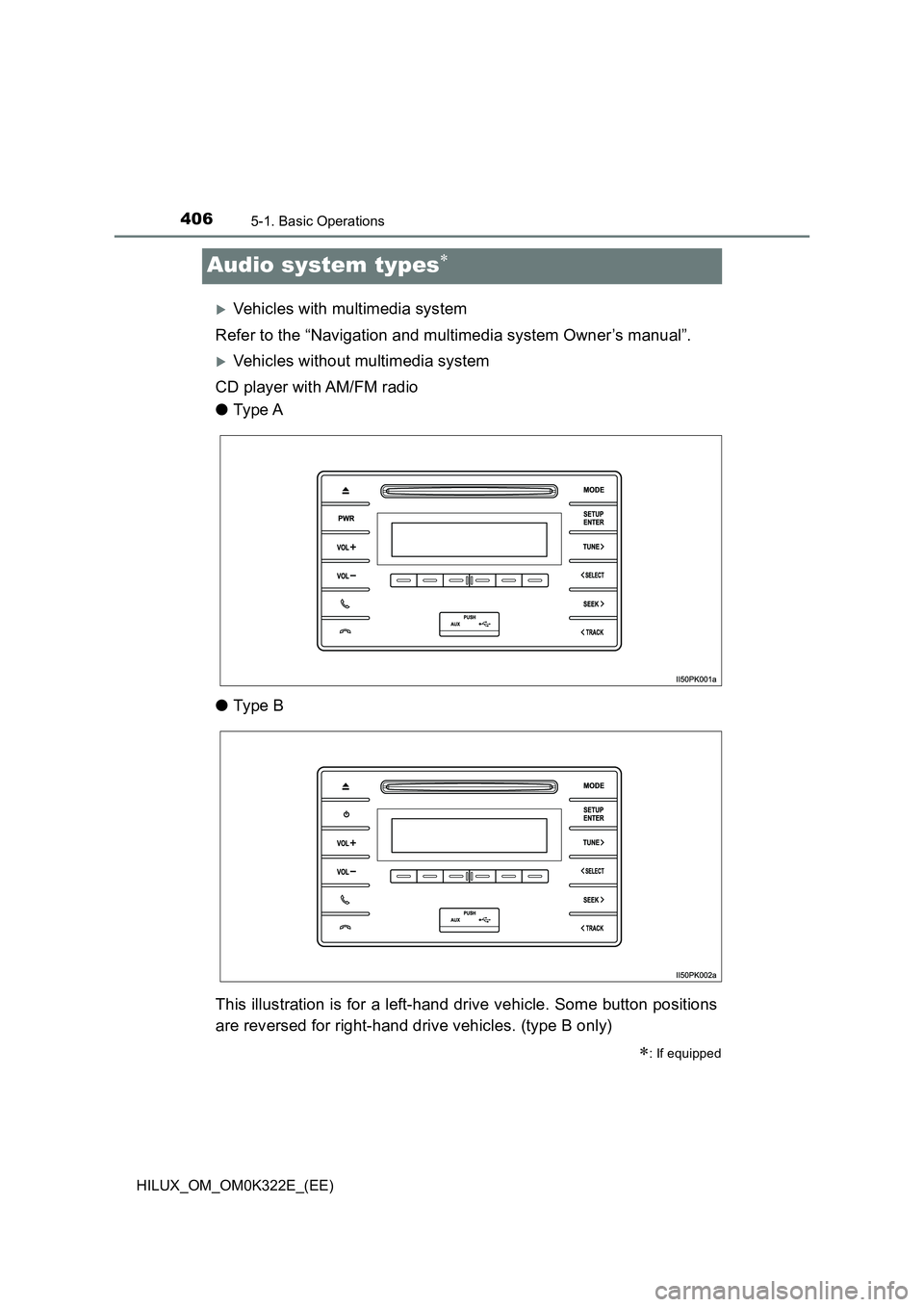

Audio system types
Vehicles with multimedia system
Refer to the “Navigation and multimedia system Owner’s manual”.
Vehicles without multimedia system
CD player with AM/FM radio
● Ty pe A
● Ty pe B
This illustration is for a left-hand drive vehicle. Some button positions
are reversed for right-hand drive vehicles. (type B only)
: If equipped

4075-1. Basic Operations
5
Audio system
HILUX_OM_OM0K322E_(EE)

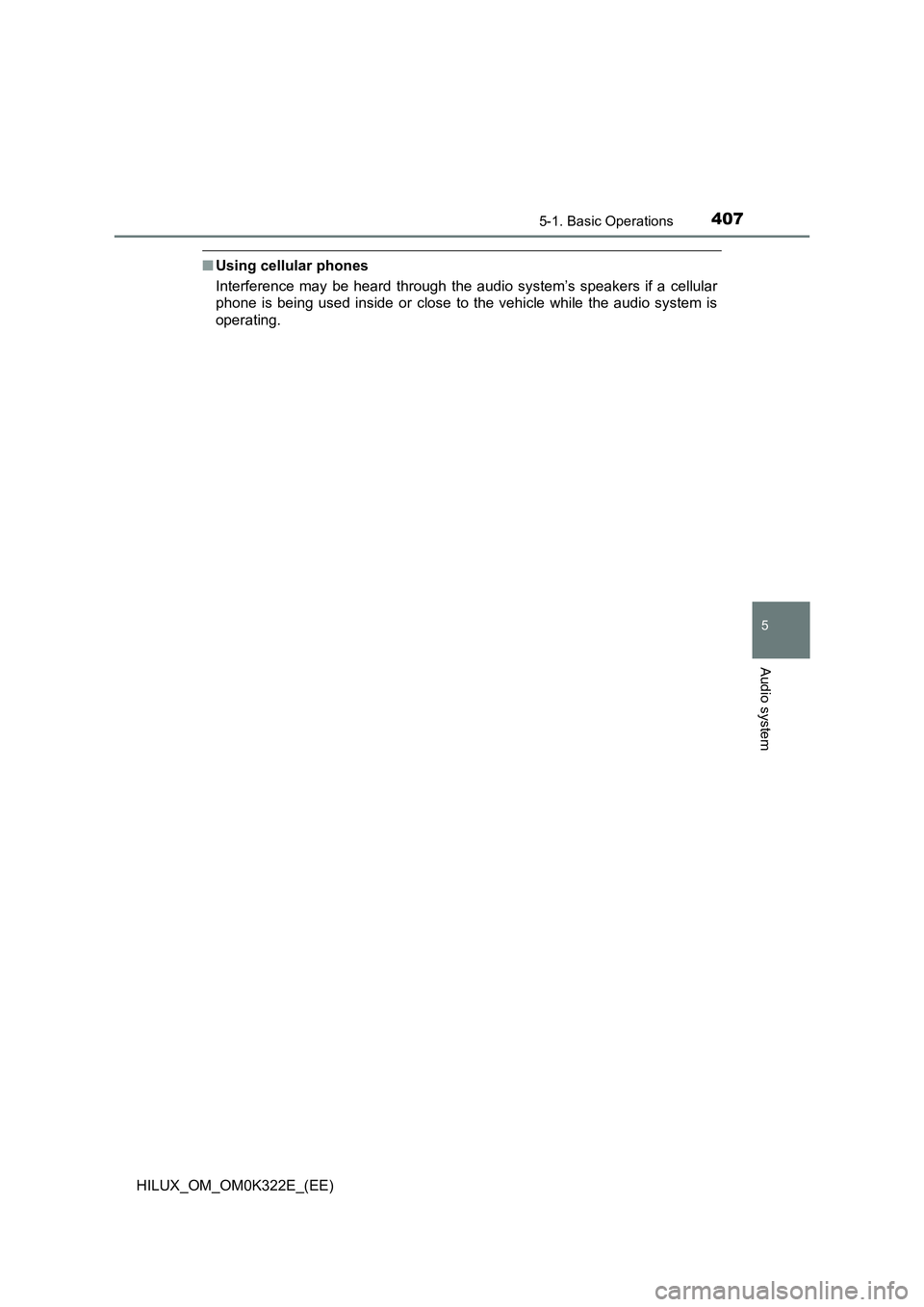

■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.

4085-1. Basic Operations
HILUX_OM_OM0K322E_(EE)
WARNING
■Certification for the disc player
