2017 TOYOTA HIGHLANDER HYBRID Owners Manual

5457-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U (OM48F12U)
Check the wattage of the light bulb to be replaced. (→P. 649)
→ P. 1 3 3

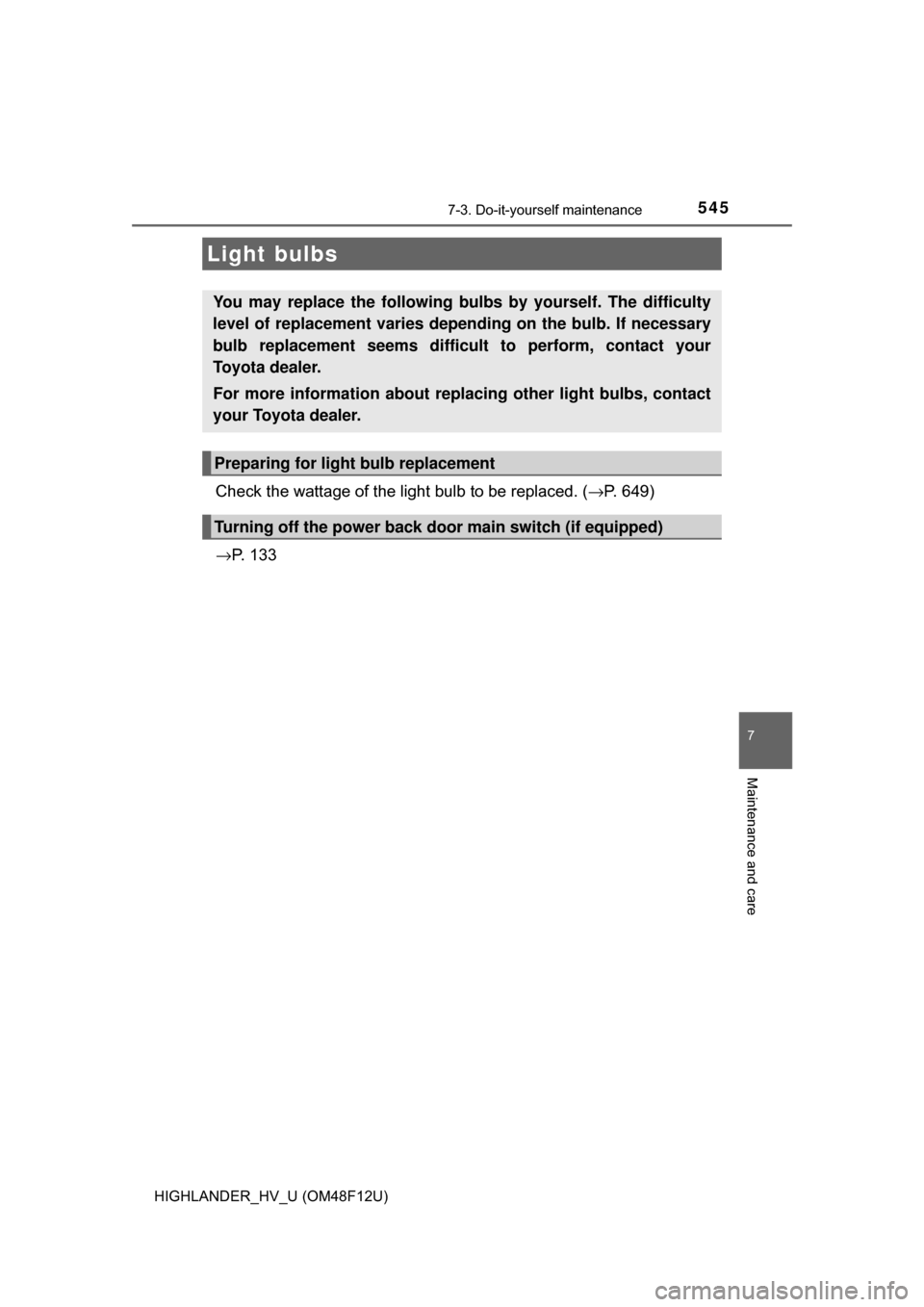

Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Turning off the power back door main switch (if equipped)

5467-3. Do-it-yourself maintenance
HIGHLANDER_HV_U (OM48F12U)■
Front
■Rear

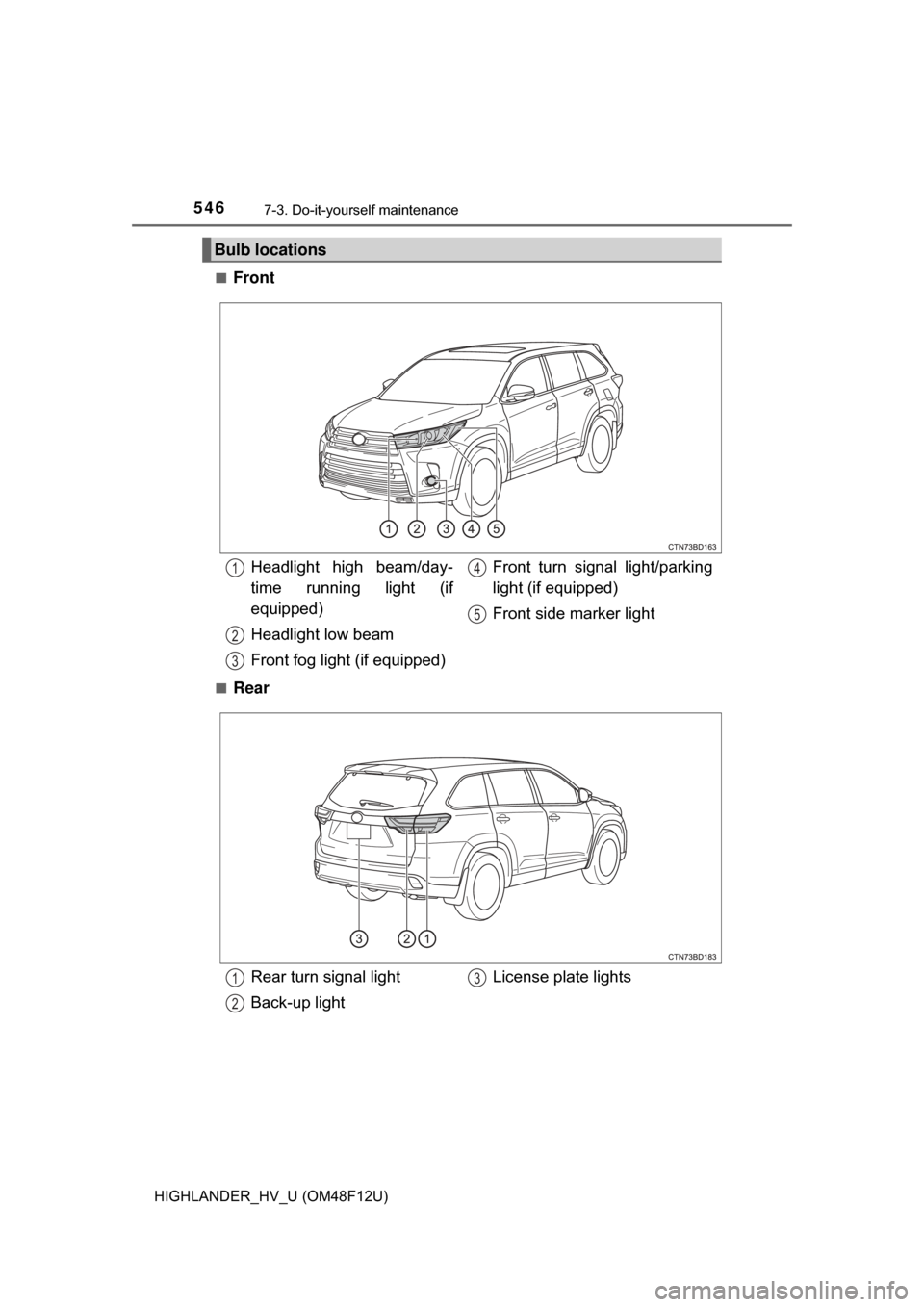

Bulb locations
Headlight high beam/day-
time running light (if
equipped)
Headlight low beam
Front fog light (if equipped)
Front turn signal light/parking
light (if equipped)
Front side marker light1
2
3
4
5
Rear turn signal light
Back-up light
License plate lights1
2
3

5477-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U (OM48F12U)■
Headlight low beams
For the right side only:
Remove the washer fluid
tank opening.
For the left side only:
Remove the fuse box.
Turn the cover counterclock-
wise.
Turn the bulb base counter-
clockwise.
Replacing light bulbs
1
2
3

5487-3. Do-it-yourself maintenance
HIGHLANDER_HV_U (OM48F12U)
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beams on
once and visually confirm that
no light is leaking through the
mounting.
Turn the cover clockwise and
install it.
For the right side only: Install the washer fluid tank.
For the left side only: Install the fuse box.
4
5
6
7
8

5497-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U (OM48F12U)■

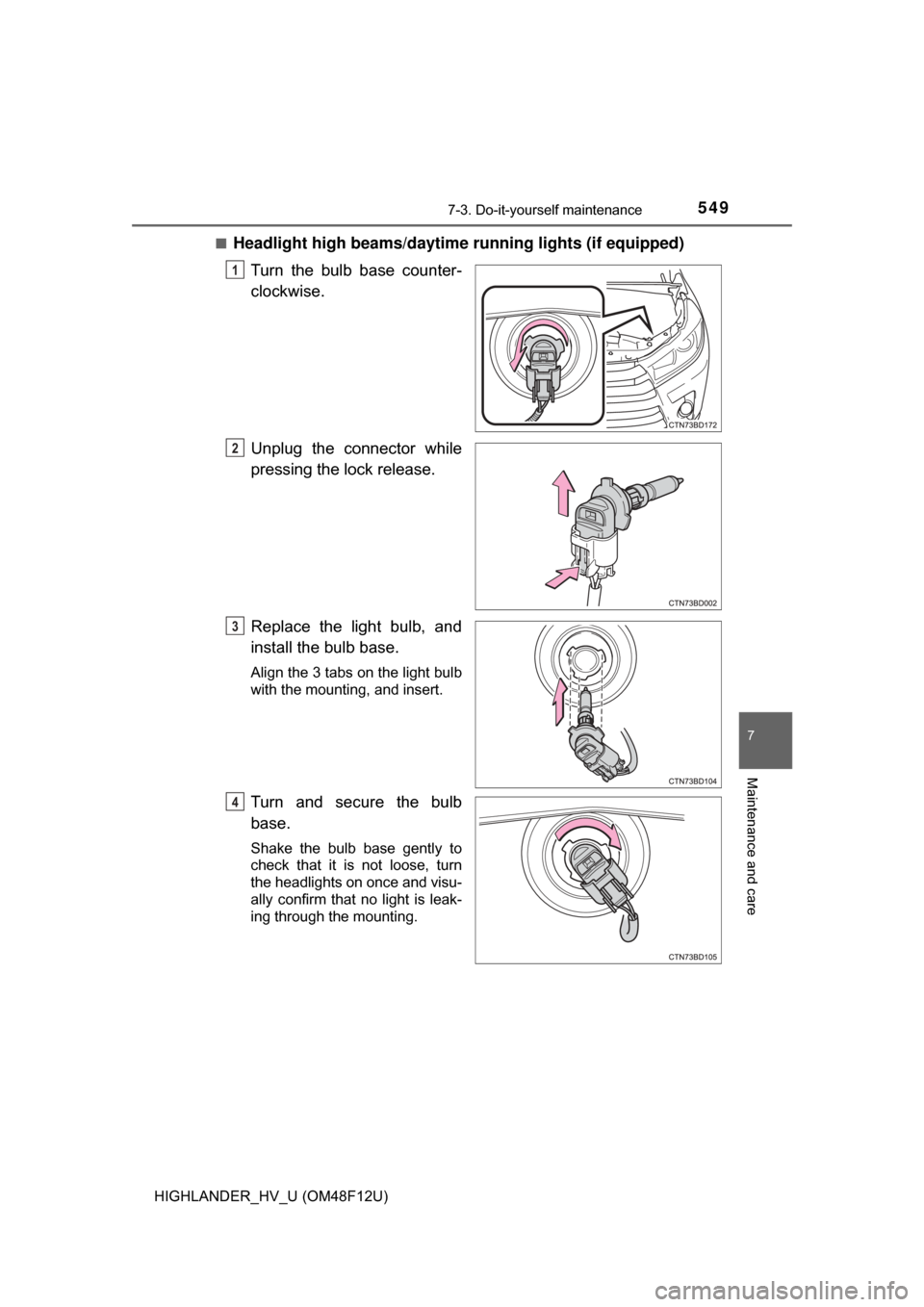

Headlight high beams/daytim
e running lights (if equipped)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
1
2
3
4

5507-3. Do-it-yourself maintenance
HIGHLANDER_HV_U (OM48F12U)■
Front turn signal lights/
parking lights (if equipped)
Remove the 2 clips and
remove the side cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install by conducting and with the directions reversed.
Install the side cover and
then install the 2 clips.
1
2
3
432
5

5517-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U (OM48F12U)■

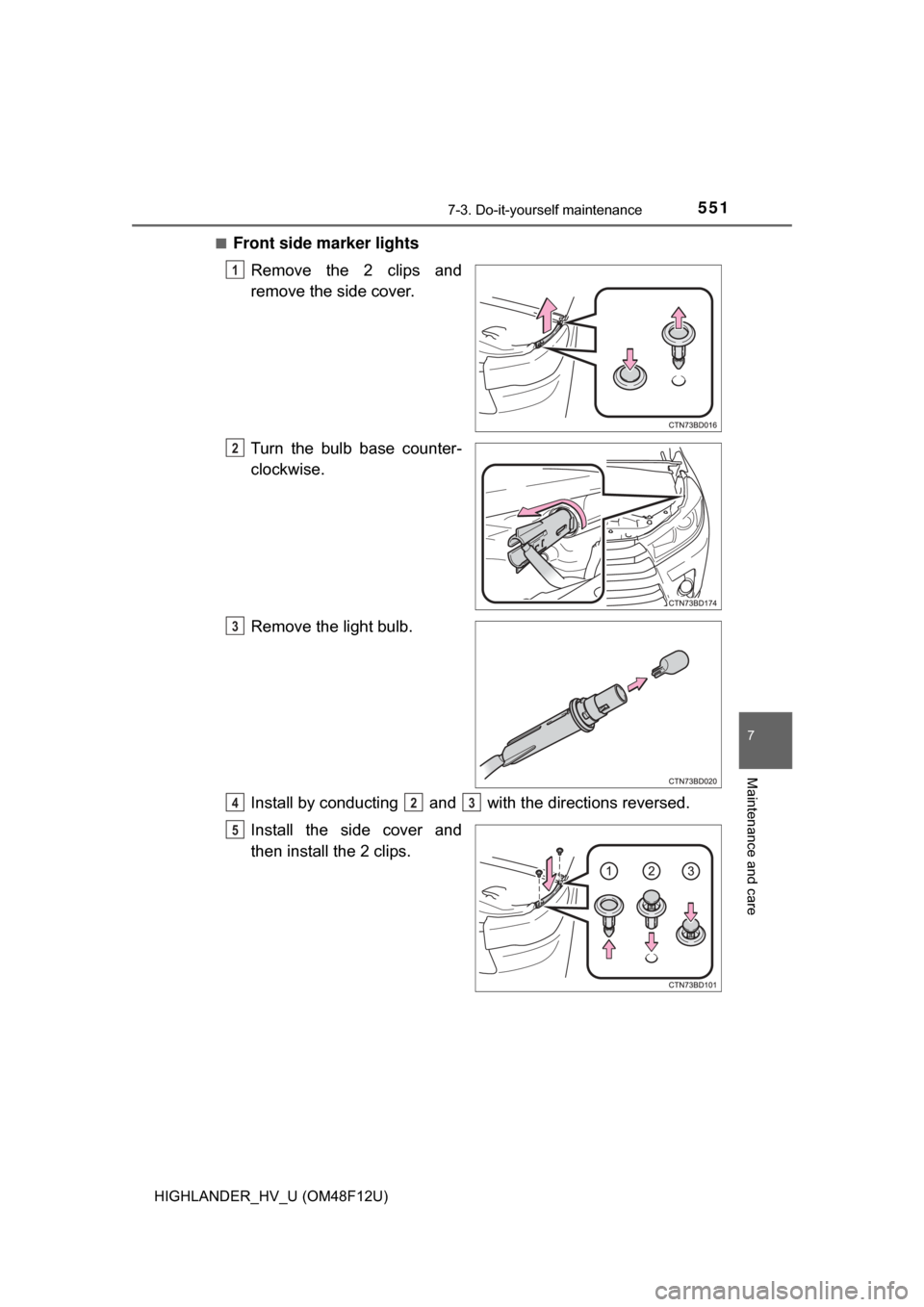

Front side marker lights
Remove the 2 clips and
remove the side cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install by conducting and with the directions reversed.
Install the side cover and
then install the 2 clips.
1
2
3
423
5

5527-3. Do-it-yourself maintenance
HIGHLANDER_HV_U (OM48F12U)■

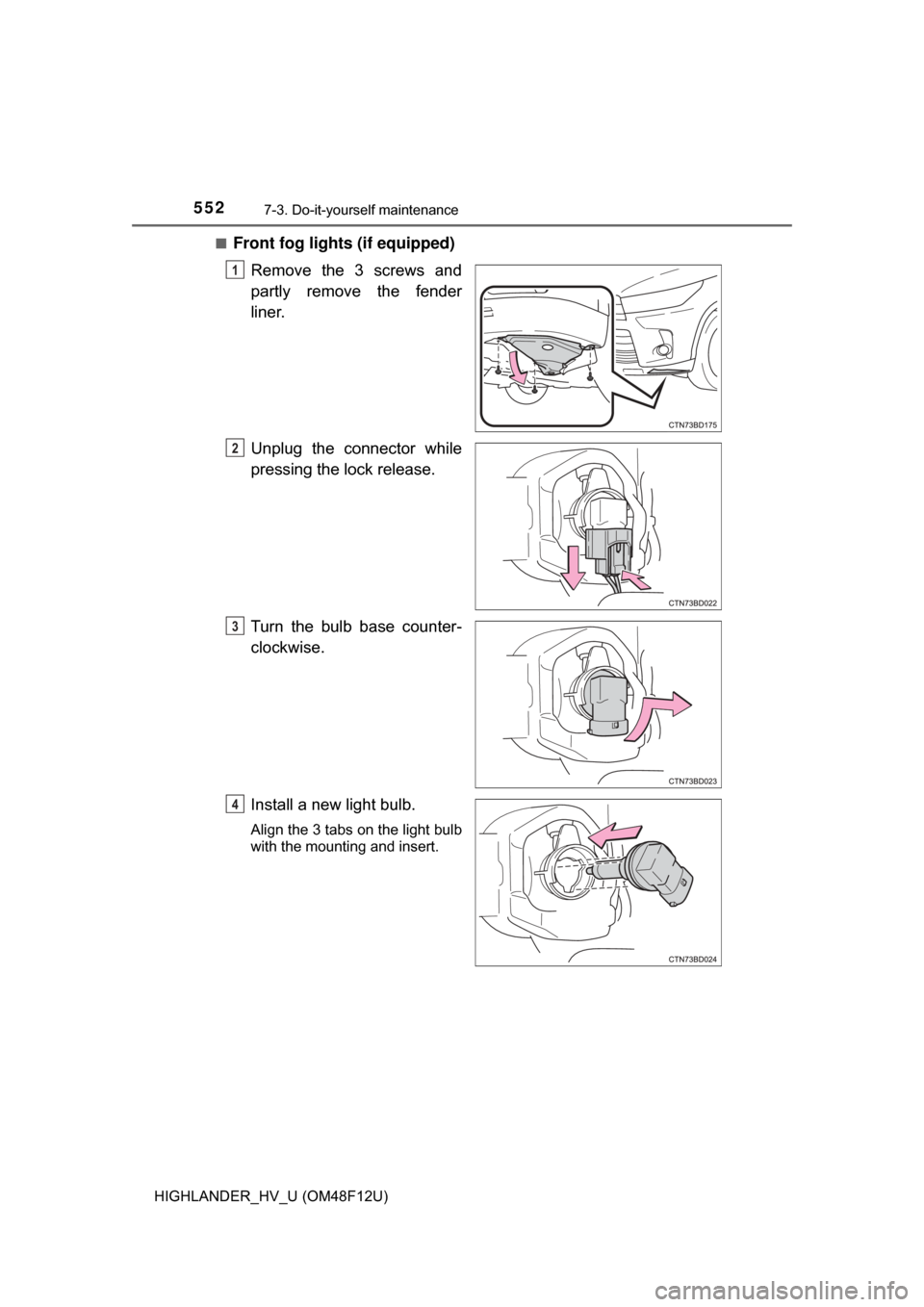

Front fog lights (if equipped)
Remove the 3 screws and
partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
1
2
3
4
