2017 TOYOTA HIGHLANDER HYBRID Owners Manual

2334-2. Driving procedures
4
Driving
HIGHLANDER_HV_U (OM48F12U)
While the power switch is in ON mode, depress the brake
pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Hybrid transmission
Shifting the shift lever

2344-2. Driving procedures
HIGHLANDER_HV_U (OM48F12U)
*1: Shifting to the D position allows the system to select a gear suitable for thedriving conditions. Setting the shift lever to the D position is recommended
for normal driving.
*2: Selecting shift ranges using S mode controls engine braking forces.
Use Eco drive mode to help achieve low fuel consumption during trips
that involve frequent accelerating.
Press the “ECO MODE” switch to
select Eco drive mode.
The “ECO MODE” indicator will be
displayed on the multi-information
display.
Press the button again to cancel
Eco drive mode.

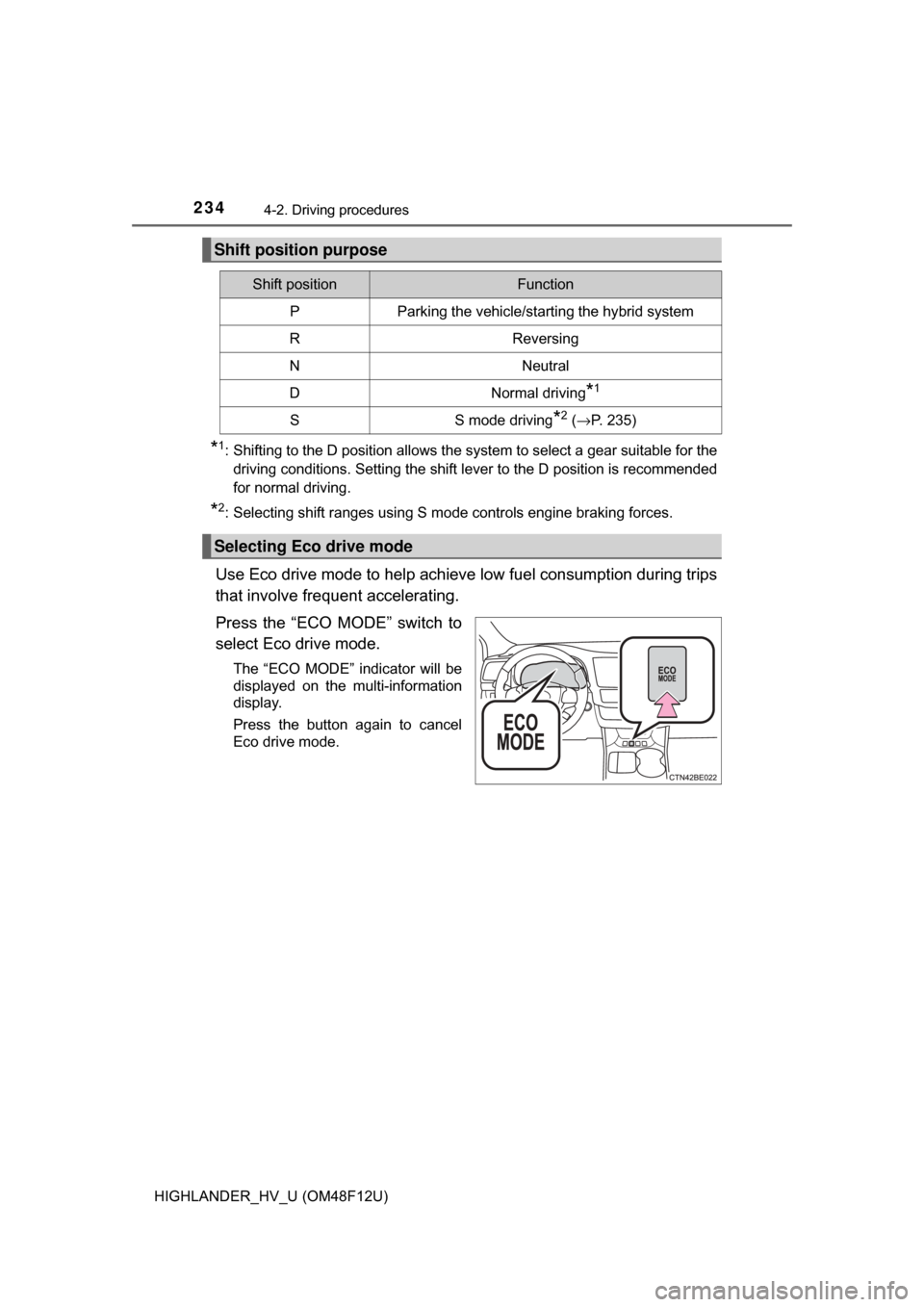

Shift position purpose
Shift positionFunction
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 ( →P. 235)
Selecting Eco drive mode

2354-2. Driving procedures
4
Driving
HIGHLANDER_HV_U (OM48F12U)
When the shift lever is in the S position, the shift lever can be oper-
ated as follows:For upshifting
For downshifting
The initial shift range in S mode is set automatically to 5 or 4 accord-
ing to vehicle speed.
■Shift ranges and their functions
● You can choose from 6 levels of engine braking force.
● A lower shift range will provide greater engine braking force than
a higher shift range, and the engine speed will also increase.
Changing shift ranges in S mode
1
2

2364-2. Driving procedures
HIGHLANDER_HV_U (OM48F12U)
■Operation of the air conditio ning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency. ( →P. 434) To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
■ Automatic return to normal driving mode
If EV drive mode is selected, the driving mode will automatically return to nor-
mal mode when the hybrid system is turned off.
■ S mode
●When the shift range is 5 or lower, holding the shift lever toward “+” sets the
shift range to 6.
● To prevent the engine from over-revving, upshifting may automatically
occur.
■ When driving with dynamic radar cruise control activated
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate while driving in S mode and down-
shifting to 5 or 4 because dynamic radar cruise control will not be canceled.
(→P. 292)
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is in ON
mode and the brake pedal is being depressed.

2374-2. Driving procedures
4
Driving
HIGHLANDER_HV_U (OM48F12U)■
If the shift lever canno t be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by y\
our
Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the power switch off.
Depress the brake pedal.
■ If S does not come on even after shifting the shift lever to S
This may indicate a malfunction in the hybrid transmission system. Have \
the
vehicle inspected by your Toyota dealer immediately.
(In this situation, the hybrid transmission will operate in the same as manner
as when the shift lever is in D.)
■ Downshift restriction warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The buzzer will sound twice.)Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5

2384-2. Driving procedures
HIGHLANDER_HV_U (OM48F12U)
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
NOTICE
■Hybrid battery (traction battery) charge precaution
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged even when the engine is running. Therefore, if the vehicle is left
with the shift lever in N for a long period of time, the hybrid battery (traction
battery) will discharge, and this may result in the vehicle not being able to
start.

2394-2. Driving procedures
4
Driving
HIGHLANDER_HV_U (OM48F12U)
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■Turn signals can be operated when
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature →P. 673)
Turn signal lever
Operating instructions
1
2
3
4

2404-2. Driving procedures
HIGHLANDER_HV_U (OM48F12U)
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depress-
ing the brake pedal with your right
foot.
(Depressing the pedal again
releases the parking brake.)
*1:For U.S.A.
*2: For Canada
■Parking the vehicle
→P. 192
■ Parking brake engaged warning buzzer
→P. 581
■ Usage in winter time
→P. 337
Parking brake
Operating instructions
*1*2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
