2017 TOYOTA HIGHLANDER HYBRID Owners Manual

5858-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U (OM48F12U)

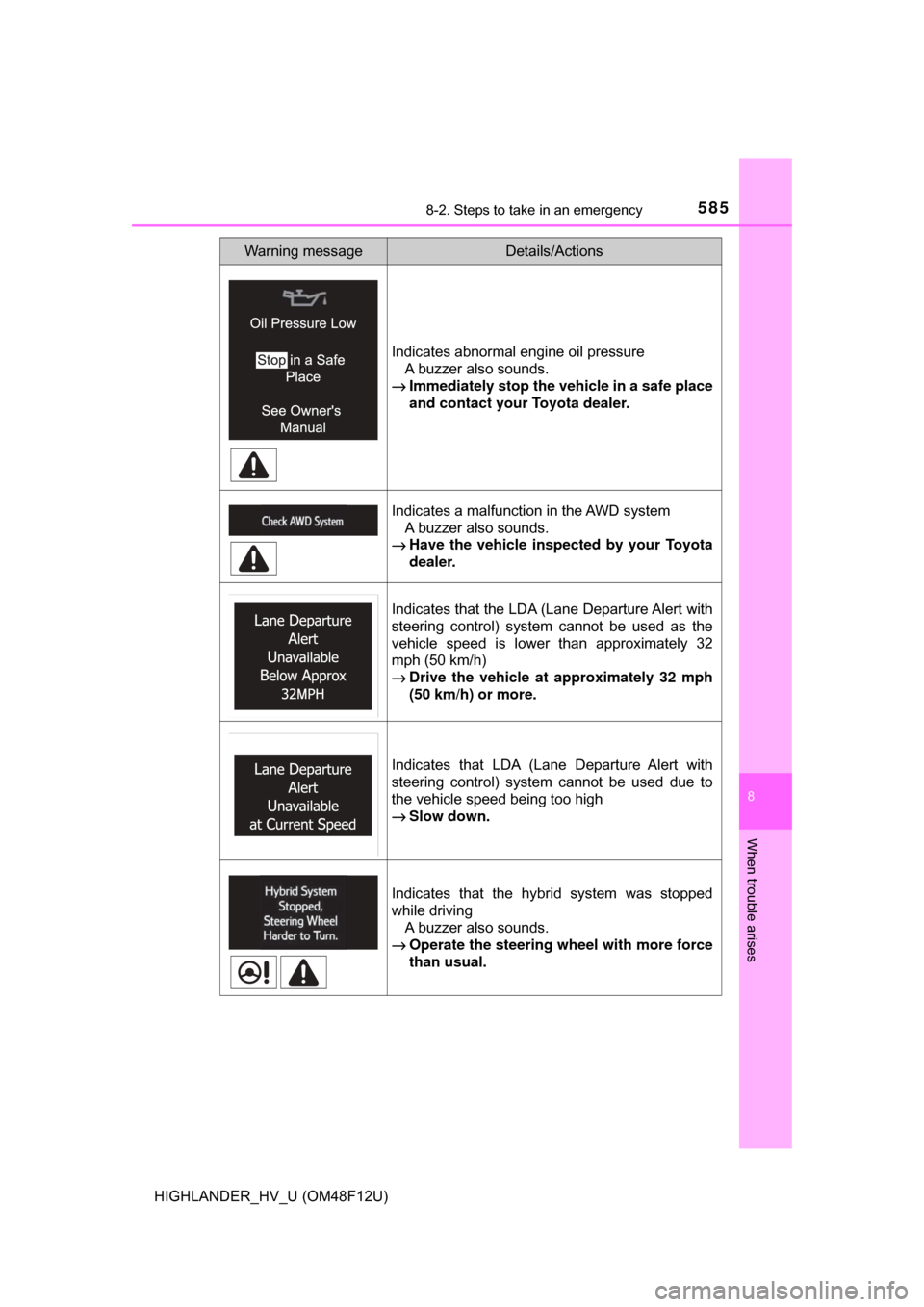

Indicates abnormal engine oil pressureA buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the AWD system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates that the LDA (Lane Departure Alert with
steering control) system cannot be used as the
vehicle speed is lower than approximately 32
mph (50 km/h)
→ Drive the vehicle at approximately 32 mph
(50 km/h) or more.
Indicates that LDA (Lane Departure Alert with
steering control) system cannot be used due to
the vehicle speed being too high
→Slow down.
Indicates that the hybrid system was stopped
while driving
A buzzer also sounds.
→ Operate the steering wheel with more force
than usual.
Warning messageDetails/Actions

5868-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48F12U)

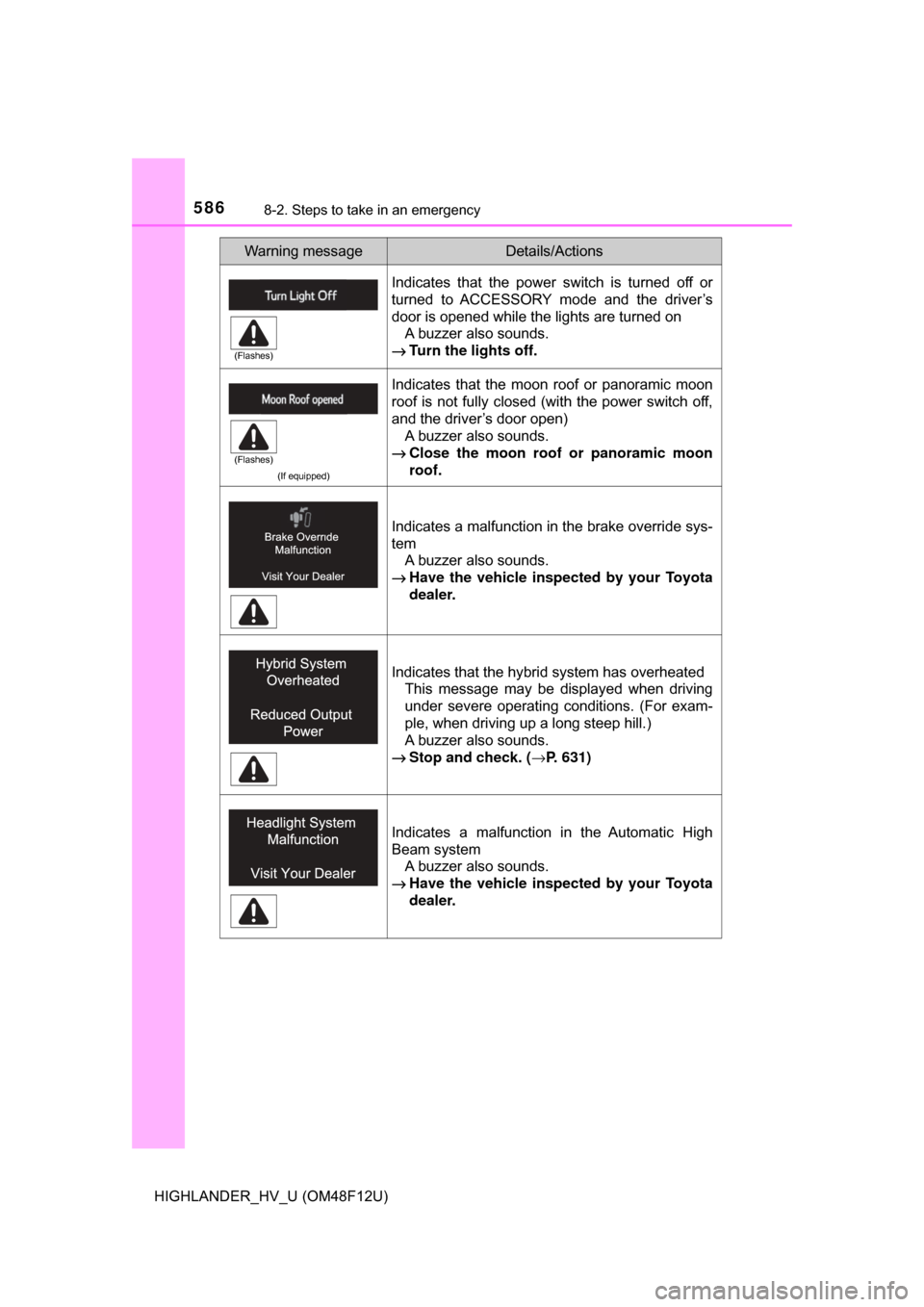

Indicates that the power switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned onA buzzer also sounds.
→ Turn the lights off.
(If equipped)
Indicates that the moon roof or panoramic moon
roof is not fully closed (with the power switch off,
and the driver’s door open)
A buzzer also sounds.
→ Close the moon roof or panoramic moon
roof.
Indicates a malfunction in the brake override sys-
tem
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates that the hybrid system has overheated This message may be displayed when driving
under severe operating conditions. (For exam-
ple, when driving up a long steep hill.)
A buzzer also sounds.
→ Stop and check. ( →P. 631)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5878-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U (OM48F12U)
Indicates that the accelerator and brake pedal
are being depressed simultaneously
→Release the accelerator or brake pedal.
Indicates that the washer fluid level is low
→Add washer fluid.
Indicates that remaining fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp. gal.) or less
→Refuel the vehicle.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
→Turn the TRAC on. ( →P. 331)
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule*1
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
→If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule*
1.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
→ Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( →P. 498)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→Turn the high beam on and press the Auto-
matic High Beam switch again.
Warning messageDetails/Actions
(Flashes)

5888-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48F12U)

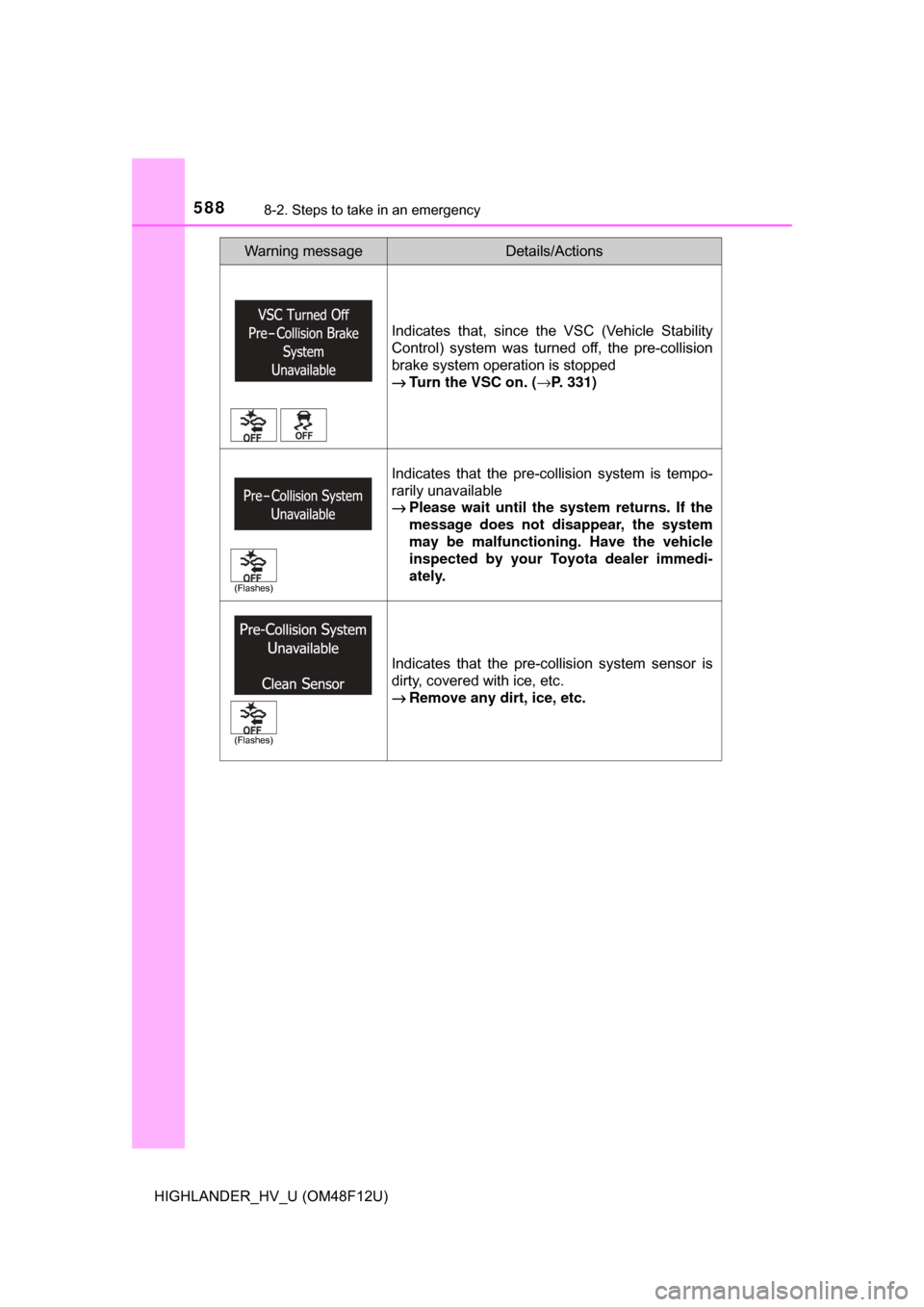

Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
→Turn the VSC on. ( →P. 331)
Indicates that the pre-collision system is tempo-
rarily unavailable
→Please wait until the system returns. If the
message does not disappear, the system
may be malfunctioning. Have the vehicle
inspected by your Toyota dealer immedi-
ately.
Indicates that the pre-collision system sensor is
dirty, covered with ice, etc.
→Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5898-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U (OM48F12U)

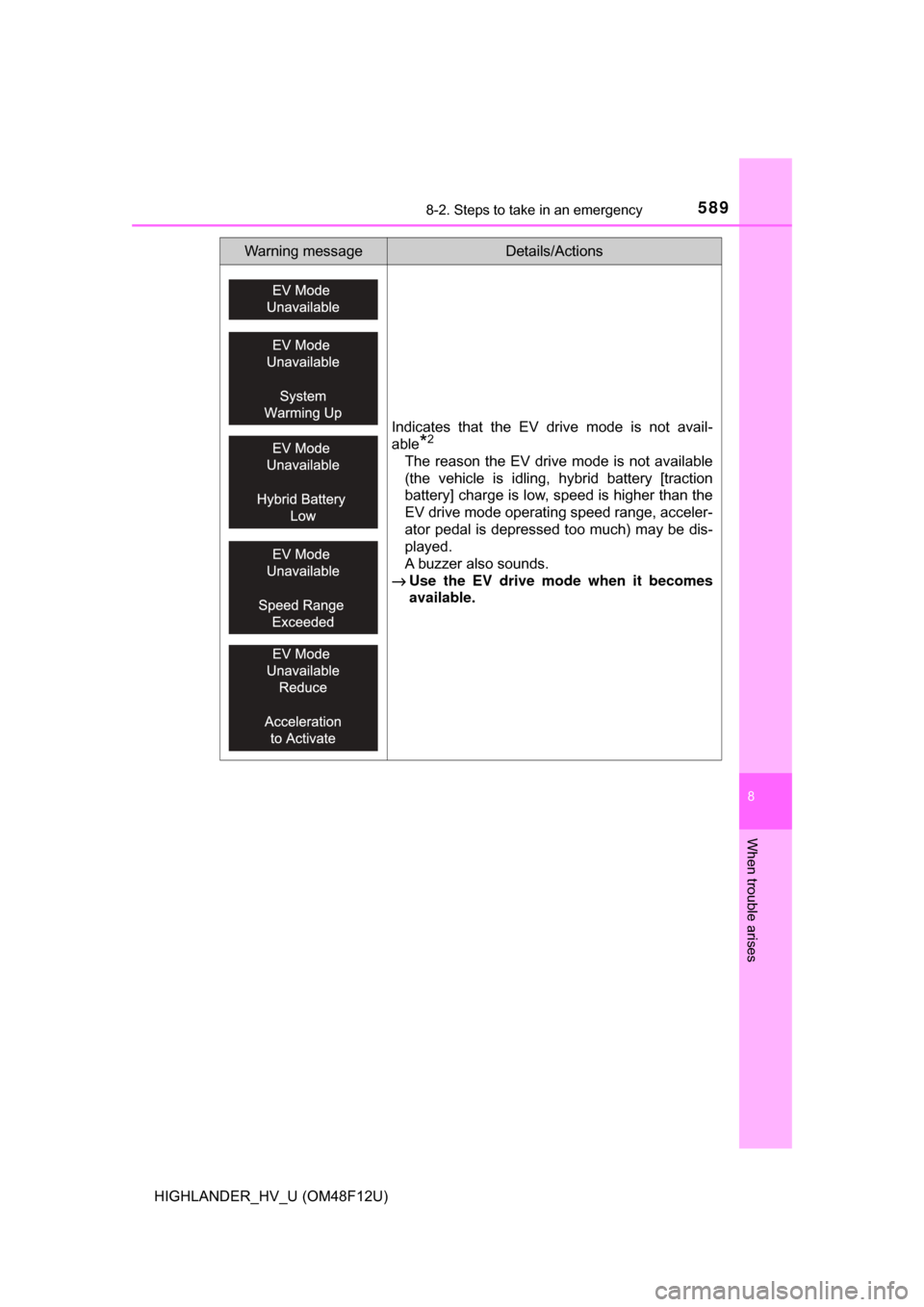

Indicates that the EV drive mode is not avail-
able
*2
The reason the EV drive mode is not available
(the vehicle is idling, hybrid battery [traction
battery] charge is low, speed is higher than the
EV drive mode operating speed range, acceler-
ator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
→ Use the EV drive mode when it becomes
available.
Warning messageDetails/Actions

5908-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48F12U)
*1: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*2: For the EV drive mode operating conditions: →P. 231
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Conditions that the tire pressure warning system may not function prop-
erly
→P. 528
■ Warning buzzer
→P. 573
Indicates that the EV drive mode has been auto-
matically canceled
*2
The reason the EV drive mode is not available
(the hybrid battery [traction battery] charge is
low, speed is higher than the EV drive mode
operating speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
Warning messageDetails/Actions

5918-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U (OM48F12U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions

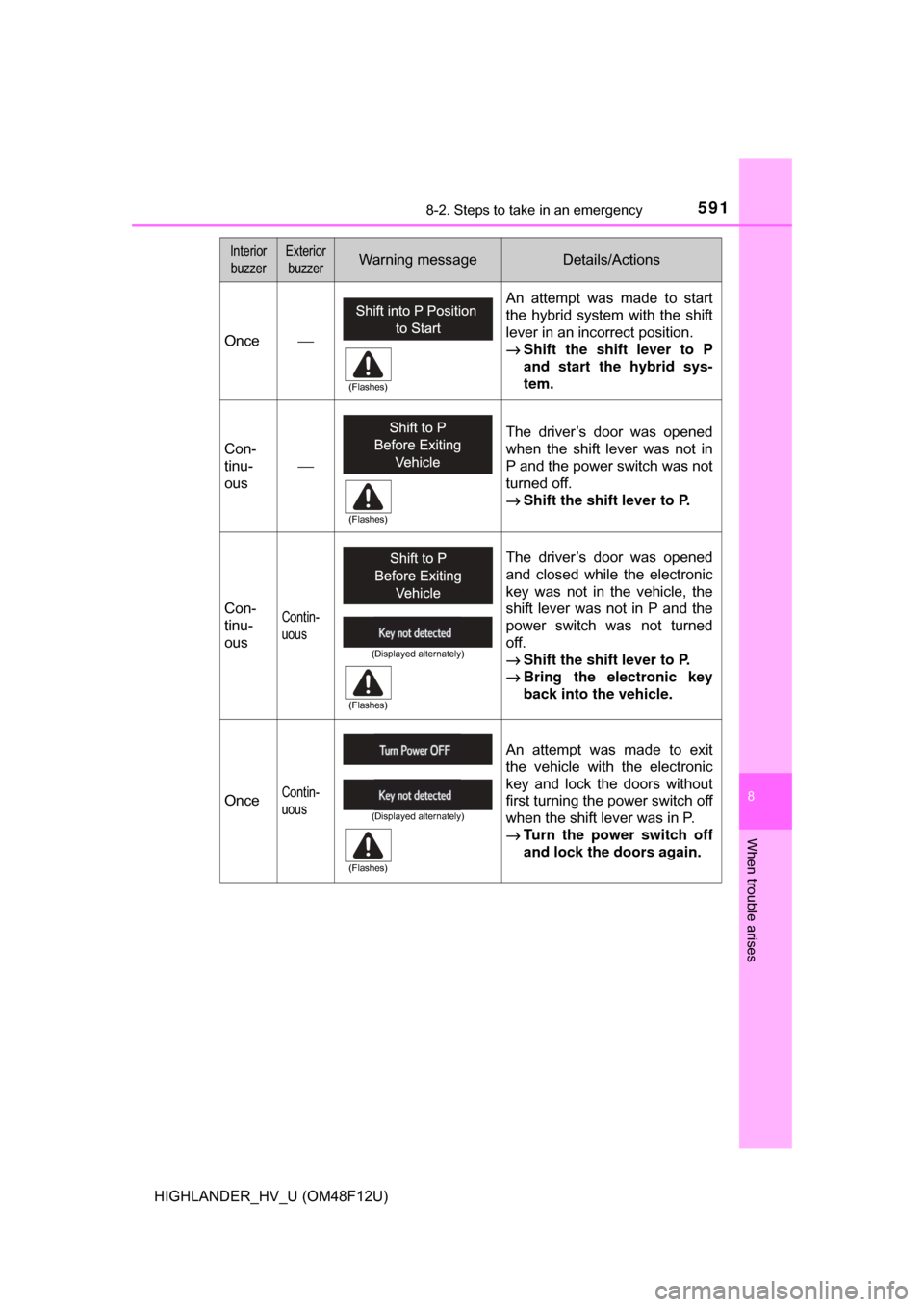

Once ⎯ An attempt was made to start
the hybrid system with the shift
lever in an incorrect position.
→
Shift the shift lever to P
and start the hybrid sys-
tem.
Con-
tinu-
ous
⎯
The driver’s door was opened
when the shift lever was not in
P and the power switch was not
turned off.
→Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
power switch was not turned
off.
→Shift the shift lever to P.
→ Bring the electronic key
back into the vehicle.
OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch off
when the shift lever was in P.
→Turn the power switch off
and lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
(Displayed alternately)
(Flashes)

5928-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48F12U)

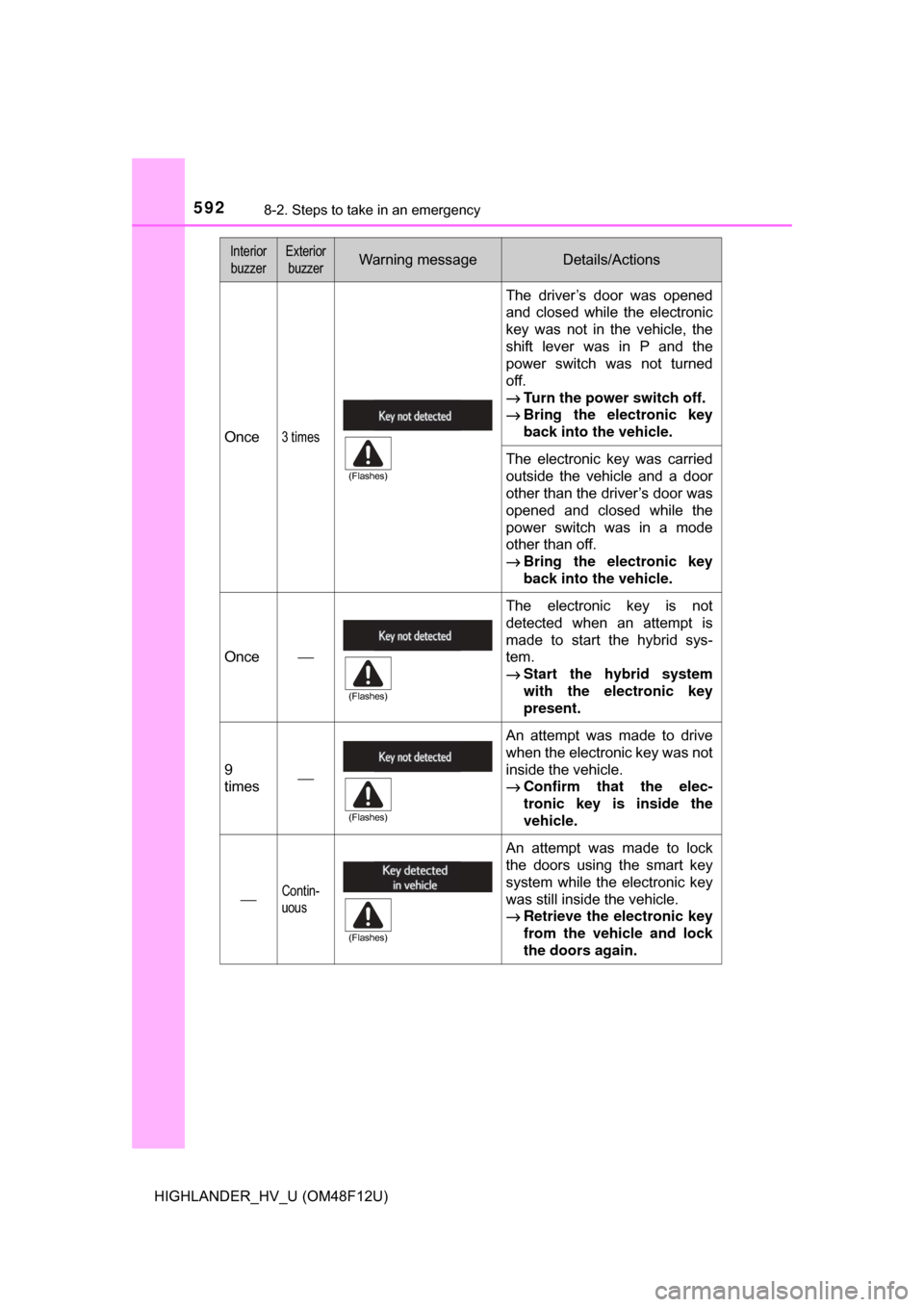

Once3 times
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P and the
power switch was not turned
off.
→Turn the power switch off.
→ Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
→Bring the electronic key
back into the vehicle.
Once⎯
The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
→Start the hybrid system
with the electronic key
present.
9
times⎯
An attempt was made to drive
when the electronic key was not
inside the vehicle.
→Confirm that the elec-
tronic key is inside the
vehicle.
⎯Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
→Retrieve the electronic key
from the vehicle and lock
the doors again.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
