1132. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Multi-information display
Audio system screen
Entune Audio
Press the “CAR” button.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Energy monitor/consumption screen
You can view the status of the hybrid system on the multi-infor-
mation display or audio system screen.
1
2
Energy monitor
1
2

1142. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Multi-information display
To select the energy monitor dis-
play, push the meter control
switches several times
Audio system screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine

1152. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
These images are examples only.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
Audio system screenMulti-information display
LowFullLowFull

1162. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Energy Monitor” or “Past
Record” screen is displayed, touch
“Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since
the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range
This image is an example only, and may vary slightly from actual condi-
tions.
Trip Information (audio system screen)
1
2
1
2
3
4
5
6

1172. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Press the “APPS” button.
Touch “ECO” on the “Apps” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consumption
Average fuel consumption
Displays a maximum of five past
records of the average fuel con-
sumption.
Previous fuel consumption
record
Update
The average fuel consumption and graph are updated, and a new aver-
age fuel consumption record begins.
This image is an example only, and may vary slightly from actual condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and regenerated energy for the last 15 minutes. Selecting “Clear” on the
“Past Record” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

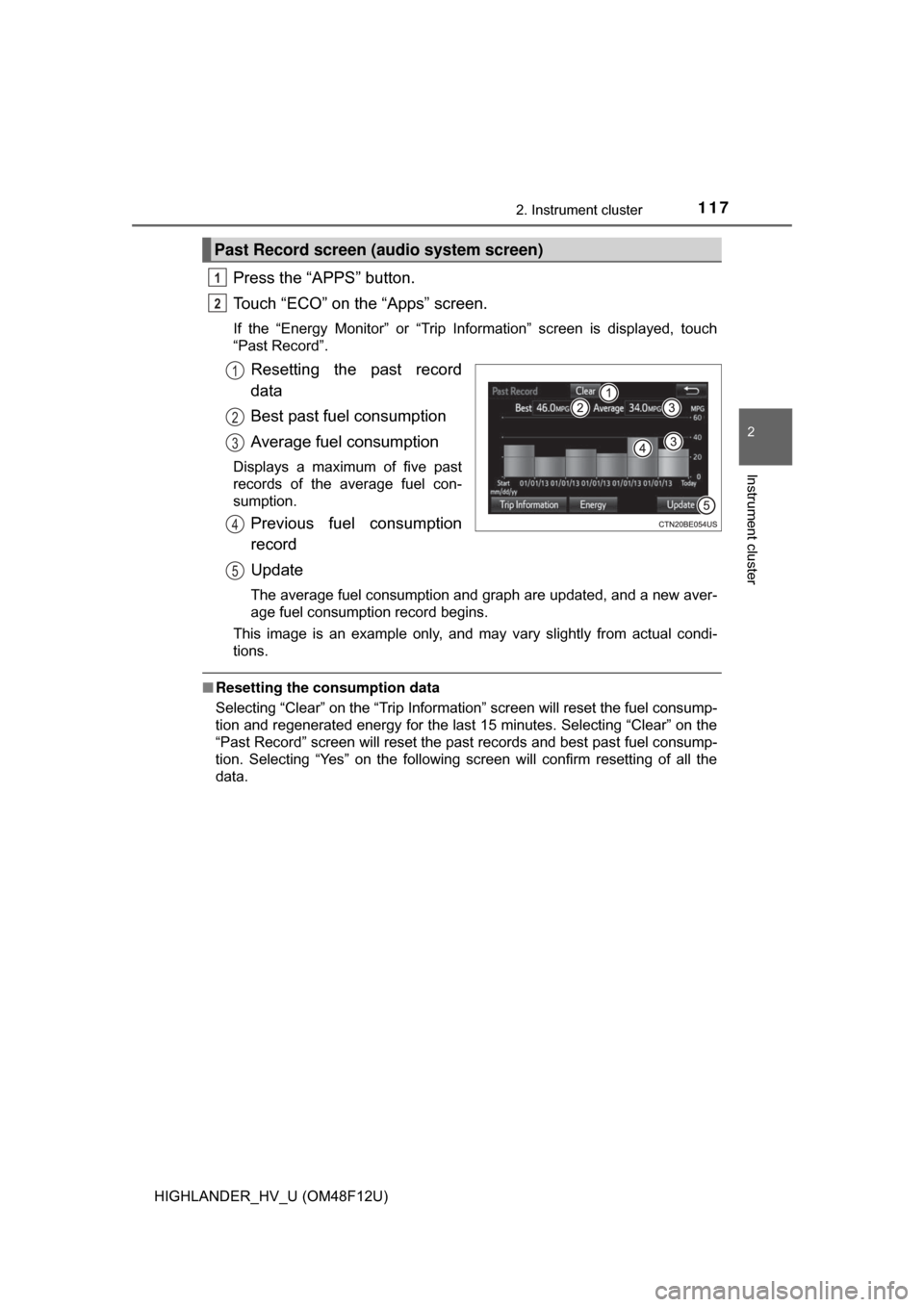

Past Record screen (audio system screen)
1
2
1
2
3
4
5

1182. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)

119
3
Operation of
each component
HIGHLANDER_HV_U (OM48F12U) 3-1. Key information
Keys .................................. 120
3-2. Opening, closing and locking the doors
Side doors ......................... 124
Back door .......................... 130
Glass hatch ....................... 142
Smart key system ............. 146
3-3. Adjusting the seats Front seats ........................ 154
Rear seats......................... 156
Driving position memory ........................... 163
Head restraints.................. 167
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 171
Inside rear view mirror ...... 173
Outside rear view mirrors ............................. 175
3-5. Opening and closing the windows
Power windows ................. 177
Moon roof .......................... 181
Panoramic moon roof........ 185

120
HIGHLANDER_HV_U (OM48F12U)
3-1. Key information

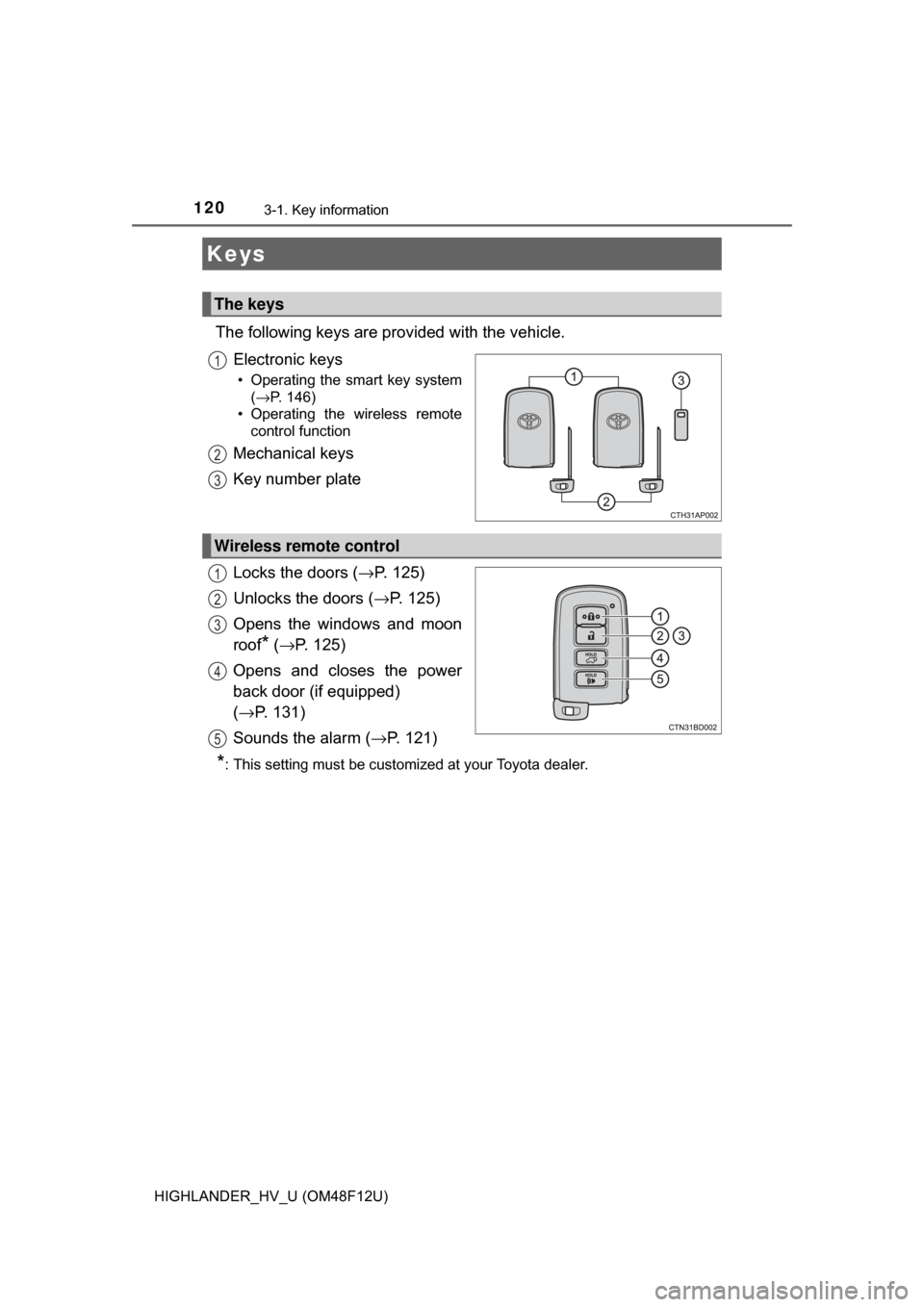

The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system(→P. 146)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks the doors (→ P. 125)
Unlocks the doors ( →P. 125)
Opens the windows and moon
roof
* ( → P. 125)
Opens and closes the power
back door (if equipped)
( → P. 131)
Sounds the alarm ( →P. 121)
*: This setting must be customized at your Toyota dealer.
Keys
The keys
1
2
3
Wireless remote control
1
2
3
4
5
