TABLE OF CONTENTS2
HIGHLANDER_HV_U (OM48F12U)For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 54
Safety information for children ............................. 61
Child restraint systems ........ 62
Installing child restraints ...... 66
Exhaust gas precautions ..... 80
1-2. Hybrid system Hybrid system features ....... 81
Hybrid system precautions ....................... 85
1-3. Theft deterrent system Immobilizer system ............. 91
Alarm ................................... 93
2. Instrument cluster Warning lights and indicators........................... 98
Gauge and meters ............ 103
Multi-information display ... 107
Energy monitor/ consumption screen ........ 113 3-1. Key information
Keys................................... 120
3-2. Opening, closing and locking the doors
Side doors ......................... 124
Back door .......................... 130
Glass hatch........................ 142
Smart key system .............. 146
3-3. Adjusting the seats Front seats......................... 154
Rear seats ......................... 156
Driving position memory .... 163
Head restraints .................. 167
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 171
Inside rear view mirror ....... 173
Outside rear view mirrors ............................. 175
3-5. Opening and closing the windows
Power windows.................. 177
Moon roof .......................... 181
Panoramic moon roof ........ 185
1For safety and security
2Instrument cluster
3Operation of each
component

3
1
9 8 6 5
4
3
2
HIGHLANDER_HV_U (OM48F12U)
10
7
4-1. Before drivingDriving the vehicle ............. 192
Cargo and luggage............ 202
Vehicle load limits ............. 207
Trailer towing..................... 208
Dinghy towing.................... 224
4-2. Driving procedures Power (ignition) switch ...... 225
EV drive mode................... 231
Hybrid transmission........... 233
Turn signal lever................ 239
Parking brake .................... 240
4-3. Operating the lights and wipers
Headlight switch ................ 241
Automatic High Beam ....... 245
Fog light switch ................. 249
Windshield wipers and washer ............................ 250
Rear window wiper and washer ............................ 254 4-4. Refueling
Opening the fuel tank cap................................... 256
4-5. Using the driving support systems
Toyota Safety Sense P ...... 261
PCS (Pre-Collision System)..... 268
LDA (Lane Departure Alert
with steering control) ....... 282
Dynamic radar cruise control.............................. 292
Rear view monitor system ............................. 304
BSM (Blind Spot Monitor)......... 313
• BSM function ................. 318
• RCTA function ............... 322
Driving assist systems ....... 328
4-6. Driving tips Hybrid vehicle driving tips ................................... 334
Winter driving tips .............. 337
Utility vehicle precautions ...................... 341
4Driving

12
HIGHLANDER_HV_U (OM48F12U)The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neut\
ral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

16
HIGHLANDER_HV_U (OM48F12U)
Pictorial index
Pictorial index
■
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Opening/closing the side windows. . . . . . . . . . . . . . . . . . . . . . P. 177
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 623
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 579
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 579
Glass hatch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 579
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 163
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 250
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 337
To prevent freezing (windshield wiper de-icer). . . . . . . . . . . . . P. 436
1
2
3
4
5

19Pictorial index
HIGHLANDER_HV_U (OM48F12U)Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 338
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Headlights/tail lights/daytime running lights . . . . . . . . . . . . . . . P. 241
Front fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 250, 254
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 250, 254
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 516
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 587
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 560
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 506
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 171
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
Automatic air conditioning system . . . . . . . . . . . . . . . . . . . P. 434
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Entune Audio
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 349
Entune Audio Plus
*1, 2
Entune Premium Audio*1, 2
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Power back door main switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 133
Fuel filler door opener switch . . . . . . . . . . . . . . . . . . . . . . . . P. 258
*1: If equipped
*2: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14

21Pictorial index
HIGHLANDER_HV_U (OM48F12U)Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 163
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 175
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . P. 525
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7

461-1. For safe use
HIGHLANDER_HV_U (OM48F12U)
WARNING

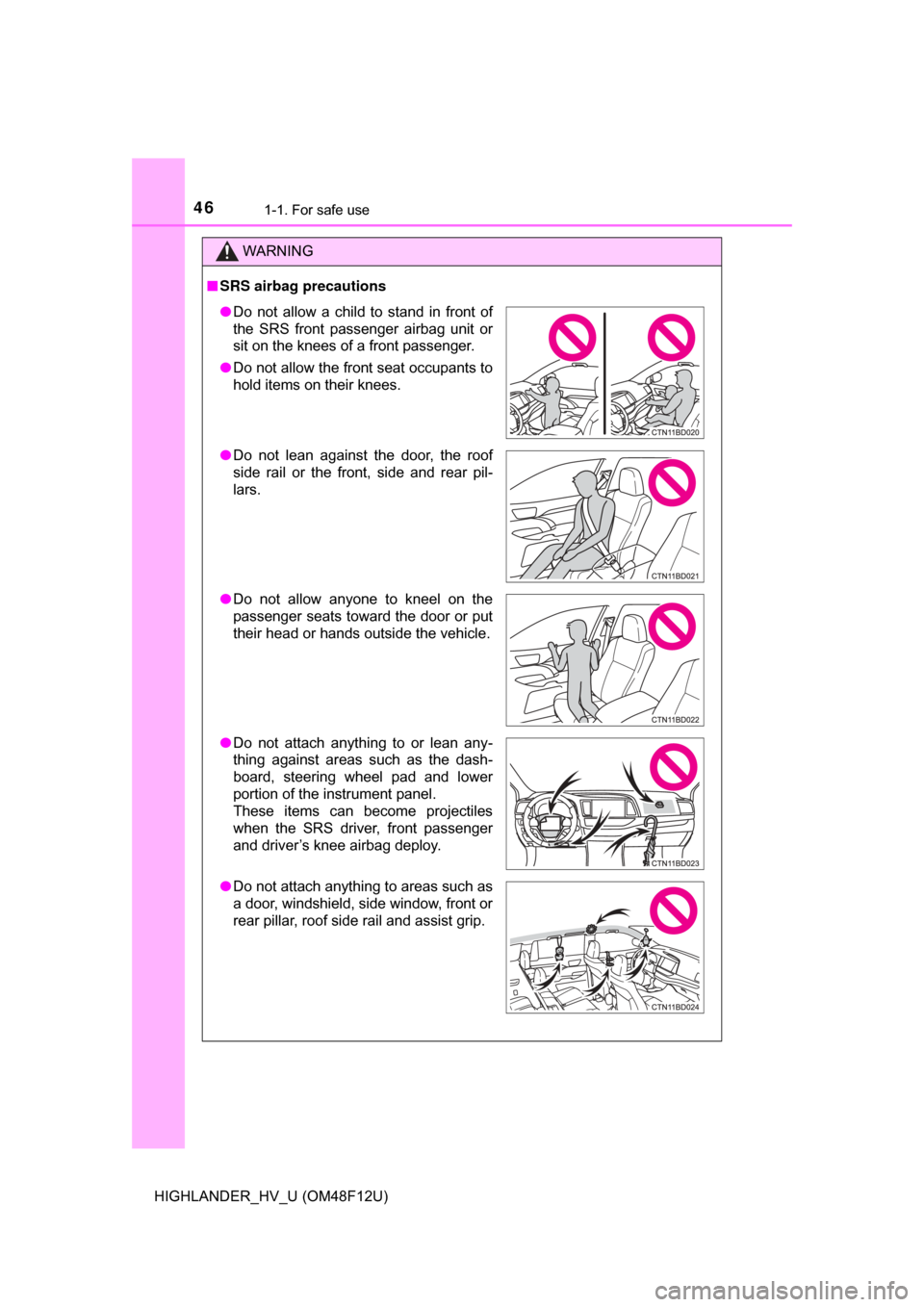

■SRS airbag precautions
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seats toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and driver’s knee airbag deploy.
● Do not attach anything to areas such as
a door, windshield, side window, front or
rear pillar, roof side rail and assist grip.
