ERA-GLONASS is a system designed to re- duce the severity of accidents. The location
and vehicle information is transmitted from
the system to the emergency call centre in
case of an accident or sudden illness, and the emergency call centre arranges for despatch
of emergency vehicles as required.WARNINGl If an emergency occurs and you notice a
fuel smell or bad smell, do not stay insidethe vehicle and escape to a safe place im-
mediately.
l While waiting for the rescue after the
emergency call, take action to prevent sec-
ondary accidents such as a rear end colli- sion with the following vehicle, and escapeto a safe place.
l If the system fails because of a collision,
etc. the system does not operate. In this case, directly arrange an emergency vehi-
cle or road service with a cellular phone, etc.WARNINGl In a place where radio waves cannot be
transmitted and received, you cannot call
the emergency call centre. (for example,
indoor, a basement parking area, a moun-
tainous area, inside a tunnel, etc.)
In addition, if the line to the emergency call centre is busy, it may be difficult to
call the emergency call centre even in a place where you can transmit and receive
radio waves. In this case, directly arrange
an emergency vehicle or road service with
a cellular phone, etc.NOTEl This system reports to the emergency call
centre, but does not directly arrange anemergency vehicle or pass to the road serv-
ice.
l This system helps to maken an emergency
call for a traffic accident or sudden illness,
but does not have a function to protect the occupants.Flow of the emergency call
A- Red lamp
B- Green lamp
C- Cover
D- SOS switch
ERA-GLONASS*
9-02OGGE17E1For emergencies9

E- Microphone
F- Door speaker (only front passenger side)WARNINGl Do not remove or install the above parts.
This can cause failure of contact or equip- ment, and the system may not operate
normally.
l Do not replace the speakers. If they are
replaced, the buzzer sound or the voice of the operator at the emergency call centre
may not be audible. If the speakers need
to be replaced due to a failure etc., we rec- ommend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
1. After setting the operation mode of the
power switch to “ON”, the red lamp (A)
and the green lamp (B) illuminate for ap-
proximately 10 seconds. When approxi-
mately 10 seconds have elapsed after the lamps extinguish, the system is in the
standby state.
WARNINGl If the red lamp and/or the green lamp do
not illuminate after setting the operation
madoe to "ON", there is a possible failure in the system. have the system insepcted by a Mitsubishi Motors Authorised Serv-
ice Point immediately.WARNINGl If the red lamp remains illuminated or il-
luminates again after approximately 20
seconds have elapsed after setting the op-
eration mode to “ON”, there is a possible failure in the system or the battery for ex-
clusive use of the ERA-GLONASS may be
exhausted. The battery life is approxi- mately 3 years.
Have the system inspected or the battery replaced by a MITSUBISHI MOTORS
Authorized Service Point immediately.
l When the system is not in the standby
state, the system does not operate. When you drive, make sure to check that thesystem is in the standby state.
2. The system operates as follows.
[Automatic Report]
When the vehicle receives an impact
above a certain level.
NOTEl Depending on the level of impact or the an-
gle of the collision, the system may not op-erate.
[Manual Report]
When you open the cover (C) and press
the SOS switch (D).
WARNINGl Before pressing the SOS switch, stop the
vehicle in a safe place. If you operate itwhile driving, your attention to the sur- rounding circumstances becomes insuffi-
cient, enough to cause an unexpected acci-
dent.CAUTIONl Do not open the cover except when you
press the SOS switch. You may press theSOS switch by mistake. In addition, if the
cover is opened while driving, the cover can cause injury in case of an emergency.NOTEl Do not press the SOS switch except in case
an emergency such as an accident or sudden
illness. When an emergency vehicle, etc. is
despatched for mischief, the applicable cost
may be charged.
3. The green lamp blinks and the system
calls the emergency call centre.
WARNINGl If the red lamp illuminates as follows, di-
rectly arrange an emergency vehicle or
road service with a cellular phone, etc.
ERA-GLONASS*
9-03OGGE17E1For emergencies9

WARNING•When the red lamp remains illumina-
ted. (There is a possible failure in the system.)
• When the red lamp illuminates for 60
seconds. (The vehicle may be in a place where radio waves cannot be transmit-
ted and received.)
4. The green lamp blinks slowly, and the
location and vehicle information is trans-
mitted to the emergency call centre.
5. When the green lamp changes from a
blinking state to an illumination state
and the buzzer sounds once, a conversa-
tion with an operator of the emergencycall centre is available.WARNINGl An error may occur between the actual
report point and the point reported to the
emergency call centre. Mutually confirm
the report point and the object through the phone call with the operator of the
emergency call centre.NOTEl If the vehicle side microphone (E) and/or the
speakers fail, you cannot talk with the opera-tor of the emergency call centre.NOTEl A call cannot be disconnected from the vehi-
cle side.
6. The emergency call centre arranges for
despatch of the emergency vehicle as re- quired.
Indicator list
SituationIndication lampCauseSolutionRed lampGreen lampWhen setting the opera-
tion mode to “ON”Illuminates (for ap-
proximately 10 sec-
onds)Illuminates (for ap-
proximately 10 sec-
onds)The system check is in progress.Wait for a while.
The indication lamps extinguish
when the system check is com-
plete.
If the red lamp and/or the green
lamp do(es) not illuminate, there
is a possible failure in the system.
In this case, immediately have the
system inspected at a
MITSUBISHI MOTORS Author-
ized Service Point.
ERA-GLONASS*
9-04OGGE17E1For emergencies9

SituationIndication lampCauseSolutionRed lampGreen lampAfter approximately 20
seconds after setting the
operation mode to “ON”ExtinguishesExtinguishesThe system works normally.−IlluminatesExtinguishesThere is a possible failure in the
system or the auxiliary battery
may be exhausted.Immediately have the system in-
spected at a MITSUBISHI
MOTORS Authorized Service
Point.While the emergency call
is activatedExtinguishesBlinks (at a 0.5-sec-
ond interval)The system calls the emergency
call centre.−ExtinguishesBlinks (at a 2-second
interval)The system transmits the location
and vehicle information to the
emergency call centre.−ExtinguishesIlluminatesA conversation with an operator
of the emergency call centre is
available.Mutually confirm the details of
the emergency call with the oper-
ator of the emergency call centre.
If the green lamp does not extin-
guish even after the emergency
call ends, have the system inspec-
ted at a MITSUBISHI MOTORS
Authorized Service Point.When the emergency call
failedIlluminates (for ap-
proximately 60 sec-
onds)ExtinguishesThe emergency call failed.Make an emergency call again, or
directly arrange an emergency ve-
hicle or road service with the
nearest public telephone, etc.Test Mode
You can check if the system is in the normal
standby state by the following process.
Before operation, stop the vehicle in a safe place, with good visibility, where radio
waves can be transmitted and received.Change to Test Mode

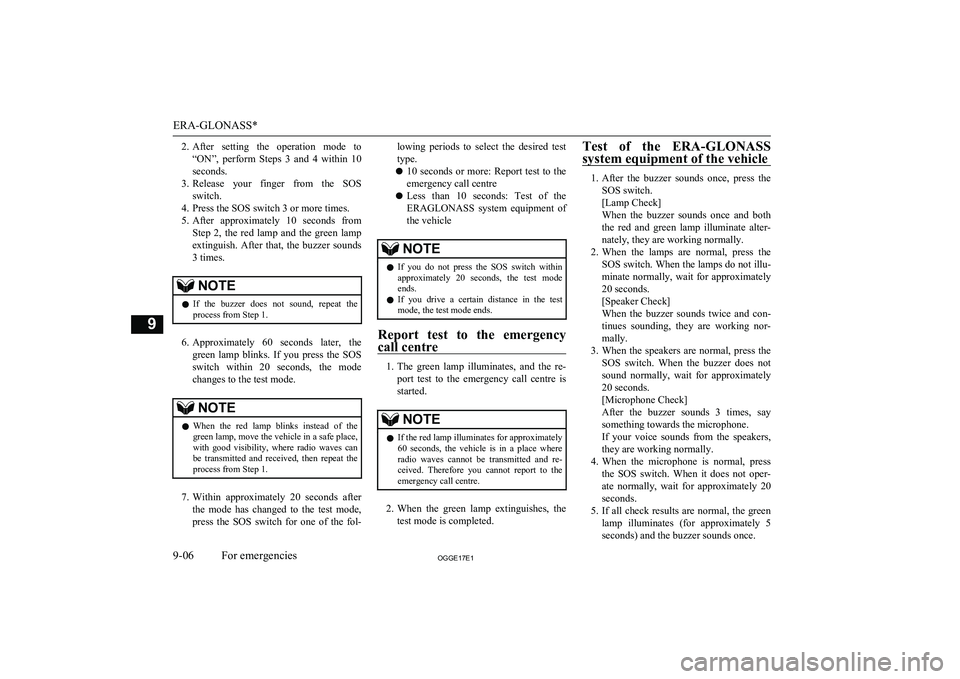

1. When the operation mode is set to
“OFF”, set the operation mode to “ON” while pressing the SOS switch.ERA-GLONASS*
9-05OGGE17E1For emergencies9

2.After setting the operation mode to
“ON”, perform Steps 3 and 4 within 10
seconds.
3. Release your finger from the SOS
switch.
4. Press the SOS switch 3 or more times.
5. After approximately 10 seconds from
Step 2, the red lamp and the green lampextinguish. After that, the buzzer sounds
3 times.NOTEl If the buzzer does not sound, repeat the
process from Step 1.
6. Approximately 60 seconds later, the
green lamp blinks. If you press the SOS switch within 20 seconds, the mode
changes to the test mode.
NOTEl When the red lamp blinks instead of the
green lamp, move the vehicle in a safe place, with good visibility, where radio waves can
be transmitted and received, then repeat the process from Step 1.
7. Within approximately 20 seconds after
the mode has changed to the test mode,
press the SOS switch for one of the fol-
lowing periods to select the desired test
type.
l 10 seconds or more: Report test to the
emergency call centre
l Less than 10 seconds: Test of the
ERAGLONASS system equipment of the vehicleNOTEl If you do not press the SOS switch within
approximately 20 seconds, the test modeends.
l If you drive a certain distance in the test
mode, the test mode ends.
Report test to the emergency
call centre
1. The green lamp illuminates, and the re-
port test to the emergency call centre is
started.
NOTEl If the red lamp illuminates for approximately
60 seconds, the vehicle is in a place where radio waves cannot be transmitted and re-ceived. Therefore you cannot report to the emergency call centre.
2. When the green lamp extinguishes, the
test mode is completed.
Test of the ERA-GLONASS
system equipment of the vehicle
1. After the buzzer sounds once, press the
SOS switch.
[Lamp Check]
When the buzzer sounds once and both the red and green lamp illuminate alter-nately, they are working normally.
2. When the lamps are normal, press the
SOS switch. When the lamps do not illu-
minate normally, wait for approximately
20 seconds.
[Speaker Check]
When the buzzer sounds twice and con-
tinues sounding, they are working nor-
mally.
3. When the speakers are normal, press the
SOS switch. When the buzzer does not
sound normally, wait for approximately
20 seconds.
[Microphone Check]
After the buzzer sounds 3 times, say something towards the microphone.If your voice sounds from the speakers,
they are working normally.
4. When the microphone is normal, press
the SOS switch. When it does not oper-
ate normally, wait for approximately 20
seconds.
5. If all check results are normal, the green
lamp illuminates (for approximately 5
seconds) and the buzzer sounds once.ERA-GLONASS*
9-06OGGE17E1For emergencies9

WARNINGlIf any of the check results are not normal,
the red lamp illuminates (for approxi- mately 5 seconds) and the buzzer sounds 3times. In this case, there is a possible fail-
ure in the system. Have the system inspec- ted by a MITSUBISHI MOTORS Au-
thorized Service Point immediately.
6. When the green lamp extinguishes, the
test mode is completed.
If the vehicle breaks down
E00800102408
If the vehicle breaks down on the road, moveit to the shoulder and use the hazard warning
flashers and/or the warning triangle etc.
Refer to “Hazard warning flasher switch” on page 6-62.
If you need to push your vehicle, put the op-
eration mode of the power switch in ON and put the select position in “N” (NEUTRAL) position.
WARNINGl If you are unable to safely assess the vehi-
cle due to vehicle damage, do not touch
the vehicle. Leave the vehicle and contact emergency services. Advise emergency responders that this is a Plug-in Hybrid
Electric vehicle.
If the ready indicator goes out
while driving
Vehicle operation and control are affected if
the ready indicator goes out while driving.
Before moving the vehicle to a safe area, be aware of the following:
l The brake booster may becomes inoper-
ative and the pedal effort will increase.
Press down the brake pedal harder than usual.
l The power steering system may not op-
erate, the steering wheel feels heavy when turning it.
Emergency starting
E00800504204
If the Plug-in Hybrid EV system cannot be
started because the auxiliary battery is weak or dead, the battery from another vehicle can
be used with jumper cables to start the Plug-
in Hybrid EV system.
WARNINGl To start the Plug-in Hybrid EV system us-
ing jumper cables from another vehicle
and perform the correct procedures ac-
cording to the instruction below. Incor- rect procedures could result in a fire, ex-
plosion, electric shock or damage to the vehicles.
l Keep sparks, cigarettes and flames away
from the battery because the battery may produce an explosion.CAUTIONl The Plug-in Hybrid EV system cannot be
started by pulling or pushing the vehicle.
l Check the other vehicle. It must have a 12-
volt battery. If the other system isn’t 12-volt, shorting can damage both vehicles.
l Use the proper cables suitable for the battery
size to prevent overheating of the cables.
l Check the jumper cables for damage and
corrosion before use.
l Always wear protective eye goggles when
working near the battery.
l Keep the battery out of the reach of children.
l Do not attempt jump starting the auxiliary
battery while the drive battery is being charged. Doing so could damage the charg-
ing equipment or the vehicle.
If the vehicle breaks down
9-07OGGE17E1For emergencies9
