NOTElThe mode of the detection area can be
switched only when the select position is in
the “R” (REVERSE) position.
l The detection area will not change if you
keep the “SONAR” switch pressed for 10 seconds or more.
l After pressing the “SONAR” switch, the
parking sensors operation differs according
to the detection area setting.
• Setting when towing bar is not equipped
When the selector lever is moved to the “R” (REVERSE) position, the parking
sensors will operate even if the parking sensors operation was stopped by pressing
the “SONAR” switch.
• Setting when towing bar is equipped
When the parking sensors operation was stopped by pressing the “SONAR”
switch, the parking sensors will not oper- ate until the Plug-in Hybrid EV System has been stopped even if the select posi-
tion is put to the “R” (REVERSE) posi-
tion.
To resume the parking sensors operation, press the “SONAR” switch or stop and re-
start the Plug-in Hybrid EV System, and then put the select position to the “R”
(REVERSE) position.Warning display
E00648300125
In case there is a malfunction in the parking
sensors, the display for the malfunctioning
sensor will blink and the warning buzzer will sound for approximately 5 seconds.
Even after the buzzer and display has stopped
warning, the indication lamp (A) on “SO- NAR” switch will continue blinking until the
system reverts to the normal state. Have the vehicle inspected at a MITSUBISHI
MOTORS Authorized Service Point.Rear-view camera*
E00618402310
The rear-view camera is a system that showsthe view behind the vehicle on a screen of the
DISPLAY AUDIO, the Smartphone Link Display Audio or the MITSUBISHI Multi-
Communication System (MMCS).
Rear-view camera*
7-102OGGE17E1Starting and driving7 Example: Corner sensor (left) malfunctioning

CAUTIONlThe rear-view camera is an assistance sys-
tem that enables the driver to check for ob- stacles behind the vehicle. Its range of view
is limited, so you should not overly depend on it. Please drive just as carefully as you
would if the vehicle did not have the rear-
view camera.
l Be sure to visually confirm safety around the
vehicle with your own eyes. Do not depend entirely on the rear-view camera.
Range of view of rear-view
camera
The range of view of the rear-view camera is
limited to the area shown in the illustrations.
It cannot show both sides and the lower part of the rear bumper, etc.
When reversing, be sure to visually confirm safety around the vehicle.
Location of rear-view camera
The rear-view camera (A) is integrated into
the part near the tailgate handle.
Range of view of rear-viewcamera
How to use the rear-view cam-
era
When you put the select position to the “R” position with the operation mode in ON, the
view behind the vehicle will automatically appear on the screen of the DISPLAY AU-DIO, the Smartphone Link Display Audio or
the MITSUBISHI Multi-Communication
System (MMCS). When you put the select position to any other position, the screen will
return to its original indication.
CAUTIONl The rear-view camera has a special lens that
can make objects shown on the screen ap-
pear to be closer or further away than they
actually are.
Rear-view camera*
7-103OGGE17E1Starting and driving7

NOTElBecause the rear-view camera has a special
lens, the lines on the ground between park-
ing spaces may not look parallel on the screen.
l In the following situations, the screen indi-
cation may be difficult to see. There is no abnormality.
• Low light (nighttime).
• When the light of the sun or the light from
a vehicle’s headlamps shines directly into
the lens.
l If the camera is hot and is then cooled by
rain or a car wash, the lens can mist up. This
phenomenon does not indicate a malfunc- tion.
l It is not possible to fully see obstacles when
the lens is dirty. If the lens becomes conta- minated by water droplets, snow, mud or oil,
wipe off the contamination, taking care not to scratch the lens.
l Please observe the following cautions. Ig-
noring them could lead to a camera malfunc-
tion.
• Do not subject the camera to physical
shock.
• Do not apply wax to the camera.
• Do not splash the camera with boiling wa-
ter.
• Do not disassemble the camera.Reference lines on the screen
E00649100029
Reference lines and upper surface of the rear
bumper (A) are displayed on the screen.
l Red line (B) indicates approximately
50 cm behind the rear bumper.
l Two Green lines (C) indicate approxi-
mately 20 cm outside of the vehicle
body.
l Short transverse lines (1 to 3) indicate
distance from the rear bumper.Check surroundings for safety.
1. Approximately at the rear edge of the
rear bumper
2. Approximately 100 cm
3. Approximately 200 cm
Errors between the display and the actual road surface
The reference lines for distance and vehicle
width are based on a level, flat road surface. In the following cases, errors are produced between the display reference lines and the distance on the actual road surface.
When the rear of the vehicle is weighed
down with the weight of passengers and luggage in the vehicle
The reference lines are displayed closer than
the actual distance.
Therefore when there is an obstacle on the
upward slope, it appears farther than its ac- tual position.
A:Actual objectsB:Objects shown on the screen
When there is an upward slope behind the
vehicle
The reference lines are displayed closer than the actual distance.
Rear-view camera*
7-104OGGE17E1Starting and driving7

Therefore when there is an obstacle on the
upward slope, it appears farther than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When there is a downward slope behind
the vehicle
The reference lines are displayed farther than
the actual distance.
Therefore when there is an obstacle on the
downward slope, it appears closer than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When solid objects are located close to the vehicle
When solid objects are located close to the
vehicle, the displayed distance on the screen
may differ from the actual distance.
Because the reference lines do not contact the body of the truck, it looks as if it would not
hit the vehicle in following illustration.
However, the vehicle may hit the truck be-
cause the body of the truck strays onto the course in reality.
Rear-view camera*
7-105OGGE17E1Starting and driving7 Check surroundings for safety.

When approaching to solid objects
The reference lines for distance and vehicle
width are intended to indicate the distance to a flat object such as a level, flat road surface. This may make the distance to a projecting
object shown on the screen differ from the
actual distance to the projecting object. Do not use them as a guide for distances to solid
objects.
Example: On the screen the point B appears the nearest, then the point C and A in order of
distance. The points A and B actually are the same distances from the vehicle, and the
point C is farther off than the points A and B.
Multi Around Monitor*
E00645000147
The Multi Around Monitor is a system that shows the view combined with four cameras,i.e., “Front-view camera”, “Side-view cam- eras (right and left)” and “Rear-view camera”
on a screen of the inside rear-view mirror, the DISPLAY AUDIO, the Smartphone Link
Display Audio or the MITSUBISHI Multi-
Communication System (MMCS). It assists drivers to park their vehicles in parking
spaces and to parallel park their vehicles.CAUTIONl The Multi Around Monitor is an assistance
system that enables the driver to check the
safety around the vehicle. The range where the image can be displayed is limited. Do
not place too much confidence in the Multi
Around Monitor and try to drive carefully in the same way as for the vehicle not equipped
with the Multi Around Monitor.
Its range of view is limited, so you should not overly depend on it. Please drive just as
carefully as you would if the vehicle did not have the Multi Around Monitor.
l Be sure to visually confirm safety around the
vehicle with your own eyes. Especially, the four corners of the vehicle become blind
spots where an object is not displayed on the Multi Around Monitor. Do not depend en-
tirely on the Multi Around Monitor.CAUTIONl Do not use the Multi Around Monitor with
the door mirrors folded in and/or with the doors and/or the tailgate open. It will prevent
the Multi Around Monitor from displaying
the appropriate range.
Location of each cameras
The cameras are integrated into the location
as shown below.
A:Rear-view cameraB:Front-view cameraC:Side-view camera
Multi Around Monitor*
7-106OGGE17E1Starting and driving7Check surroundings for your safety.

WARNINGlDo not install anything which will disturb
the operation of the cameras around thelocation of them.Range of view of the Multi
Around Monitor
E00645100177
The range of view of the Multi Around Mon-
itor cameras is limited to the area shown in
the illustrations. It cannot show around the both sides and the lower part of the front and
rear bumpers, etc. While driving, be sure to
visually confirm safety around the vehicle.
Range of view of the Multi
Around Monitor camerasA:Front-view cameraB:Side-view camera (Right)C:Side-view camera (Left)D:Rear-view cameraTypes of views of the Multi Around Monitor
Two different types of views are displayed on
the left side and the right side respectively.Multi Around Monitor*
7-107OGGE17E1Starting and driving7

Bird’s eye-view/Rear-viewmode
Views of the surroundings of the vehicle and
behind the vehicle are displayed.
Side-view/Rear-view mode
Views of the passenger’s side of the vehicle and behind the vehicle are displayed.
Bird’s eye-view/Front-view
mode
Views of the surroundings of the vehicle and
the front of the vehicle are displayed.
Side-view/Front-view mode
Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
CAUTIONl The cameras have special lenses that can
make objects shown on the screen appear to be closer or further away than they actually
are.NOTEl Because the cameras have a special lens, the
lines on the ground between parking spaces
may not look parallel on the screen.
l In the following situations, the screen indi-
cation may be difficult to see. There is no abnormality.
• Low light (nighttime).
• When the light of the sun or the light from
a vehicle’s headlamps shines directly into
the lens.
• If a fluorescent light shines directly into
the lens, the screen indication may be
flicker.
There is no abnormality.
l If the camera is hot and is then cooled by
rain or a car wash, the lens can mist up. This
phenomenon does not indicate a malfunc-
tion.
l If the atmospheric temperature is extremely
hot or extremely cold, the camera images
may not be clear.
There is no abnormality.
l If a radio set is installed near the camera, the
camera images may cause electrical system interference and the system may stop func-tioning properly.
Multi Around Monitor*
7-108OGGE17E1Starting and driving7Check surroundings for safety. Check surroundings for safety. Check surroundings for safety. Check surroundings for safety.

NOTElIt is not possible to fully see obstacles when
the lens is dirty. If the lens becomes conta-minated by water droplets, snow, mud or oil,
wipe off the contamination, taking care not
to scratch the lens.
l Please observe the following cautions. Ig-
noring them could lead to a camera malfunc- tion.
• Do not subject the camera to physical
shook such as striking it strongly or
throwing a thing.
• Do not adhere organic substances, waxes,
oil remover, and glass cleaner to the cam-
era.
If adhered to them, immediately wipe off.
• Do not splash the camera with boiling wa-
ter.
• Never spray or splash water on the cam-
era or around it.
• Do not disconnect, disassemble or modify
the camera.
• Do not scratch the camera, as this may
cause damage to the camera images.How to use the Multi Around
Monitor
E00650000031
The Multi Around Monitor can only be used
when the operation mode is ON.
Operation with the selector lev-
er
E00652700058
When you put the select position to the “R”
(REVERSE) position, the bird’s eye-view/rear-view is displayed on the screen of the in-
side rear-view mirror, the DISPLAY AU-
DIO, the Smartphone Link Display Audio or the MITSUBISHI Multi-communication Sys-
tem (MMCS). When you put the select posi- tion to any other position, the display disap-
pears.
NOTEl The passenger’s side screen can be switched
to the side-view by pressing the switch.Operation with the switch
E00652800033

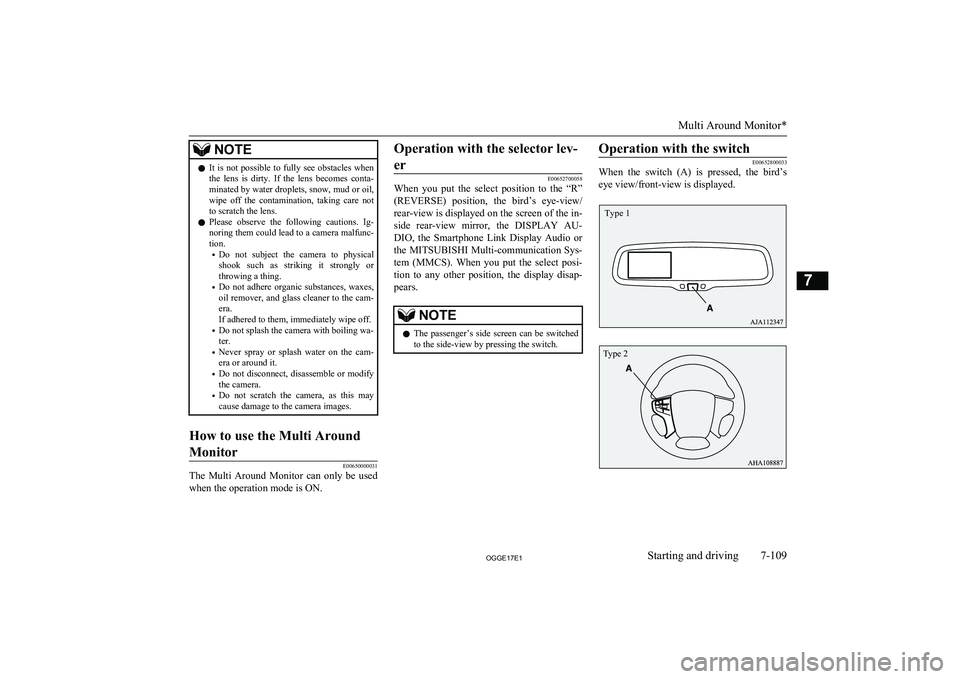

When the switch (A) is pressed, the bird’s
eye view/front-view is displayed.
Multi Around Monitor*
7-109OGGE17E1Starting and driving7 Type 1 Type 2
