2017 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

NOTElTrailer specifications indicate the manufacturer’s recommendation.

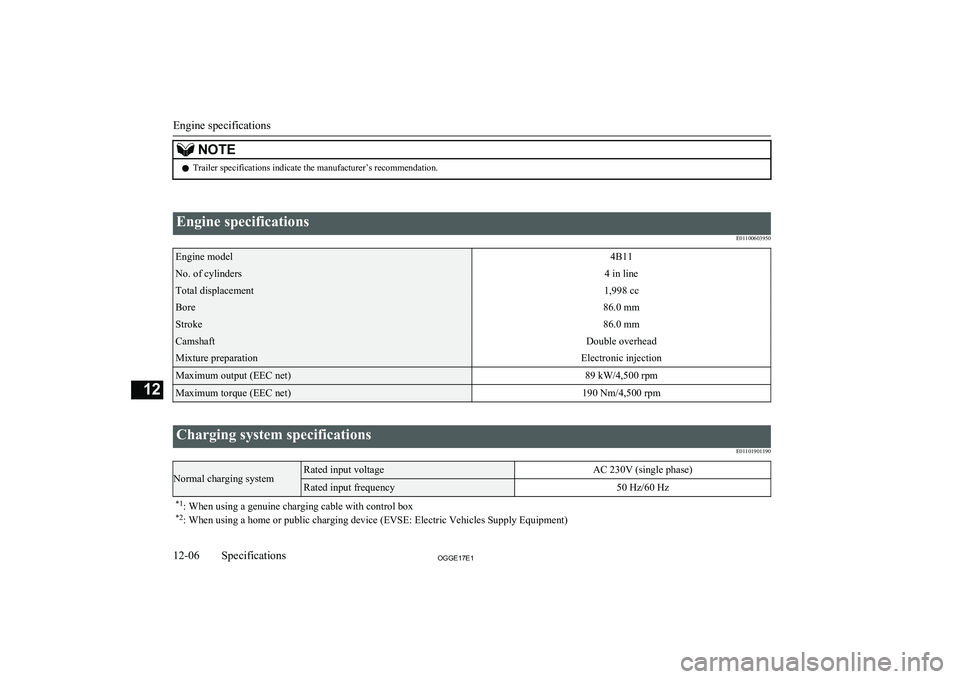

Engine specifications
E01100603950Engine model4B11No. of cylinders4 in lineTotal displacement1,998 ccBore86.0 mmStroke86.0 mmCamshaftDouble overheadMixture preparationElectronic injectionMaximum output (EEC net)89 kW/4,500 rpmMaximum torque (EEC net)190 Nm/4,500 rpm

Charging system specifications E01101901190Normal charging systemRated input voltageAC 230V (single phase)Rated input frequency50 Hz/60 Hz*1: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Engine specifications
12-06OGGE17E1Specifications12

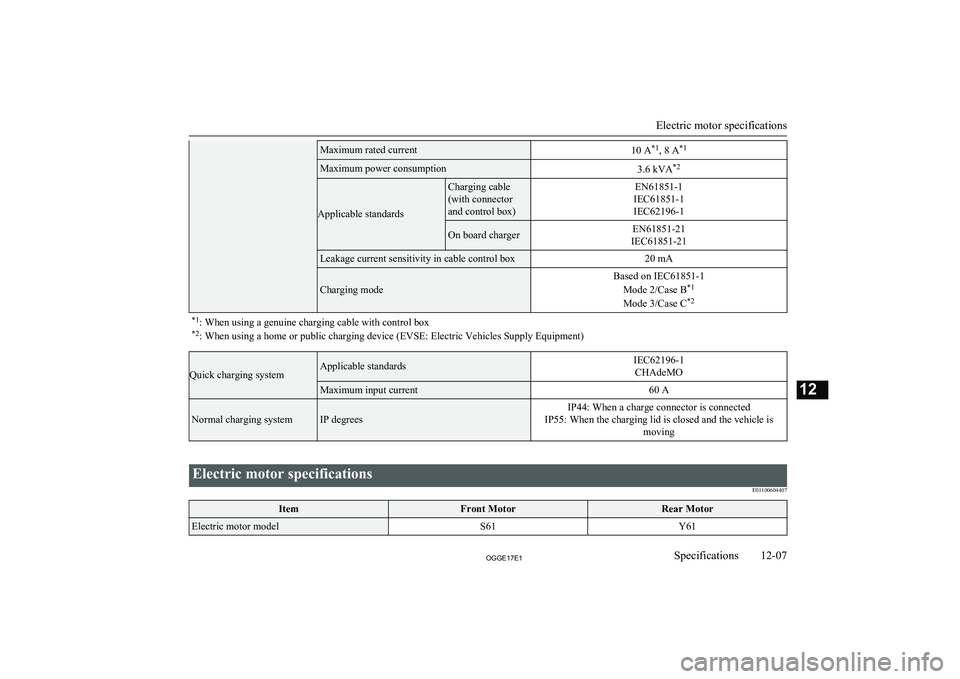

Maximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)EN61851-1
IEC61851-1
IEC62196-1On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2*1
: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Quick charging systemApplicable standardsIEC62196-1
CHAdeMOMaximum input current60 A
Normal charging systemIP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving

Electric motor specifications
E01100604407ItemFront MotorRear MotorElectric motor modelS61Y61
Electric motor specifications
12-07OGGE17E1Specifications12

ItemFront MotorRear MotorMaximum output (ECE net)60 kWMaximum torque137 Nm195 NmMaximum 30 minutes power25 kW

Low voltage electrical systemE01100804151Voltage12 VAuxiliary batteryType (JIS)S46B24L(S)Capacity (5HR)36 AhSpark plug typeNGKDIFR5E11

Tyres and wheelsE01100904729Tyre215/70R16 100H225/55R18 98HWheelSize16x6 1/2J18x7JOffset38 mmNOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Low voltage electrical system
12-08OGGE17E1Specifications12

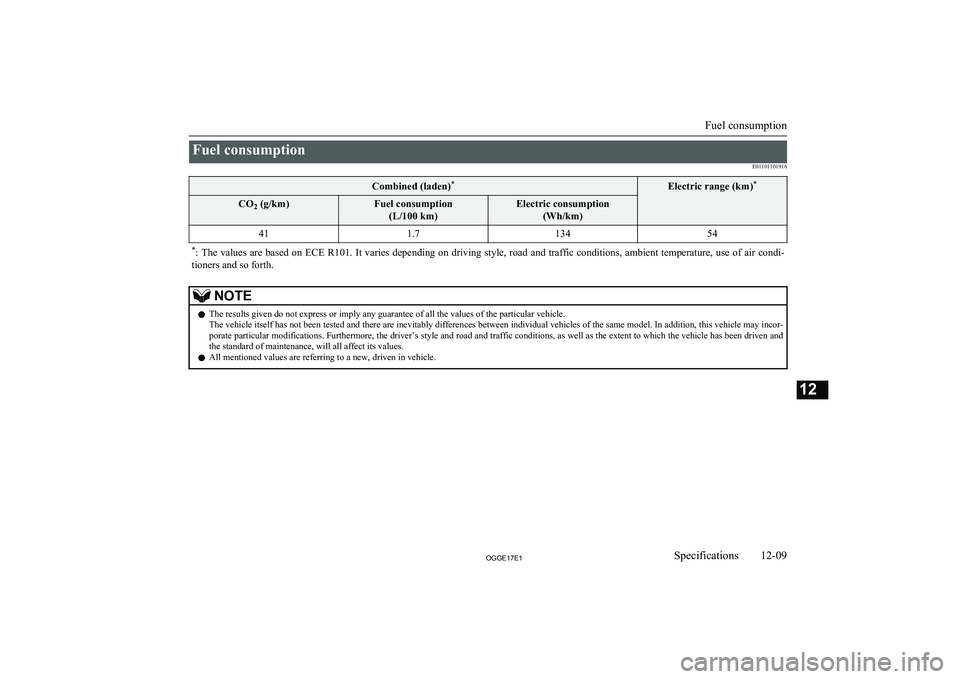

Fuel consumptionE01101101916Combined (laden)*Electric range (km) *CO
2 (g/km)Fuel consumption
(L/100 km)Electric consumption (Wh/km)411.713454*: The values are based on ECE R101. It varies depending on driving style, road and traffic conditions, ambient temperature, use of air condi-
tioners and so forth.NOTEl The results given do not express or imply any guarantee of all the values of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its values.
l All mentioned values are referring to a new, driven in vehicle.

Fuel consumption
12-09OGGE17E1Specifications12

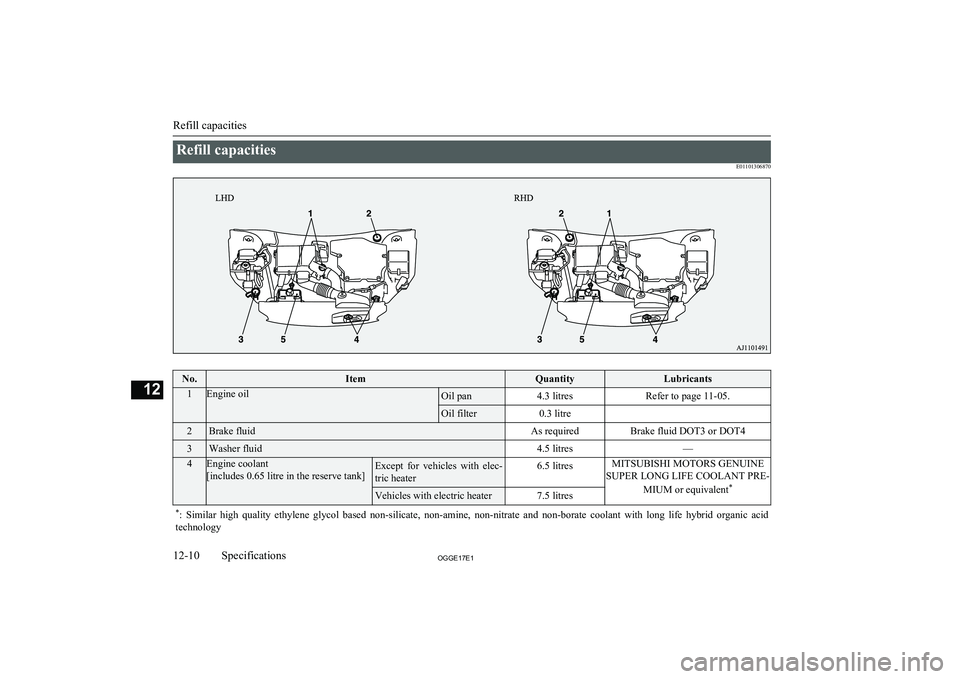

Refill capacitiesE01101306870No.ItemQuantityLubricants1Engine oilOil pan4.3 litresRefer to page 11-05.Oil filter0.3 litre 2Brake fluidAs requiredBrake fluid DOT3 or DOT43Washer fluid4.5 litres—4Engine coolant
[includes 0.65 litre in the reserve tank]Except for vehicles with elec- tric heater6.5 litresMITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PRE-
MIUM or equivalent *Vehicles with electric heater7.5 litres*
: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technology
Refill capacities
12-10OGGE17E1Specifications12

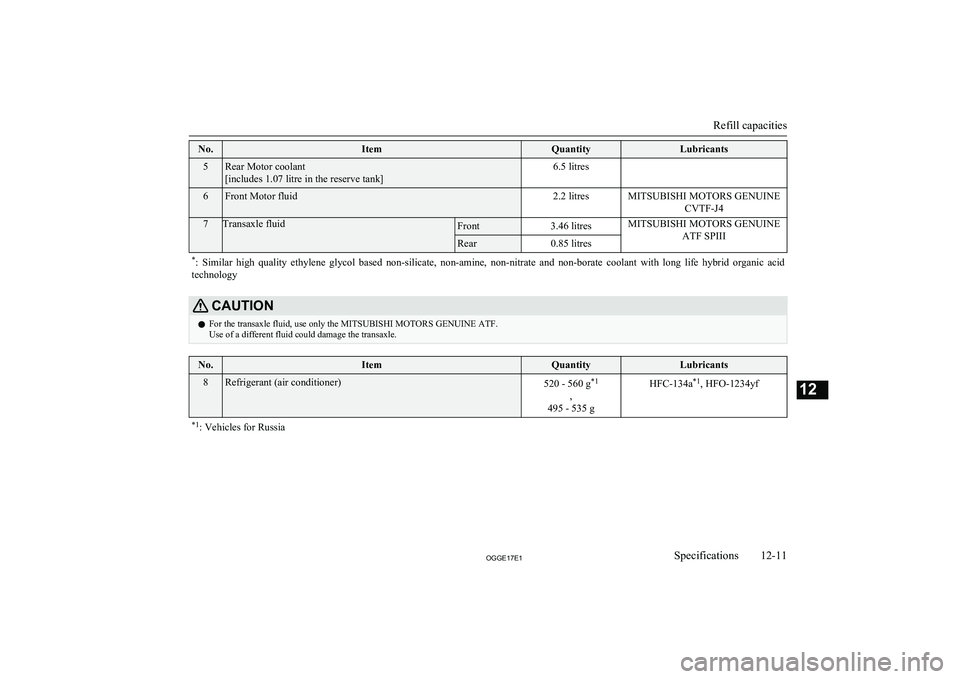

No.ItemQuantityLubricants5Rear Motor coolant
[includes 1.07 litre in the reserve tank]6.5 litres6Front Motor fluid2.2 litresMITSUBISHI MOTORS GENUINE CVTF-J47Transaxle fluidFront3.46 litresMITSUBISHI MOTORS GENUINEATF SPIIIRear0.85 litres*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technologyCAUTIONl For the transaxle fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.ItemQuantityLubricants8Refrigerant (air conditioner)520 - 560 g *1
,
495 - 535 gHFC-134a *1
, HFO-1234yf*1: Vehicles for Russia

Refill capacities
12-11OGGE17E1Specifications12

OGGE17E1

2
220-240 V AC power supplies.......................... 8-764
4-wheel drive operation.....................................7-23A
Accessory (Installation).....................................2-17
Accessory socket............................................... 8-75
Acoustic Vehicle Alerting System (AVAS)......2-06
Active stability control (ASC)...........................7-40
Adaptive Cruise Control System (ACC)........... 7-52
Air conditioner Automatic climate control air conditioner.... 8-04
Important operation tips for the air conditioner................................................... 8-13
Air purifier.........................................................8-13
Airbag................................................................ 5-27 Caution for installing the child re-straint on vehicle with front pas-
senger’s airbag............................................. 5-16
Anti-lock brake system (ABS).......................... 7-37
Ashtray.............................................................. 8-74
Assist grips........................................................ 8-86
Audio CD player...................................................... 8-14
LW/MW/FM radio........................................ 8-14
Troubleshooting............................................ 8-47
Automatic high-beam system............................ 6-56
Auxiliary battery............................................. 11-09
Auxiliary battery charge warning lamp.............6-51
B
Basic knowledge for charging........................... 3-04
Battery charge mode switch.............................. 7-28
Battery save mode switch..................................7-27
Battery Auxiliary battery charge warning lamp........ 6-51
Discharged battery (Emergency starting)..... 9-07
Disposal information for used batteries........ 2-18 Specification............................................... 12-08
Blind Spot Warning (BSW).............................. 7-80
Bluetooth® 2.0 interface................................... 8-50
Bonnet............................................................. 11-04
Bottle holders.................................................... 8-84
Brake assist system............................................7-36
Brake auto hold................................................. 7-32
Brake warning lamp.......................................... 6-50
Brake Anti-lock brake............................................. 7-37
Brake auto hold............................................. 7-32
Braking.......................................................... 7-31
Fluid.................................................. 11-08,12-10
Parking brake................................................ 7-03
Bulb capacity .................................................. 11-24
C
Capacities........................................................ 12-10
Card holder................................................8-74,8-82
Cargo area cover................................................8-85
Cargo loads......................................................7-115
Catalytic converter.......................................... 11-03
Caution for installing the child re- straint on vehicles with front passen-
ger’s airbag...................................................... 5-29
Cautions on handling of 4-wheel drive vehicles................................................... 7-24
Central door locks............................................. 4-16
Charging............................................................ 3-02
Charging indicator............................................. 6-49
Charging system specifications....................... 12-06
Charging troubleshooting guide........................ 3-21
Check engine warning lamp.............................. 6-51
Child restraint.................................................... 5-16 Caution for installing the child re-straint on vehicles with a front
passenger airbag.......................................... 5-16
Caution for installing the child re- straint on vehicles with front pas-
senger’s airbag............................................. 5-29
Child-protection rear doors............................... 4-18
Cigarette lighter................................................. 8-74
Cleaning Exterior of your vehicle.............................. 10-03Interior of your vehicle............................... 10-02
Coat hook.......................................................... 8-86
Combination headlamps and dipper switch...... 6-53
Coolant (engine)....................................11-06,12-10
Coolant (plug-in hybrid EV system)............... 11-06
Cruise control.................................................... 7-42
Cup holder......................................................... 8-83
D
Daytime running lamps
Alphabetical index
