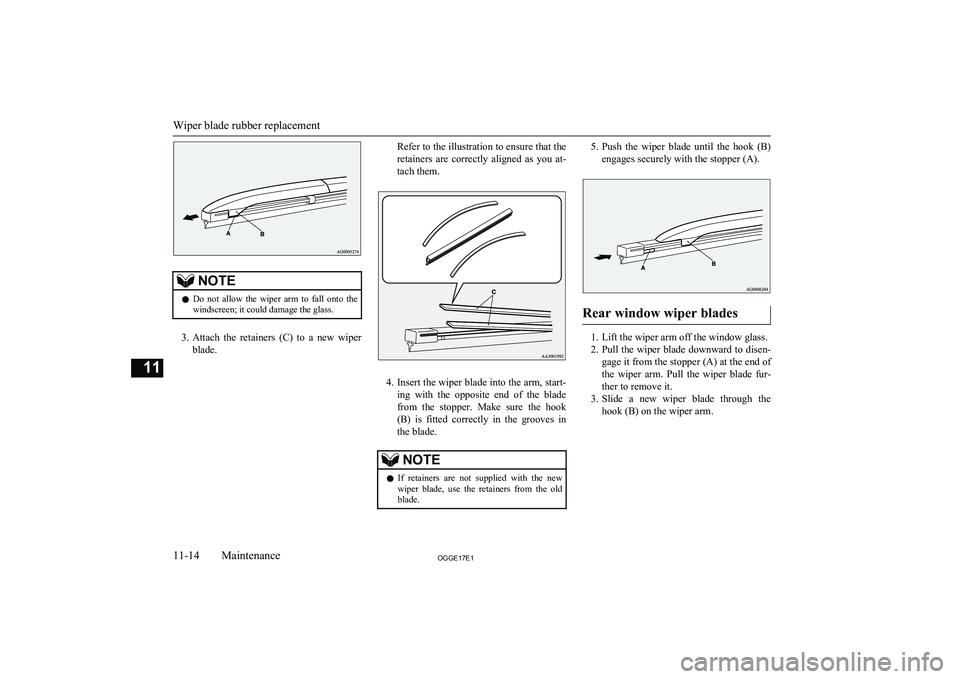

NOTElDo not allow the wiper arm to fall onto the
windscreen; it could damage the glass.
3. Attach the retainers (C) to a new wiper
blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you at- tach them.
4. Insert the wiper blade into the arm, start-
ing with the opposite end of the blade from the stopper. Make sure the hook(B) is fitted correctly in the grooves in
the blade.
NOTEl If retainers are not supplied with the new
wiper blade, use the retainers from the old
blade.5. Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Rear window wiper blades
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disen-
gage it from the stopper (A) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.
3. Slide a new wiper blade through the
hook (B) on the wiper arm.
Wiper blade rubber replacement
11-14OGGE17E1Maintenance11

NOTElDo not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you in-
sert them into the groove.NOTEl If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.General maintenance
E01002701556
Fuel, engine coolant, oil and ex- haust gas leakage
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNINGl If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; call
your MITSUBISHI MOTORS Author-
ized Service Point for assistance.
Exterior and interior lamp op-
eration
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuse, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the bulbs, refer
to “Fuses” on page 11-16 and “Replacement
of lamp bulbs” on page 11-23.
General maintenance
11-15OGGE17E1Maintenance11

If the fuses and bulbs are all OK, we recom-
mend you to have your vehicle checked and repaired.
Meter, gauge and indicator/warning lamps operation
Start the plug-in hybrid EV system and check
the operation of all instruments, gauges and indication and warning lamps.
If there is anything wrong, we recommend
you to have your vehicle inspected.
Hinges and latches lubrication
Check all latches and hinges, and, if necessa- ry, have them lubricated.
Fusible links
E01002901633
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Passen-
ger compartment fuse location table” on page
11-18 and “Engine compartment fuse location
table” on page 11-20.
WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.Fuses
E01003003332Fuse block location
E01011800035
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment (LHD
vehicles)
The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front of the driver’s seat at the position shown in
the illustration.
Pull the fuse lid to remove it.
A- Main fuse block B- Sub fuse block
Passenger compartment (RHD vehicles)
The fuse boxes in the passenger compartment
are located behind the glove box at the posi- tion shown in the illustration.
A- Main fuse block B- Sub fuse block
Fusible links
11-16OGGE17E1Maintenance11

Main fuse block
1. Open the glove box.
2. Uncouple the rod (A) on the right side of
the glove box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
4. Remove the glove box fastener (C), and
then remove the glove box.
Sub fuse block
When changing the fuse of the sub fuse
block, perform it with the hole of the bottom cover.
Engine compartment
E01011900036
In the engine compartment, the fuse block is
located as shown in the illustration. While pressing the tab (C), pull up the cover.
A- Main fuse block B- Sub fuse block
Fuses
11-17OGGE17E1Maintenance11

Fuse load capacity
E01007700684
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles),
the back side of the glove box (RHD vehi-cles) and inside of the fuse block cover (in-
side of the engine compartment).NOTEl Spare fuses are provided on the cover of fuse
block in the engine compartment. Always use a fuse of the same capacity for replace- ment.Passenger compartment fuse lo-
cation table
E01007902127Fuses
11-18OGGE17E1Maintenance11 Main fuse blockSub fuse block
(LHD)
Sub fuse block
(RHD)

No.Sym-bolElectrical sys- temCa-
paci- ties1Electric window control30 A *12Rear window
demister30 A *13Heater30 A4Windscreen
wipers30 A5Door locks20 A6Rear fog lamp10 A *27Accessory sock-
et15 A8Rear windowwiper15 A9Sunroof20 A10Ignition switch10 A11Option10 A12Hazard warning flasher15 A*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties134-wheel drive system10 A14Stop lamps
(Brake lamps)15 A15Instruments10 A16SRS airbag7.5 A17Radio15 A18Control unit re- lay7.5 A19Interior lamps
(Room lamps)15 A20Reversing lamps (Backup lamps)7.5 A21Heated door mirror7.5 A22Outside rear-view mirrors10 A*1 : Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties
23
Cigarette lighter/Accessory sock- et
15 A24
Charge7.5 AHeated steeringwheel15 A25Power seat
(Driver seat)30 A *126Heated seat30 A27Power seat
(Passenger seat)30 A *1*1
: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
Fuses
11-19OGGE17E1Maintenance11

Engine compartment fuse loca-tion table
E01008002213
No.Sym- bolElectrical system
Ca-
paci- tySBF1Air conditioning con- denser fan motor30
A *SBF2———SBF3———SBF4Radiator fan motor40
A *SBF5Anti-lock brake system40
A *SBF6———SBF7Anti-lock brake system30
A *BF1Electric tailgate30 ABF2Audio system amp30 ABF3IODIOD30 ABF4———F1———F2Wiper de-icer15 AF3Electric parking brake7.5 A*
: Fusible link
No.Sym-
bolElectrical system
Ca-
paci- tyF4Daytime running lamps10 AF5Front fog lamps15 AF6Heated steering wheel15 AF7Headlamp washer20 AF8Security horn20 AF9Horn10 AF10ETV15 AF11Charging lid lock15 AF12Engine7.5 AF13ENG/POWER20 AF14Fuel pump15 AF15Ignition coil10 AF16———F17Headlamp high-beam (left)10 AF18Headlamp high-beam(right)10 A*: Fusible link
Fuses
11-20OGGE17E1Maintenance11Main fuse block
Behind of the fuse block cover

No.Sym-bolElectrical system
Ca-
paci- ty
F19
Headlamplow beam (left)
LED20 AF20
Headlamplow beam (right)
LED20 AF21
Headlamplow beam (left)
Halogen10 AF22
Headlamplow beam (right)
Halogen10 A
F23———#1—Spare fuse10 A#2—Spare fuse15 A#3—Spare fuse20 A*: Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.No.Sym- bolElectrical system
Ca-
paci- tySBF1Electrical Parking Lock30
A *SBF2Vacuum pump (Regen-
erative brake)30
A *F1Water pump (Electric
motor)20 AF2Battery management unit7.5AF3Drive battery PTCheater15AF4Fuel tank filler door7.5 AF5Solenoid valve (Airconditioning)7.5 AF6Water pump (Air con- ditioning)7.5 AF7Electric motor unitcontrol10 AF8Heated windscreen7.5 AF9Drive battery fun mo- tor15 AF10Ignition control15 A*: Fusible link
Fuses
11-21OGGE17E1Maintenance11 Sub fuse block
