2017 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

1. Supplemental restraint system (SRS) - airbag (for front passen-ger’s seat) p. 5-27, 5-31
2. Glove box p. 8-81 Card holder p. 8-81
3. Battery save mode switch p. 7-27
4. Electric parking brake switch p. 7-03
5. Brake auto hold switch p. 7-32
6. Heated seat switch* p. 5-04
7. EV switch p. 7-25
8. 4WD lock switch p. 7-22
9. Battery charge mode switch p. 7-28
10. Electrical Parking switch p. 7-19
Instruments and controls
1-06OGGE17E1Overview1LHD

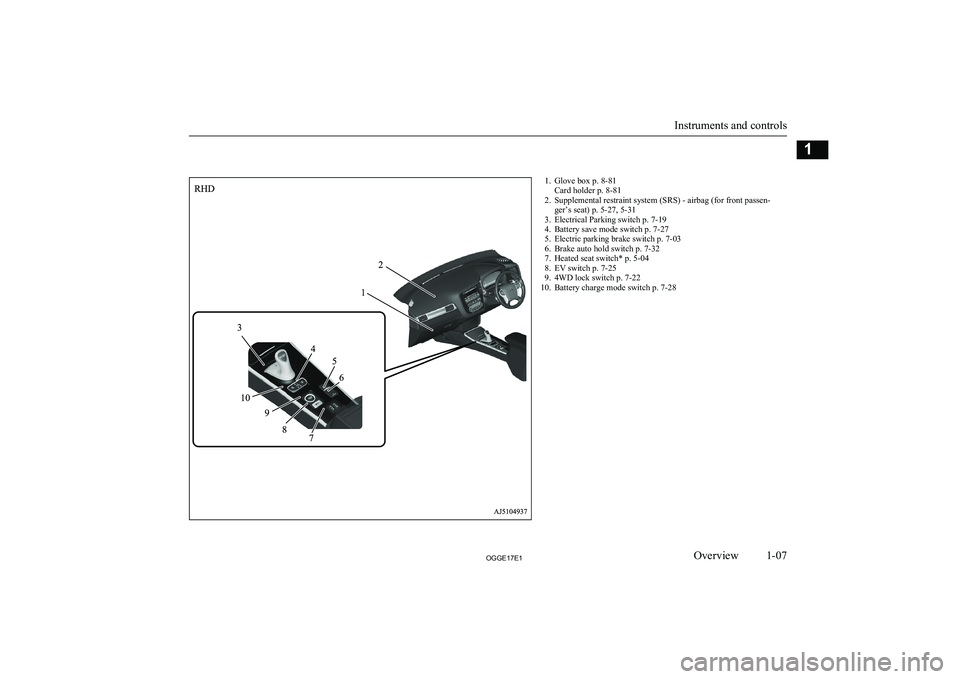

1. Glove box p. 8-81Card holder p. 8-81
2. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-27, 5-31
3. Electrical Parking switch p. 7-19
4. Battery save mode switch p. 7-27
5. Electric parking brake switch p. 7-03
6. Brake auto hold switch p. 7-32
7. Heated seat switch* p. 5-04
8. EV switch p. 7-25
9. 4WD lock switch p. 7-22
10. Battery charge mode switch p. 7-28
Instruments and controls
1-07OGGE17E1Overview1

InteriorE085002015641. Electric window control switch p. 4-34
2. Lock switch p. 4-35
3. Electric remote-controlled outside rear-view mirrors switch p. 7-09
4. Central door lock switch p. 4-16
5. Inside rear-view mirror p. 7-07 Multi around monitor* p. 7-106
6. Front seat p. 5-03
7. Supplemental restraint system (SRS) -side airbag (for front seat) p. 5-27, 5-34
8. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-24
9. Rear seat p. 5-05
10. Armrest p. 5-05 Cup holder p. 8-83
11. Room lamp (rear) p. 8-79, 11-25
12. Head restraints p. 5-05
13. Supplemental restraint system - curtain airbag p. 5-27, 5-34
Interior
1-08OGGE17E1Overview1LHD

1. Lock switch p. 4-35
2. Electric remote-controlled outside rear-view mirrors switch p. 7-09
3. Central door lock switch p. 4-16
4. Electric window control switch p. 4-34
5. Head restraints p. 5-05
6. Supplemental restraint system - curtain airbag p. 5-27, 5-34
7. Room lamp (rear) p. 8-79, 11-25
8. Armrest* p. 5-05 Cup holder* p. 8-83
9. Rear seat p. 5-05
10. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-24
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-27, 5-34
12. Front seat p. 5-03
13. Inside rear-view mirror p. 7-07 Multi around monitor* p. 7-106
Interior
1-09OGGE17E1Overview1RHD

1. Bottle holder p. 8-84
2. Map & room lamps (front) p. 8-79, 11-25
3. Downlight p. 8-79
4. Sunroof switch* p. 4-36
5. Hands-free microphone* p. 8-51
6. Sun visors p. 8-73 Vanity mirror p. 8-73
Card holder p. 8-73
7. Sunglasses holder* p. 8-83
8. Cargo area cover p. 8-85
9. Luggage room lamp p. 8-80, 11-25
10. Assist grips p. 8-86 Coat hook p. 8-86
11. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
Interior
1-10OGGE17E1Overview1LHD

1. Bottle holder p. 8-84
2. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
3. Assist grips p. 8-86 Coat hook p. 8-86
4. Luggage room lamp p. 8-80, 11-25
5. Cargo area cover p. 8-85
6. Sunglasses holder* p. 8-83
7. Sun visors p. 8-73 Vanity mirror p. 8-73
Card holder p. 8-73
8. Hands-free microphone* p. 8-51
9. Map & room lamps (front) p. 8-79, 11-25
10. Downlight p. 8-79
11. Sunroof switch* p. 4-36
Interior
1-11OGGE17E1Overview1RHD

Luggage areaE085003012591. Tether anchorages for child restraint system p. 5-24
2. Tools p. 9-11
3. Accessory socket* p. 8-75 220-240 V AC power supply* p. 8-76
4. Luggage hook p. 8-87
5. Jack p. 9-11
6. Luggage floor box p. 8-82
7. EV charging cable p. 3-07
8. Auxiliary battery p. 11-09
9. Tyre repair kit p. 9-12
Luggage area
1-12OGGE17E1Overview1

Outside (Front)E085004020391. Front-view camera* p. 7-1062. Bonnet p. 11-04
3. Windscreen wipers p. 6-64
4. Sensor* [for Automatic high-beam system, Forward Collision Mit- igation System (FCM) and Lane Departure Warning (LDW)]
p. 6-56, 7-64, 7-85
Rain sensor p. 6-64
5. Sunroof* p. 4-36
6. Electric window control p. 4-34
7. Fuel tank filler p. 2-15
8. Side turn-signal lamps p. 6-61, 11-24 Side view camera* p. 7-106
9. Ultrasonic misacceleration Mitigation System* p. 7-74 Parking sensors* p. 7-98
10. Front fog lamps p. 6-63, 11-24, 11-27
11. Headlamps, high-beam p. 6-56, 11-24, 11-26
12. Headlamps, low beam p. 6-56, 11-24, 11-25
13. Position lamps p. 6-53, 11-24 Daytime running lamps p. 11-27, 11-24
14. Front turn-signal lamps p. 6-61, 11-24, 11-27
15. Headlamps, high-beam p. 6-56, 11-24, 11-26
16. Headlamps, low beam p. 6-56, 11-24, 11-25
17. Position lamps p. 6-53, 11-24 Daytime running lamps p. 6-55, 11-24
18. Front turn-signal lamps p. 6-61, 11-24, 11-27
Outside (Front)
1-13OGGE17E1Overview1Halogen headlamps type LED headlamps type
