Information screen (when the operation mode is OFF)
E00520201968
Each time you lightly press the multi information display switch, the display screen switches in the following order.
* 1
: When there is no warning display
* 2
: When there is a warning display
1- Tripmeter ® p. 6-11
2- Tripmeter
® p. 6-11
3- ECO score display ® p. 6-16
4- Predicted charging time ® p. 3-10, 3-16
5- Service reminder ® p. 6-126- Redisplay of a warning display screen
® p. 6-09

Multi information display
6-06OGGE17E1Instruments and controls6* 2*1

Information screen (when the operation mode is changed from OFF to ON)
E00520702133
When the operation mode is put in ON, the display screen switches in the following order.
* 1
: When the inspection time has arrived
1- Screen when the operation mode is OFF
2- System check screen ® p. 6-133- Screen when the operation mode is ON
4- Service reminder ® p. 6-12

Multi information display
6-07OGGE17E1Instruments and controls6

Information screen (when the operation mode is ON)
E00521101948
Each time you lightly press the multi information display switch, the display screen switches in the following order.
* 1
: When there is no warning display
* 2
: When there is a warning display
1- Tripmeter ® p. 6-11
2- Tripmeter
® p. 6-11
3- EV cruising range display/Total cruising range display ® p. 6-14
4- Average fuel consumption display ® p. 6-14
EVHV driving rate display ® p. 6-15
5- Energy flow display ® p. 6-15
6- ECO score display ® p. 6-16
7- S-AWC (Super-All Wheel Control) op- eration display ® p. 7-22
8- Service reminder ® p. 6-12
9- Changing the function settings ® p. 6-1610- Redisplay of a warning display screen
® p. 6-09
Multi information display
6-08OGGE17E1Instruments and controls6

NOTElWhile driving, the service reminder is not displayed even if you operate the multi information display switch. Always stop the vehicle in a safe place before
operating.
l While driving, the function setting screen is not displayed even if you operate the multi information display switch.
Before operation, park the vehicle in a safe place, firmly apply the parking brake, press the electrical parking switch, and shift to “P” (PARK) position.
Refer to “Changing the function settings” on page 6-16.
l When there is information to be announced, such as a system fault, the buzzer sounds and the screen display is switched.
Refer to “Interrupt display screen” on page 6-09.

Interrupt display screen
E00522001928
Warning display
When there is information to be announced, such as a system fault, the buzzer sounds and the information screen is switched to the
warning display screen.
Refer to the warning list and take the neces- sary measures.
Refer to “Warning display list” on page
6-25.
When the cause of the warning display is eliminated, the warning display goes out au-
tomatically.
To return to the screen displayed before the warning display
Even if the cause of the warning display is not eliminated, you can return to the screen
that was displayed before the warning dis- play.
If you press the multi information display
switch, the display screen switches to the screen that was displayed before the warning
display and the
mark (A) is displayed.
If you want to switch the display
Warning display screens with a “” or “”
mark displayed in the upper right of the
screen can be switched. If you want to switch the display, press the multi information dis-
play switch as follows.
“”: Press lightly.
“
”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the mark is displayed, if you lightly
press the multi information display switch a
few times, the warning display screen you
switched from is redisplayed.
Other interrupt displays
The operation status of each system is dis-
played on the information screen.
Refer to the appropriate page in the warning display list for further details.
Refer to “Other interrupt displays” on page
6-43.
Multi information display
6-09OGGE17E1Instruments and controls6

mark display screen
E00533901028
This is displayed when you press the multi
information display switch and return from the warning display screen to the previous
screen.
This mark is also displayed if there is another
warning other than the one displayed. When the cause of the warning display is eliminated, the
mark goes out automatical-
ly.
NOTEl When the mark is displayed, the warning
display screen can be redisplayed on the in- formation screen.
Refer to “Information screen (when the op-
eration mode is OFF)” on page 6-06.
Refer to “Information screen (when the op-
eration mode is ON)” on page 6-08.Door ajar warning display
screen
E00522601793
If any of the doors or the tailgate is not com-
pletely closed, this displays the open door or
tailgate.
When the operation mode of the power switch is ON, if the vehicle speed exceeds
approximately 8 km/h (5 mph) while a door is ajar, a buzzer sounds 4 times. This notifies
the driver that a door is ajar.CAUTIONl Before moving your vehicle, check that the
warning lamp is OFF.Drive battery level display
screen
E00537700027
Indicates the remaining pow- er in the drive battery.
Fuel remaining display screen
E00522201542
This displays the amount of fuel remaining.
F- Full
E- Empty
NOTEl It may take several seconds to stabilise the
display after refilling the tank.
l If fuel is added with the operation mode of
the power switch is in ON, the fuel gauge may incorrectly indicate the fuel level.
l The arrow (A) indicates that the fuel tank
filler is located on the left side of the body.
Multi information display
6-10OGGE17E1Instruments and controls6

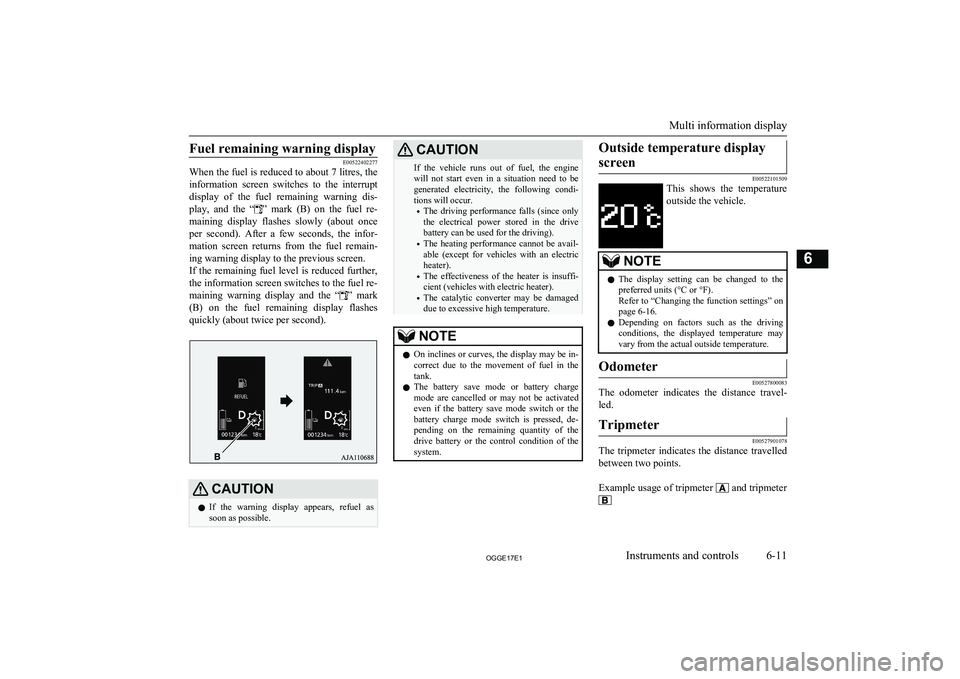

Fuel remaining warning display
E00522402277
When the fuel is reduced to about 7 litres, the
information screen switches to the interruptdisplay of the fuel remaining warning dis-
play, and the “
” mark (B) on the fuel re-
maining display flashes slowly (about once
per second). After a few seconds, the infor- mation screen returns from the fuel remain-
ing warning display to the previous screen.
If the remaining fuel level is reduced further, the information screen switches to the fuel re-
maining warning display and the “
” mark
(B) on the fuel remaining display flashes
quickly (about twice per second).
CAUTIONl If the warning display appears, refuel as
soon as possible.CAUTIONIf the vehicle runs out of fuel, the enginewill not start even in a situation need to be generated electricity, the following condi-
tions will occur.
• The driving performance falls (since only
the electrical power stored in the drive
battery can be used for the driving).
• The heating performance cannot be avail-
able (except for vehicles with an electric
heater).
• The effectiveness of the heater is insuffi-
cient (vehicles with electric heater).
• The catalytic converter may be damaged
due to excessive high temperature.NOTEl On inclines or curves, the display may be in-
correct due to the movement of fuel in the
tank.
l The battery save mode or battery charge
mode are cancelled or may not be activated
even if the battery save mode switch or the battery charge mode switch is pressed, de-
pending on the remaining quantity of the drive battery or the control condition of the
system.Outside temperature display
screen
E00522101509
This shows the temperature
outside the vehicle.
NOTEl The display setting can be changed to the
preferred units (°C or °F).
Refer to “Changing the function settings” on page 6-16.
l Depending on factors such as the driving
conditions, the displayed temperature may vary from the actual outside temperature.Odometer
E00527800083
The odometer indicates the distance travel-
led.
Tripmeter
E00527901078
The tripmeter indicates the distance travelled between two points.

Example usage of tripmeter
and tripmeter
Multi information display
6-11OGGE17E1Instruments and controls6

It is possible to measure two currently
travelled distances, from home using
tripmeter
and from a particular point
on the way using tripmeter
.
To reset the tripmeter
To return the display to 0, hold down the
multi-information display switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example
If tripmeter
is displayed, only tripmeter
will be reset.
NOTEl When disconnecting the auxiliary battery
terminal, the memory of tripmeter and
are cleared, and the display returns to
“0”.
Service reminder
E00522502021
Displays the approximate time until the next
periodic inspection recommended by MITSUBISHI MOTORS . “---” is displayed
when the inspection time has arrived.
NOTEl Depending on the vehicle specifications, the
displayed time may differ from the next pe-
riodic inspection time recommended by
MITSUBISHI MOTORS.
In addition, the display settings for the next periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized Service Point.
For more details, consult a MITSUBISHI
MOTORS Authorized Service Point.
1. Displays the time until the next periodic
inspection.
NOTEl The distance is shown in units of 100 km
(100 miles). The time is shown in units of months.2. This informs you that a periodic inspec-
tion is due. We recommend you to con-
sult a MITSUBISHI MOTORS Author-
ized Service Point.

At that time, when the ignition switch is switched from “OFF” to “ON”, the
warning display is displayed for a few seconds on the information screen.
3. After your vehicle is inspected at a
MITSUBISHI MOTORS Authorized
Service Point, it displays the time until
the next periodic inspection.
To reset
The “---” display can be reset while the igni-
tion switch or the opertion mode is in OFF.
When the display is reset, the time until the
next periodic inspection is displayed and the warning display is no longer displayed when
the ignition switch is switched from “OFF” to
“ON”.
Multi information display
6-12OGGE17E1Instruments and controls6

1.When you lightly press the multi infor-
mation display switch a few times, the information display switches to the serv-
ice reminder display screen.
2. Press and hold the multi information dis-
play switch for about 2 seconds or more to display “
” and make it flash. (If
there is no operation for about 10 sec- onds with flashing, the display returns tothe previous screen.)
3. Lightly press the multi information dis-
play switch while the icon is flashing to
change the display from “---” to
“CLEAR”. After this, the time until the
next periodic inspection will be dis- played.CAUTIONl The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections and maintenance must be per- formed to prevent accidents and malfunc- tions.NOTEl “---” display cannot be reset when the opera-
tion mode is in ON.NOTEl When “---” is displayed, after a certain dis-
tance and a certain period of time, the dis-
play is reset and the time until the next peri- odic inspection is displayed.
l If you accidentally reset the display, we rec-
ommend you to consult a MITSUBISHI
MOTORS Authorized Service Point.System check screen
E00531001070
When the operation mode is put in ON, the
system check screen is displayed for about 4
seconds. If there is no fault, the information
screen (when the operation mode is ON) is displayed.
If there is a fault, the screen changes to warn-
ing display.
Refer to “Warning display list” on page
6-25.
NOTEl The system check screen display varies de-
pending on the customer’s equipment.
Multi information display
