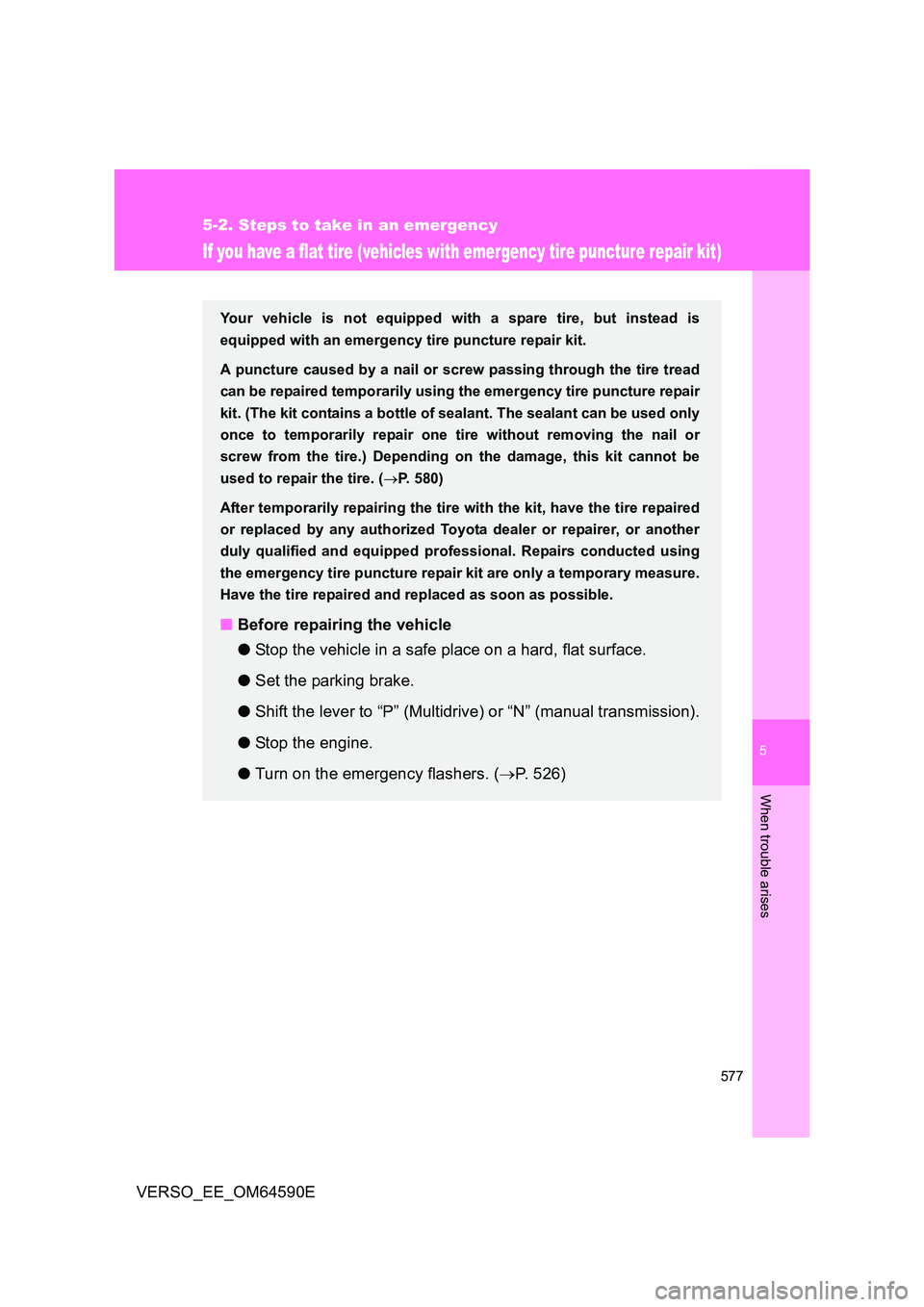

If you have a flat tire (vehicles with emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or scr ew passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) Depending on the damage, this kit cannot be
used to repair the tire. ( P. 580)
After temporarily repairing the tire with the kit, have the tire repaired
or replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. Repairs conducted using
the emergency tire puncture repair kit are only a temporary measure.
Have the tire repaired and replaced as soon as possible.
■ Before repairing the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the lever to “P” (Multidrive) or “N” (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. (P. 526)

578
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

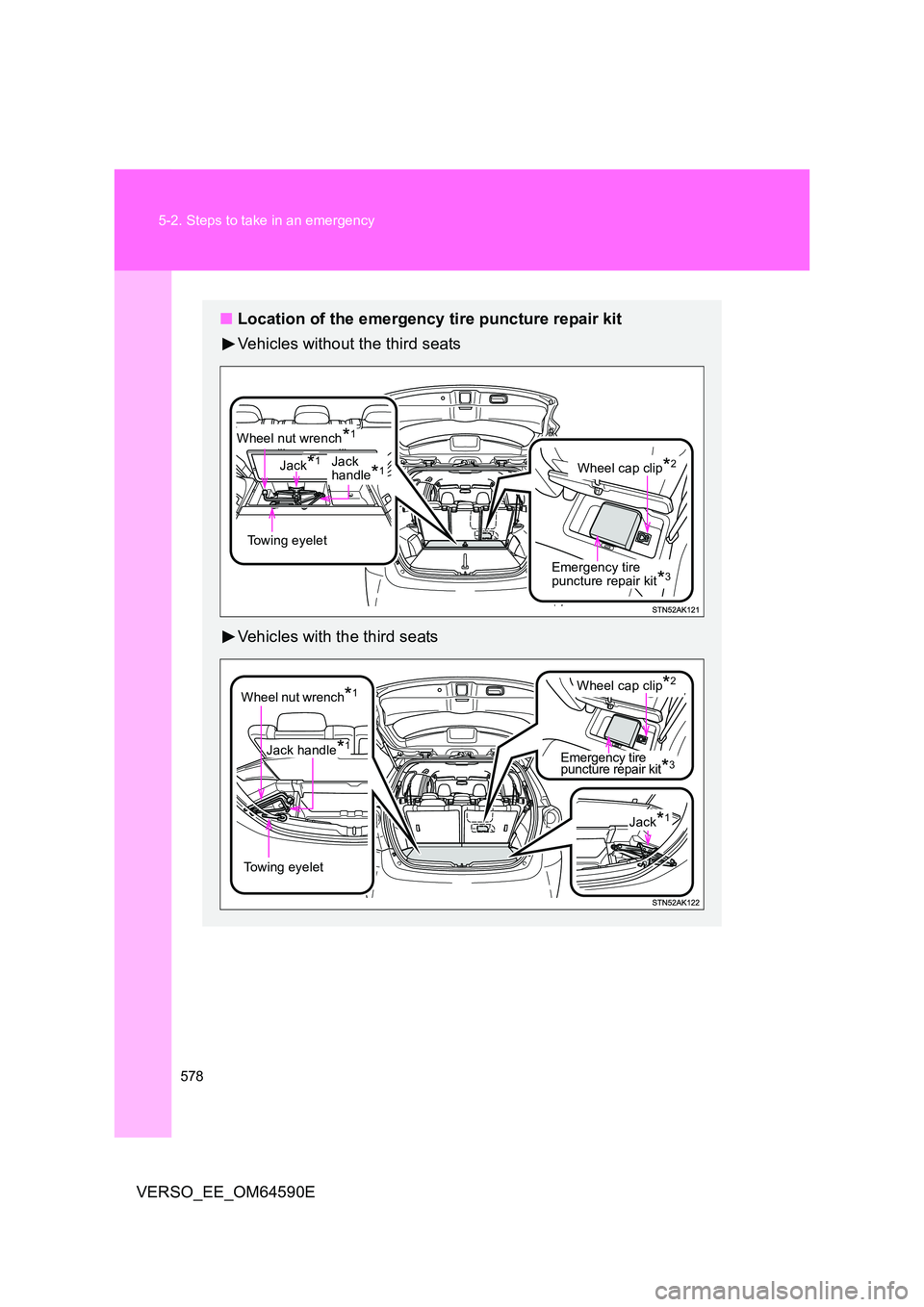

■ Location of the emergency tire puncture repair kit
Vehicles without the third seats
Vehicles with the third seats
Emergency tire puncture repair kit*3
Towing eyelet
Jack*1Wheel cap clip*2
Wheel nut wrench*1
Jackhandle*1
Emergency tire puncture repair kit*3
Towing eyelet
Wheel nut wrench*1
Jack handle*1
Wheel cap clip*2
Jack*1

5
579
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
*1: Use of the jack, jack handle and wheel nut wrench. (if equipped)
( P. 560)
A jack, jack handle and wheel nut wrench can be purchased at any
authorized Toyota dealer or repa irer, or another duly qualified and
equipped professional.
*2: Use of the wheel cap clip. (if equipped) ( P. 476)
*3: The emergency tire puncture repair kit is located in the auxiliary box
(type C). ( P. 400)

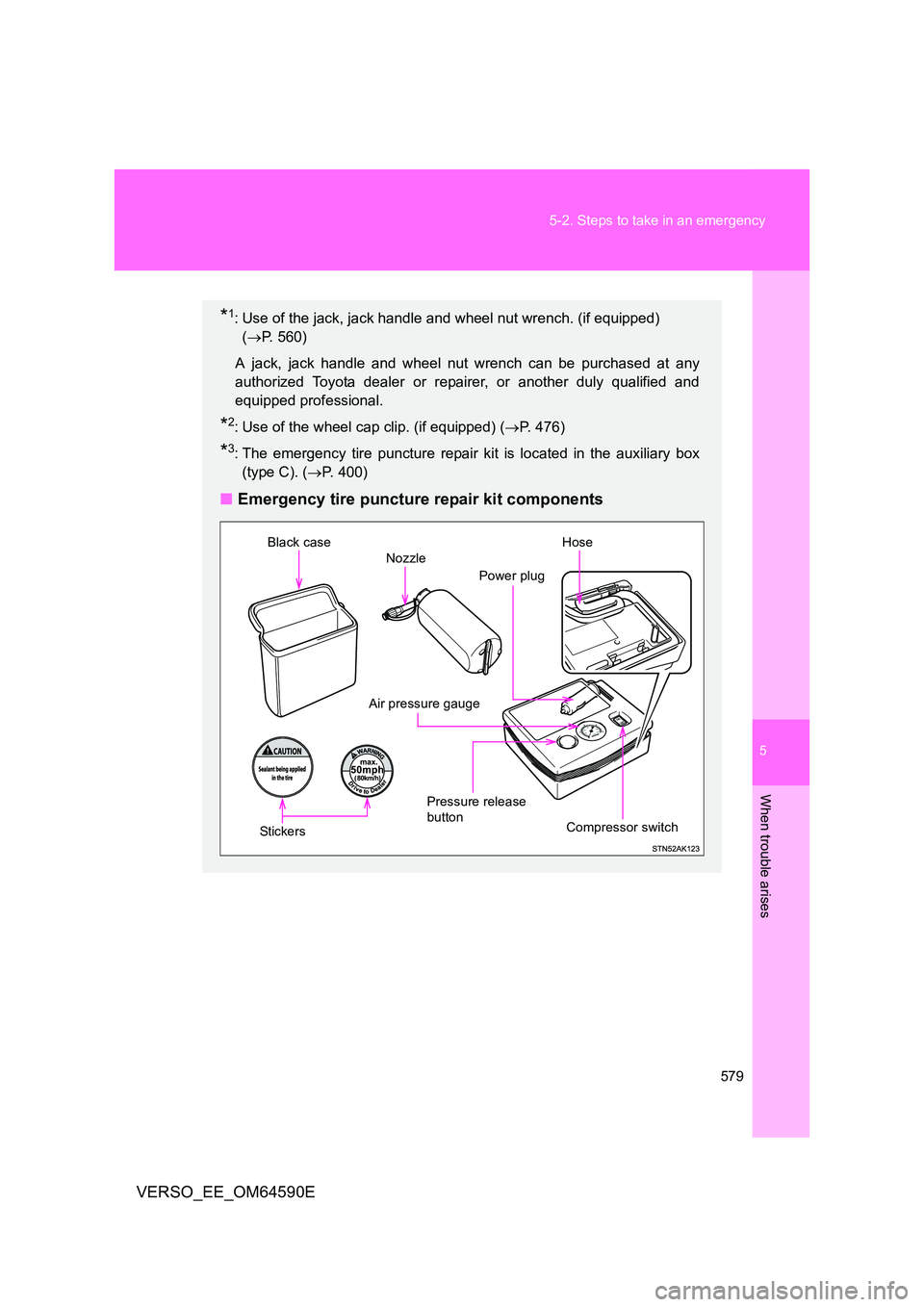

■Emergency tire puncture repair kit components
Compressor switch
Air pressure gauge
Power plug
Black case
Stic ke rs
Pressure release
button
Nozzle
Hose

580
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.
Taking out the emergency tire puncture repair kit
Open the auxiliary box (Type C) ( P. 400)
Take out the black case containing the emergency tire punc-
ture repair kit. ( P. 578)
■In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or
repairer, or another duly qual ified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired

5
581
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E

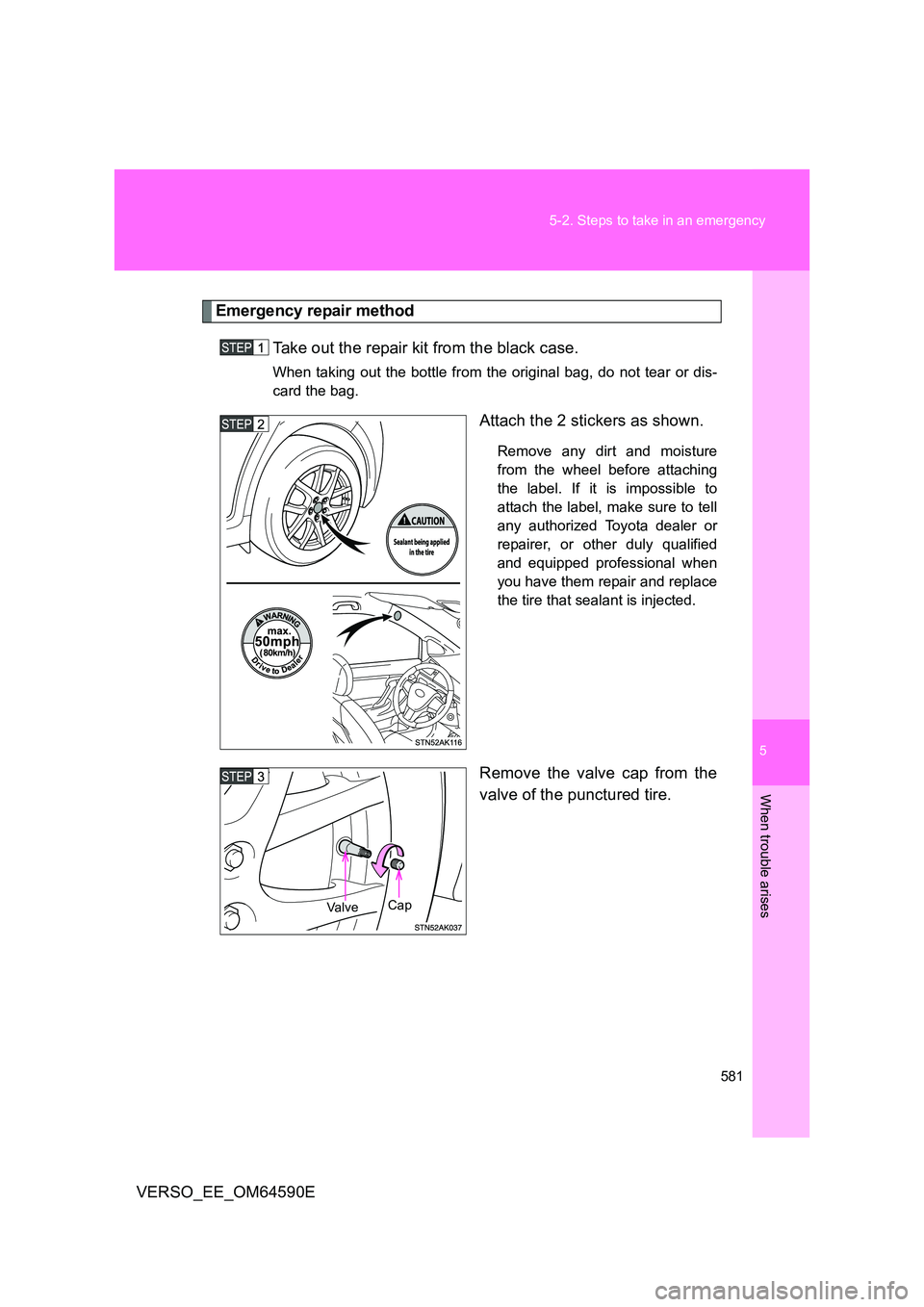

Emergency repair method
Take out the repair kit from the black case.
When taking out the bottle from the original bag, do not tear or dis-
card the bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or other duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Cap Va l v e

582
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

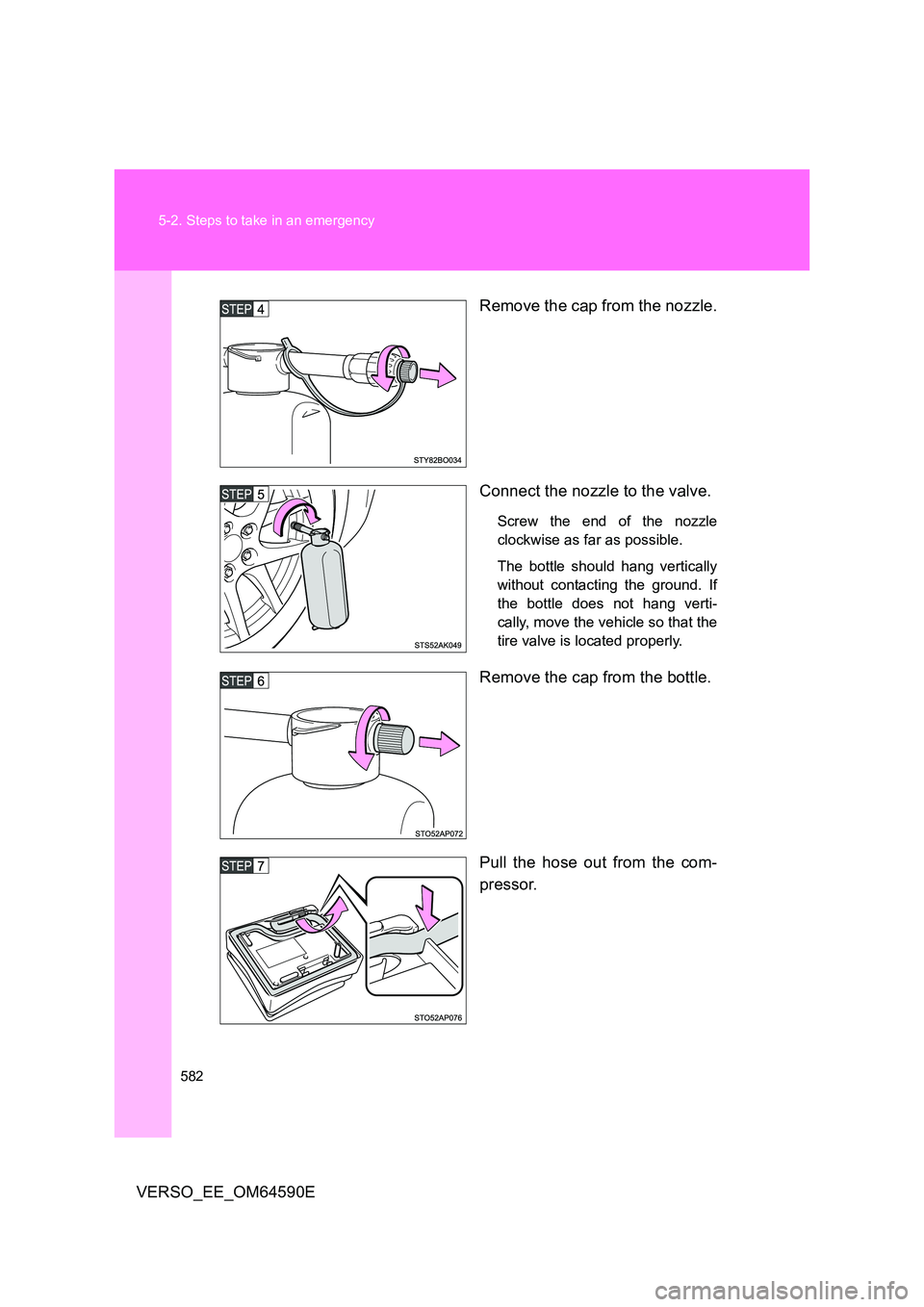

Remove the cap from the nozzle.
Connect the nozzle to the valve.
Screw the end of the nozzle
clockwise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang verti-
cally, move the vehicle so that the
tire valve is located properly.
Remove the cap from the bottle.
Pull the hose out from the com-
pressor.

5
583
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E

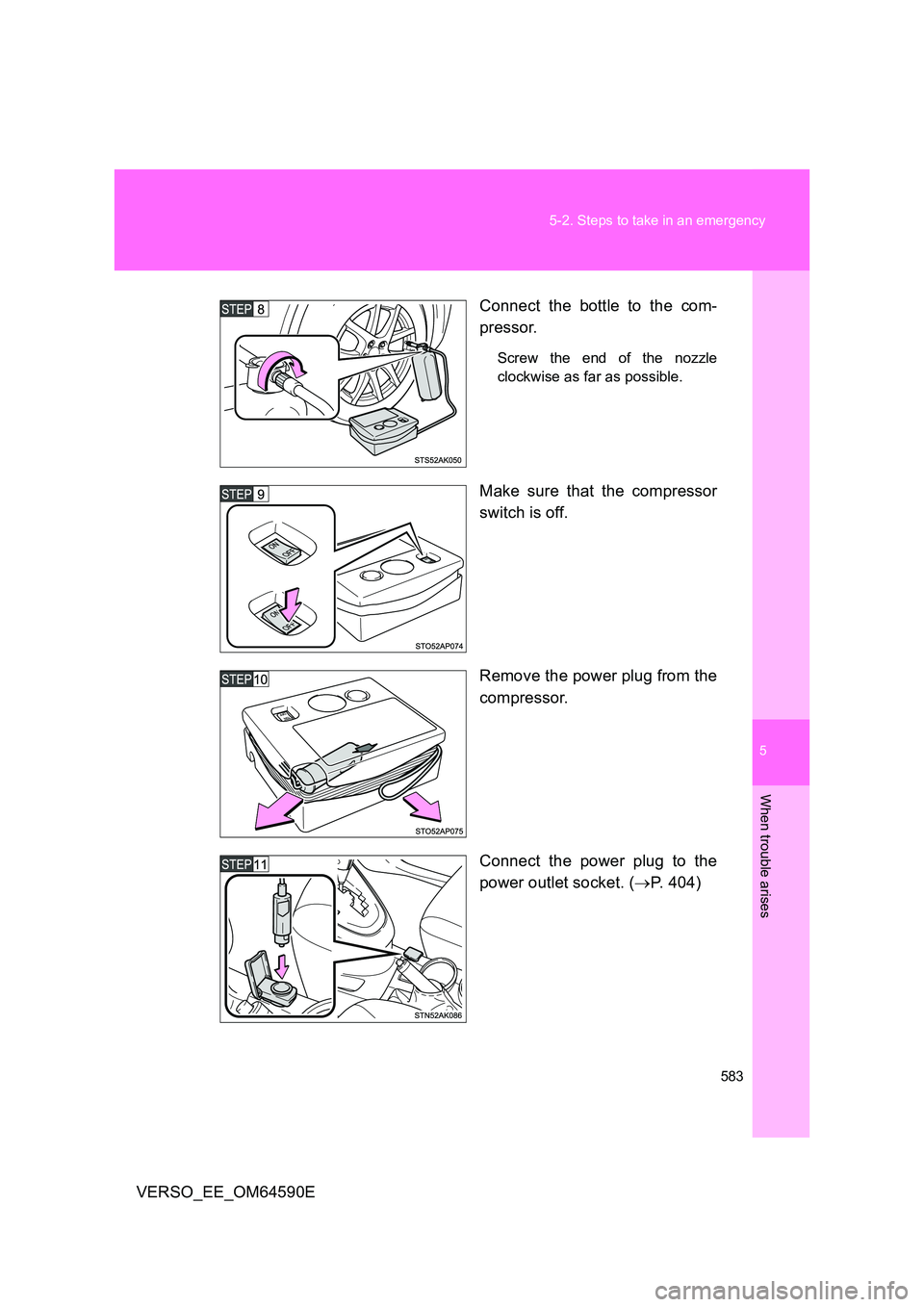

Connect the bottle to the com-
pressor.
Screw the end of the nozzle
clockwise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket. ( P. 404)

584
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

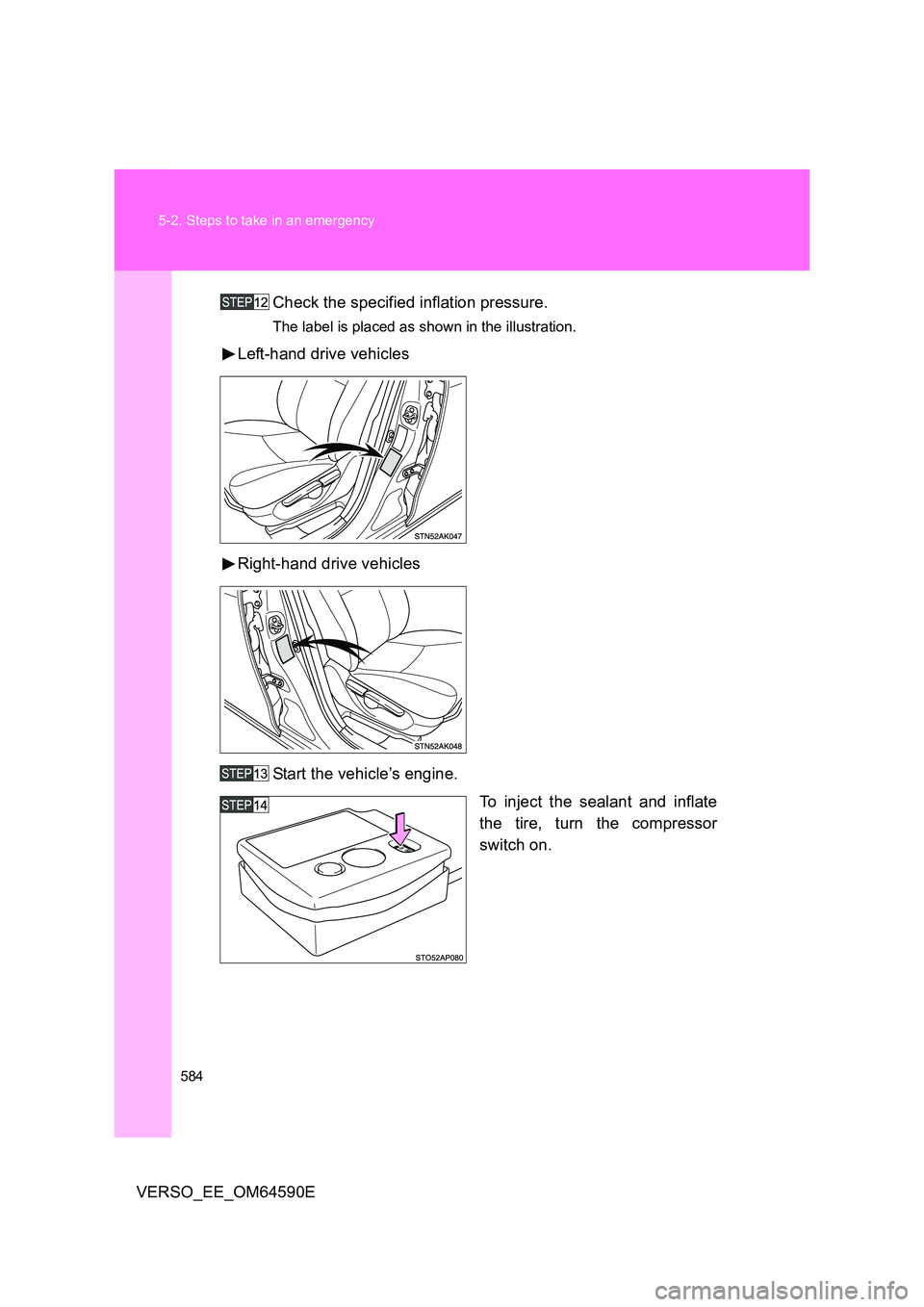

Check the specified inflation pressure.
The label is placed as shown in the illustration.
Left-hand drive vehicles
Right-hand drive vehicles
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
