2016 TOYOTA VERSO Owners Manual

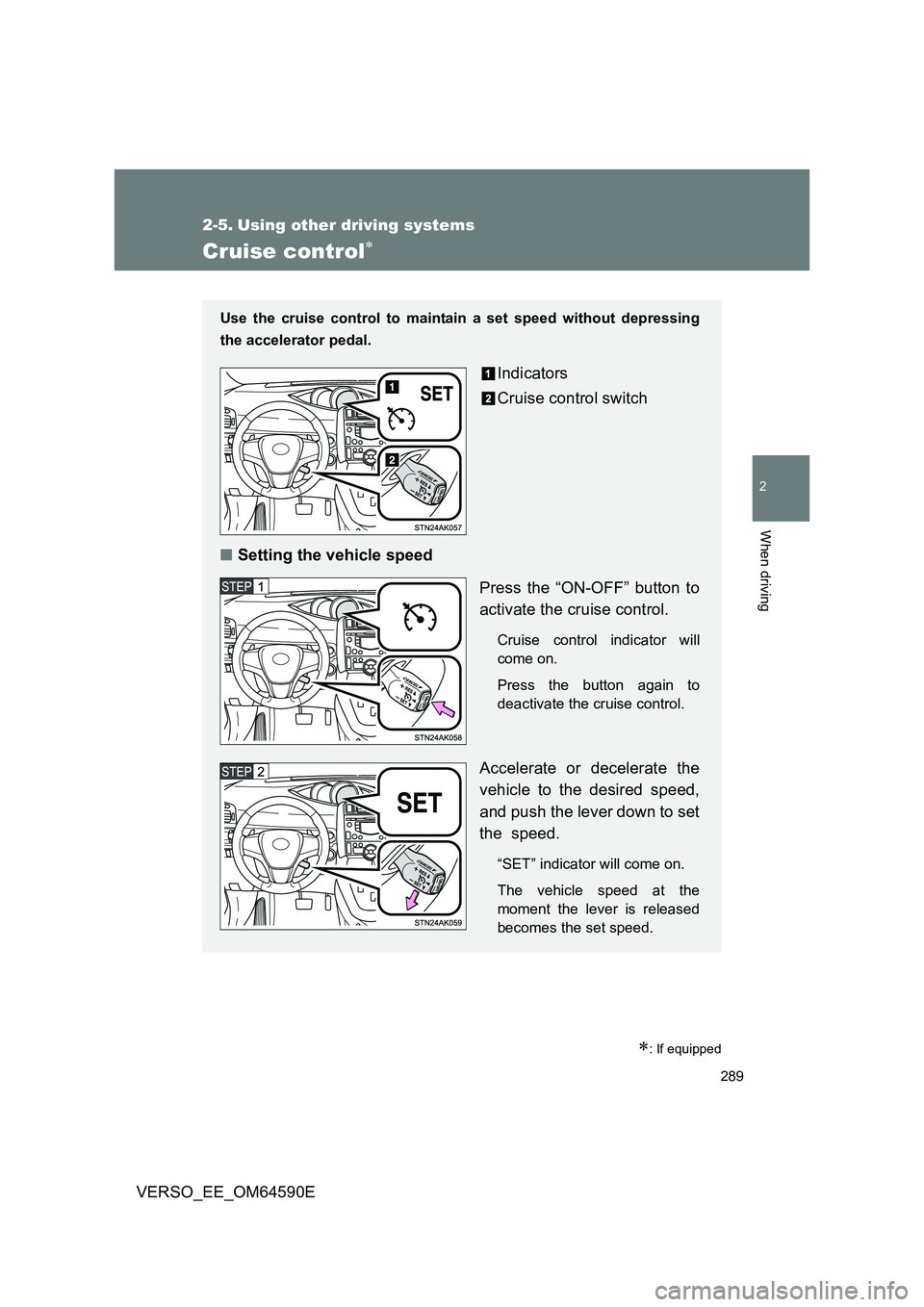

289
2
When driving
VERSO_EE_OM64590E
2-5. Using other driving systems
Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.

290
2-5. Using other driving systems
VERSO_EE_OM64590E
■ Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is obtained.
Increase the speed
Decrease the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.
■ Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when
the vehicle speed is more than
approximately 40 km/h (25
mph).

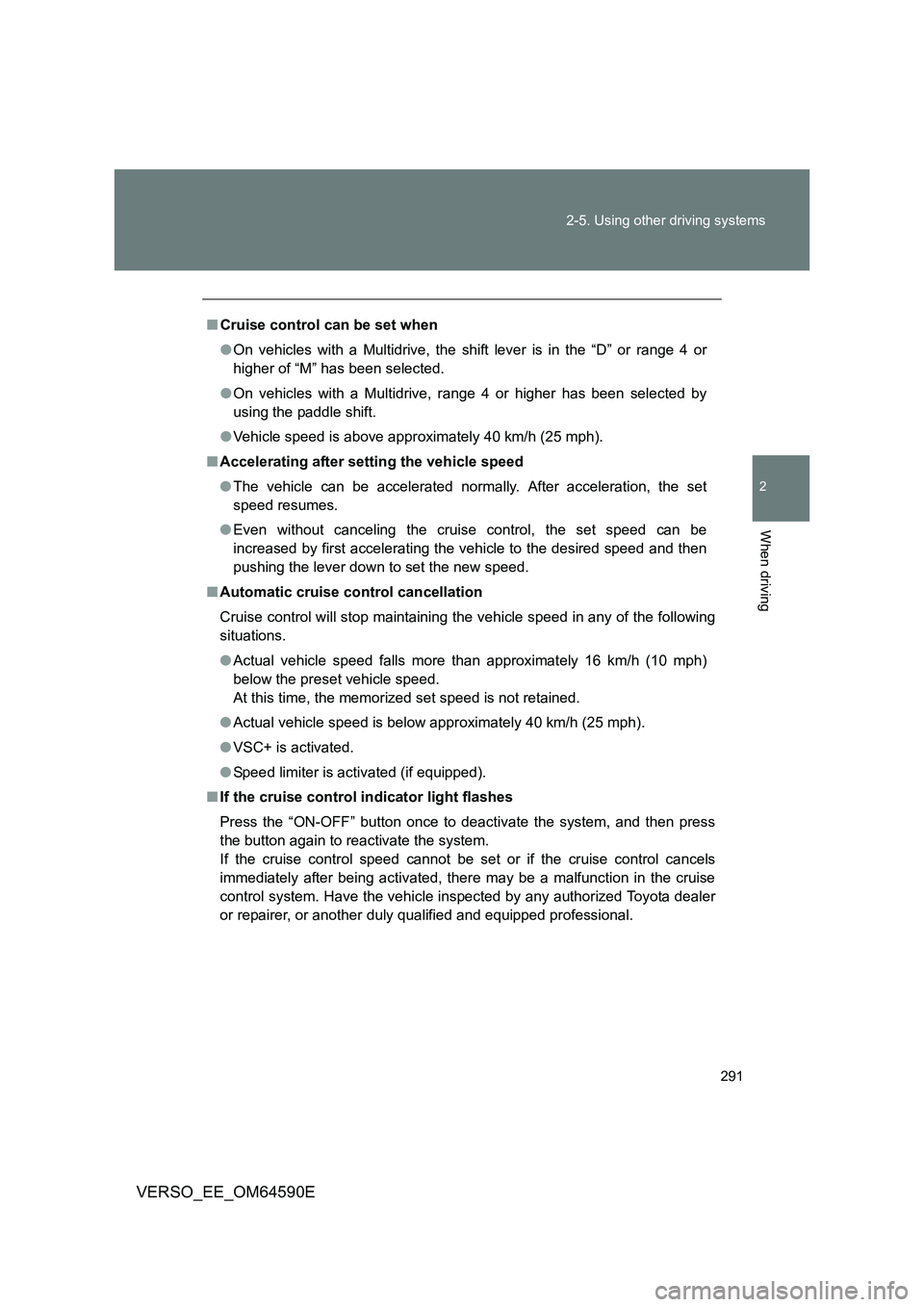

291
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64590E
■ Cruise control can be set when
● On vehicles with a Multidrive, the shift lever is in the “D” or range 4 or
higher of “M” has been selected.
● On vehicles with a Multidrive, range 4 or higher has been selected by
using the paddle shift.
● Vehicle speed is above approximately 40 km/h (25 mph).
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Automatic cruise control cancellation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 40 km/h (25 mph).
● VSC+ is activated.
● Speed limiter is activated (if equipped).
■ If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

292
2-5. Using other driving systems
VERSO_EE_OM64590E
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer

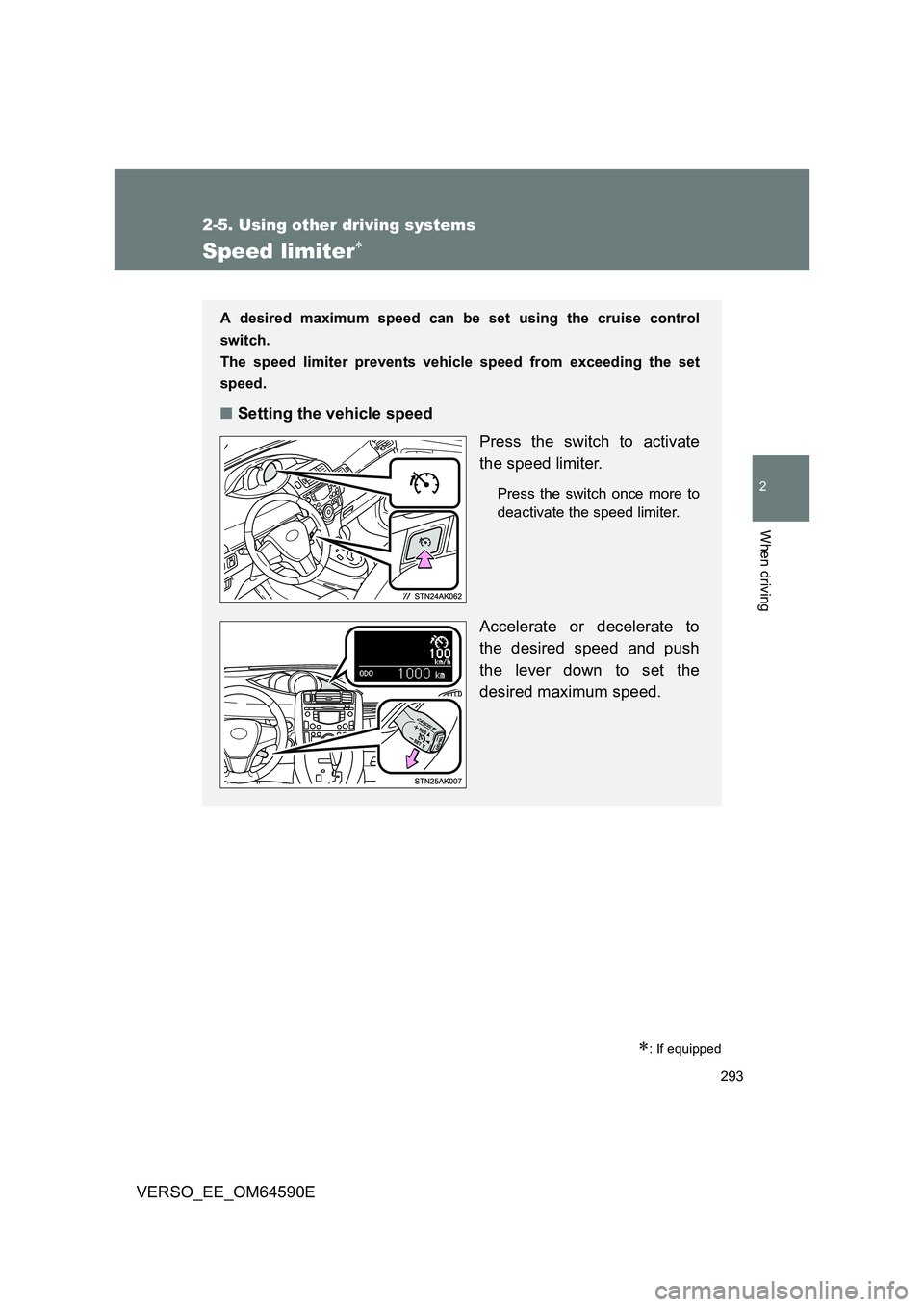

293
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64590E
Speed limiter
: If equipped
A desired maximum speed can be set using the cruise control
switch.
The speed limiter prevents vehic le speed from exceeding the set
speed.
■ Setting the vehicle speed
Press the switch to activate
the speed limiter.
Press the switch once more to
deactivate the speed limiter.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
desired maximum speed.

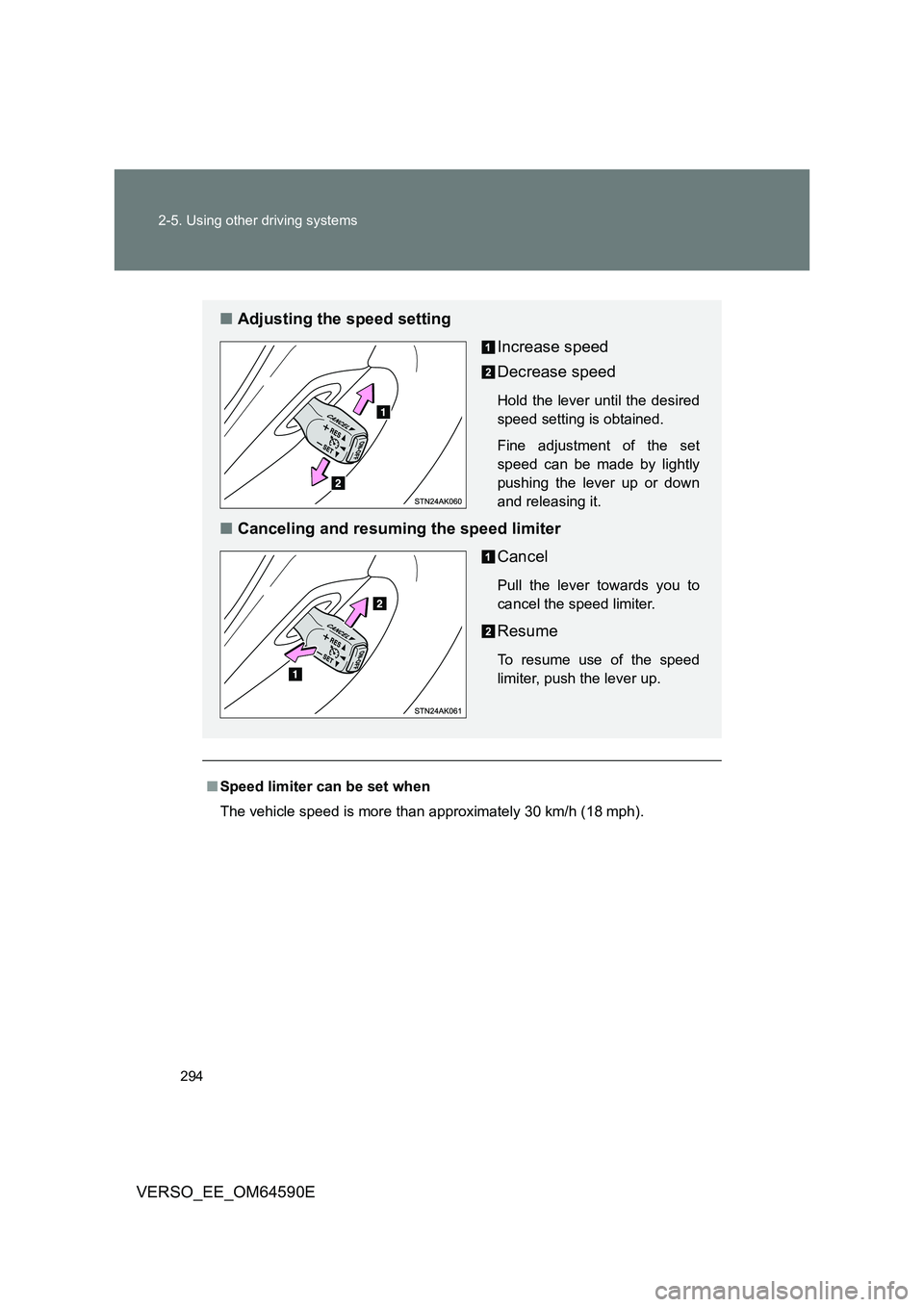

294
2-5. Using other driving systems
VERSO_EE_OM64590E
■ Speed limiter can be set when
The vehicle speed is more than approximately 30 km/h (18 mph).
■ Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed can be made by lightly
pushing the lever up or down
and releasing it.
■ Canceling and resuming the speed limiter
Cancel
Pull the lever towards you to
cancel the speed limiter.
Resume
To resume use of the speed
limiter, push the lever up.

295
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64590E
■ Exceeding the set speed
In the following situations, when the vehicle speed exceeds the set speed,
the multi-information display will be highlighted:
■ Automatic speed limiter cancellation
The set speed is automatically canceled when the cruise control is activated.
WARNING
■ To avoid operating the speed limiter by mistake
Keep the speed limiter switch off when not in use.
■ Situations unsuitable for speed limiter
Do not use the speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause a
serious or fatal accident.
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● When towing a trailer
●When fully depressing the accelerator
pedal
● When driving down a hill (a buzzer also
sounds)

296
2-5. Using other driving systems
VERSO_EE_OM64590E
Toyota parking assist-sensor
: If equipped
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a ga rage is measured by the sensors
and communicated via an indicat or and a buzzer. Always check the
surrounding area when using this system.
■ Types of sensors
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
■ Toyota parking assist-sensor switch
Turns the Toyota parking
assist-sensor on/off
When on, the indicator light
comes on to inform the driver
that the system is operational.
