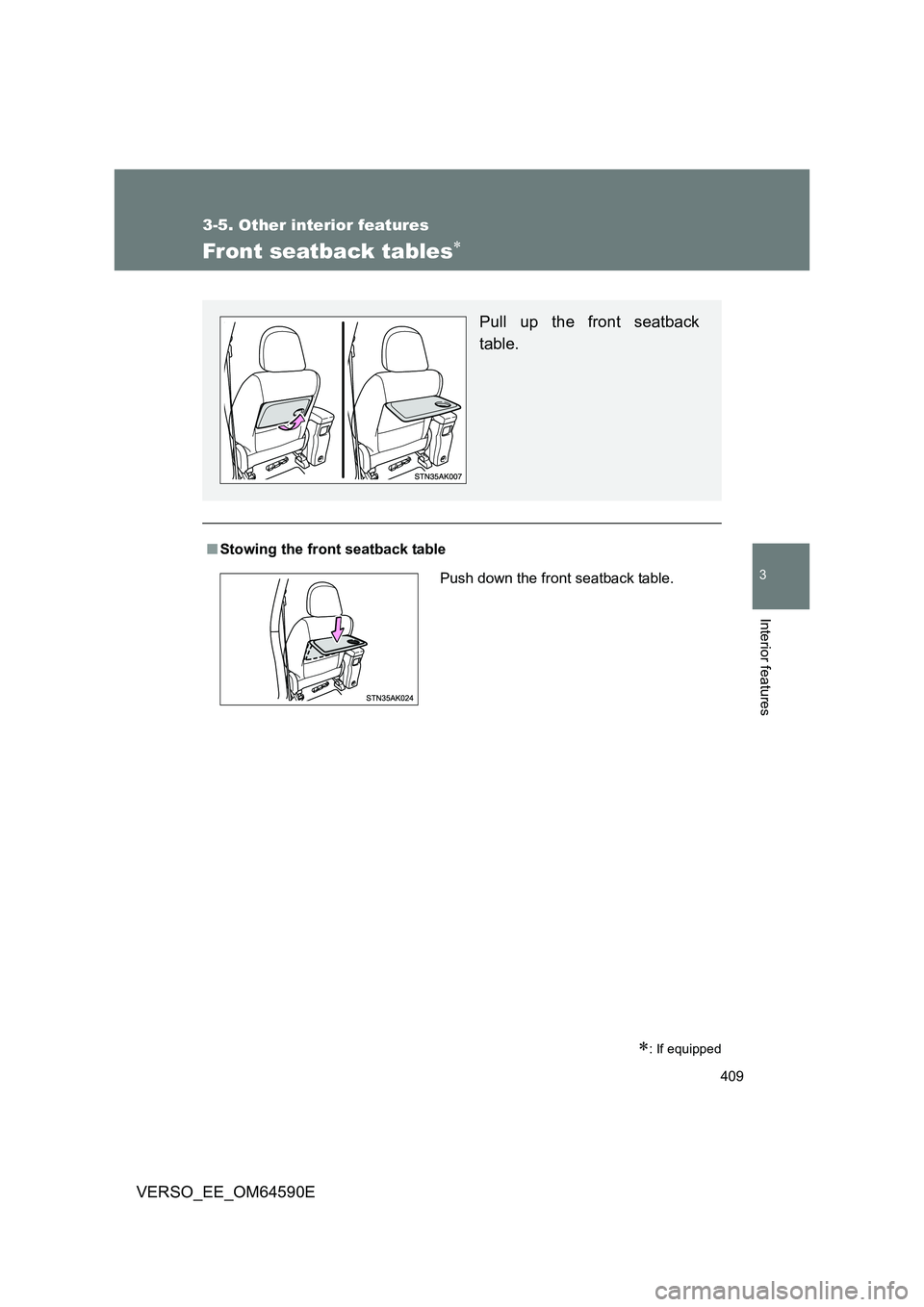

409
3-5. Other interior features
3
Interior features
VERSO_EE_OM64590E
Front seatback tables
: If equipped
■Stowing the front seatback table
Pull up the front seatback
table.
Push down the front seatback table.

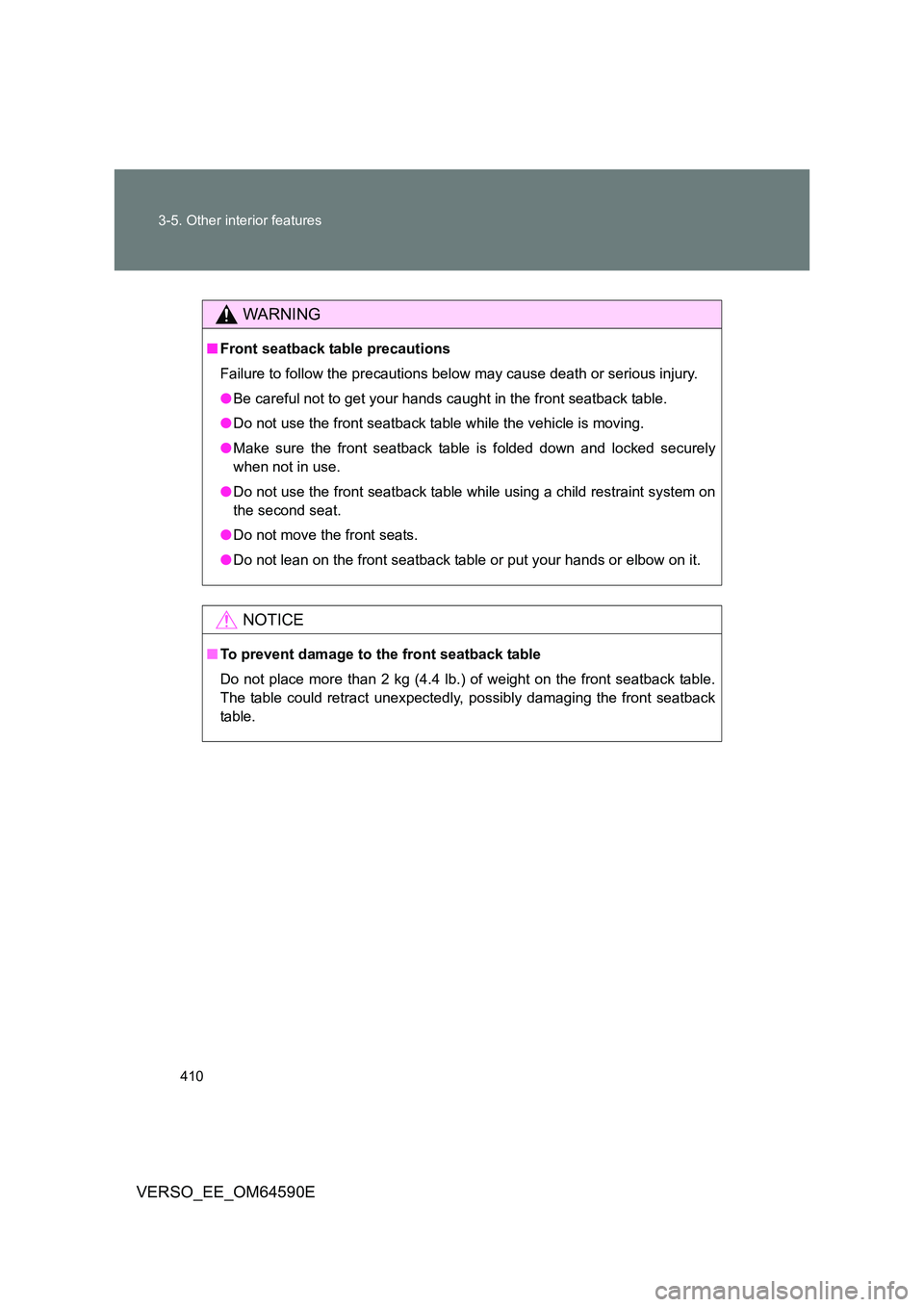

410
3-5. Other interior features
VERSO_EE_OM64590E
WARNING
■ Front seatback table precautions
Failure to follow the precautions below may cause death or serious injury.
● Be careful not to get your hands caught in the front seatback table.
● Do not use the front seatback table while the vehicle is moving.
● Make sure the front seatback table is folded down and locked securely
when not in use.
● Do not use the front seatback table while using a child restraint system on
the second seat.
● Do not move the front seats.
● Do not lean on the front seatback table or put your hands or elbow on it.
NOTICE
■To prevent damage to the front seatback table
Do not place more than 2 kg (4.4 lb.) of weight on the front seatback table.
The table could retract unexpectedly, possibly damaging the front seatback
table.

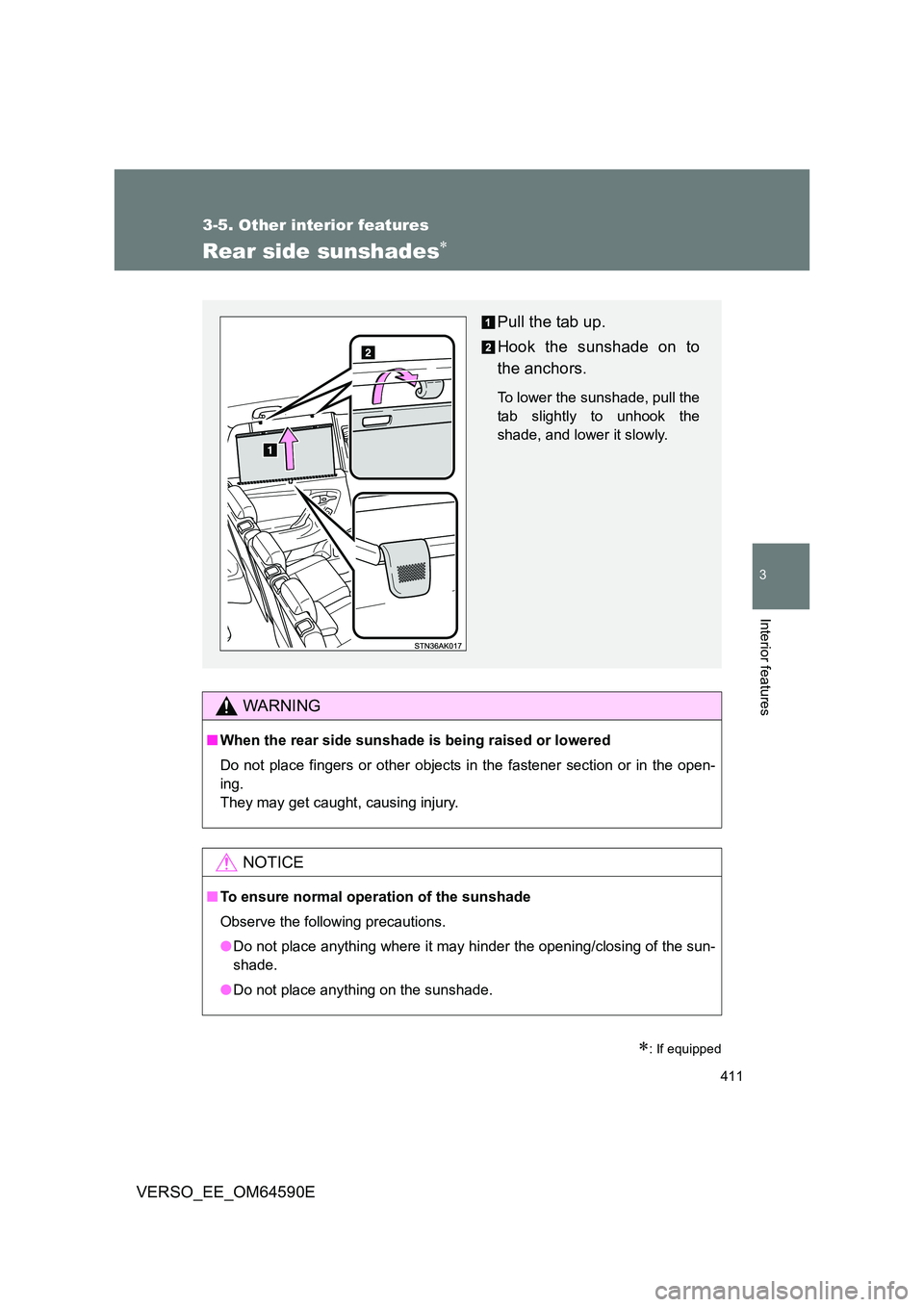

411
3-5. Other interior features
3
Interior features
VERSO_EE_OM64590E
Rear side sunshades
: If equipped
WARNING
■When the rear side sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing.
They may get caught, causing injury.
NOTICE
■ To ensure normal operation of the sunshade
Observe the following precautions.
● Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

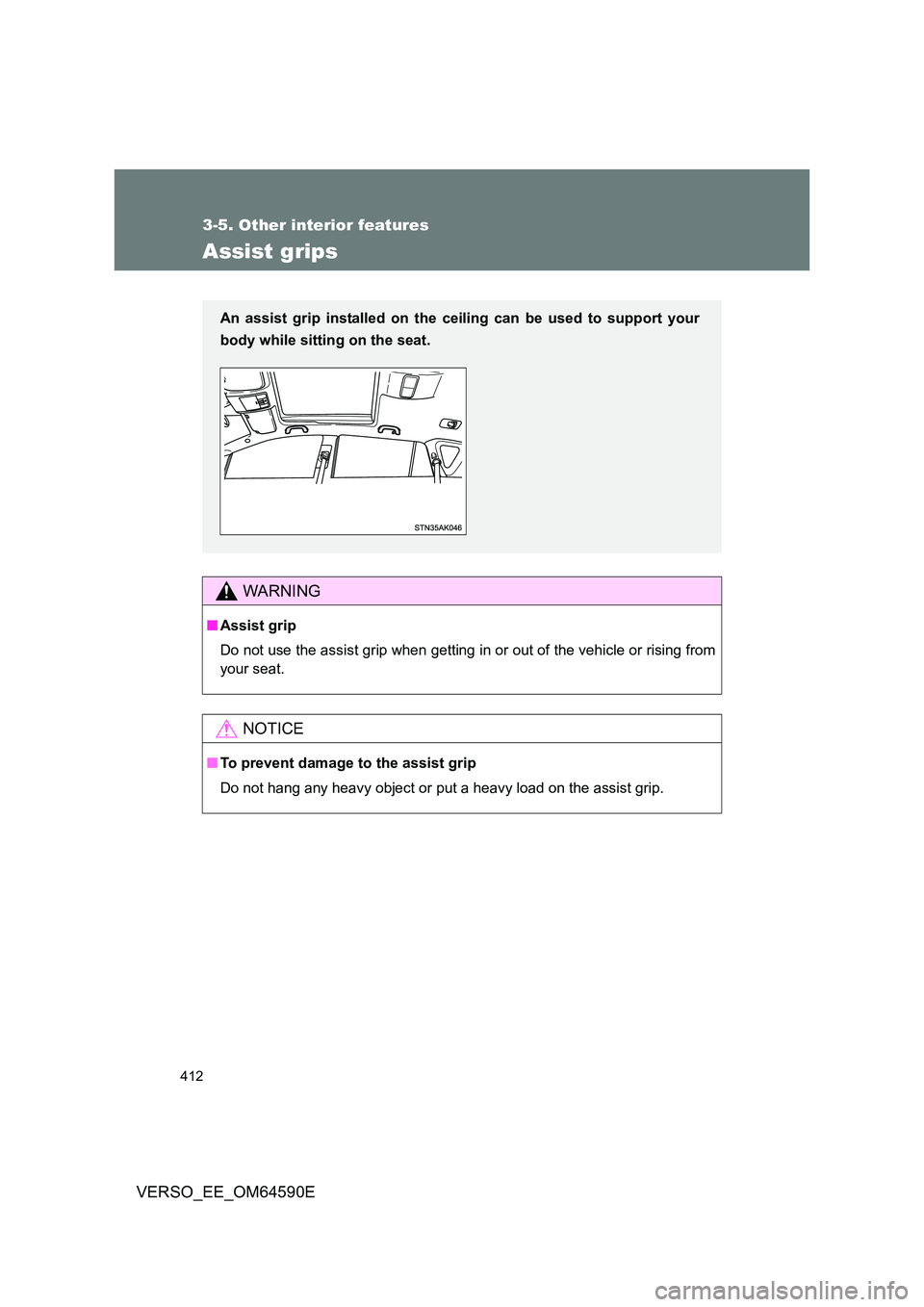

412
3-5. Other interior features
VERSO_EE_OM64590E
Assist grips
WARNING
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ce iling can be used to support your
body while sitting on the seat.

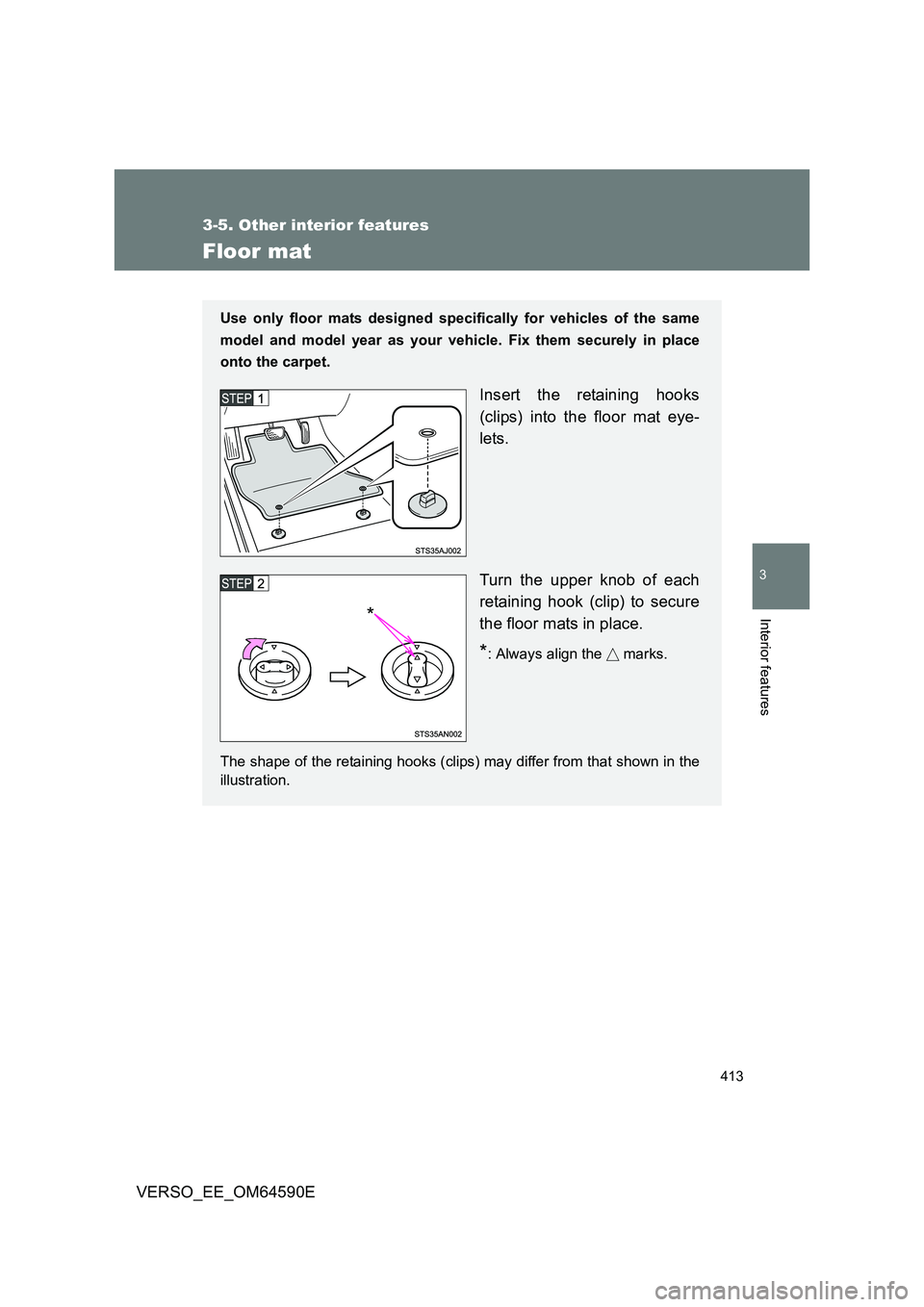

413
3-5. Other interior features
3
Interior features
VERSO_EE_OM64590E
Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

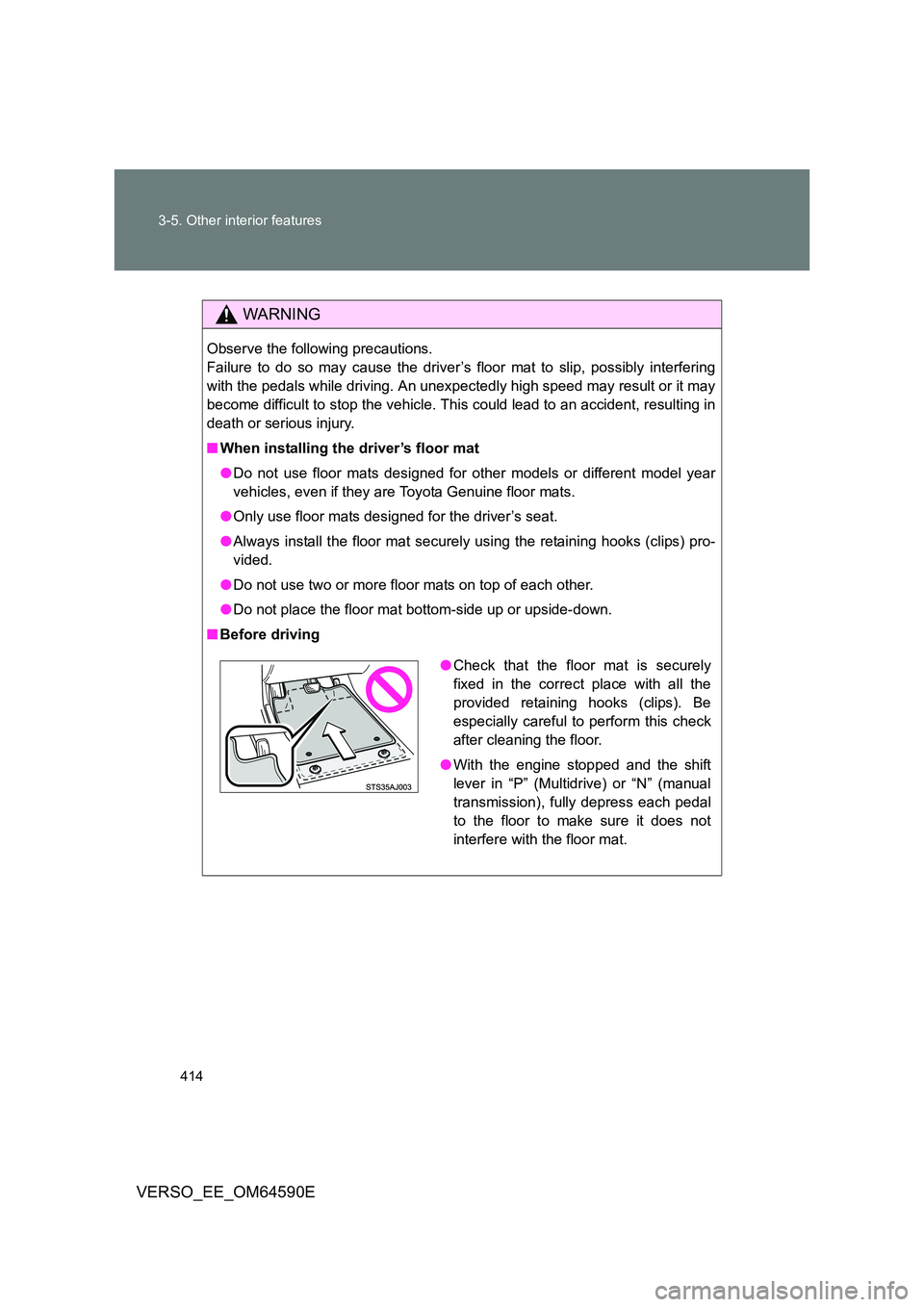

414
3-5. Other interior features
VERSO_EE_OM64590E
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in “P” (Multidrive) or “N” (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

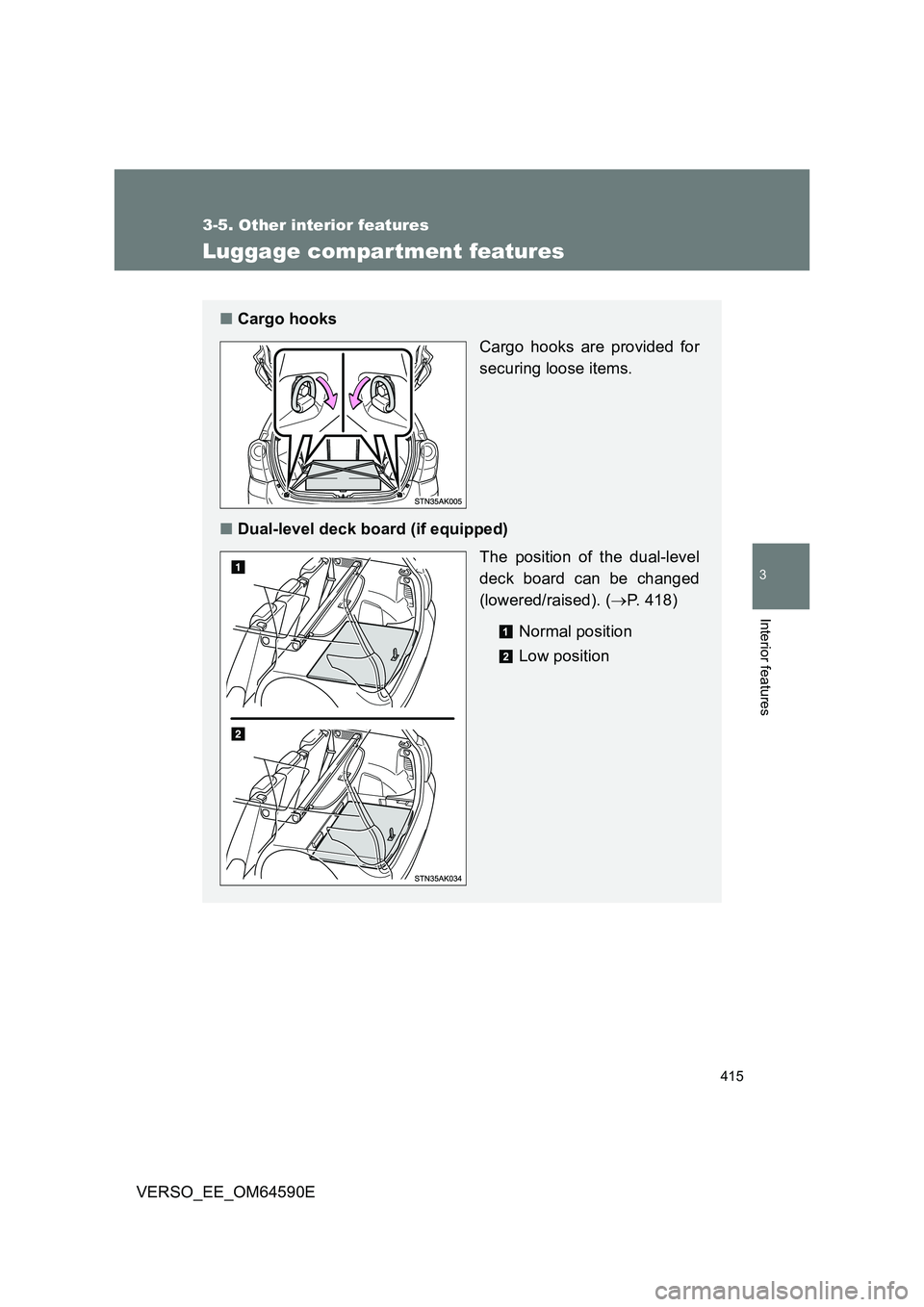

415
3-5. Other interior features
3
Interior features
VERSO_EE_OM64590E
Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Dual-level deck board (if equipped)
The position of the dual-level
deck board can be changed
(lowered/raised). ( P. 418)
Normal position
Low position

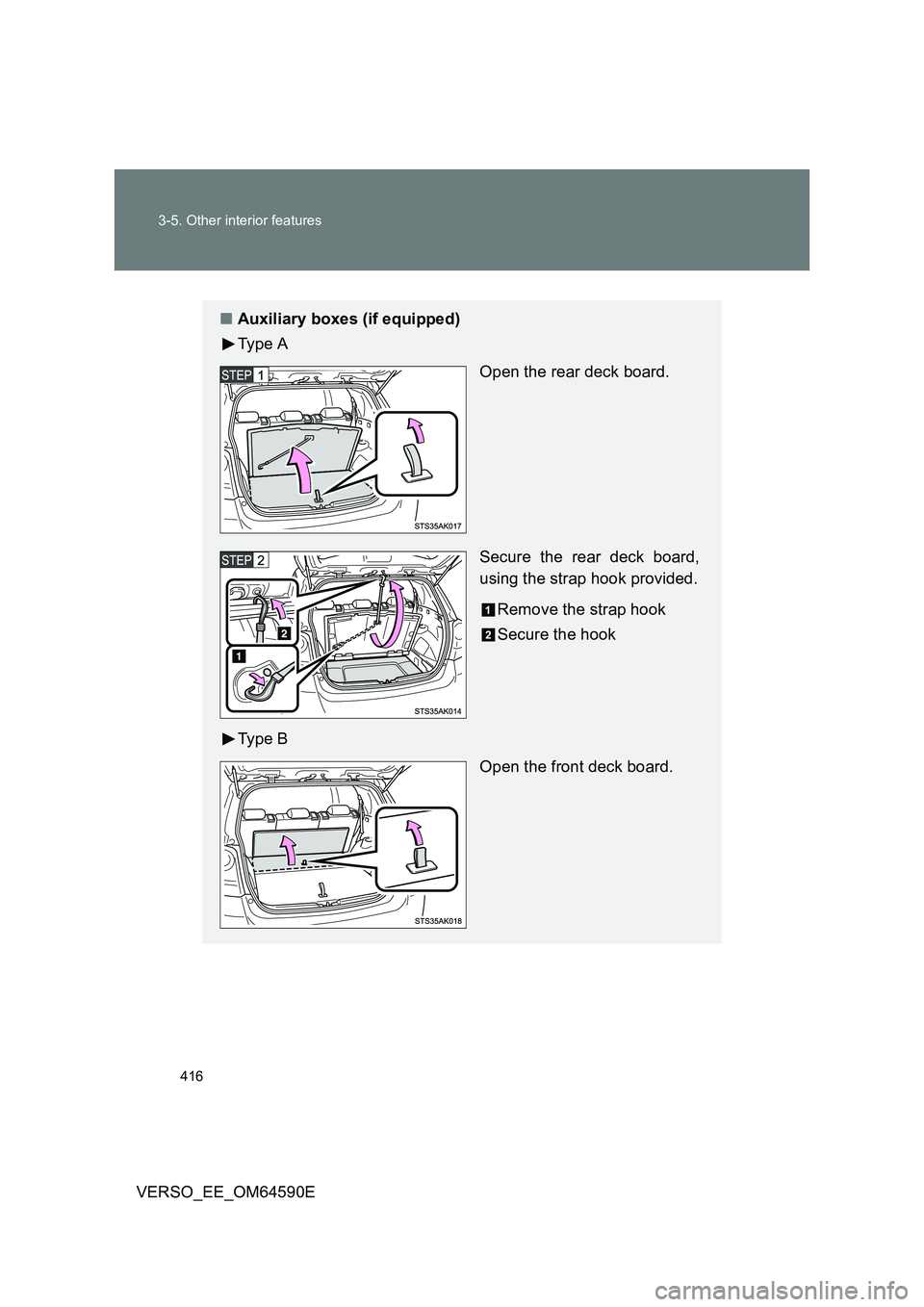

416
3-5. Other interior features
VERSO_EE_OM64590E
■ Auxiliary boxes (if equipped)
Ty p e A
Open the rear deck board.
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook
Ty p e B
Open the front deck board.
