2016 TOYOTA VERSO child lock

TABLE OF CONTENTSIndex
2
VERSO_EE_OM64590E
1-1. Key information
Keys ...................................... 38
1-2. Opening, closing and
locking the doors
Smart entry & start system ... 42
Wireless remote control ........ 64
Side doors............................. 73
Back door.............................. 79
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ............................ 84
Rear seats ............................ 86
Head restraints ..................... 94
Seat belts .............................. 96
Steering wheel .................... 104
Anti-glare inside rear view
mirror ................................ 105
Outside rear view mirrors.... 109
1-4. Opening and closing
the windows and
panoramic roof shade
Power windows ................... 112
Panoramic roof shade......... 116
1-5. Refueling
Opening the fuel tank cap ... 119
1-6. Theft deterrent system
Engine immobilizer
system.............................. 124
Double locking system ....... 135
Alarm .................................. 137
1-7. Safety information
Correct driving posture ....... 146
SRS airbags ....................... 148
Child restraint systems ....... 159
Installing child restraints ..... 167
Airbag manual on-off
system.............................. 179
2-1. Driving procedures
Driving the vehicle .............. 184
Engine (ignition) switch
(vehicles without smart
entry & start system) ........ 198
Engine (ignition) switch
(vehicles with smart
entry & start system) ........ 202
Multidrive ............................ 208
Manual transmission .......... 214
Turn signal lever................. 218
Parking brake ..................... 219
Horn ................................... 221
1Before driving
2When driving

21
VERSO_EE_OM64590E
Window lock switch P. 112
Door lock switch P. 73
Inside door lock buttons P. 74
Power window switches P. 112
Bottle holders P. 399
*1: NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 176)
*2: Refer to “Navigation and multimedia system
Owner’s Manual”.
: If equipped

1Before driving
37
VERSO_EE_OM64590E
1-1. Key information
Keys.................................... 38
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 42
Wireless remote control ...... 64
Side doors .......................... 73
Back door ........................... 79
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 84
Rear seats .......................... 86
Head restraints ................... 94
Seat belts............................ 96
Steering wheel .................. 104
Anti-glare inside rear view
mirror .............................. 105
Outside rear view
mirrors ............................ 109
1-4. Opening and closing
the windows and
panoramic roof shade
Power windows................. 112
Panoramic roof shade ...... 116
1-5. Refueling
Opening the fuel tank
cap .................................. 119
1-6. Theft deterrent system
Engine immobilizer
system ............................ 124
Double locking system ...... 135
Alarm ................................ 137
1-7. Safety information
Correct driving posture ..... 146
SRS airbags...................... 148
Child restraint systems ..... 159
Installing child restraints ... 167
Airbag manual on-off
system ............................ 179

75
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the each rear
door switch to lock both rear
doors.

78
1-2. Opening, closing and locking the doors
VERSO_EE_OM64590E

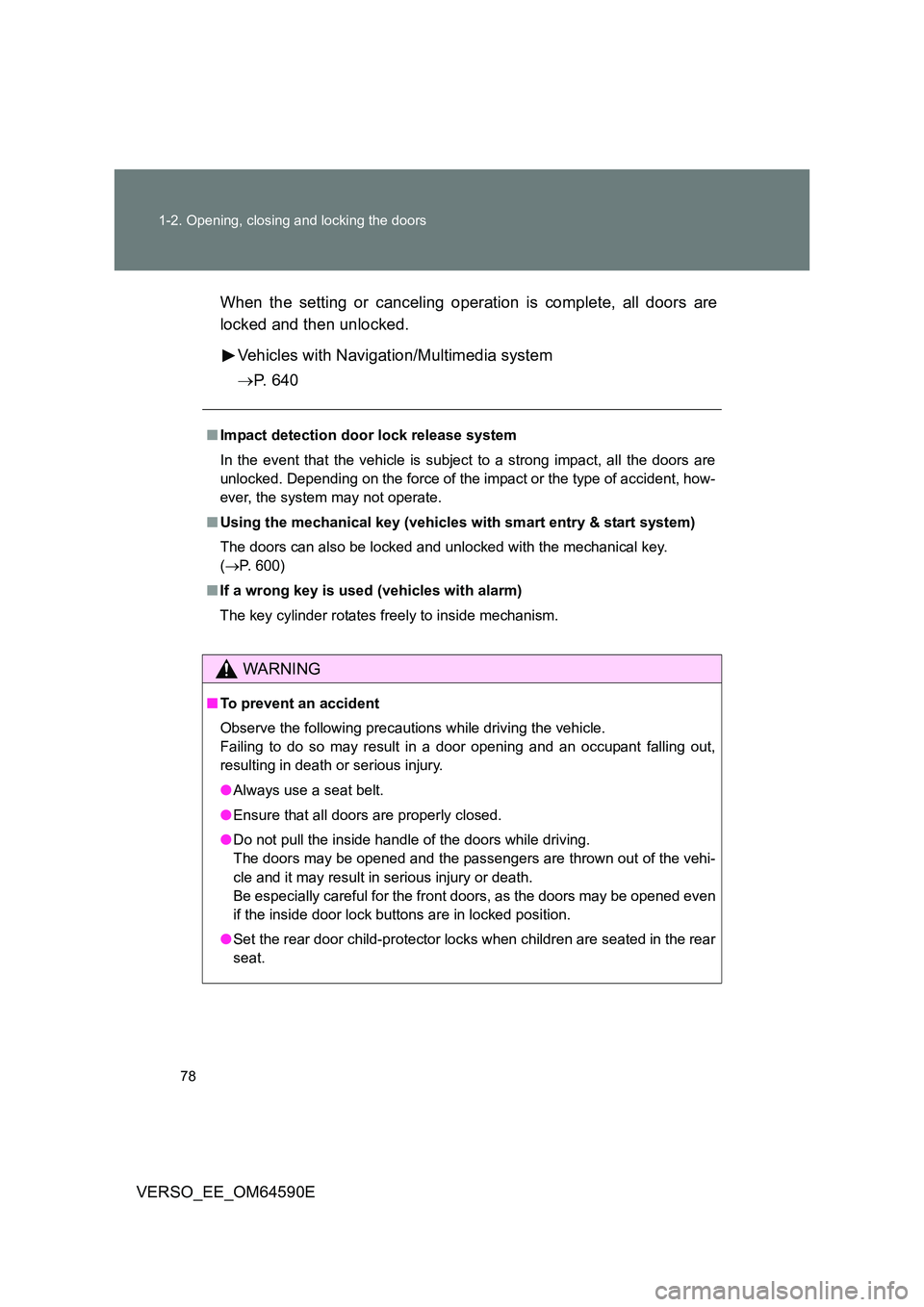

When the setting or canceling operation is complete, all doors are
locked and then unlocked.
Vehicles with Navigation/Multimedia system
 P. 6 4 0
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ Using the mechanical key (vehicles with smart entry & start system)
The doors can also be locked and unlocked with the mechanical key.
( P. 600)
■ If a wrong key is used (vehicles with alarm)
The key cylinder rotates freely to inside mechanism.
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside door lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

81
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E

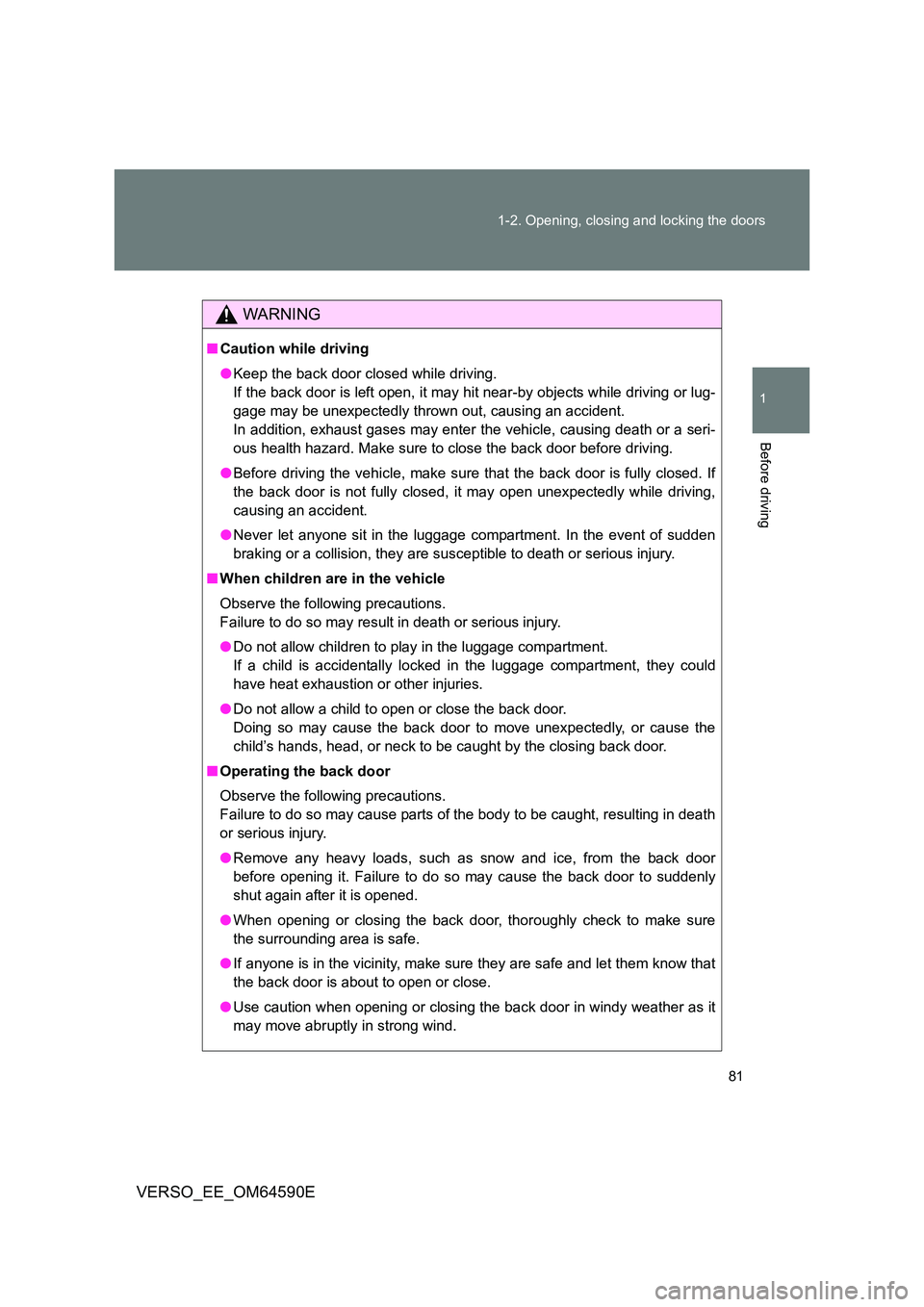

WARNING
■ Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

92
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E
From outside
Open the back door and pull the
lock release strap to fold down
the third seats.
■ Returning the third seats
Lift up the seatbacks until they lock.
Remove the outside seat belts from the seat belt hangers.
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to “P” (Multidrive) or “1” (manual transmission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.

100
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E

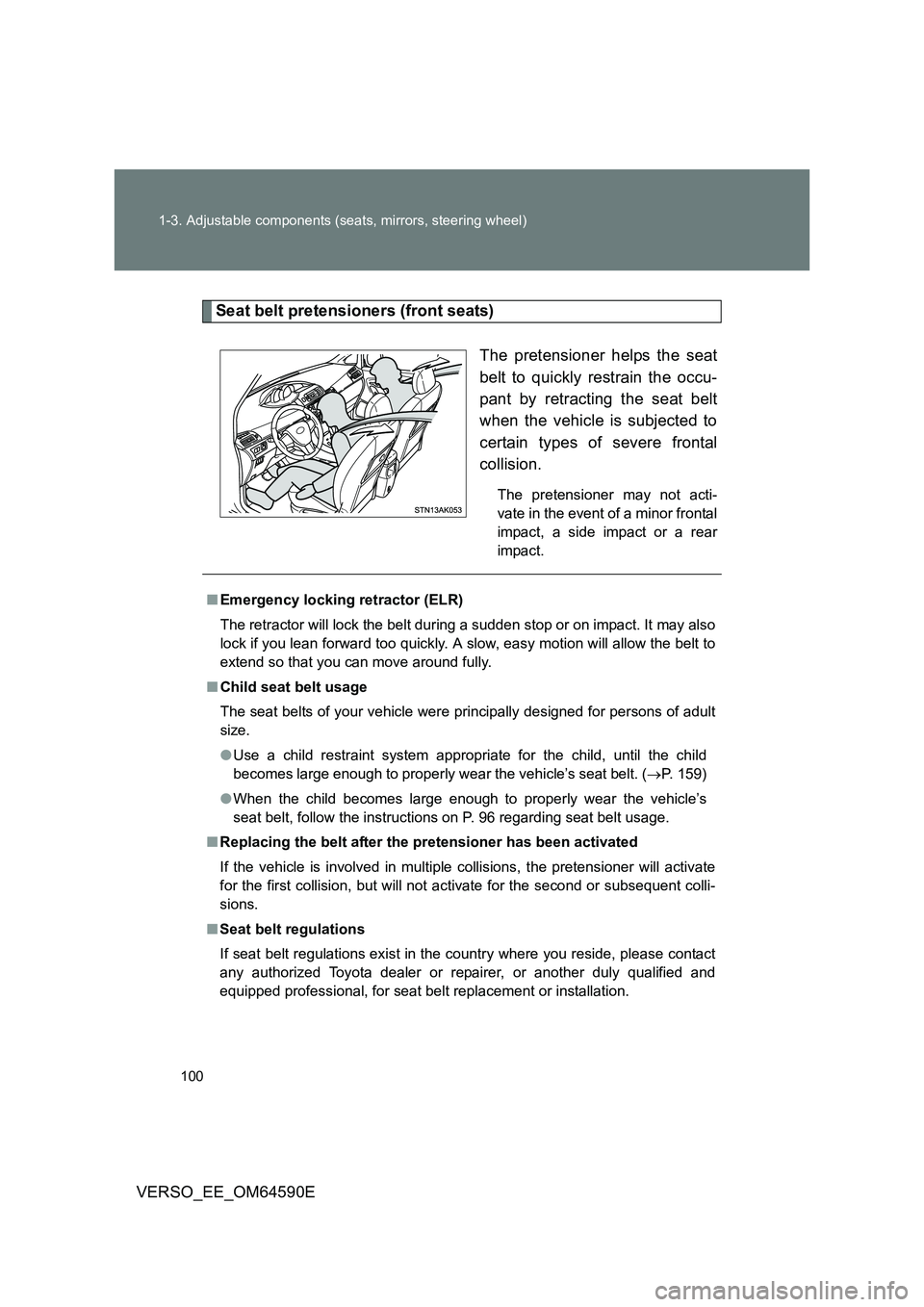

Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 159)
● When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 96 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
