Engine compar tment
Gasoline engine
Washer fluid tank (P. 459)
Engine coolant reservoir
( P. 452)
Engine oil level dipstick
( P. 447)
Engine oil filler cap
( P. 449)
Fuse box (P. 485)
Battery ( P. 455)
Electric cooling fan
Condenser ( P. 454)
Radiator ( P. 454)

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Diesel engine
Washer fluid tank ( P. 459)
Engine coolant reservoir
( P. 452)
Engine oil filler cap
( P. 449)
Engine oil level dipstick
( P. 447)
Fuel filter (P. 460)
Fuse box ( P. 485)
Battery ( P. 455)
Condenser ( P. 454)
Electric cooling fans
Intercooler ( P. 454)
Radiator ( P. 454)

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Remove the lid.
Ty p e B
1. Open the glove box. Slide
off the damper.
2. Lift the glove box to discon-
nect the claws at the bottom
and remove it.
After a system failure, see “Fuse layout and amperage
ratings” ( P. 490) for details about which fuse to check.

488
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Under the instrument panel (type A)
FuseAmpereCircuit
1 TAIL 10 A
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU, PCS (Pre-Collision
System) switch
2 ECU-IG NO.3 10 A
Panoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
Stop & Start system*1, PCS (Pre-
Collision System), buzzer, gate-
way ECU
3 FR DOOR 20 A Power windows (front passenger
side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 CIG 15 A Power outlets
7 ACC 7.5 A
Shift lock system, audio system,
main body ECU, power outlet, out-
side rear view mirrors, Stop & Start
system*1, gateway ECU
8 MIR HTR 10 A Outside rear view mirror defoggers

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

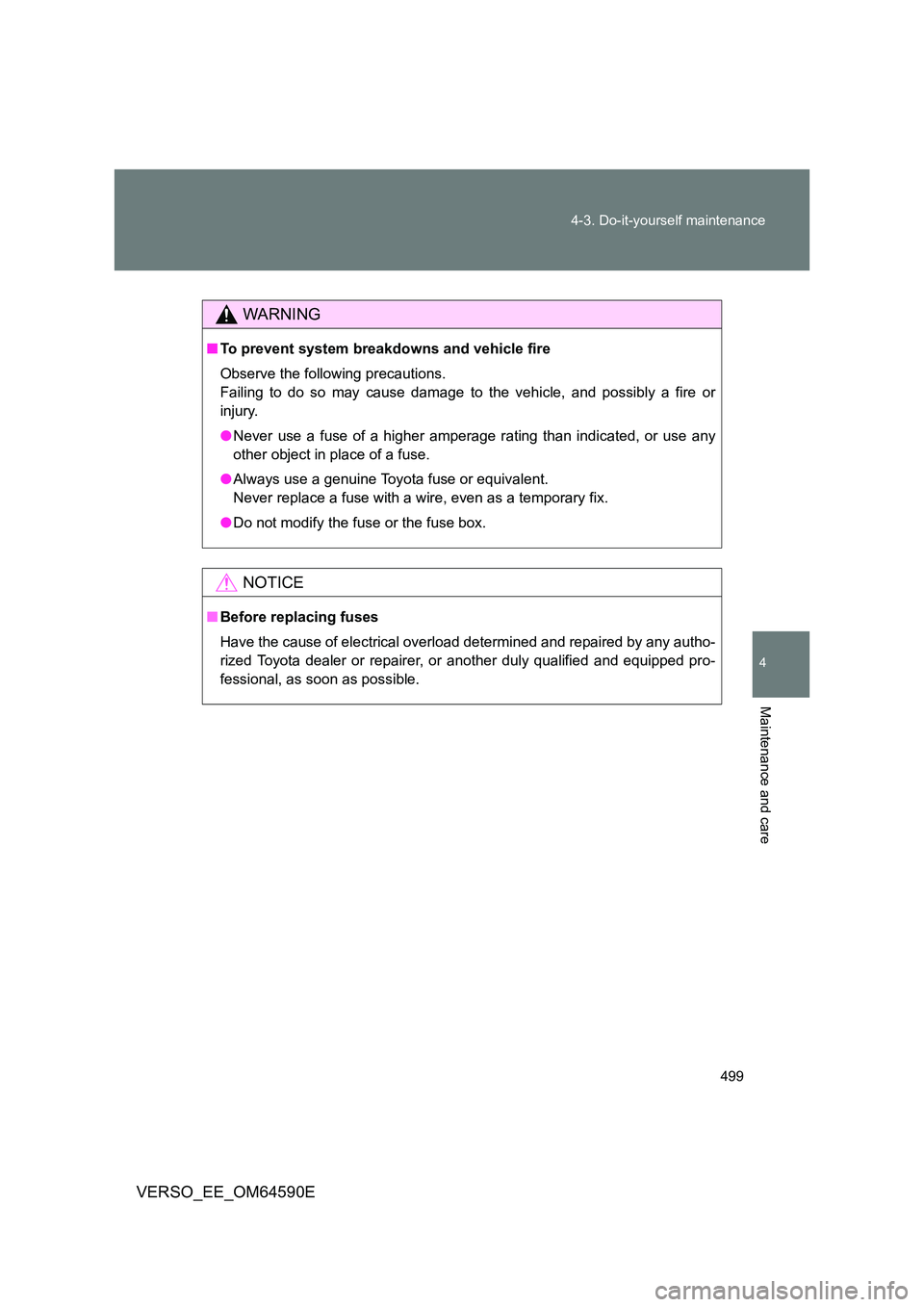

WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
