2016 TOYOTA VERSO transmission fluid

197
2-1. Driving procedures
2
When driving
VERSO_EE_OM64590E
NOTICE
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following.
● Brake function
● Changes in quantity and quality of engine oil, transmission fluid, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble) and the function of all joints, bearings, etc.

606

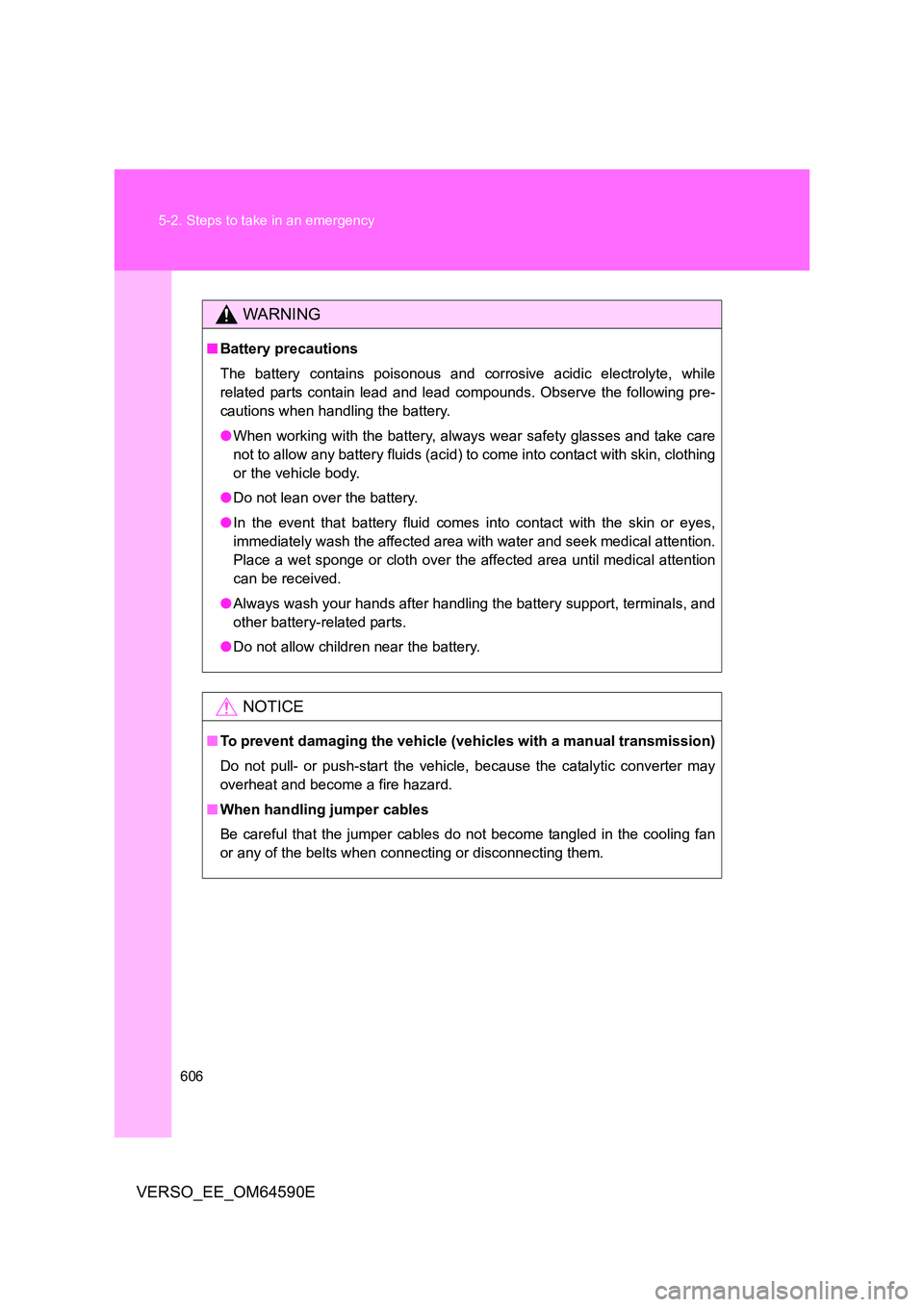

5-2. Steps to take in an emergency
VERSO_EE_OM64590E
WARNING
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery.
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
NOTICE
■To prevent damaging the vehicle (vehicles with a manual transmission)
Do not pull- or push-start the vehicle, because the catalytic converter may
overheat and become a fire hazard.
■ When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.

630
6-1. Specifications
VERSO_EE_OM64590E
Multidrive (2ZR-FAE engine only)
The fluid capacity is a reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Fluid capacity
(Reference)7.6 L (8.0 qt., 6.7 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.

631
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Manual transmission
Clutch
Gear oil capacity
(Reference)
Gasoline engine2.4 L (2.5 qt., 2.1 lmp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4

659

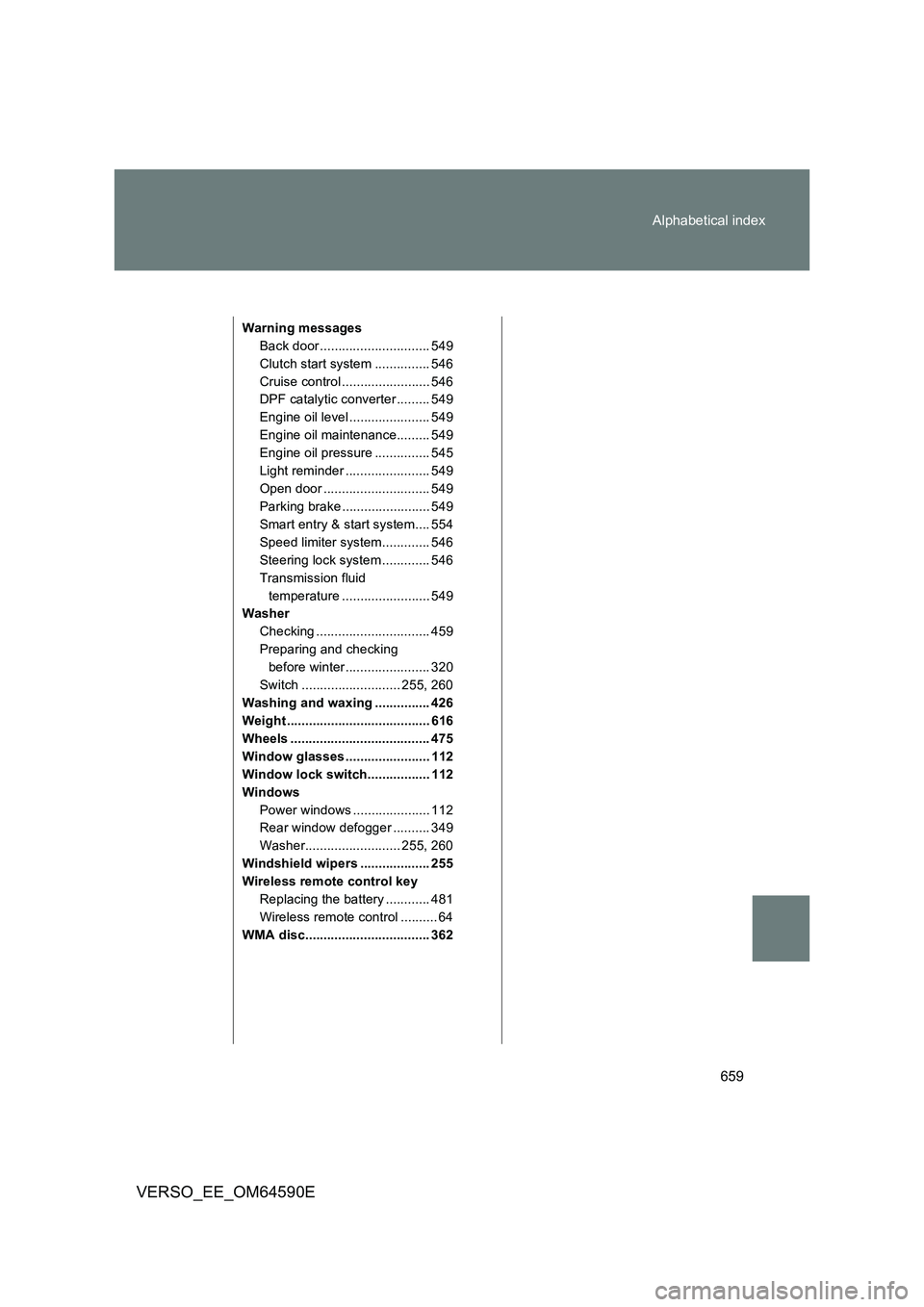

Alphabetical index
VERSO_EE_OM64590E
Warning messages
Back door .............................. 549
Clutch start system ............... 546
Cruise control ........................ 546
DPF catalytic converter ......... 549
Engine oil level ...................... 549
Engine oil maintenance......... 549
Engine oil pressure ............... 545
Light reminder ....................... 549
Open door ............................. 549
Parking brake ........................ 549
Smart entry & start system.... 554
Speed limiter system............. 546
Steering lock system ............. 546
Transmission fluid
temperature ........................ 549
Washer
Checking ............................... 459
Preparing and checking
before winter....................... 320
Switch ........................... 255, 260
Washing and waxing ............... 426
Weight ....................................... 616
Wheels ...................................... 475
Window glasses ....................... 112
Window lock switch................. 112
Windows
Power windows ..................... 112
Rear window defogger .......... 349
Washer.......................... 255, 260
Windshield wipers ................... 255
Wireless remote control key
Replacing the battery ............ 481
Wireless remote control .......... 64
WMA disc.................................. 362
