2016 TOYOTA VERSO Clock

238
2-2. Instrument cluster
VERSO_EE_OM64590E
■ Setting the clock
Select “CLOCK” on the menu screen.
Press the “DISP” switch to adjust
the hours.
After setting the hours, wait for 5
seconds until the bar disappears,
and confirm that the hour has
been input.
Press the “DISP” switch to adjust
the minutes.
After setting the minutes, wait for
5 seconds until the bar disap-
pears, and confirm that the min-
utes has been input.
■ Setting the clock format
Select “CLOCK FORMAT” on the menu screen.
Select the desired clock format.
Press and hold the “DISP” switch
to input the choice.

330
2-6. Driving information
VERSO_EE_OM64590E
Guidance
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
■ Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection
between the trailer and lights after driving for a brief period as well
as before setting off.
■ Practicing driving with a coupled trailer
● Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
● When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn right. Always rotate gradu-
ally to prevent steering error. Have someone guide you when
reversing to lessen the risk of accident.
■ Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control.
This is especially true when driving on wet or slippery road sur-
faces.
■ Sudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer collid-
ing with your vehicle. Decelerate well in advance when approach-
ing turns and take them slowly and carefully to avoid sudden
braking.

334
VERSO_EE_OM64590E
3-1. Using the air conditioning system and defogger
Manual air conditioning system
Adjusting the settings
■ Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise to increase the temper-
ature.
■ Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
: If equipped
Fan speed control dial
Outside air or recirculated air mode button
Air outlet selection dial
Air conditioning on/off button
(if equipped)
Temperature control dial

335
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E
■ Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter
clockwise (decrease).
Set the dial to “0” to turn the fan off.
■ Changing the air outlets
Turn the air outlet selection dial.
The air outlets switch each time
either side of air outlet selection
dial is turned.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

369
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E

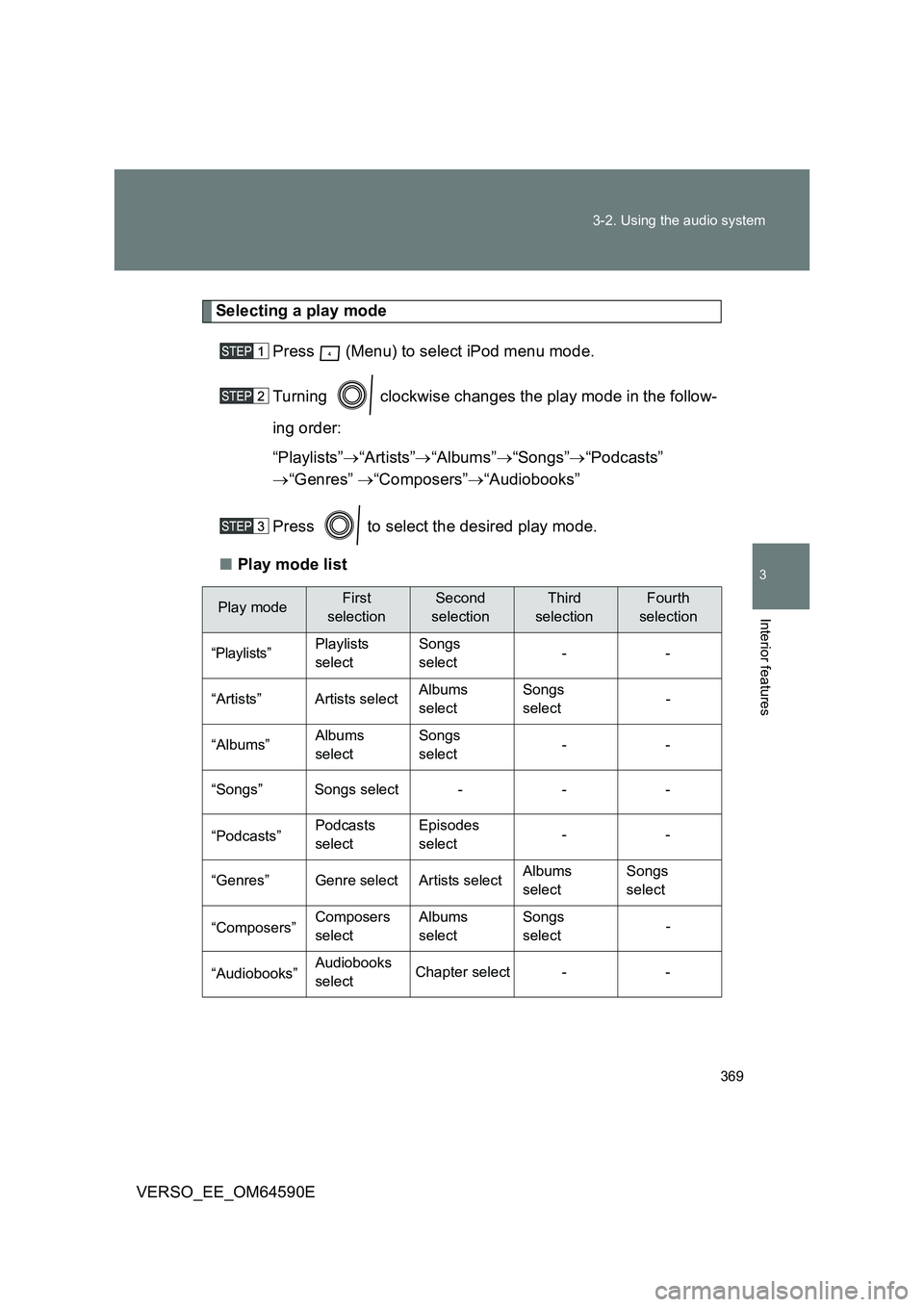

Selecting a play mode
Press (Menu) to select iPod menu mode.
Turning clockwise changes the play mode in the follow-
ing order:
“Playlists” “Artists”“Albums”“Songs”“Podcasts”
 “Genres” “Composers”“Audiobooks”
Press to select the desired play mode.
■ Play mode list
Play modeFirst
selection
Second
selection
Third
selection
Fourth
selection
“Playlists”Playlists
select
Songs
select --
“Artists” Artists select Albums
select
Songs
select -
“Albums” Albums
select
Songs
select --
“Songs” Songs select - - -
“Podcasts” Podcasts
select
Episodes
select --
“Genres” Genre select Artists select Albums
select
Songs
select
“Composers” Composers
select
Albums
select
Songs
select -
“Audiobooks” Audiobooks
select Chapter select - -

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 622
Oil quantity
(Low  Full)
Gasoline engine
1.5 L (1.6 qt., 1.3 Imp.qt.)
Diesel engine
1.2 L (1.3 qt., 1.1 Imp.qt.)
Items Clean funnel

504
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Replacing light bulbs
■ Headlight low beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

506
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.
