2016 TOYOTA VERSO Owners Manual

25
VERSO_EE_OM64590E
Manual air conditioning system
“PASSENGER AIRBAG” indicator P. 179
Rear window and outside rear view mirror
defoggers switch P. 349
Security indicator
P. 124, 137
Air conditioning
system P. 334
*: Refer to “Navigation and multimedia system Owner’s Manual”.
: If equipped

26
VERSO_EE_OM64590E
Automatic air conditioning system
Security indicator
P. 124, 137
Rear window and outside rear view mirror
defoggers switch P. 349
“PASSENGER AIRBAG” indicator P. 179
Air conditioning
system P. 340
Pictorial indexInstrument panel
(right-hand drive vehicles)

27
VERSO_EE_OM64590E
Outside rear view mirror
switches P. 109
Manual headlight
leveling dial P. 249
VSC/TRC off switch P. 312
Tilt and telescopic steering lock release lever P. 104
Engine (ignition) switch
(vehicles with smart entry & start system) P. 202
Engine (ignition) switch
(vehicles without smart entry & start system) P. 198
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 255
P. 260PCS (Pre-Collision
System) switch
P. 268
: If equipped

28
VERSO_EE_OM64590E
Instrument panel
(right-hand drive vehicles)Pictorial index
*: Refer to “Navigation and multimedia system Owner’s Manual”.
: If equipped
Paddle shift switches P. 210, 211
Audio switches P. 385
Talk switch*
Telephone switch*
LDA (Lane Departure Alert) switch P. 278
Speed limiter switch P. 293
Speed limiter switch P. 293
LDA (Lane Departure Alert) switch P. 278
Type A Type B Type C
“DISP” switch P. 233
Cruise control switch
P. 289, 293
Paddle shift switches
P. 210, 211
“TRIP” switch P. 224

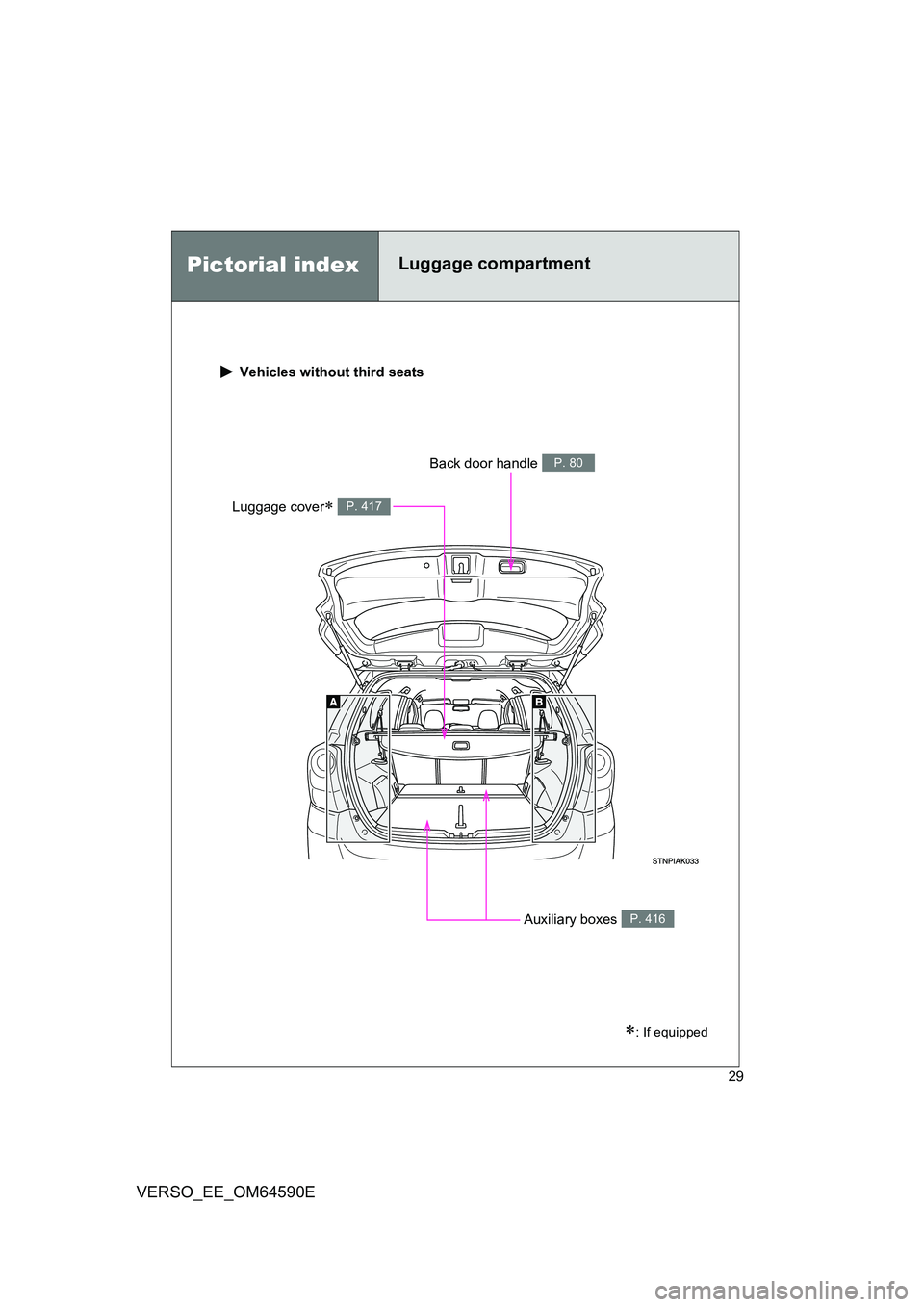

29
VERSO_EE_OM64590E
Pictorial indexLuggage compartment
Vehicles without third seats
Luggage cover P. 417
Auxiliary boxes P. 416
Back door handle P. 80
: If equipped

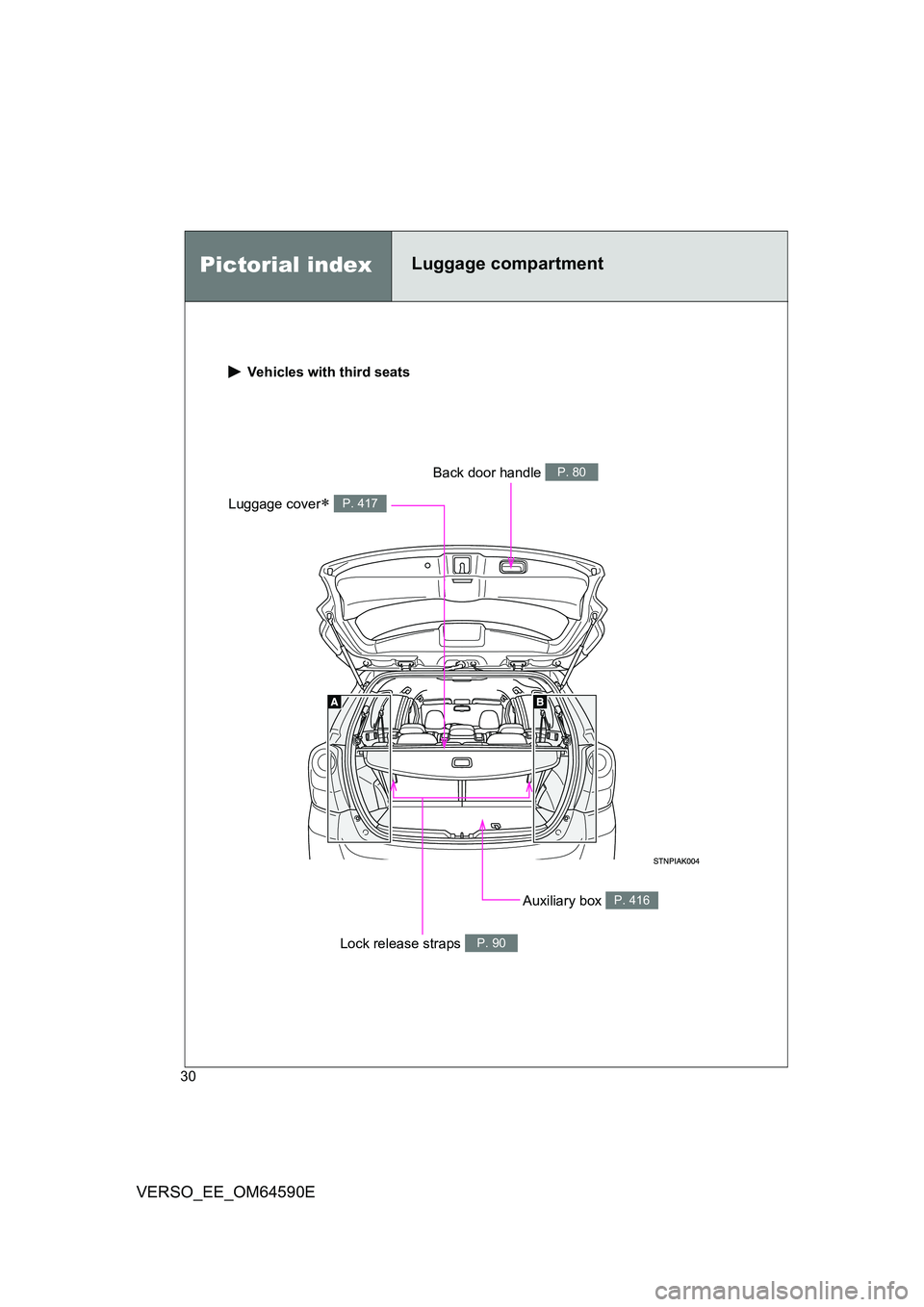

30
VERSO_EE_OM64590E
Vehicles with third seats
Auxiliary box P. 416
Luggage cover P. 417
Back door handle P. 80
Lock release straps P. 90
Pictorial indexLuggage compartment

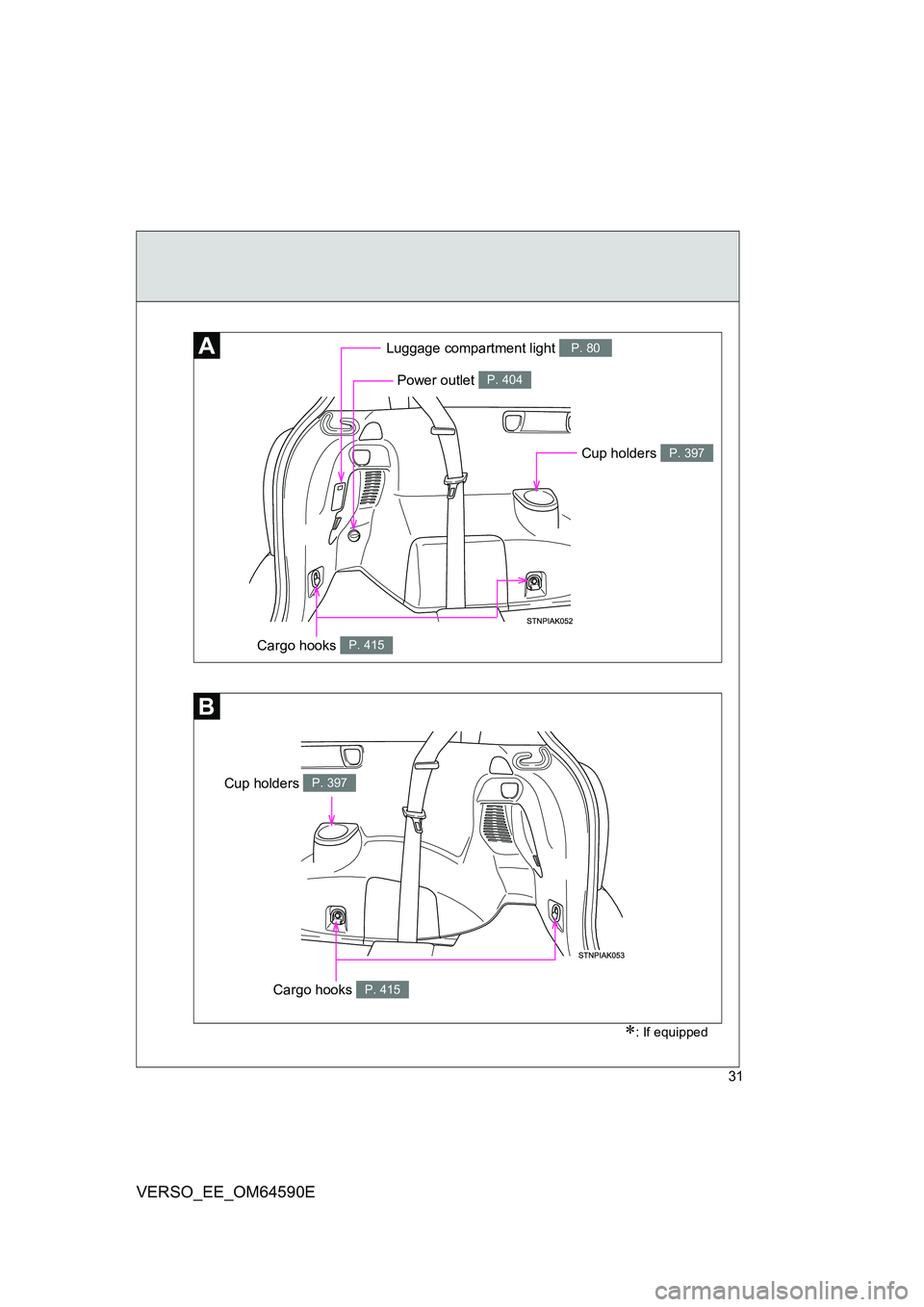

31
VERSO_EE_OM64590E
: If equipped
Luggage compartment light P. 80
Cargo hooks P. 415
Power outlet P. 404
Cargo hooks P. 415
Cup holders P. 397
Cup holders P. 397

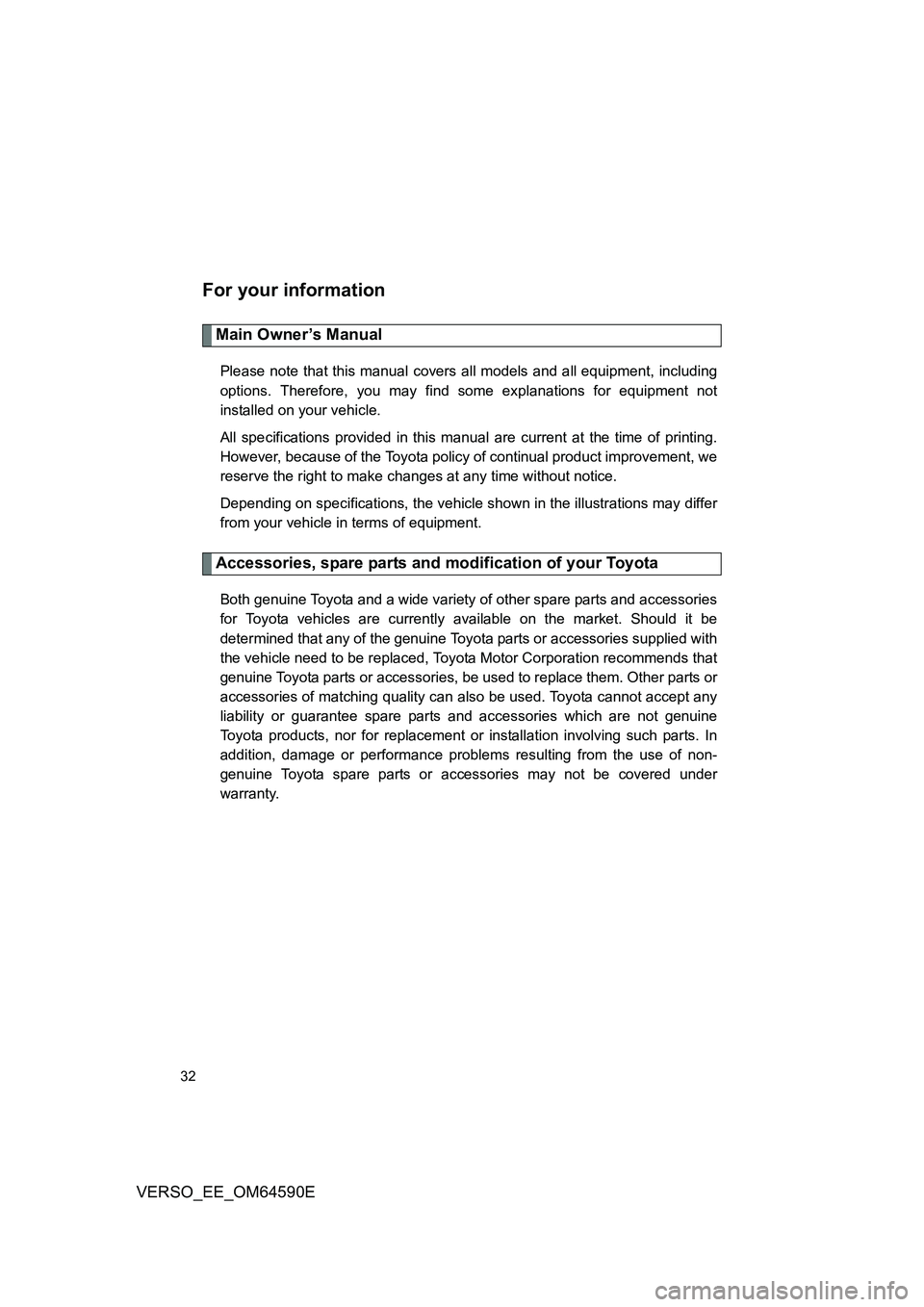

32
VERSO_EE_OM64590E
For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problem s resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.
