2016 TOYOTA VERSO fuel tank capacity

621

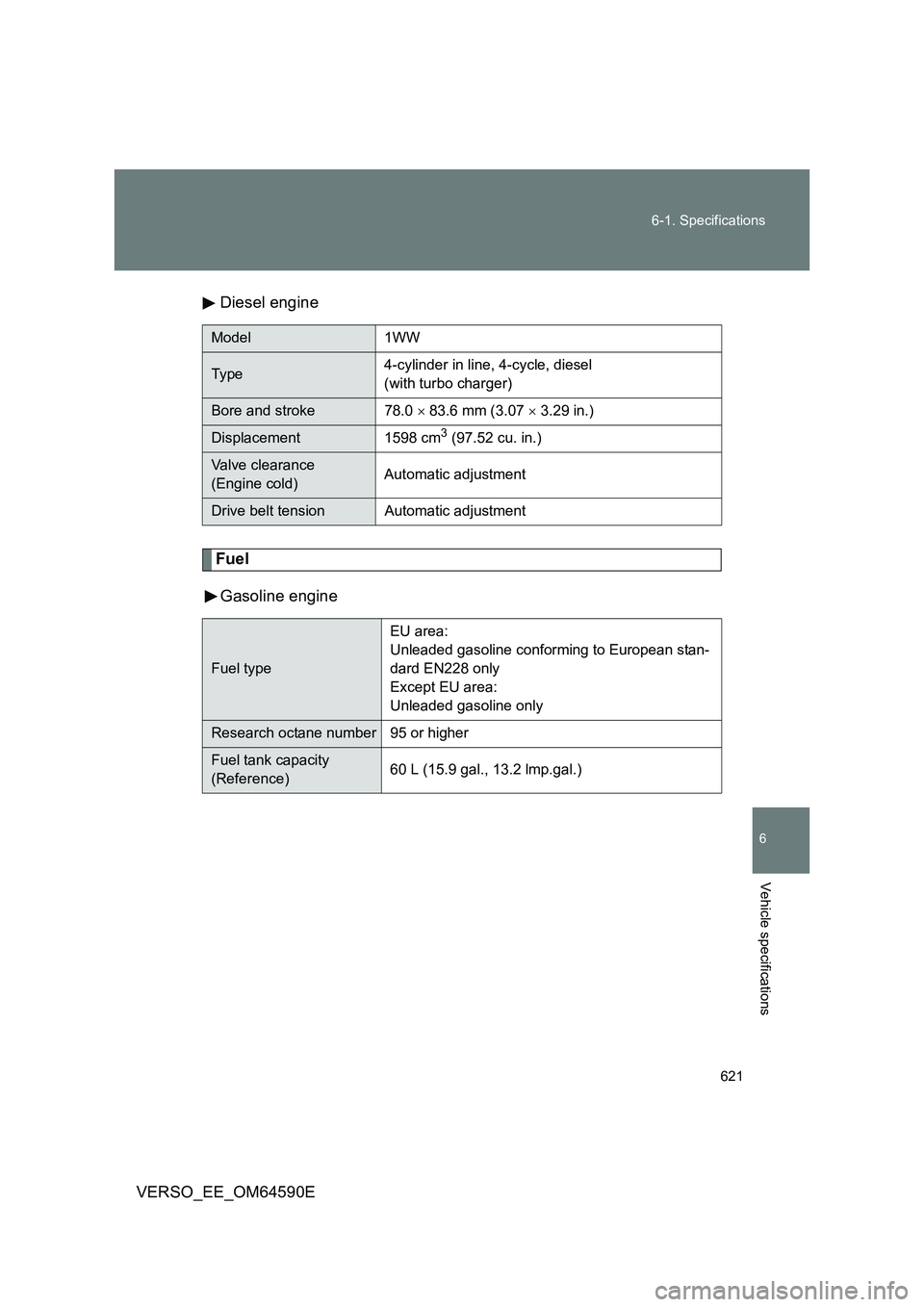

6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Diesel engine
Fuel
Gasoline engine
Model 1WW
Ty p e 4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke 78.0  83.6 mm (3.07  3.29 in.)
Displacement 1598 cm3 (97.52 cu. in.)
Valve clearance
(Engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference) 60 L (15.9 gal., 13.2 lmp.gal.)

622
6-1. Specifications
VERSO_EE_OM64590E
Diesel engine
Lubrication system
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel type
EU area:
You must only use diesel fuel conforming to Euro-
pean standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that contains 10
ppm or less of sulfur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a cetane num-
ber of 48 or higher.
Your vehicle must use only diesel fuel confirming
to GOST R52368-2005 (Sulfur max 50ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference) 55 L (14.5 gal., 12.1 lmp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

664
VERSO_EE_OM64590E
GAS STATION INFORMATION
Fuel filler door
P. 1 1 9
Auxiliary catch lever
P. 440
Tire inflation pressure
P. 6 3 3
Fuel filler door opener
P. 1 1 9
Hood lock release lever
P. 440
Fuel tank capacity (reference)
Gasoline engine:
60 L (15.9 gal., 13.2 Imp.gal.) Diesel engine:55 L (14.5 gal., 12.1 Imp.gal.)
Fuel type P. 621, 637
Cold tire inflation pressure P. 633
Engine oil capacity
(drain and refill - reference) P. 6 2 2
Engine oil type P. 623
