2016 TOYOTA VERSO Owners Manual

225
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64590E
Trip meter A
Displays the distance the vehicle has been driven since the meter
was last reset.
Pressing and holding the button will reset.
Trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset.
Press and hold the button will reset.
Stop & Start system operation time (if equipped)
Displays the amount of time the engine was stopped due to opera-
tion of the Stop & Start system during the current trip.
Stop & Start system total operation time (if equipped)
Displays the total amount of time that the engine has been stopped
due to operation of the Stop & Start system since the system was
last reset.
Maintenance required information (diesel engine only)
Displays the remaining distance until the engine oil should be
changed. If “-” is displayed before distance, it means oil mainte-
nance is overdue. Have the engine oil changed by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
• Displays the Maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart entry & start sys-
tem) or the “ENGINE START STOP” is switched to IGNITION ON mode
(vehicles with smart entry & start system).
• Maintenance required information reset method ( P. 450).

226
2-2. Instrument cluster
VERSO_EE_OM64590E
Instrument cluster light control
The brightness of the instrument cluster lights, for when the head-
light switch is on, can be adjusted 5 brightness levels.
Press the display change button.
The button is pressed several times and the brightness control
screen appears.
When the button is pushed for more than 1 second, each second
the screen brightness changes. When the button is released, the
suitable brightness is selected.
The illumination level will be set automatically 10 seconds after the
switch was last pressed.
Pressing the display change button before the 10 seconds have
passed will also set the illumination level.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the high engine coolant temperature
warning light (Red) flashes or comes on. In this case, immediately stop the
vehicle in a safe place, and check the engine after it has cooled com-
pletely. ( P. 607)

227
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64590E

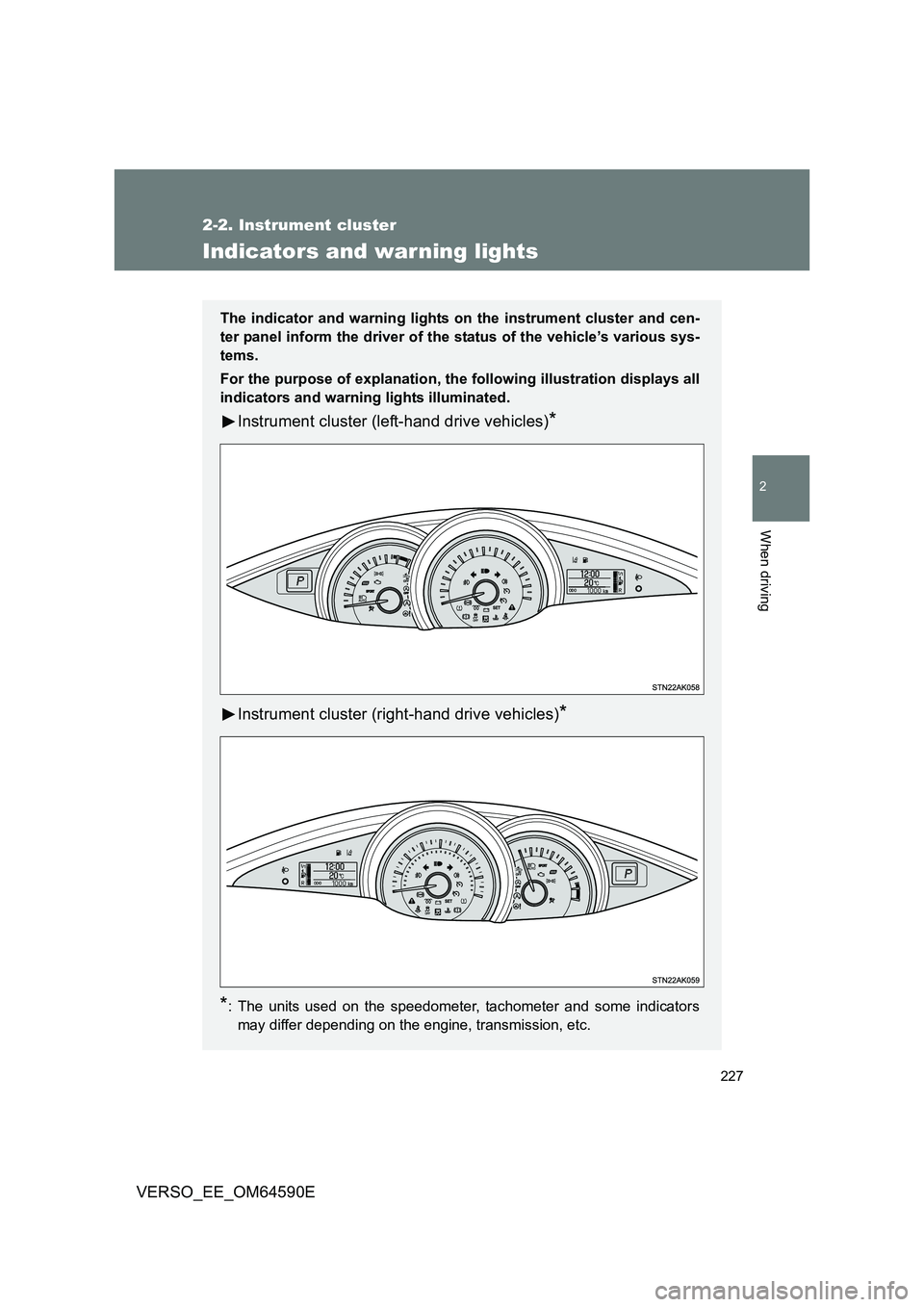

Indicators and war ning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (left-hand drive vehicles)*
Instrument cluster (right-hand drive vehicles)*
*: The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.

228
2-2. Instrument cluster
VERSO_EE_OM64590E

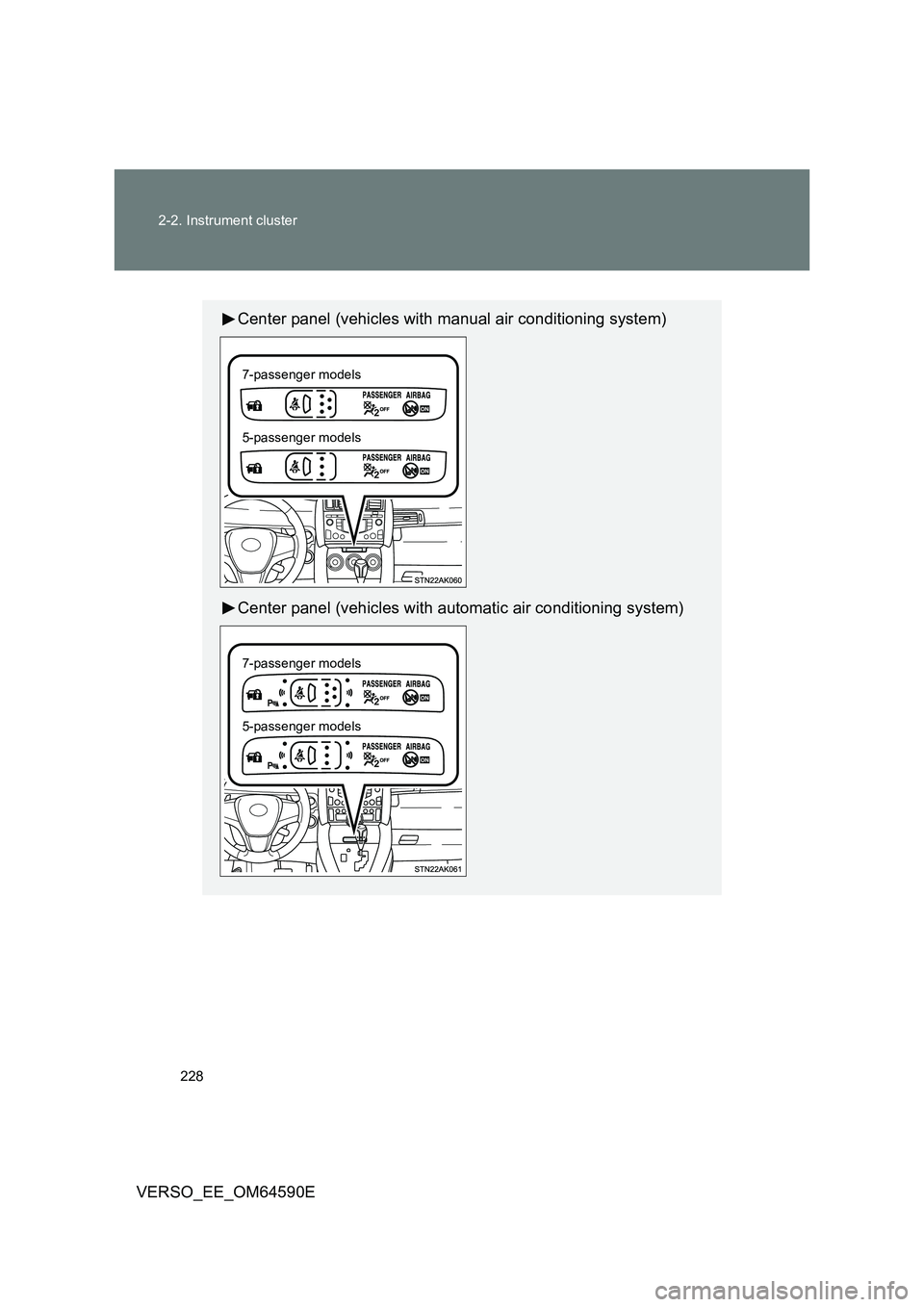

Center panel (vehicles with manual air conditioning system)
Center panel (vehicles with automatic air conditioning system)
7-passenger models
5-passenger models
7-passenger models
5-passenger models

229
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64590E
■ Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
( P. 218)(diesel engine)
Engine preheating
indicator ( P. 198, 202)
Headlight high beam
indicator ( P. 249)(if equipped)
Cruise control indicator
( P. 289)
(if equipped)
Automatic High Beam
indicator ( P. 283)(if equipped)
“SET” indicator
( P. 289)
Tail light indicator
( P. 248) (if equipped)
LDA (Lane Departure
Alert) indicator
( P. 278)
Front fog light indicator
( P. 254)(if equipped)
Speed limiter indicator
( P. 293)
Rear fog light indicator
( P. 254)
(if equipped)
Eco Driving Indicator
Light ( P. 188, 242)
Slip indicator (P. 312)
(if equipped)
Stop & Start indicator
( P. 304)
VSC off indicator
( P. 312)
(if equipped)
Stop & Start cancel indi-
cator ( P. 305)
(if equipped)
PCS (Pre-Collision
System) warning light
( P. 269)(Blue)
Engine coolant temper-
ature indicator
*1, 3
*1, 2*1
*1*1
*6*4

230
2-2. Instrument cluster
VERSO_EE_OM64590E
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate that the system is operating.
*3: Vehicles with a Multidrive
*4: This indicator turns on in blue when the engine coolant temperature is
low.
*5: Vehicles with a manual transmission
*6: The light comes on when the system is turned off.
Shift position indicator
( P. 208)
(if equipped)
Gear Shift Indicator
( P. 215)
Toyota parking assist-sensor
indicator ( P. 296)
“SPORT” indicator
( P. 209)
Security indicator
( P. 124, 137)
“PASSENGER AIRBAG” indicator
( P. 179)
*3
*1, 5
*3*1

231
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64590E
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 536)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
(Red)(if equipped)
(if equipped)(if equipped)(if equipped)(if equipped)
(5-passenger models)(7-passenger models)
*1*1*1*1*1*1*1*1, 2
*2*1, 2*1, 3*1*1*1

232
2-2. Instrument cluster
VERSO_EE_OM64590E
Multi-information display
The multi-information display presents the driver with a variety of
driving-related data.
● Trip information (P. 233)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Date (P. 233)
Indicates the date and sets it.
●Outside temperature display
( P. 233)
Indicates the outside tempera-
ture.
● Warning messages
( P. 545)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
