2016 TOYOTA VERSO Owners Manual

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

506
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

508
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Front fog light
Remove the 2 bolts.
Remove the clip and then par-
tially remove the fender liner.

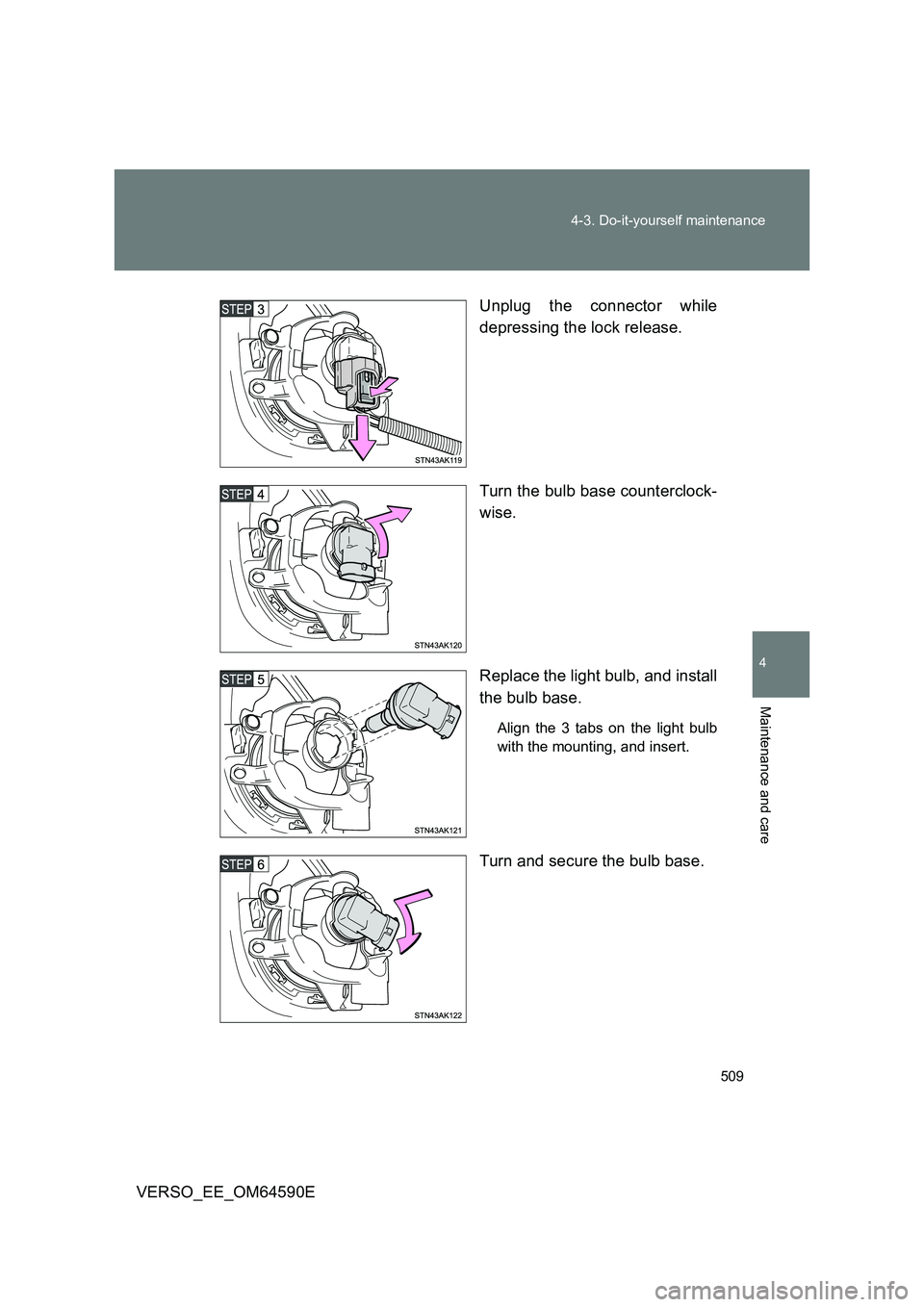

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.

510
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
■ Front position light/daytime running light (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Remove the light bulb.
When installing, reverse the steps listed.
■ Front turn signal light
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.

512
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Remove the light bulb.
When installing, reverse the steps listed.
■ Side turn signal lights
Insert a flathead screwdriver and
release the claw for the outside
rear view mirror cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Release the cover claws span-
ning over the entire perimeter.
Claw
