2016 TOYOTA VERSO tire pressure

TABLE OF CONTENTSIndex
4
VERSO_EE_OM64590E
3-3. Using the interior lights
Interior lights list .................. 388
• Personal/interior lights
main switch ....................... 389
• Personal/interior lights ...... 390
3-4. Using the storage features
List of storage features ....... 392
• Glove box ......................... 394
• Console box...................... 395
• Overhead console ............ 397
• Cup holders ...................... 397
• Bottle holders.................... 399
• Auxiliary boxes ................. 400
3-5. Other interior features
Sun visors ........................... 402
Vanity mirrors...................... 403
Power outlets ...................... 404
Seat heaters ....................... 406
Armrests ............................. 408
Front seatback tables ......... 409
Rear side sunshades .......... 411
Assist grips ......................... 412
Floor mat............................. 413
Luggage compartment
features............................. 415
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 426
Cleaning and protecting
the vehicle interior ............ 430
4-2. Maintenance
Maintenance
requirements .................... 433
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 436
Hood................................... 440
Positioning a floor jack ....... 442
Engine compartment .......... 444
Tires ................................... 461
Tire inflation pressure......... 473
Wheels ............................... 475
Air conditioning filter ........... 478
Key battery ......................... 481
Checking and replacing
fuses ................................ 485
Light bulbs .......................... 500
4Maintenance and care

7
VERSO_EE_OM64590E
Tires
● Rotation
● Replacement1
●Temporary repair1
●Inflation pressure
P. 461
P. 560
P. 577
P. 633
Rear window wiper P. 260
Side doors P. 73
Fuel filler door P. 119
Rear fog light (left-hand
drive vehicles) P. 254
Rear fog light
(right-hand
drive vehicles)
P. 254
Rear window defoggerP. 349
License plate lights P. 248
Tail lights P. 248
Rear turn signal lights P. 218
Back doorP. 79
Rear view monitor
system camera1*
*: Refer to “Navigation and multimedia system Owner’s Manual”.1: If equipped
2: Vehicles with halogen headlights
3: Vehicles with discharge headlights

13
VERSO_EE_OM64590E
Pictorial indexInstrument panel
(left-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch
P. 248
P. 218
P. 254
Hood lock release lever
P. 440
Gauges and meters
Multi-information display
P. 222
P. 232
Audio system
Navigation/Multimedia
system*
P. 351
SRS knee airbag P. 148
Emergency flasher switch
P. 526
*: Refer to “Navigation and multimedia system Owner’s Manual”.
: If equipped
AUX port/USB port
P. 368, 375, 384
Fuel filler door opener
P. 119
Tire pressure warning
reset switch P. 463

24
VERSO_EE_OM64590E
Pictorial indexInstrument panel
(right-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch
P. 248
P. 218
P. 254
Hood lock release lever
P. 440
Gauges and meters
Multi-information display
P. 222
P. 232
Audio system
Navigation/Multimedia
system*
P. 351
SRS knee airbag P. 148
Emergency flasher switch P. 526
AUX port/USB port
P. 368, 375, 384
Fuel filler door opener
P. 119
Tire pressure warning reset switch P. 463

281
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64590E

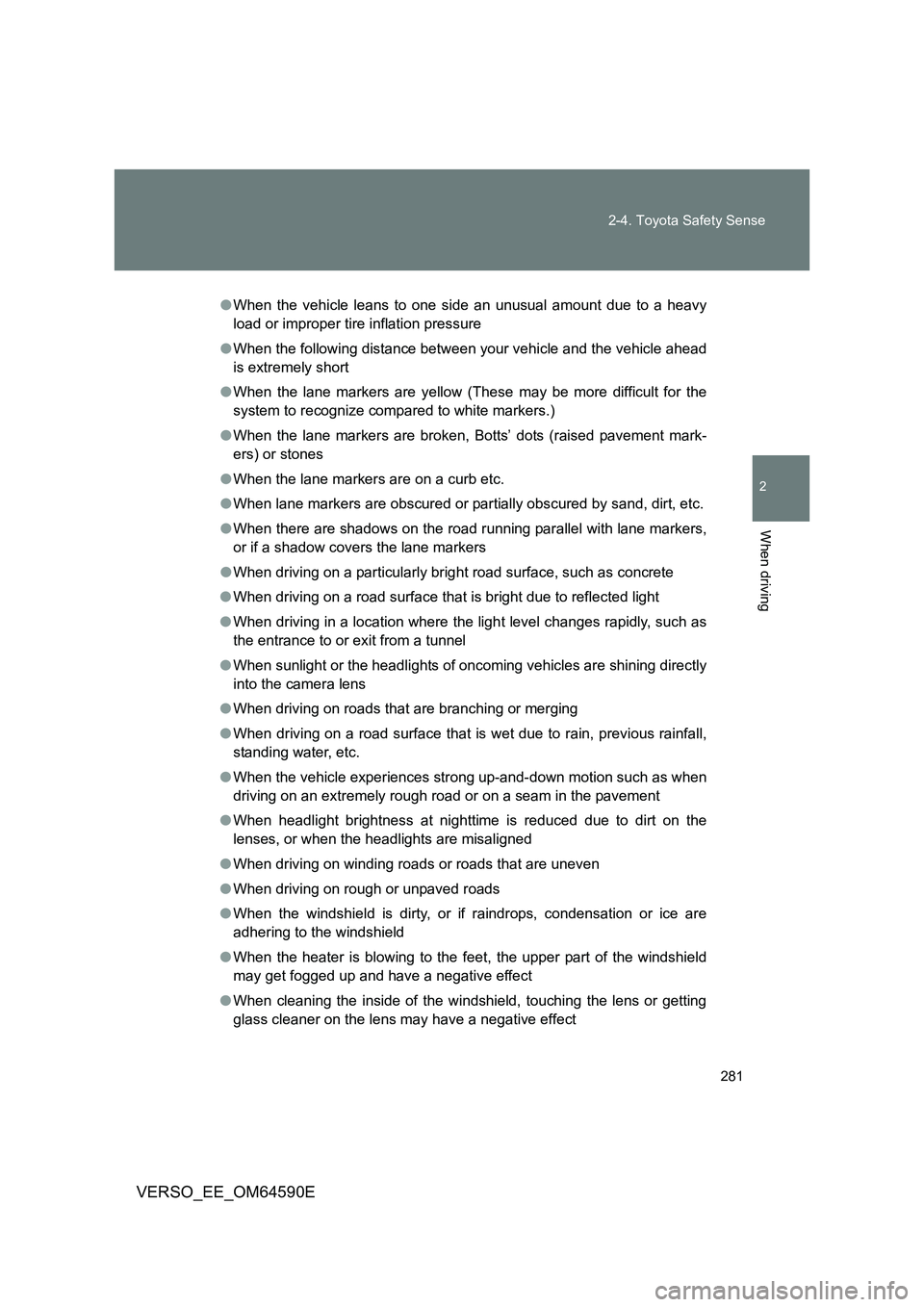

● When the vehicle leans to one side an unusual amount due to a heavy
load or improper tire inflation pressure
● When the following distance between your vehicle and the vehicle ahead
is extremely short
● When the lane markers are yellow (These may be more difficult for the
system to recognize compared to white markers.)
● When the lane markers are broken, Botts’ dots (raised pavement mark-
ers) or stones
● When the lane markers are on a curb etc.
● When lane markers are obscured or partially obscured by sand, dirt, etc.
● When there are shadows on the road running parallel with lane markers,
or if a shadow covers the lane markers
● When driving on a particularly bright road surface, such as concrete
● When driving on a road surface that is bright due to reflected light
● When driving in a location where the light level changes rapidly, such as
the entrance to or exit from a tunnel
● When sunlight or the headlights of oncoming vehicles are shining directly
into the camera lens
● When driving on roads that are branching or merging
● When driving on a road surface that is wet due to rain, previous rainfall,
standing water, etc.
● When the vehicle experiences strong up-and-down motion such as when
driving on an extremely rough road or on a seam in the pavement
● When headlight brightness at nighttime is reduced due to dirt on the
lenses, or when the headlights are misaligned
● When driving on winding roads or roads that are uneven
● When driving on rough or unpaved roads
● When the windshield is dirty, or if raindrops, condensation or ice are
adhering to the windshield
● When the heater is blowing to the feet, the upper part of the windshield
may get fogged up and have a negative effect
● When cleaning the inside of the windshield, touching the lens or getting
glass cleaner on the lens may have a negative effect

316
2-5. Using other driving systems
VERSO_EE_OM64590E
WARNING
■ Hill-start assist control does not operate effectively when
● Do not overly rely on the hill-start assist control. The hill-start assist control
may not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
■ When the VSC+ is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
■ When the TRC and VSC+ are off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are systems to help ensure vehicle stability and driving force,
do not turn off TRC and VSC+ unless necessary.
■ Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total
load capacity. In addition, make sure that the tires are inflated to the speci-
fied tire pressure level.
The ABS and VSC+ systems will not function correctly if different tires are fit-
ted on the vehicle.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for further information when replacing tires or
wheels.
■ Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.

322
2-6. Driving information
VERSO_EE_OM64590E

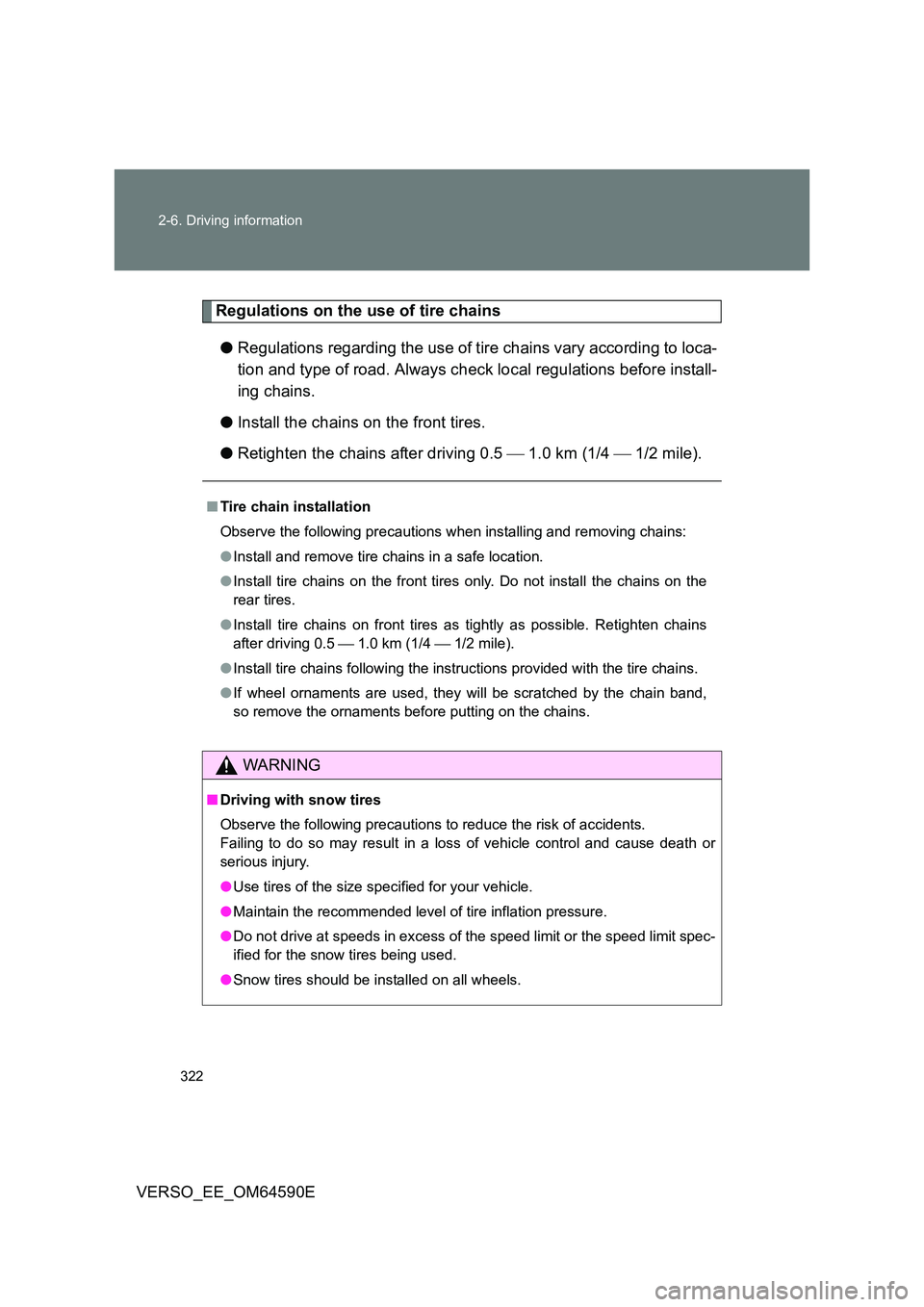

Regulations on the use of tire chains
● Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before install-
ing chains.
● Install the chains on the front tires.
● Retighten the chains after driving 0.5  1.0 km (1/4  1/2 mile).
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install the chains on the
rear tires.
● Install tire chains on front tires as tightly as possible. Retighten chains
after driving 0.5  1.0 km (1/4  1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
● If wheel ornaments are used, they will be scratched by the chain band,
so remove the ornaments before putting on the chains.
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified for your vehicle.
● Maintain the recommended level of tire inflation pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Snow tires should be installed on all wheels.

323
2-6. Driving information
2
When driving
VERSO_EE_OM64590E

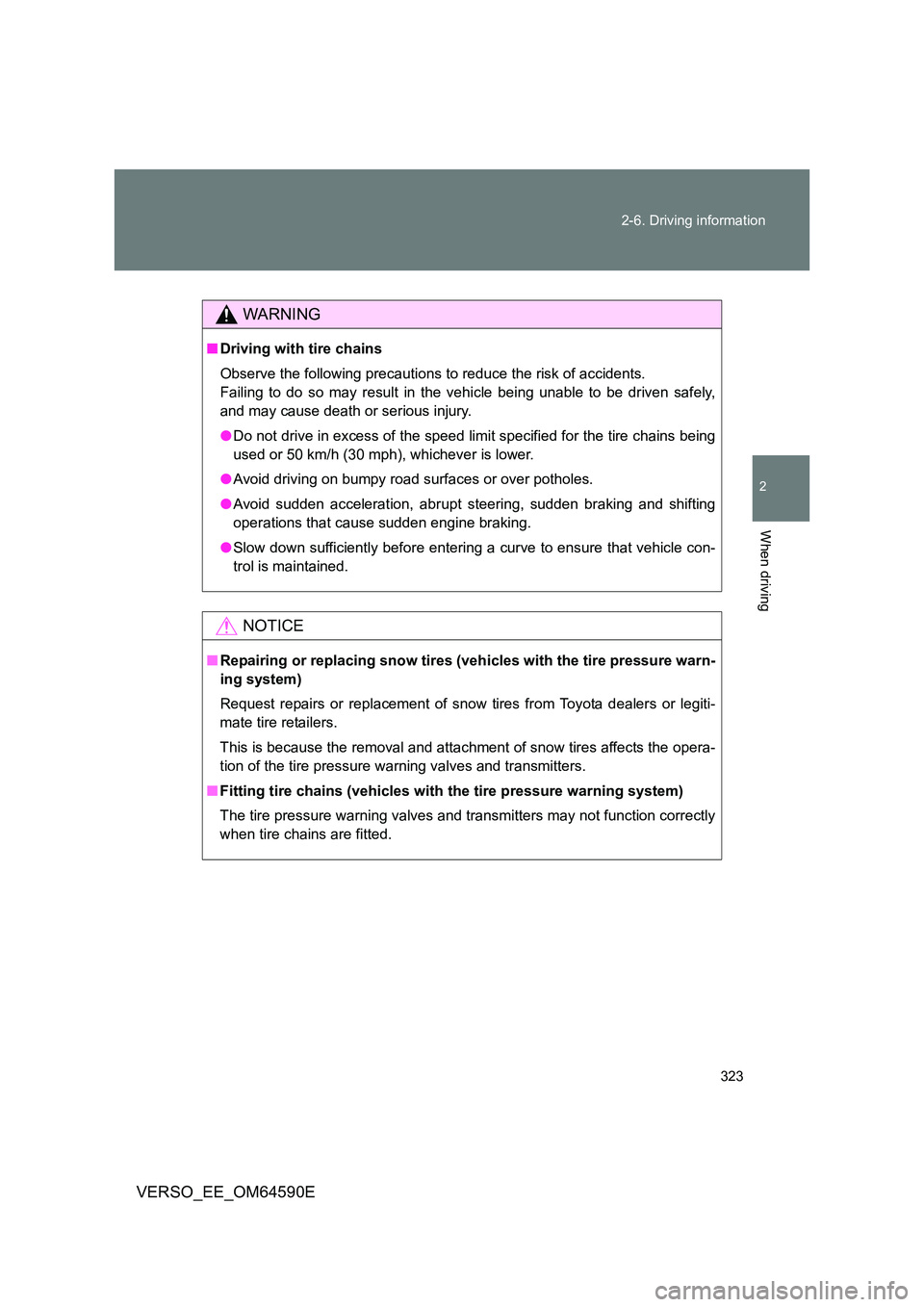

WARNING
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■ Repairing or replacing snow tires (vehicles with the tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains (vehicles with the tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
