2016 TOYOTA VERSO Owners Manual

5
545
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
If a war ning message is displayed
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning messageDetails
Indicates an abnormal engine oil pressure.
A buzzer also sounds.
The warning light may turn on if the engine oil
pressure is too low.
The multi-information display show s warnings of system malfunc-
tions, incorrectly performed operations, or shows messages that
indicate a need for maintenance. When a message is shown, perform
the correction procedure ap propriate to the message.
Master warning light
The master warning light
comes on or flashes when a
message is being shown on
the multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.

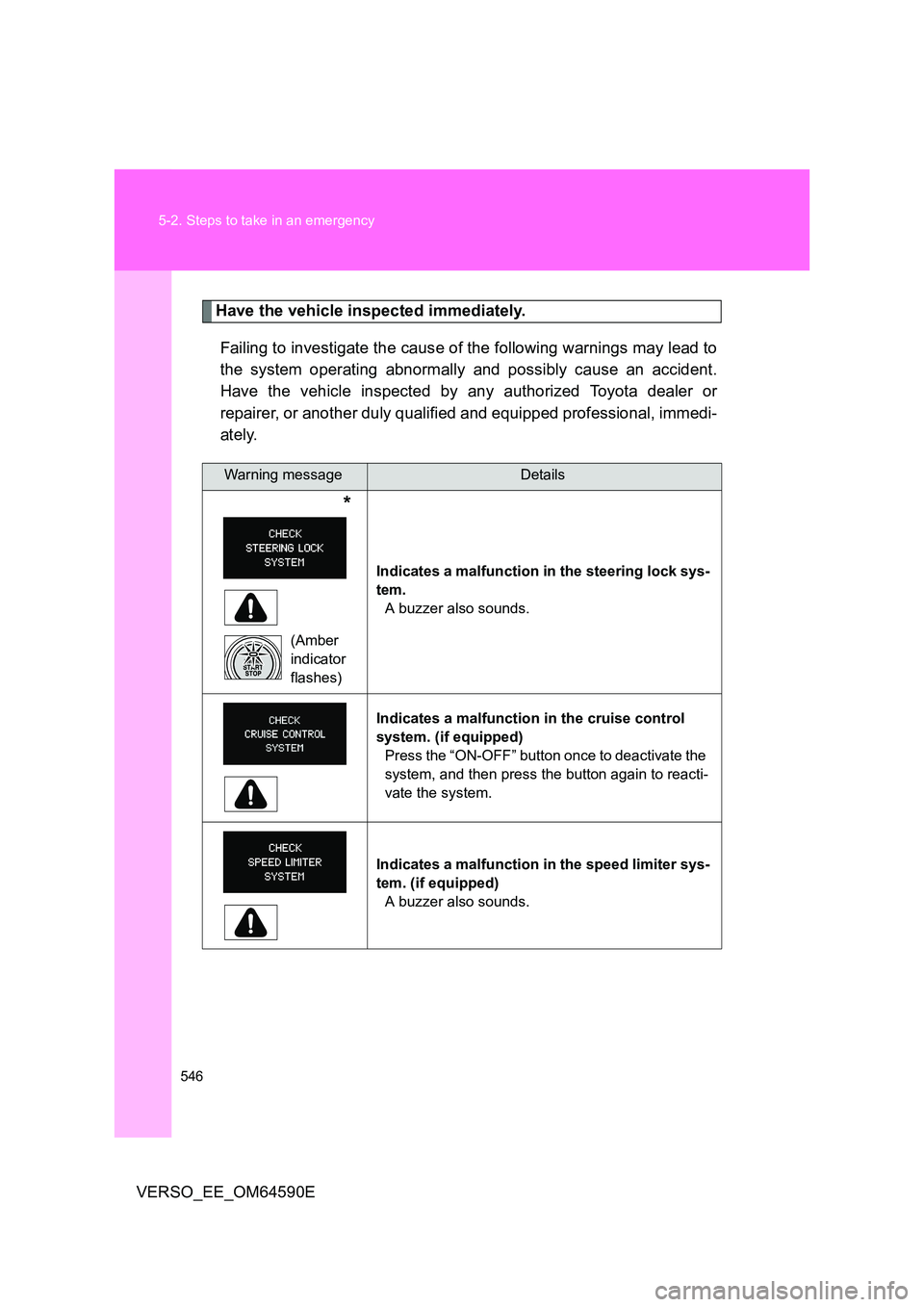

546
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning messageDetails
*
(Amber
indicator
flashes)
Indicates a malfunction in the steering lock sys-
tem.
A buzzer also sounds.
Indicates a malfunction in the cruise control
system. (if equipped)
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
Indicates a malfunction in the speed limiter sys-
tem. (if equipped)
A buzzer also sounds.

5

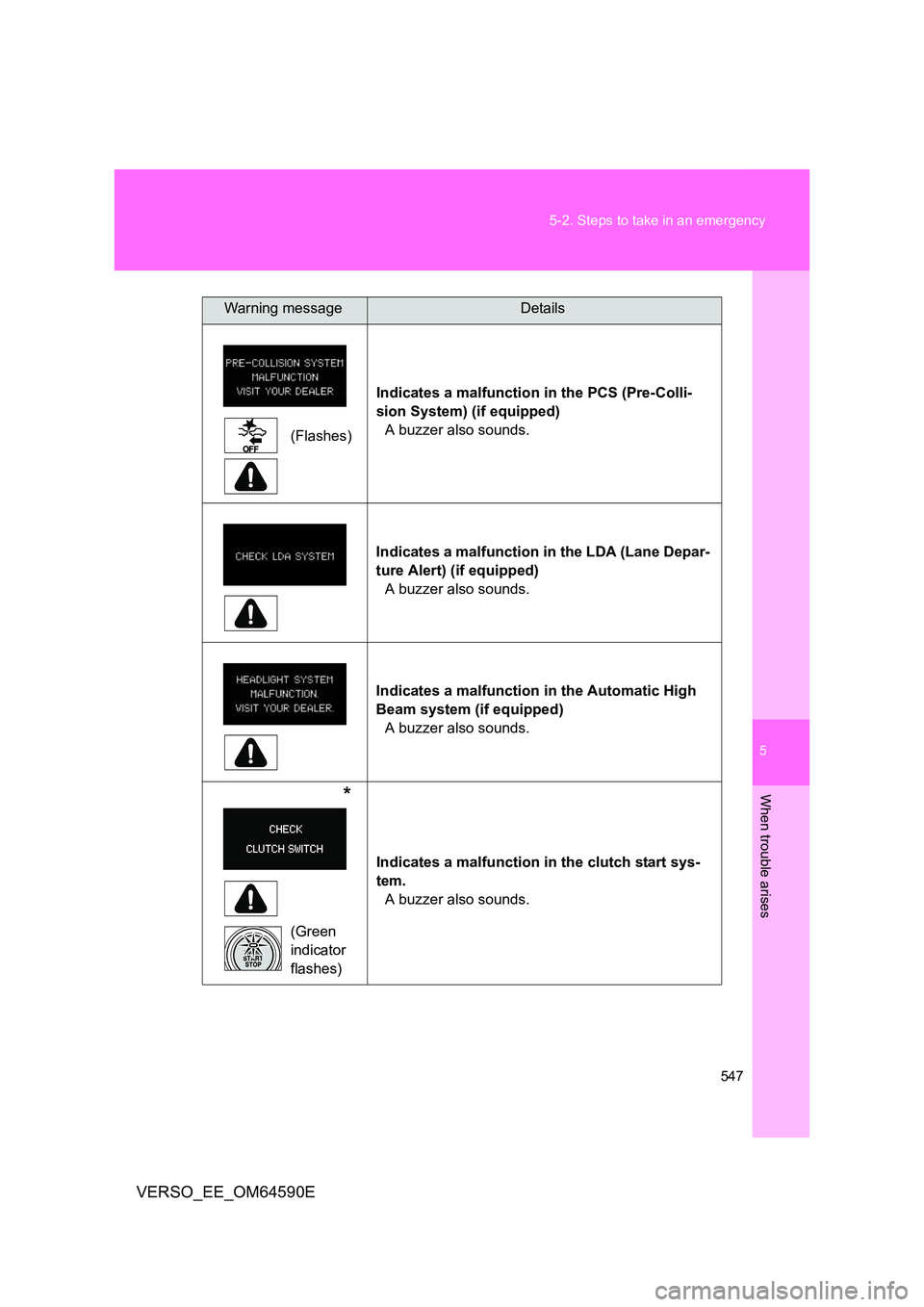

547
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
(Flashes)

Indicates a malfunction in the PCS (Pre-Colli-
sion System) (if equipped)
A buzzer also sounds.

Indicates a malfunction in the LDA (Lane Depar-
ture Alert) (if equipped)
A buzzer also sounds.

Indicates a malfunction in the Automatic High
Beam system (if equipped)
A buzzer also sounds.
*
(Green
indicator
flashes)
Indicates a malfunction in the clutch start sys-
tem.
A buzzer also sounds.
Warning messageDetails

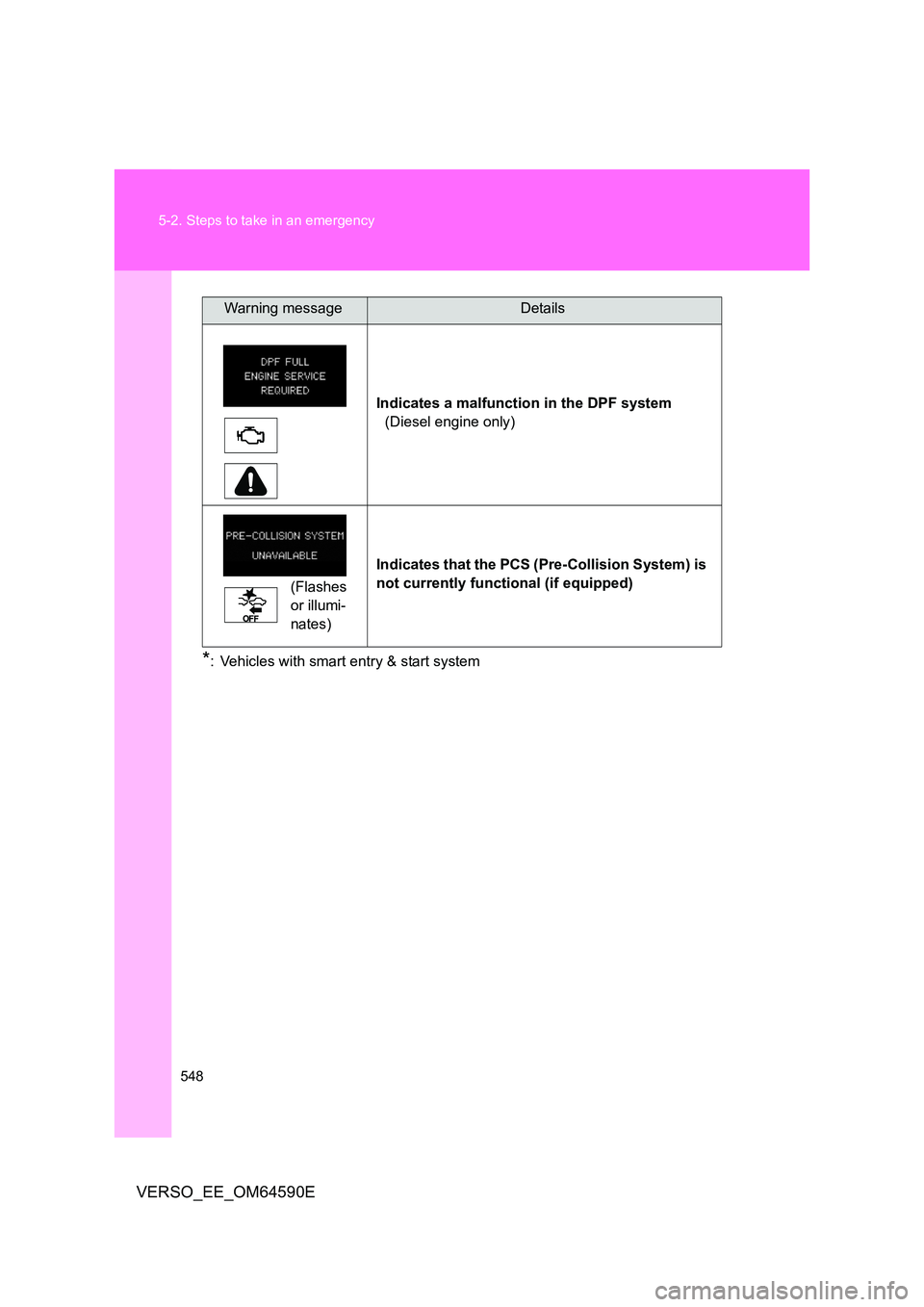

548
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
*: Vehicles with smart entry & start system
Indicates a malfunction in the DPF system
(Diesel engine only)
(Flashes
or illumi-
nates)
Indicates that the PCS (Pre-Collision System) is
not currently functional (if equipped)
Warning messageDetails

5

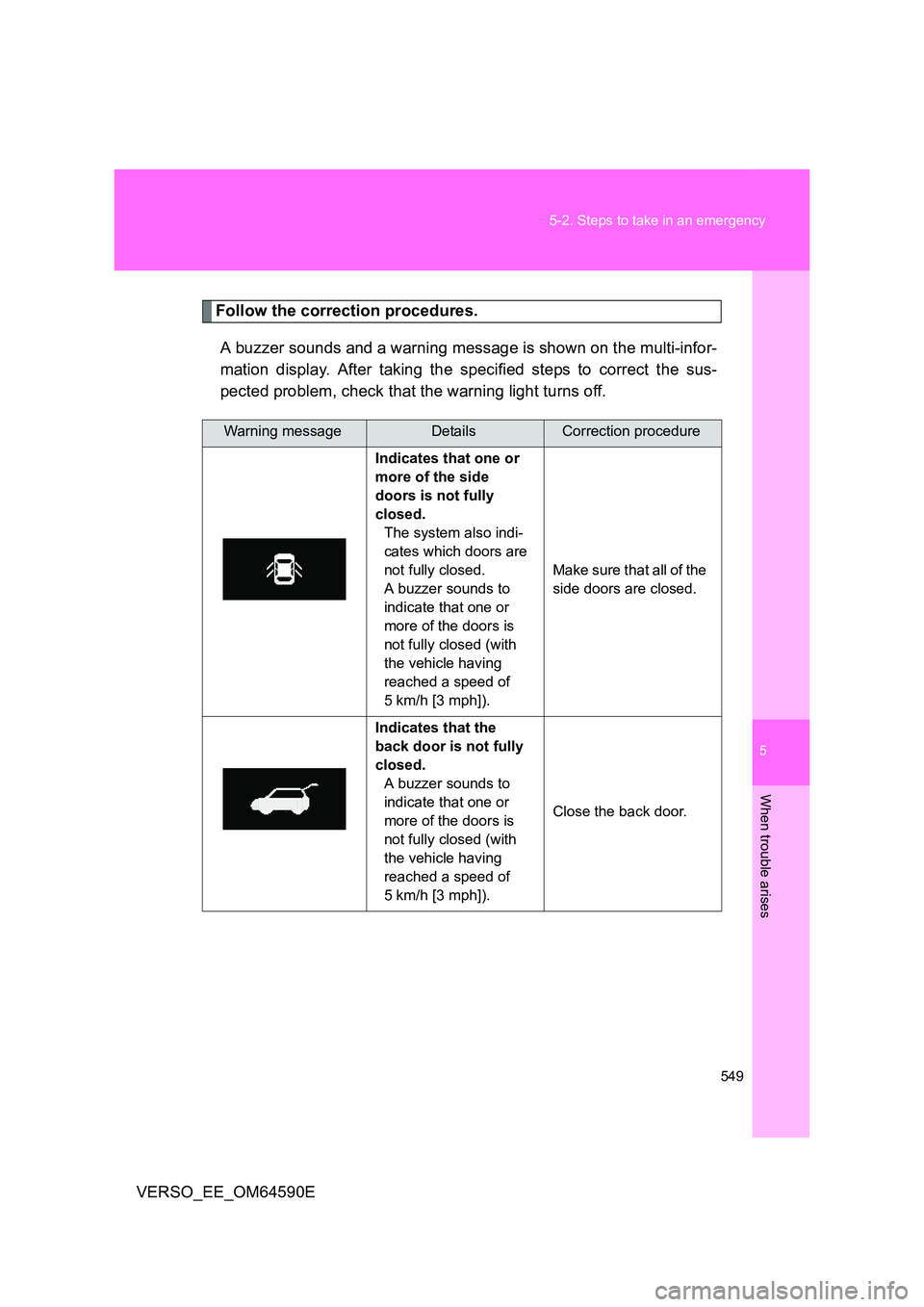

549
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Follow the correction procedures.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the specified steps to correct the sus-
pected problem, check that the warning light turns off.
Warning messageDetailsCorrection procedure

Indicates that one or
more of the side
doors is not fully
closed.
The system also indi-
cates which doors are
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of
5 km/h [3 mph]).
Make sure that all of the
side doors are closed.

Indicates that the
back door is not fully
closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of
5 km/h [3 mph]).
Close the back door.

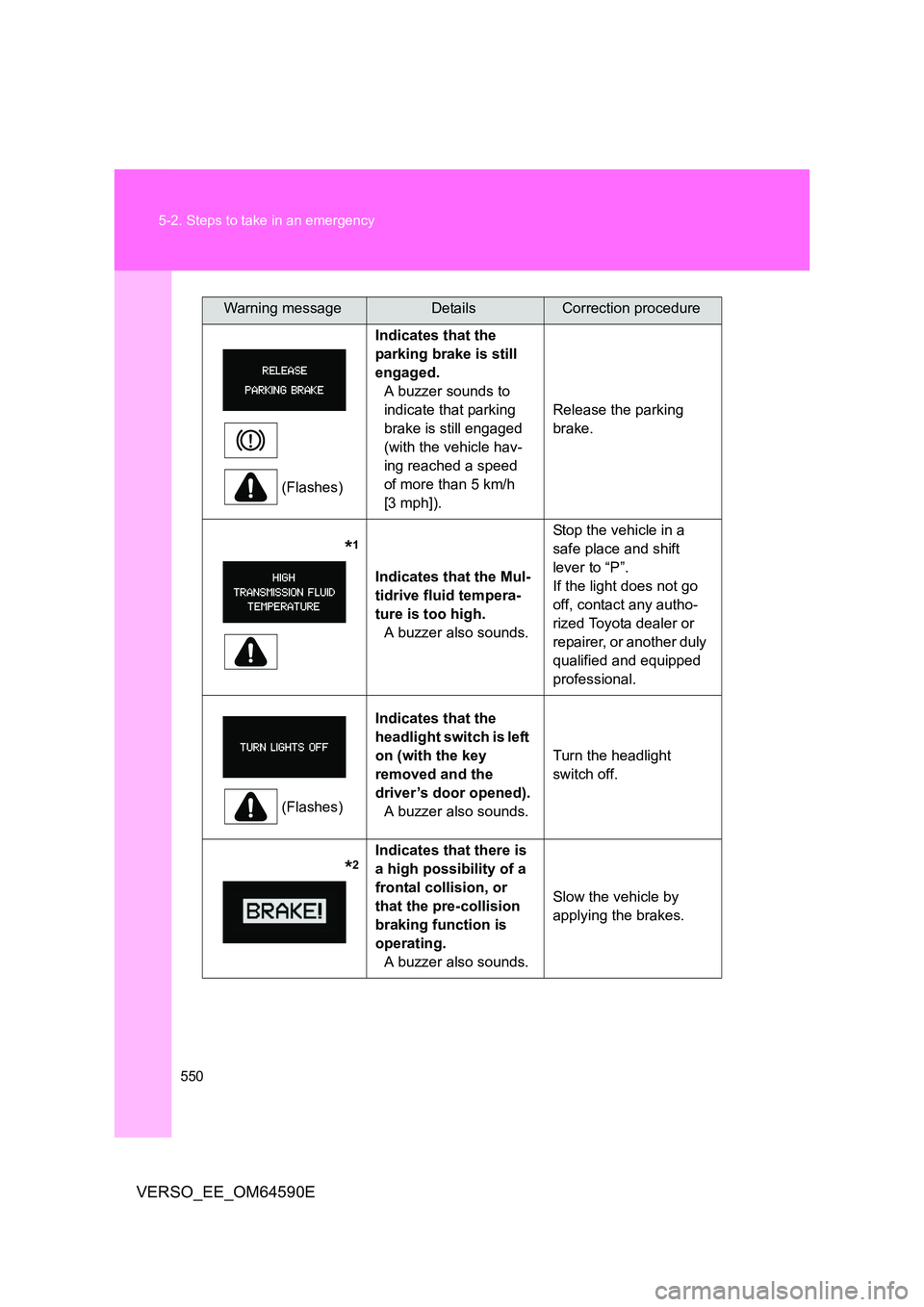

550
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
(Flashes)
Indicates that the
parking brake is still
engaged.
A buzzer sounds to
indicate that parking
brake is still engaged
(with the vehicle hav-
ing reached a speed
of more than 5 km/h
[3 mph]).
Release the parking
brake.
*1
Indicates that the Mul-
tidrive fluid tempera-
ture is too high.
A buzzer also sounds.
Stop the vehicle in a
safe place and shift
lever to “P”.
If the light does not go
off, contact any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
(Flashes)
Indicates that the
headlight switch is left
on (with the key
removed and the
driver’s door opened).
A buzzer also sounds.
Turn the headlight
switch off.
*2Indicates that there is
a high possibility of a
frontal collision, or
that the pre-collision
braking function is
operating.
A buzzer also sounds.
Slow the vehicle by
applying the brakes.
Warning messageDetailsCorrection procedure

5
551
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
*2

Indicates that the pre-
collision brake is not
currently functional
due to the TRC and
VSC systems are
turned off.
Turn the TRC and VSC
systems on. ( P. 313)
(Flashes
or illumi-
nates)
Toyota Safety Sense
is currently not func-
tional, for a camera
sensor temperature is
higher than the opera-
tion temperature
range.
The following func-
tions are not available:
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped); or
• PCS (Pre-Collision
System) (if equipped).
Leave the system until
the message disap-
pears.
(Flashes
or illumi-
nates)
Toyota Safety Sense
is currently not func-
tional, for a wind-
shield is obscured by
fog, mist, ice, dirt, etc.
The following func-
tions are not available:
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped); or
• PCS (Pre-Collision
System) (if equipped).
Clear the fog, mist, ice,
dirt, etc. ( P. 265)
Warning messageDetailsCorrection procedure

552
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is lower
than approximately
50 km/h (32 mph) (if
equipped).
Drive the vehicle at
approximately 50 km/h
(32 mph) or higher.
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is out-
side of the operational
range (if equipped).
Drive the vehicle while
lowering the vehicle
speed.
*3
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)
Check the level of
engine oil, and add if
necessary.
If necessary, have the
engine oil changed by
any authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
*3
Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)
Check and have the
engine oil and oil filter
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
Warning messageDetailsCorrection procedure
