Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 636)
■ Remove the engine compartment cover
 P. 4 4 6
■ Front bulb locations
Headlight high beam (halogen headlights)
Headlight low beam
(halogen headlights)
Front turn
signal light
Front fog light
Front position light/
daytime running light
(halogen headlights)
Side turn signal lights

502
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
When replacing the light bulbs
■ When replacing the following bulbs:
● Headlight (halogen headlights)
● Front position light/daytime running light (halogen headlights)
● Front turn signal light

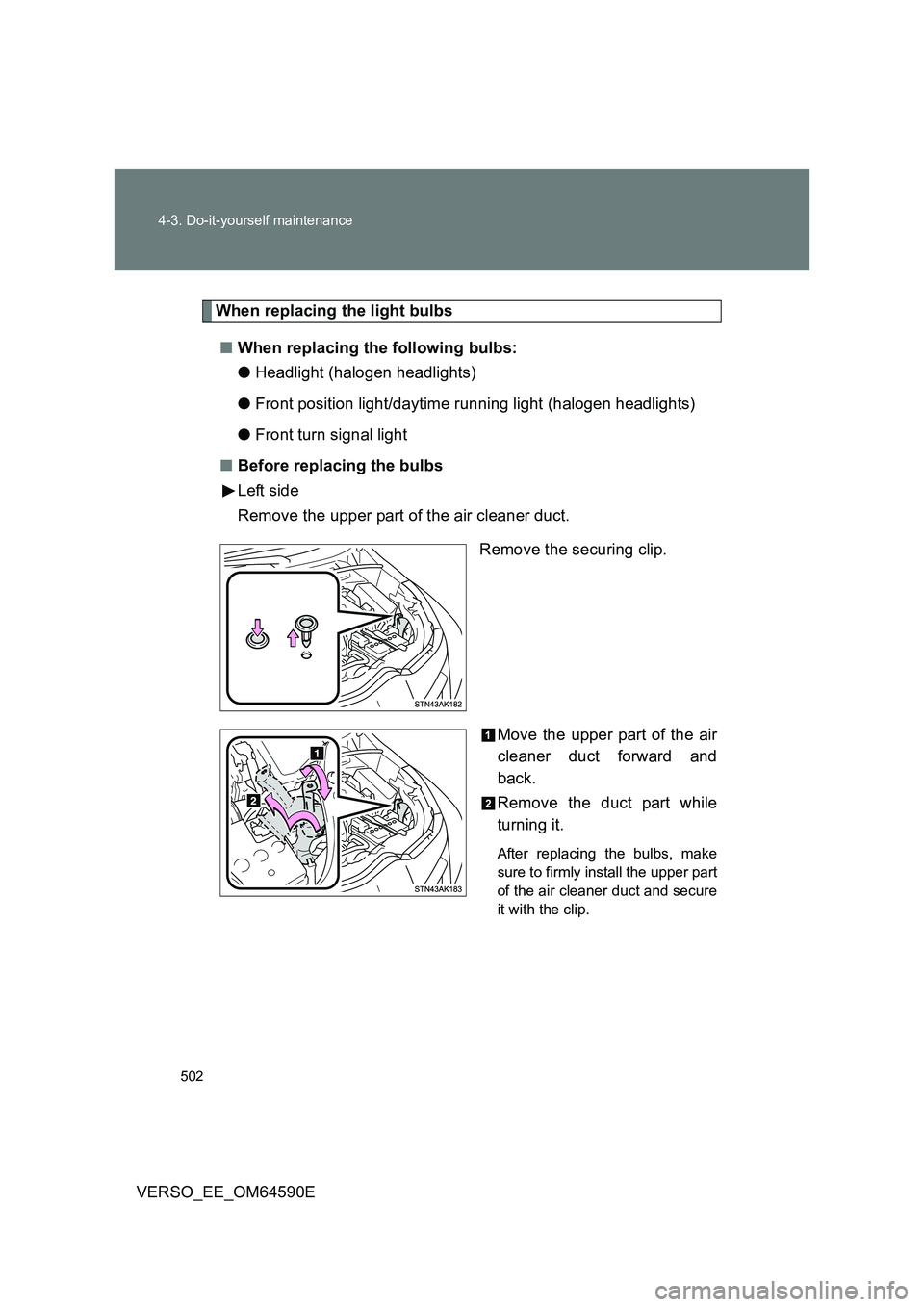

■ Before replacing the bulbs
Left side
Remove the upper part of the air cleaner duct.
Remove the securing clip.
Move the upper part of the air
cleaner duct forward and
back.
Remove the duct part while
turning it.
After replacing the bulbs, make
sure to firmly install the upper part
of the air cleaner duct and secure
it with the clip.

504
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Replacing light bulbs

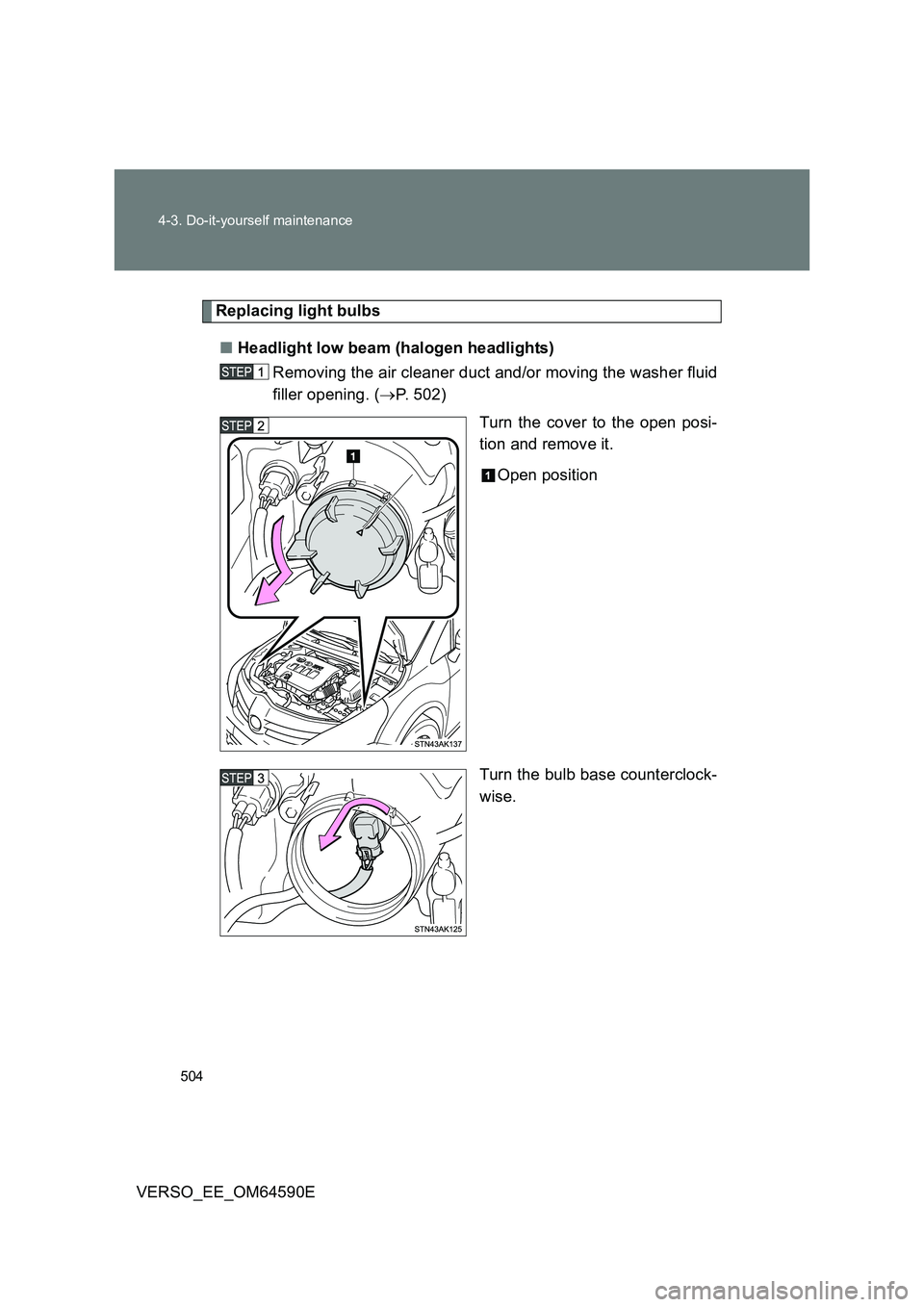

■ Headlight low beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

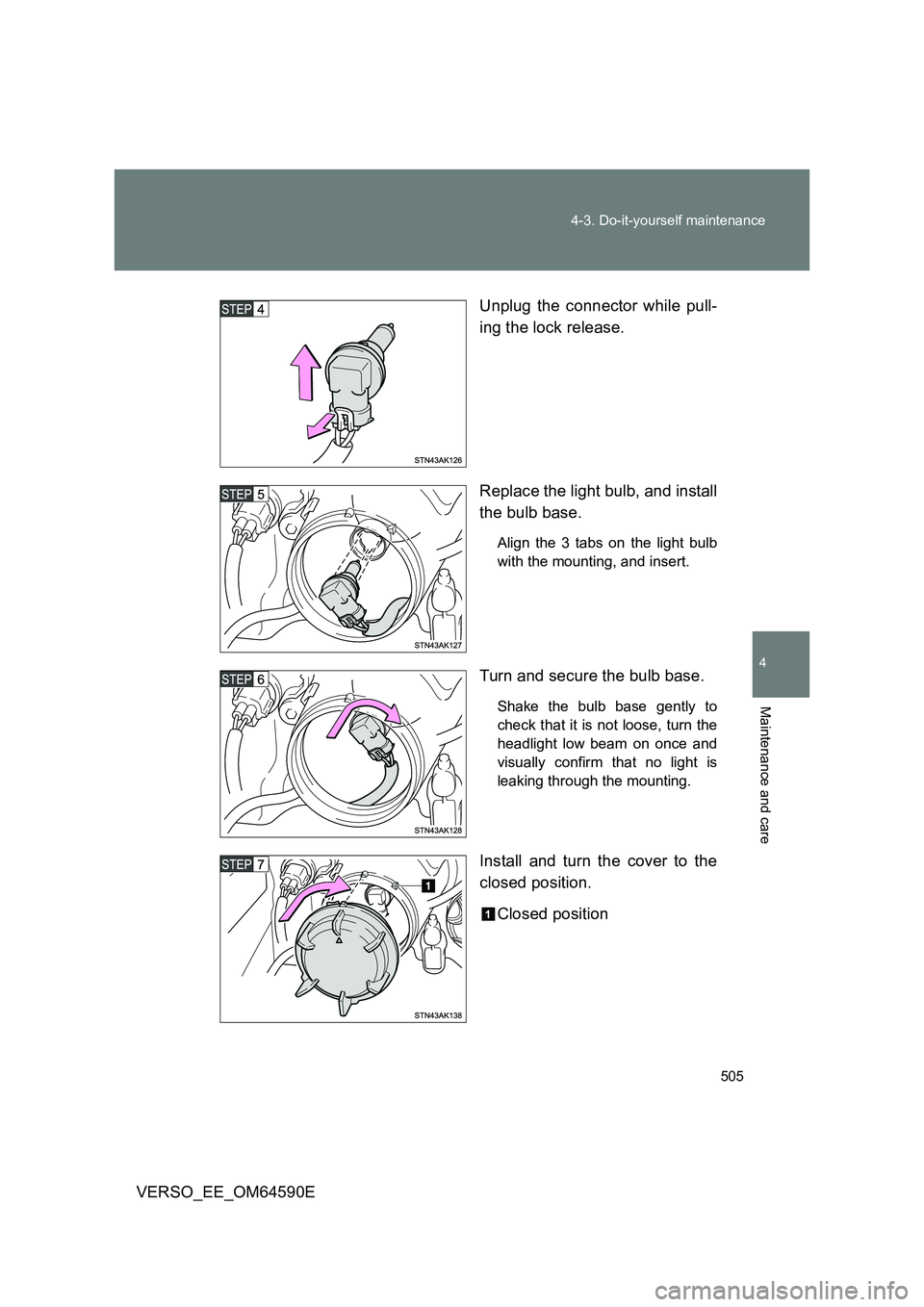

Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

506
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)

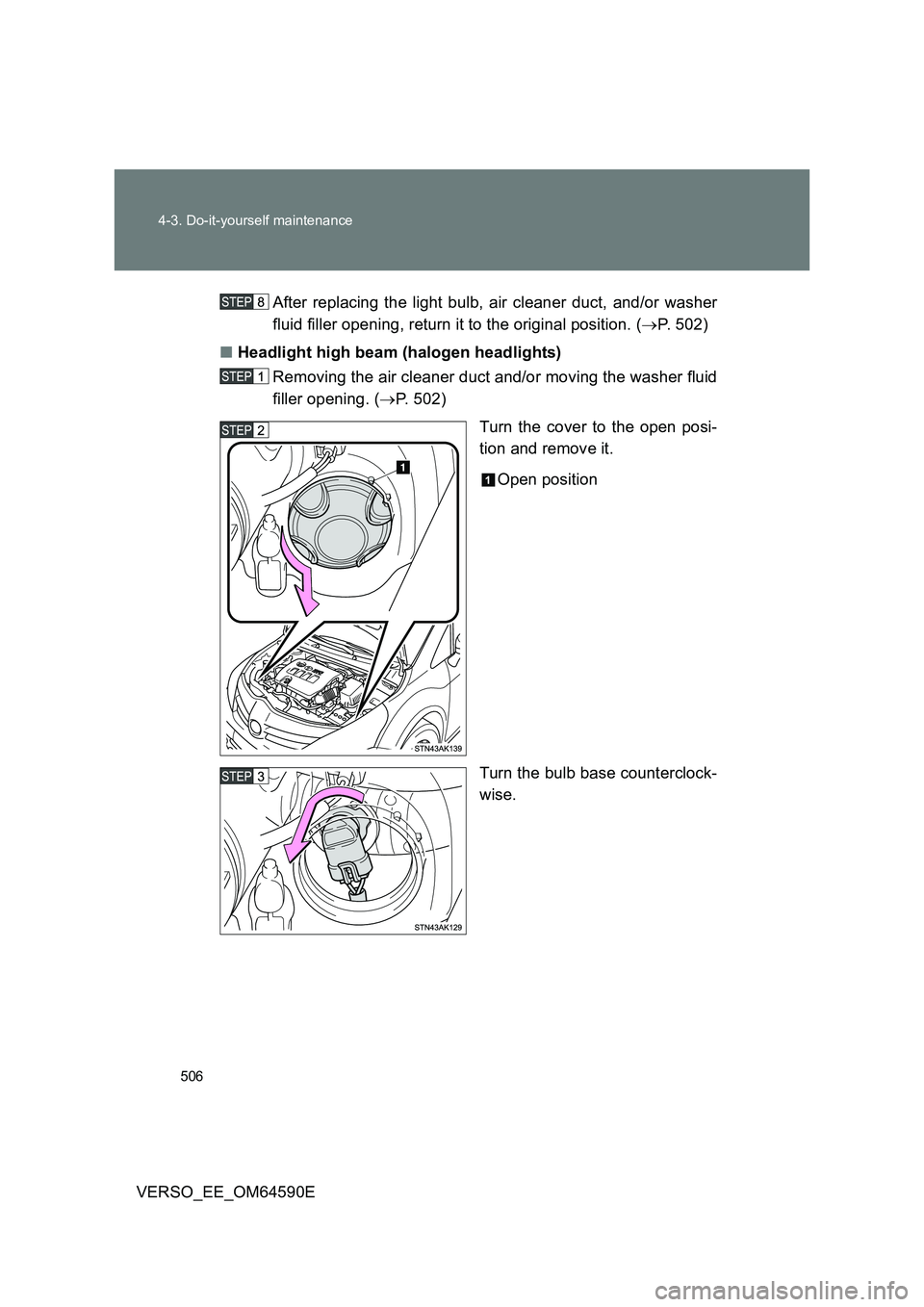

■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

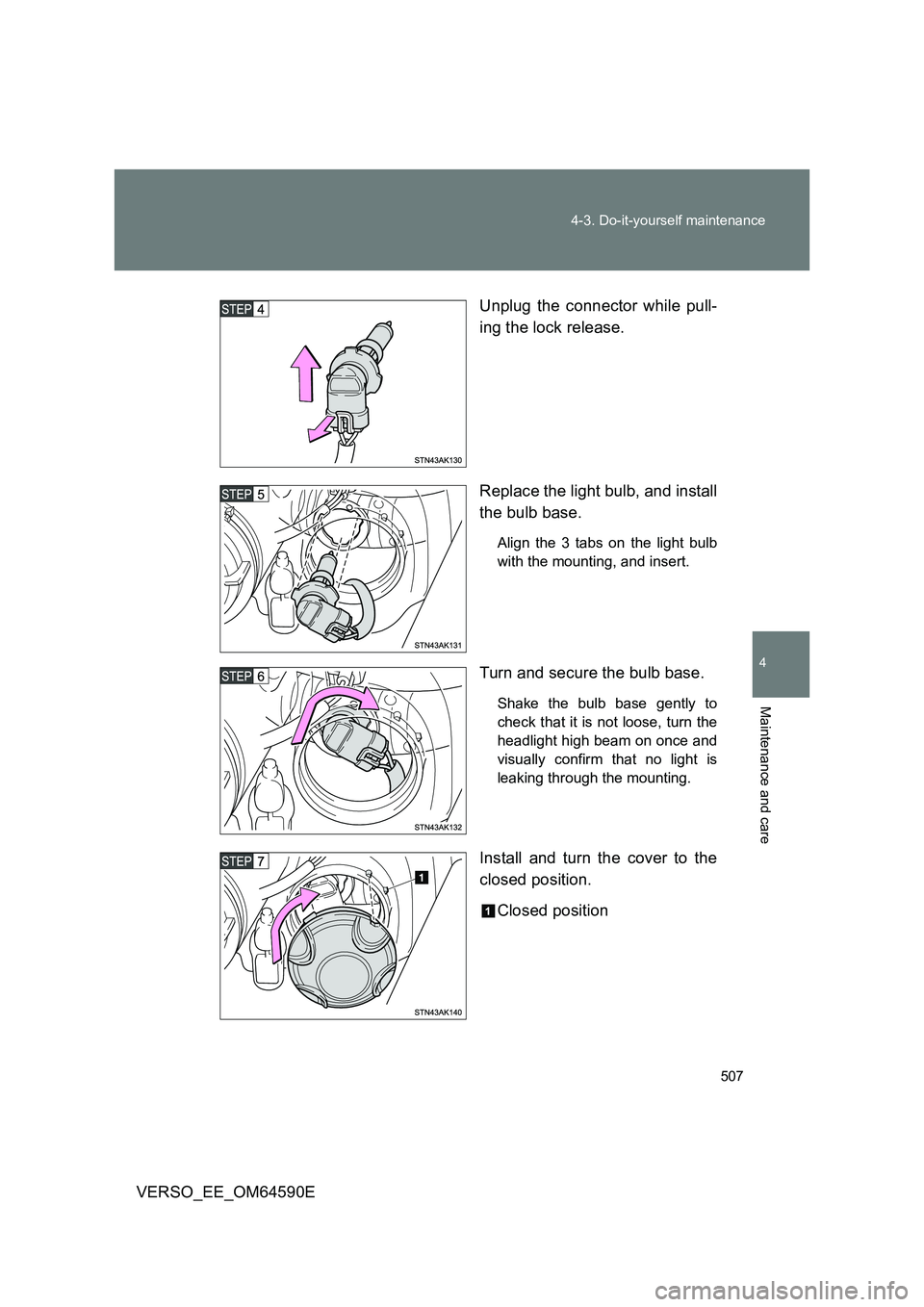

Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

510
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

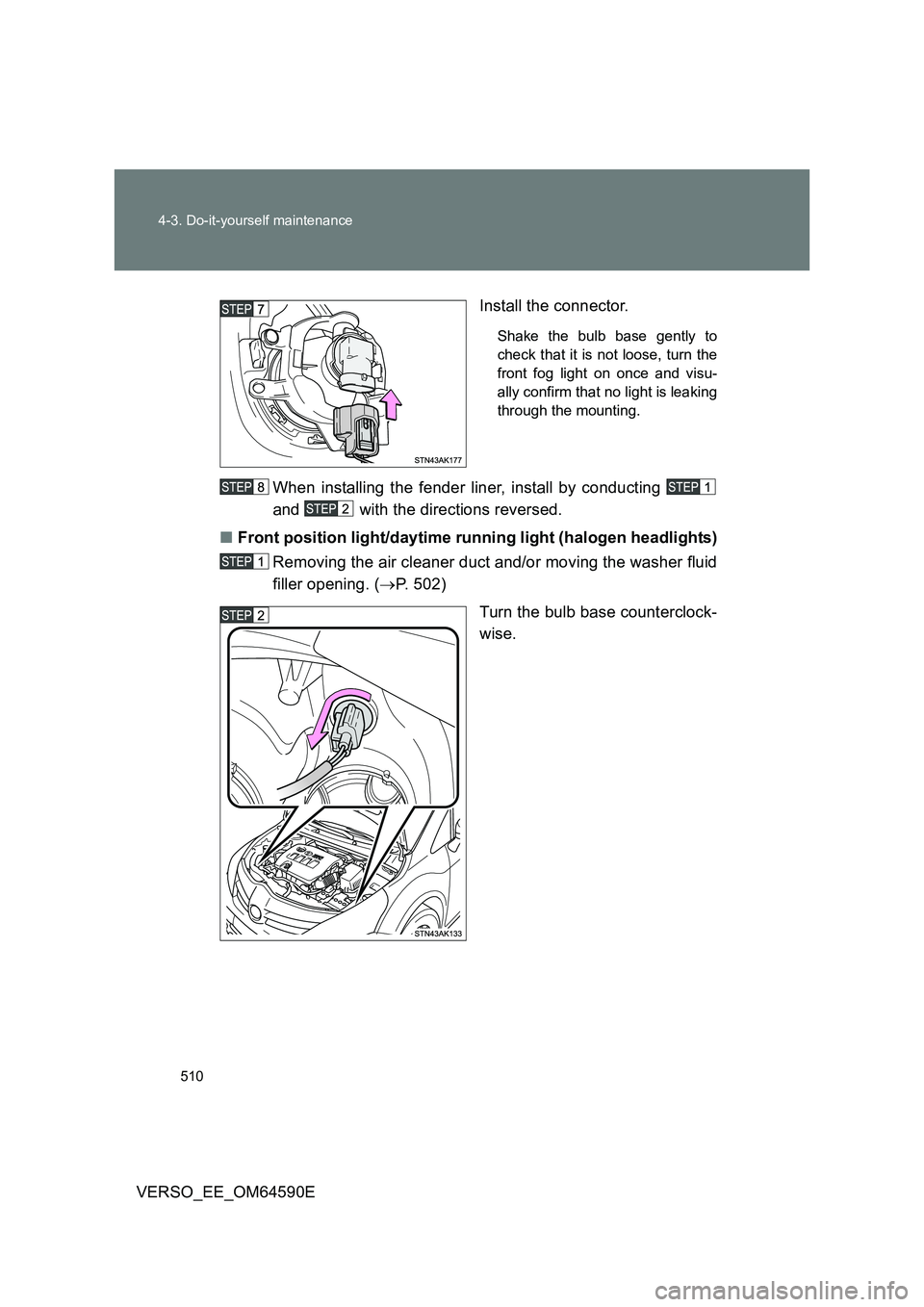

Install the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
■ Front position light/daytime running light (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

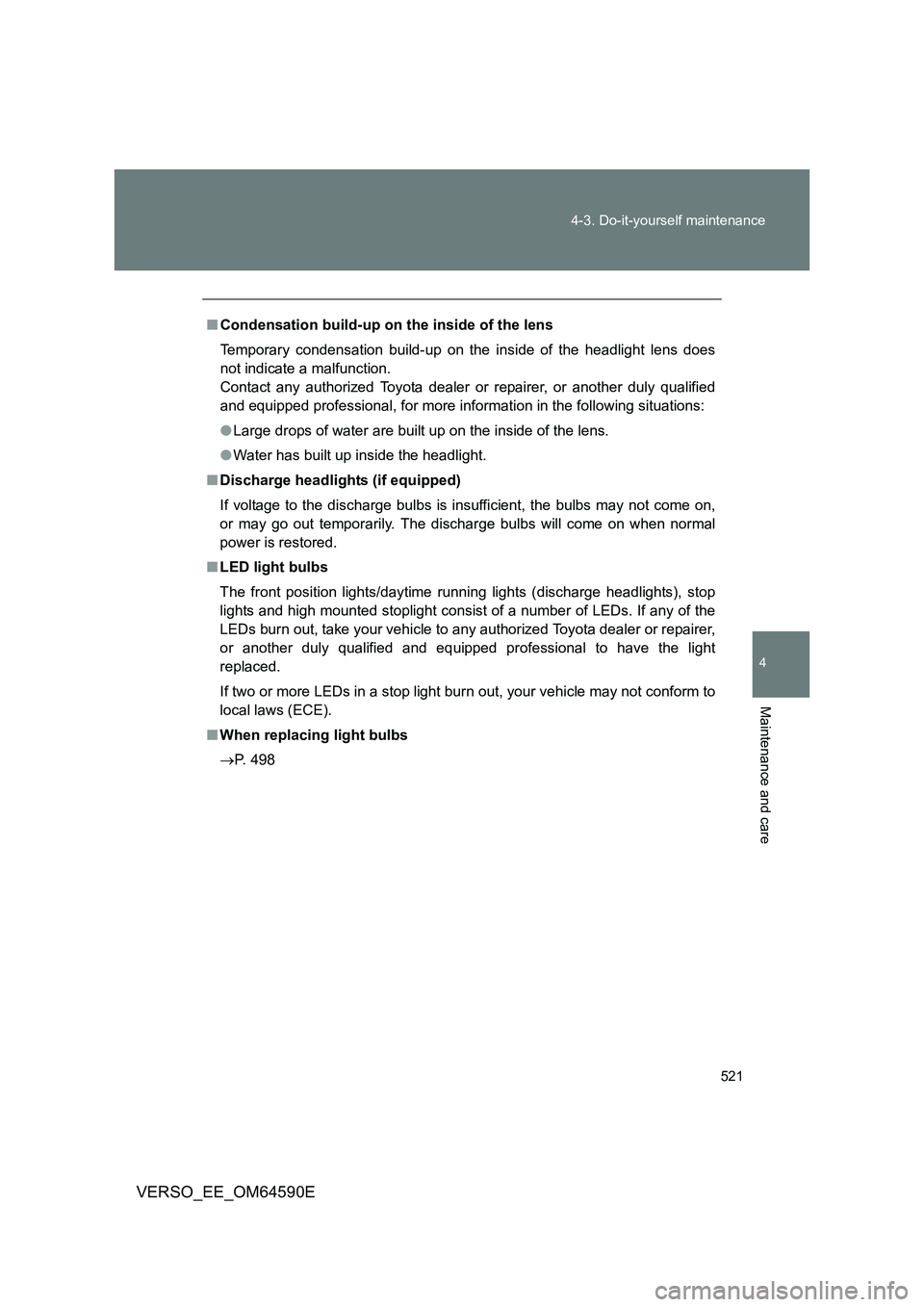

■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The disc harge bulbs will come on when normal
power is restored.
■ LED light bulbs
The front position lights/daytime running lights (discharge headlights), stop
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional to have the light
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ When replacing light bulbs
 P. 498
