5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Vehicles with third seats
Spare tire
Jack handle
Jack
Wheel nut wrench
Towing eyelet

562
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.

5
563
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E

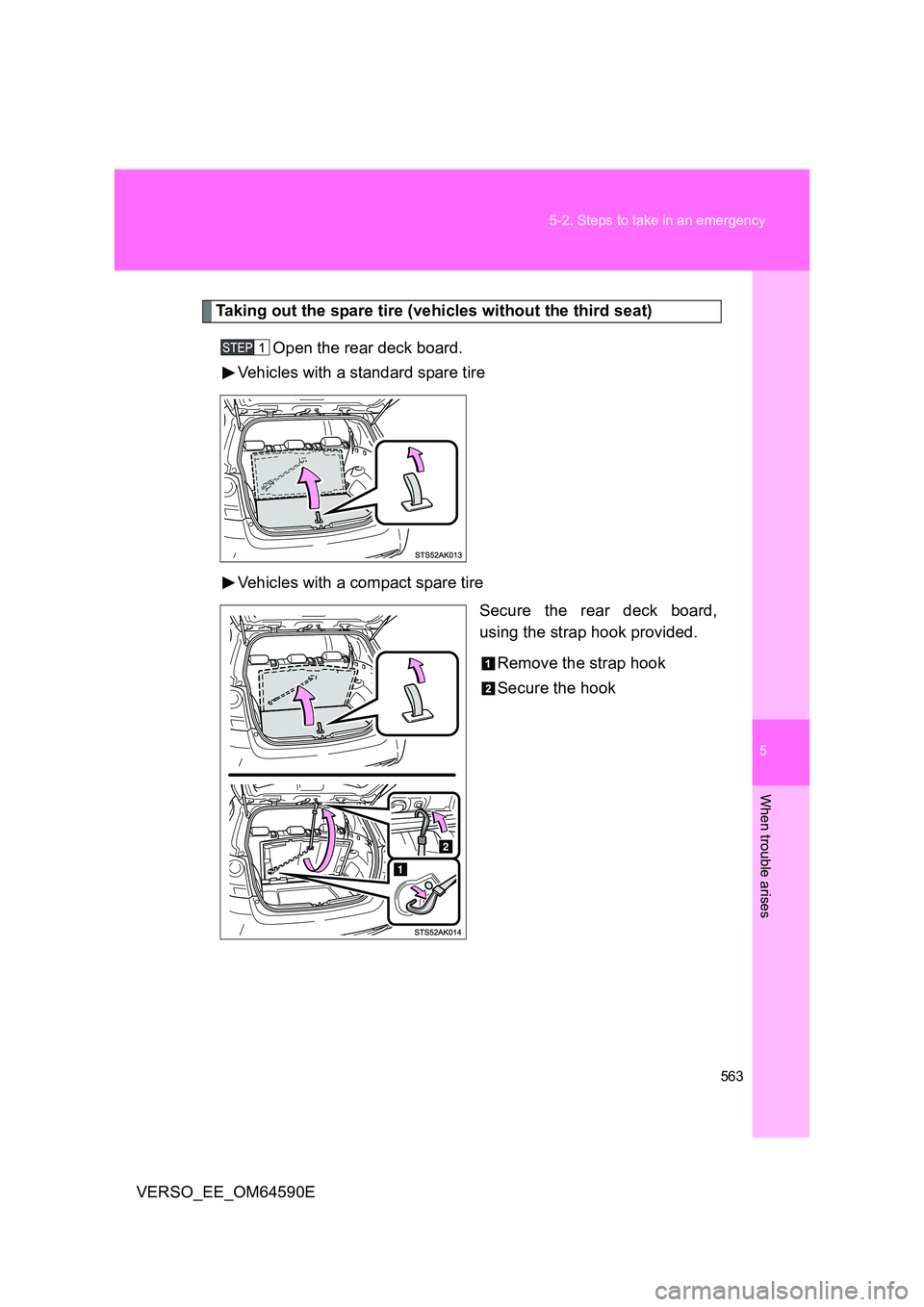

Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

564
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

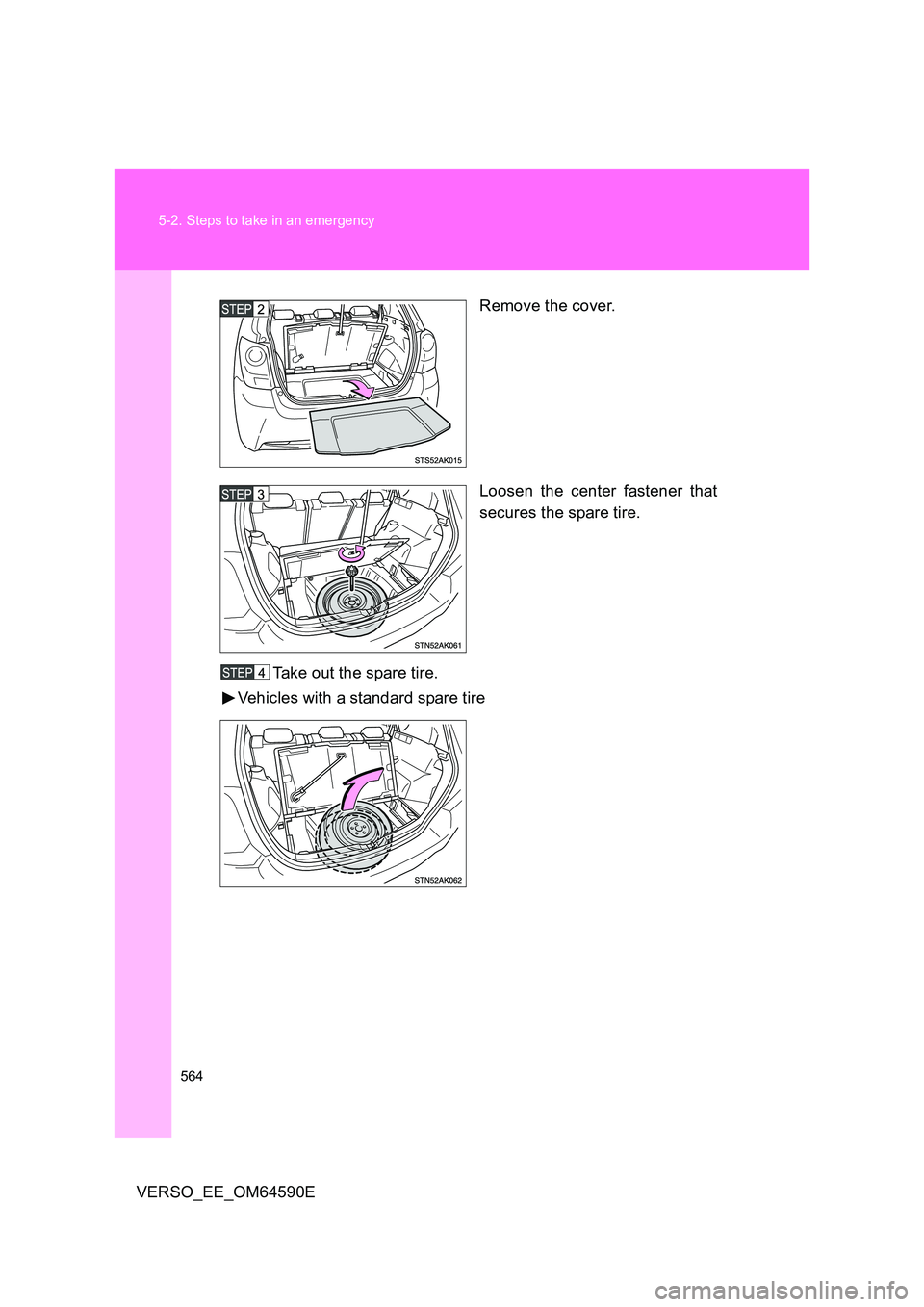

Remove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire

5
565
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Vehicles with a compact spare tire

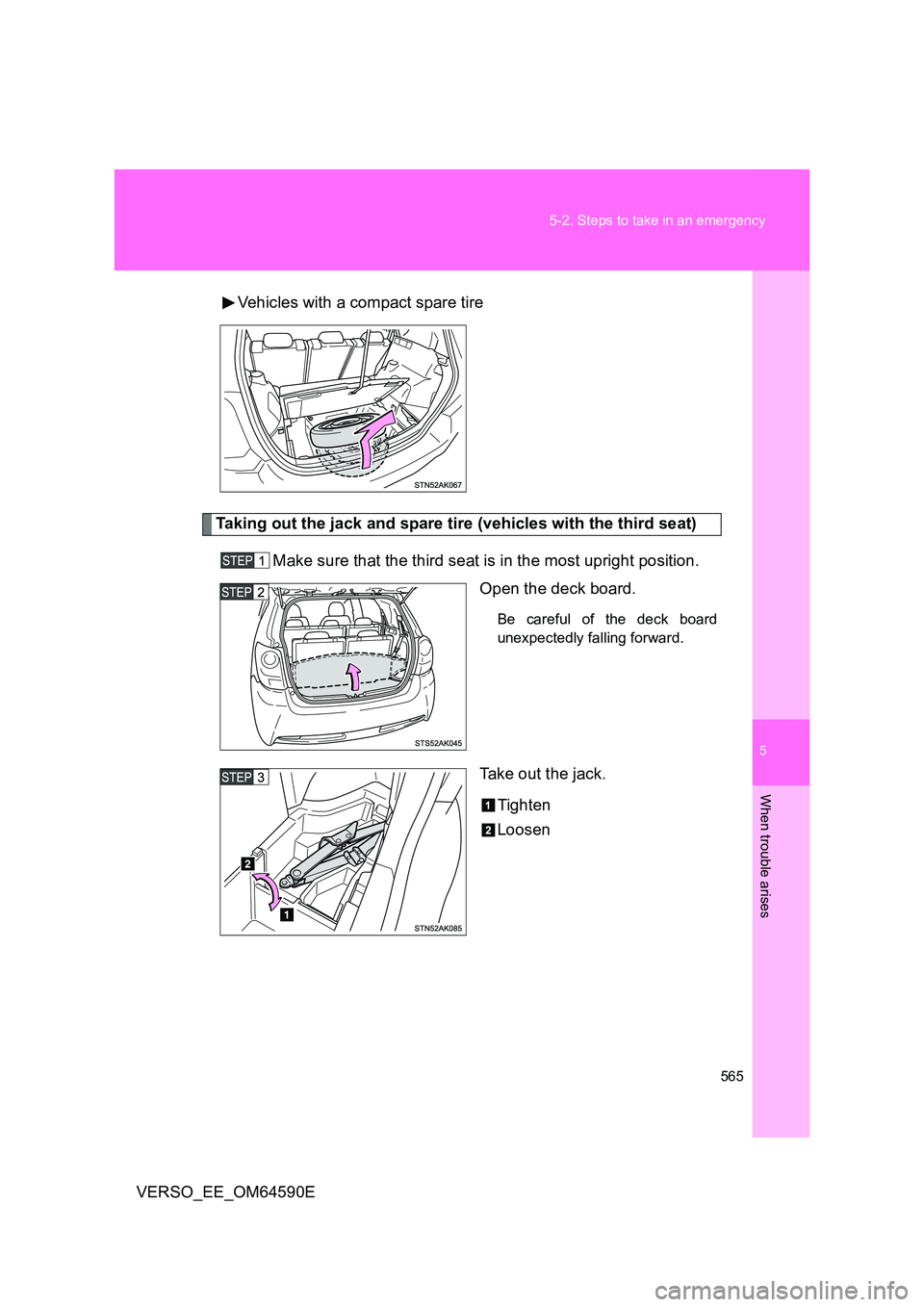

Taking out the jack and spare tire (vehicles with the third seat)
Make sure that the third seat is in the most upright position.
Open the deck board.
Be careful of the deck board
unexpectedly falling forward.
Take out the jack.
Tighten
Loosen

566
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

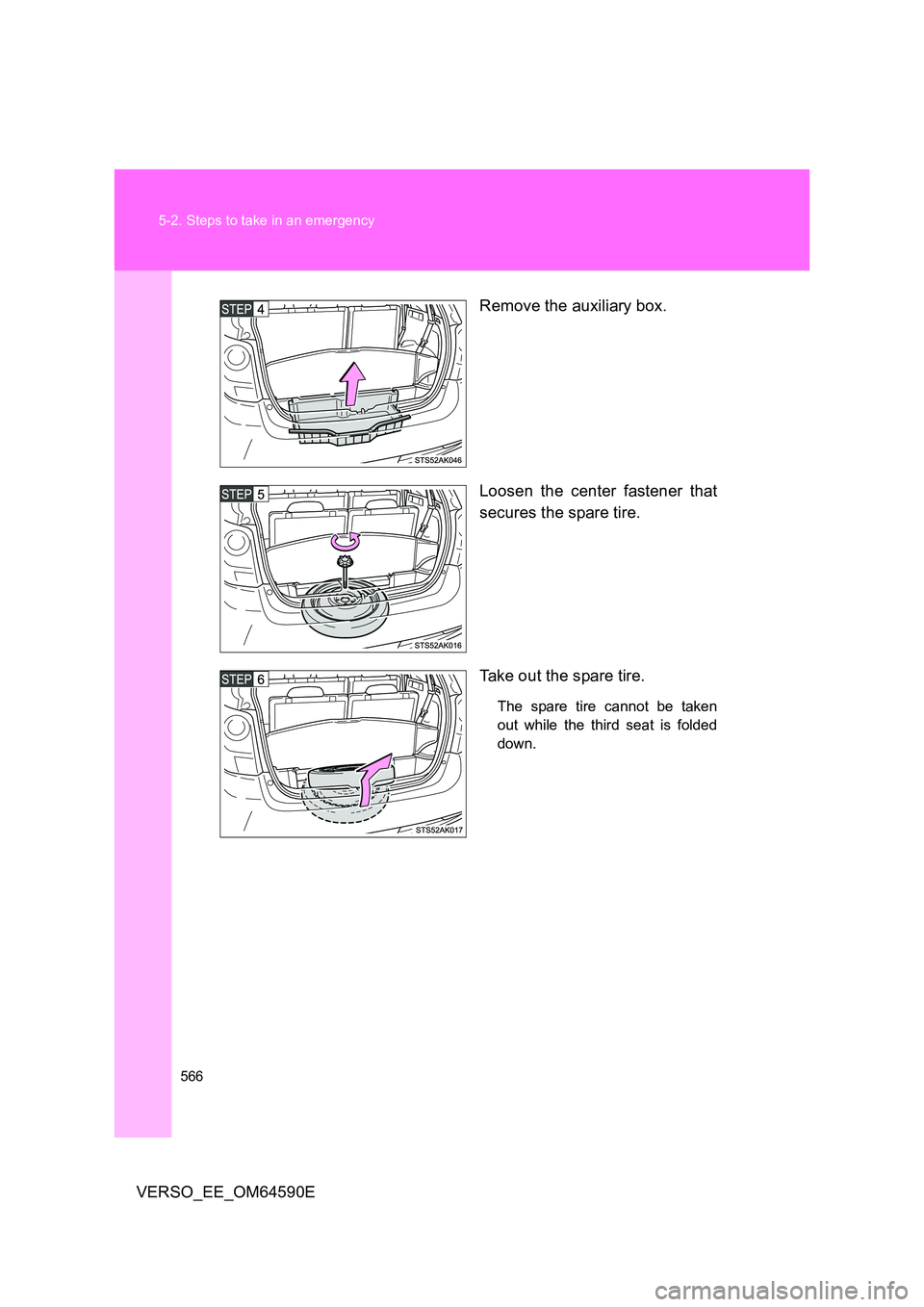

Remove the auxiliary box.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down.

5
567
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E

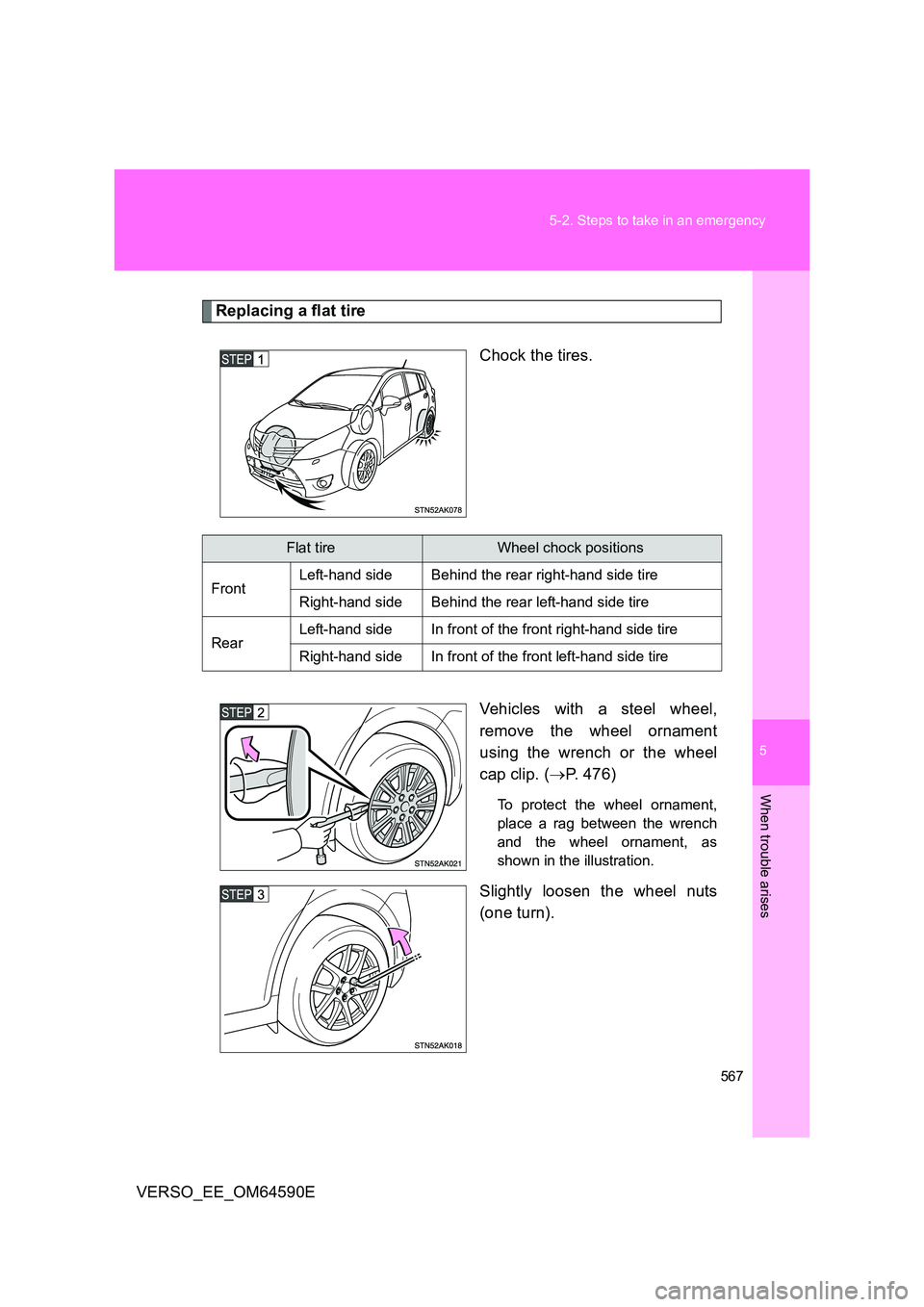

Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench or the wheel
cap clip. ( P. 476)
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Slightly loosen the wheel nuts
(one turn).
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

568
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

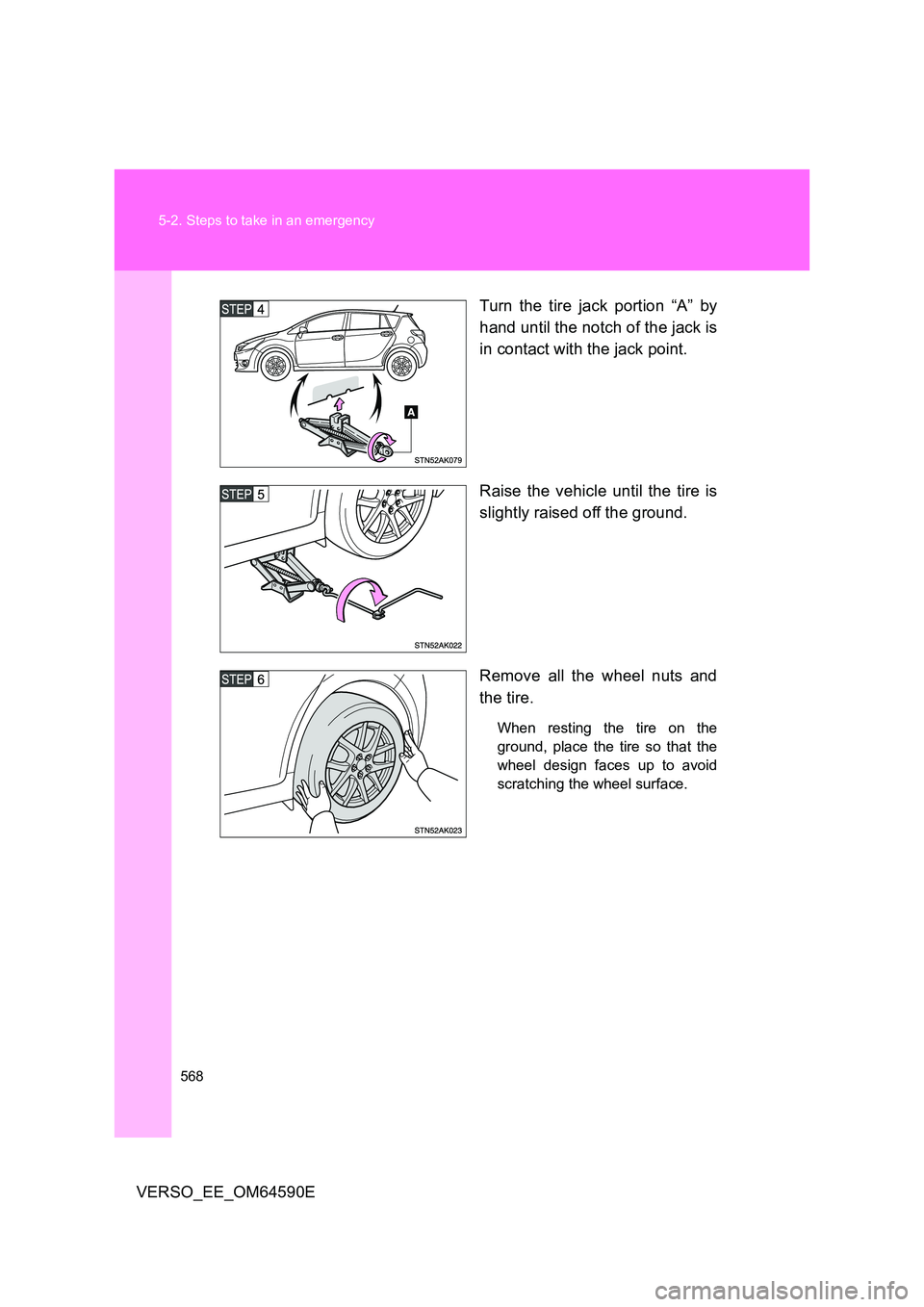

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
