2016 TOYOTA VERSO isofix

163
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E

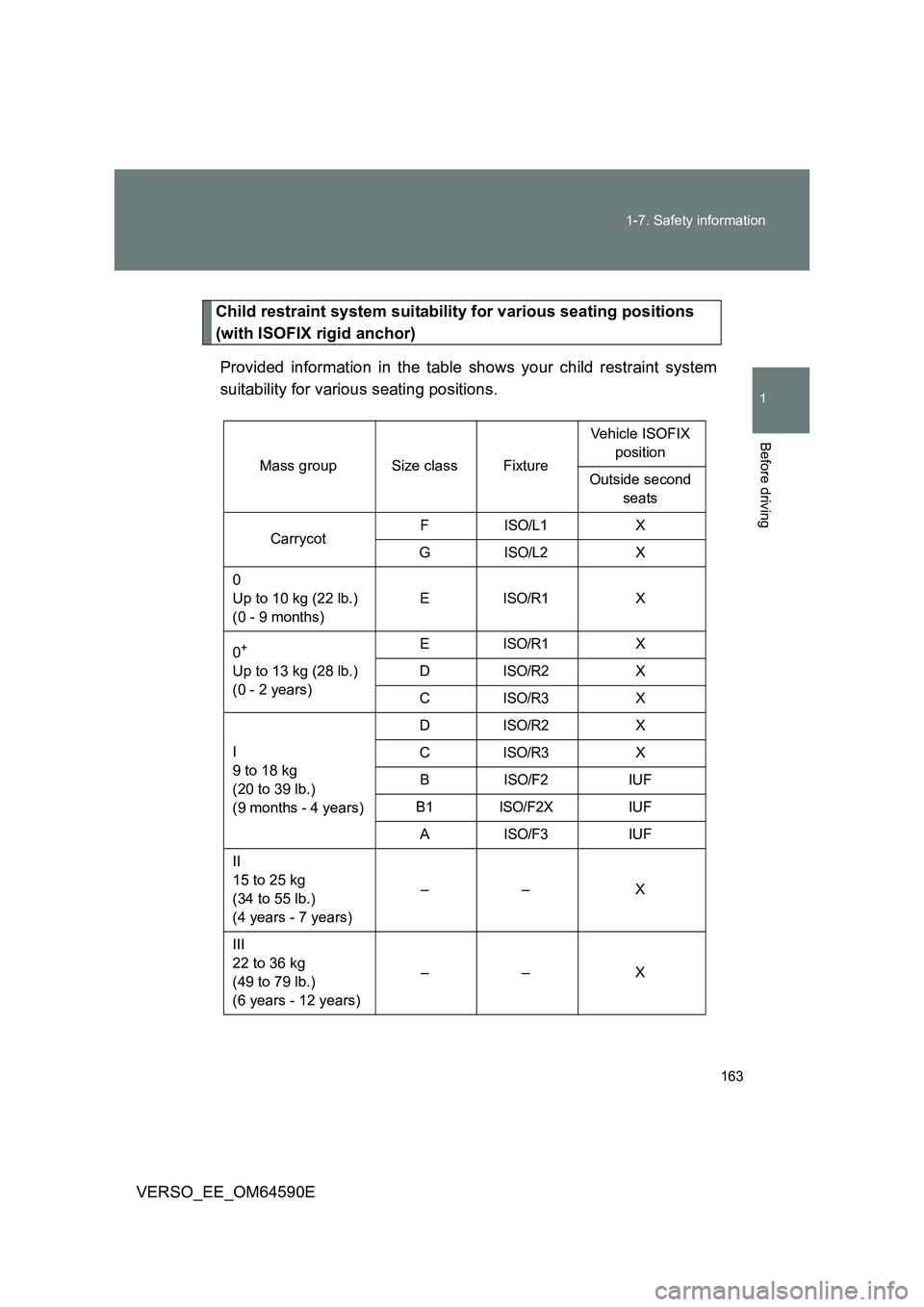

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass group Size class Fixture
Vehicle ISOFIX
position
Outside second
seats
Carrycot FISO/L1X
GISO/L2X
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1X
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1X
DISO/R2X
CISO/R3X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
DISO/R2X
CISO/R3X
BISO/F2IUF
B1ISO/F2XIUF
AISO/F3IUF
II
15 to 25 kg
(34 to 55 lb.)
(4 years - 7 years)
–– X
III
22 to 36 kg
(49 to 79 lb.)
(6 years - 12 years)
–– X

164
1-7. Safety information
VERSO_EE_OM64590E

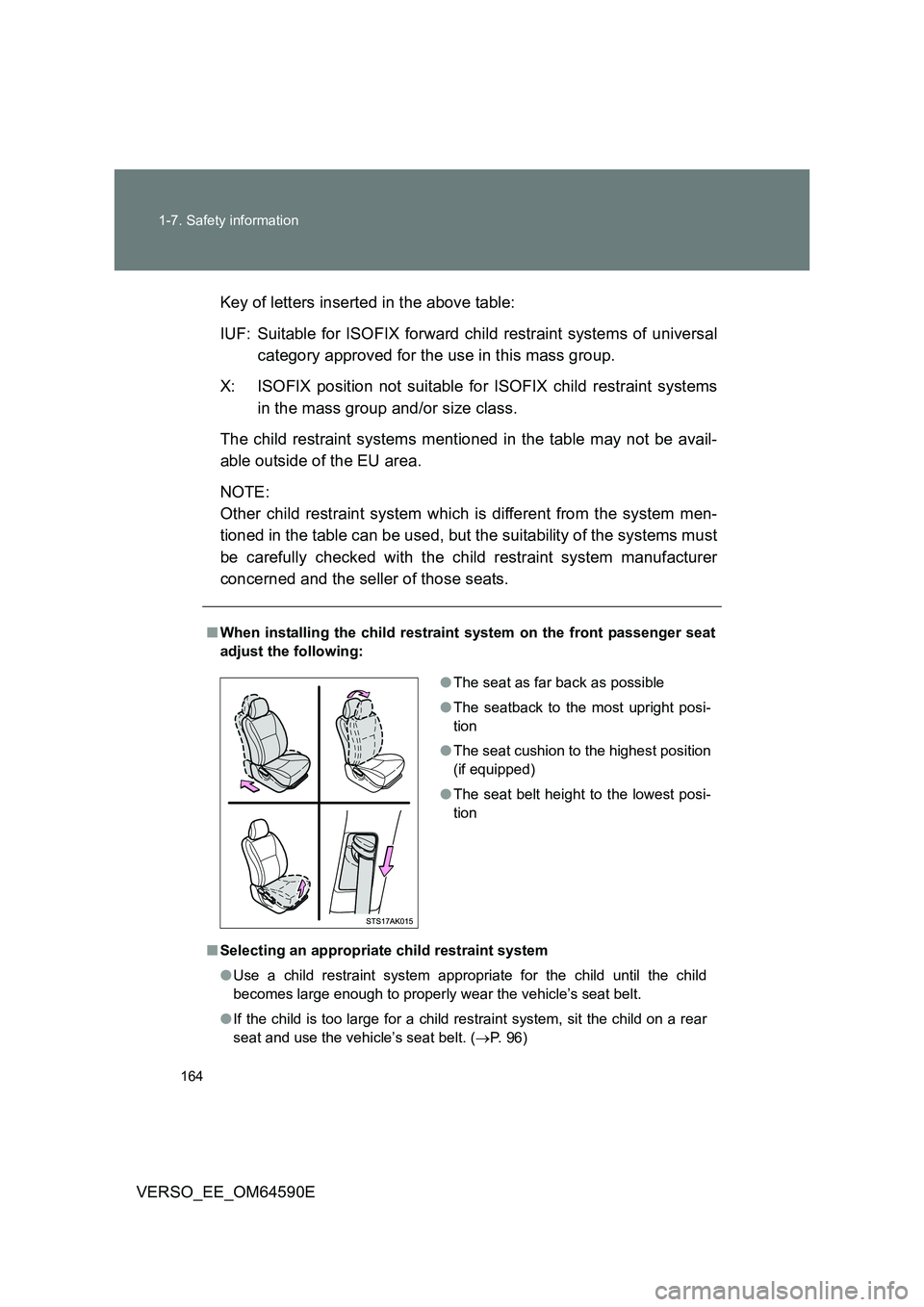

Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward child restraint systems of universal
category approved for the use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in the mass group and/or size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
NOTE:
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer
concerned and the seller of those seats.
■ When installing the child restraint system on the front passenger seat
adjust the following:
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. ( P. 96)
●The seat as far back as possible
● The seatback to the most upright posi-
tion
● The seat cushion to the highest position
(if equipped)
● The seat belt height to the lowest posi-
tion

167
1
1-7. Safety information
Before driving
VERSO_EE_OM64590E
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints to the seats using a seat belt or ISOFIX
rigid anchor. Attach the top strap when installing a child restraint
system.
Seat belts (An ELR belt
requires a locking clip.)
Second seat: ISOFIX rigid
anchor (ISOFIX child restraint
system)
Lower anchors are provided for
the outside second seats.
(Labels displaying the location
of the anchors are attached to
the seats.)
Second seat: Anchor bracket
(for top strap)
Anchor brackets are provided
for outside second seats.

173
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E

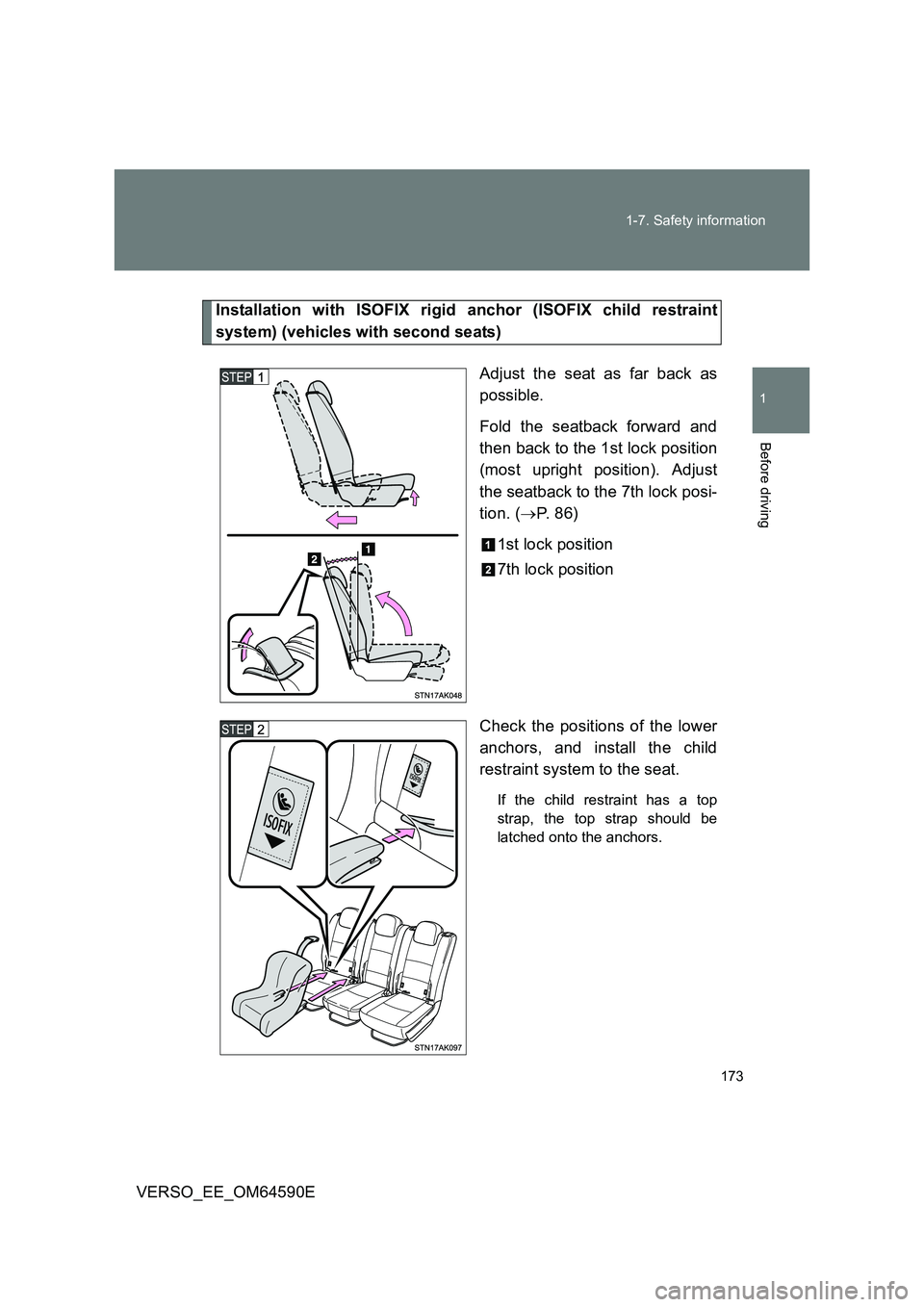

Installation with ISOFIX rigid anchor (ISOFIX child restraint
system) (vehicles with second seats)
Adjust the seat as far back as
possible.
Fold the seatback forward and
then back to the 1st lock position
(most upright position). Adjust
the seatback to the 7th lock posi-
tion. ( P. 8 6 )
1st lock position
7th lock position
Check the positions of the lower
anchors, and install the child
restraint system to the seat.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.

174
1-7. Safety information
VERSO_EE_OM64590E

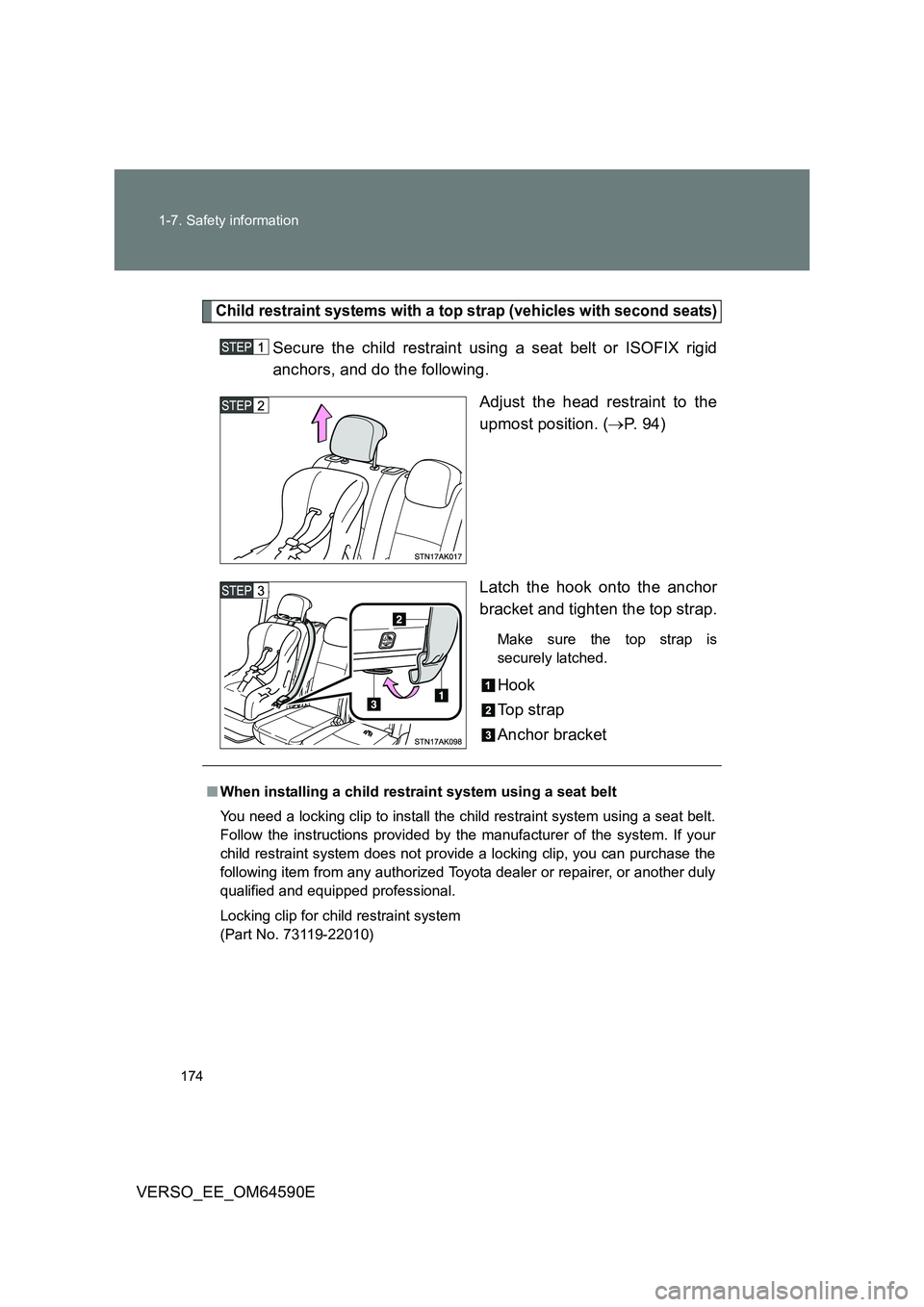

Child restraint systems with a top strap (vehicles with second seats)
Secure the child restraint using a seat belt or ISOFIX rigid
anchors, and do the following.
Adjust the head restraint to the
upmost position. ( P. 9 4 )
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Hook
To p s t r a p
Anchor bracket
■ When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

648

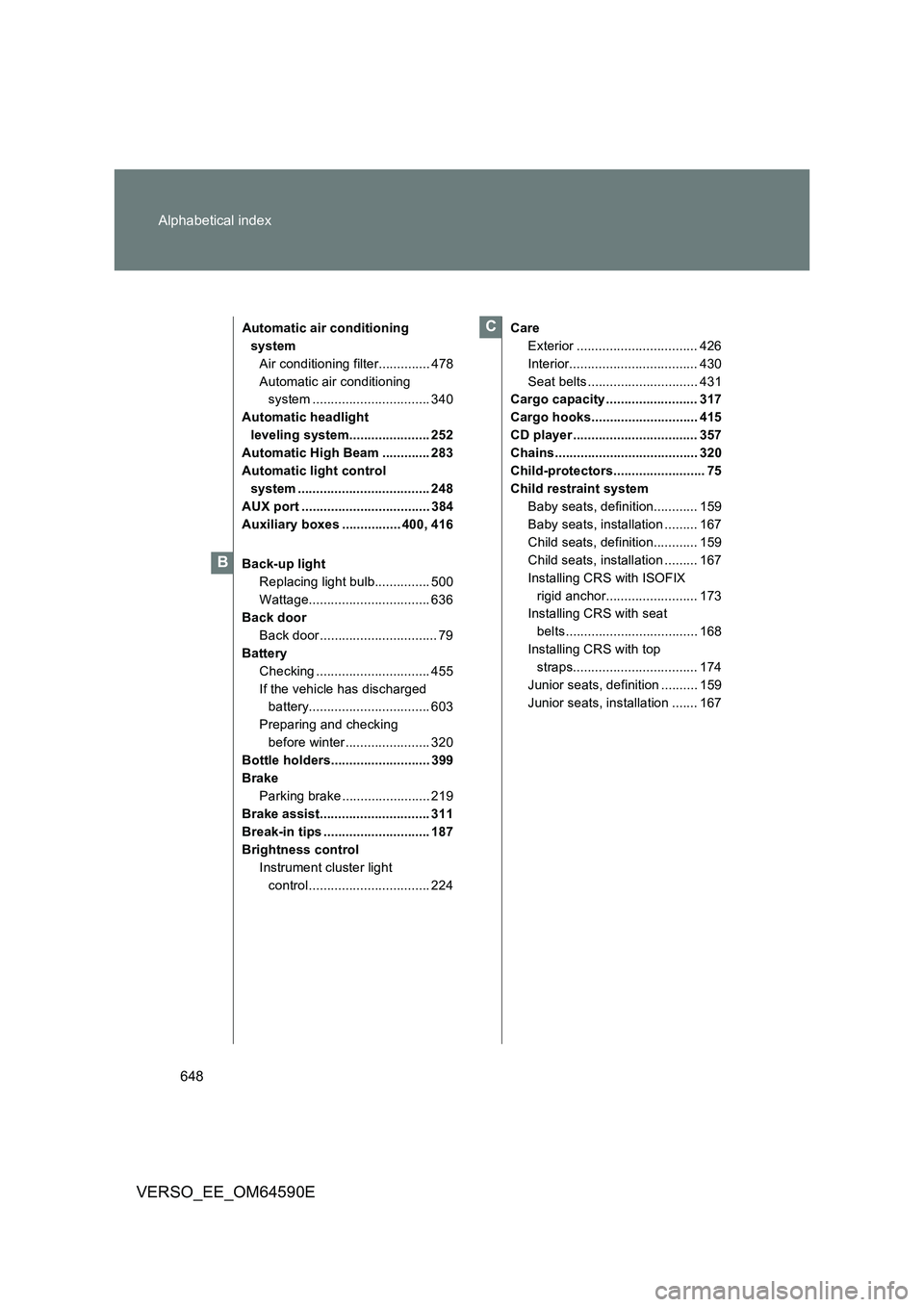

Alphabetical index
VERSO_EE_OM64590E
Automatic air conditioning
system
Air conditioning filter.............. 478
Automatic air conditioning
system ................................ 340
Automatic headlight
leveling system...................... 252
Automatic High Beam ............. 283
Automatic light control
system .................................... 248
AUX port ................................... 384
Auxiliary boxes ................ 400, 416
Back-up light
Replacing light bulb............... 500
Wattage................................. 636
Back door
Back door ................................ 79
Battery
Checking ............................... 455
If the vehicle has discharged
battery................................. 603
Preparing and checking
before winter....................... 320
Bottle holders........................... 399
Brake
Parking brake ........................ 219
Brake assist.............................. 311
Break-in tips ............................. 187
Brightness control
Instrument cluster light
control................................. 224
Care
Exterior ................................. 426
Interior................................... 430
Seat belts .............................. 431
Cargo capacity ......................... 317
Cargo hooks............................. 415
CD player .................................. 357
Chains....................................... 320
Child-protectors......................... 75
Child restraint system
Baby seats, definition............ 159
Baby seats, installation ......... 167
Child seats, definition............ 159
Child seats, installation ......... 167
Installing CRS with ISOFIX
rigid anchor......................... 173
Installing CRS with seat
belts.................................... 168
Installing CRS with top
straps.................................. 174
Junior seats, definition .......... 159
Junior seats, installation ....... 167
