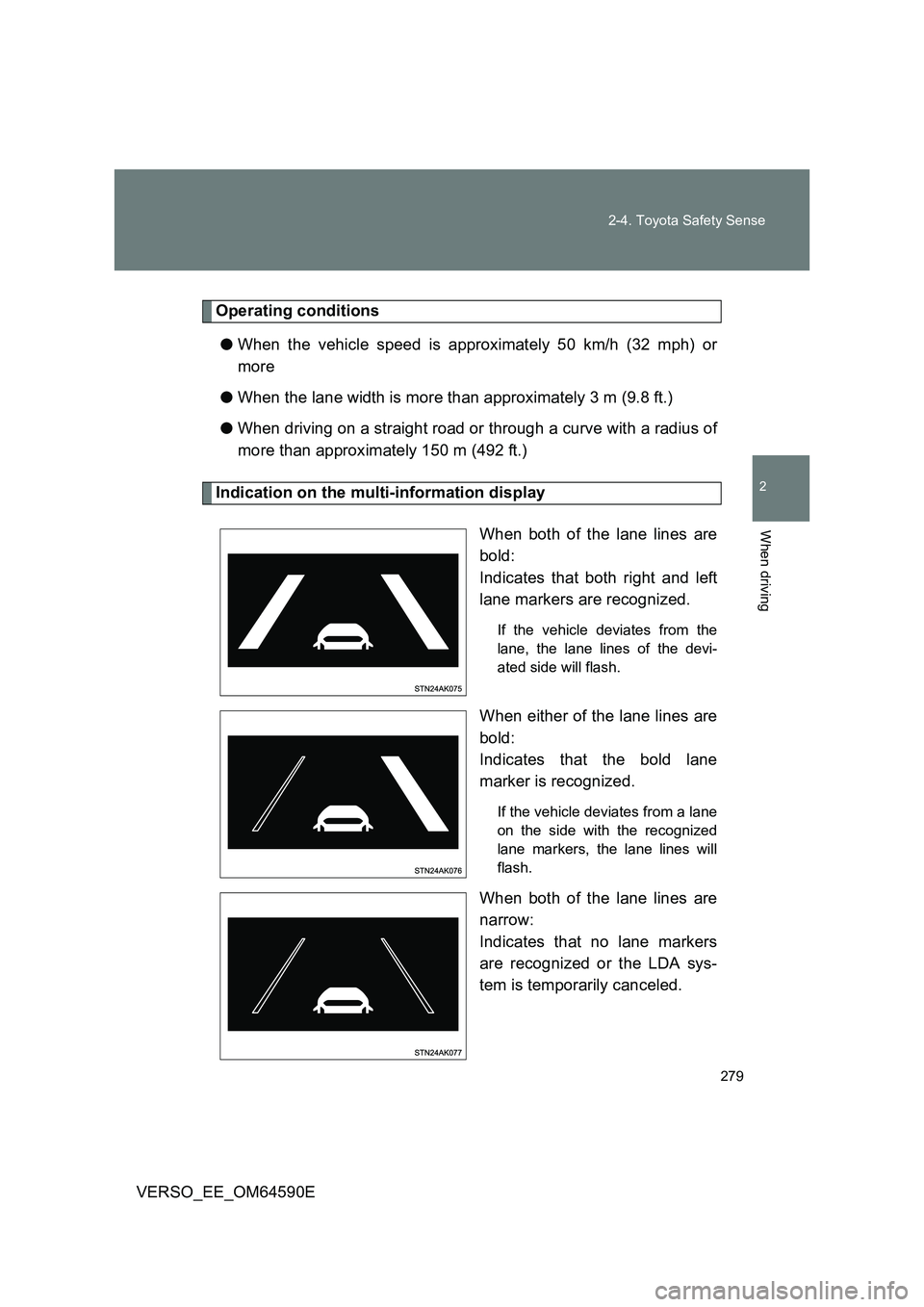

2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64590E
Operating conditions
● When the vehicle speed is approximately 50 km/h (32 mph) or
more
● When the lane width is more than approximately 3 m (9.8 ft.)
● When driving on a straight road or through a curve with a radius of
more than approximately 150 m (492 ft.)
Indication on the multi-information display
When both of the lane lines are
bold:
Indicates that both right and left
lane markers are recognized.
If the vehicle deviates from the
lane, the lane lines of the devi-
ated side will flash.
When either of the lane lines are
bold:
Indicates that the bold lane
marker is recognized.
If the vehicle deviates from a lane
on the side with the recognized
lane markers, the lane lines will
flash.
When both of the lane lines are
narrow:
Indicates that no lane markers
are recognized or the LDA sys-
tem is temporarily canceled.

319
2-6. Driving information
2
When driving
VERSO_EE_OM64590E
WARNING
■ Roof luggage carrier precautions (if equipped)
To use the roof rails as a roof luggage carrier, you must fit the roof rails with
two or more genuine Toyota cross rails or their equivalent.
Follow the manufacturer’s instructions and precautions when installing the
cross rails or their equivalent.
When you load cargo on the roof luggage carrier, observe the following:
● Place the cargo so that its weight is distributed evenly between the front
and rear axles.
● If loading long or wide cargo never exceed the vehicle overall length or
width.
● Before driving, make sure the cargo is securely fastened on the roof lug-
gage carrier.
● Loading cargo on the roof luggage carrier will make the center of the vehi-
cle gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden
braking or abrupt maneuvers, otherwise it may result in loss of control or
vehicle rollover due to failure to operate this vehicle correctly and result in
death or serious injury.
● If driving for a long distance, on rough roads, or at high speeds, stop the
vehicle now and then during the trip to make sure the cargo remains in its
place.
● Do not exceed 100 kg (221 lb.) cargo weight on the roof rails. However, if
the allowable cargo weight of the cross rails is under 100 kg (221 lb.)
observe the load limit and other instructions for the cross rails.

321
2-6. Driving information
2
When driving
VERSO_EE_OM64590E
Selecting tire chains
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
■ When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■ When parking the vehicle
Park the vehicle and move the shift lever to “P” (Multidrive) or to
“1” or “R” (manual transmission) without setting the parking
brake. The parking brake may freeze up, preventing it from
being released. If necessary, block the wheels to prevent inad-
vertent sliding or creeping.

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and inset*.
Replacement wheels are available at any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions (if equipped)
● Use only Toyota wheel nuts and wrenches designed for use
with your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using
tire chains.
● Use only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

616
VERSO_EE_OM64590E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4440 mm (174.8 in.)
Overall width 1790 mm (70.5 in.)
Overall height *1
205/60R16 tires
Without roof rail
1620 mm (63.8 in.)
1630 mm (64.2 in.) *2
With roof rail
1660 mm (65.4 in.)
1670 mm (65.7 in.) *2
215/55R17 tires
Without roof rail
1630 mm (64.2 in.)
With roof rail
1670 mm (65.7 in.)
Wheelbase 2780 mm (109.4 in.)
TreadFront 1535 mm (60.4 in.)
Rear 1545 mm (60.8 in.)
Gross vehicle mass
1935 kg (4266 lb.) *2, 3, 4
2125 kg (4685 lb.) *3, 4
2060 kg (4542 lb.) *2, 5
2260 kg (4983 lb.) *5
Maximum
permissible axle
capacity
Front 1220 kg (2690 lb.) *3, 4
1260 kg (2778 lb.) *5
Rear 1180 kg (2601 lb.)
Drawbar load 55 kg (121 lb.)
Towing capacityWith brake 1300 kg (2866 lb.)
Without brake 450 kg (992 lb.)
Maximum permissible mass for towing
hitch/bracket 20 kg (44 lb.)
