2016 TOYOTA VERSO driver seat adjustment

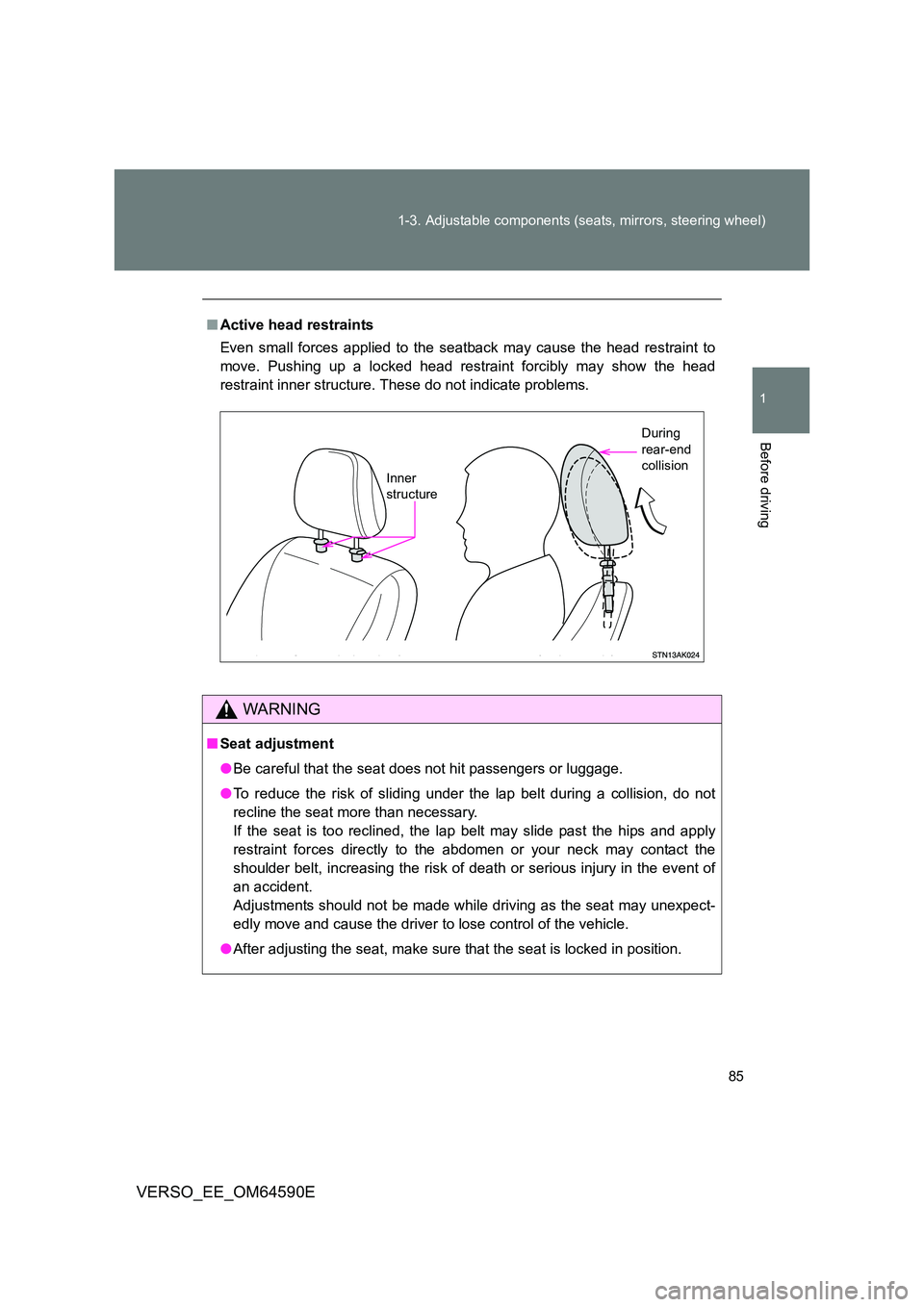

85
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64590E
■ Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may show the head
restraint inner structure. These do not indicate problems.
WARNING
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
Inner
structure
During
rear-end
collision

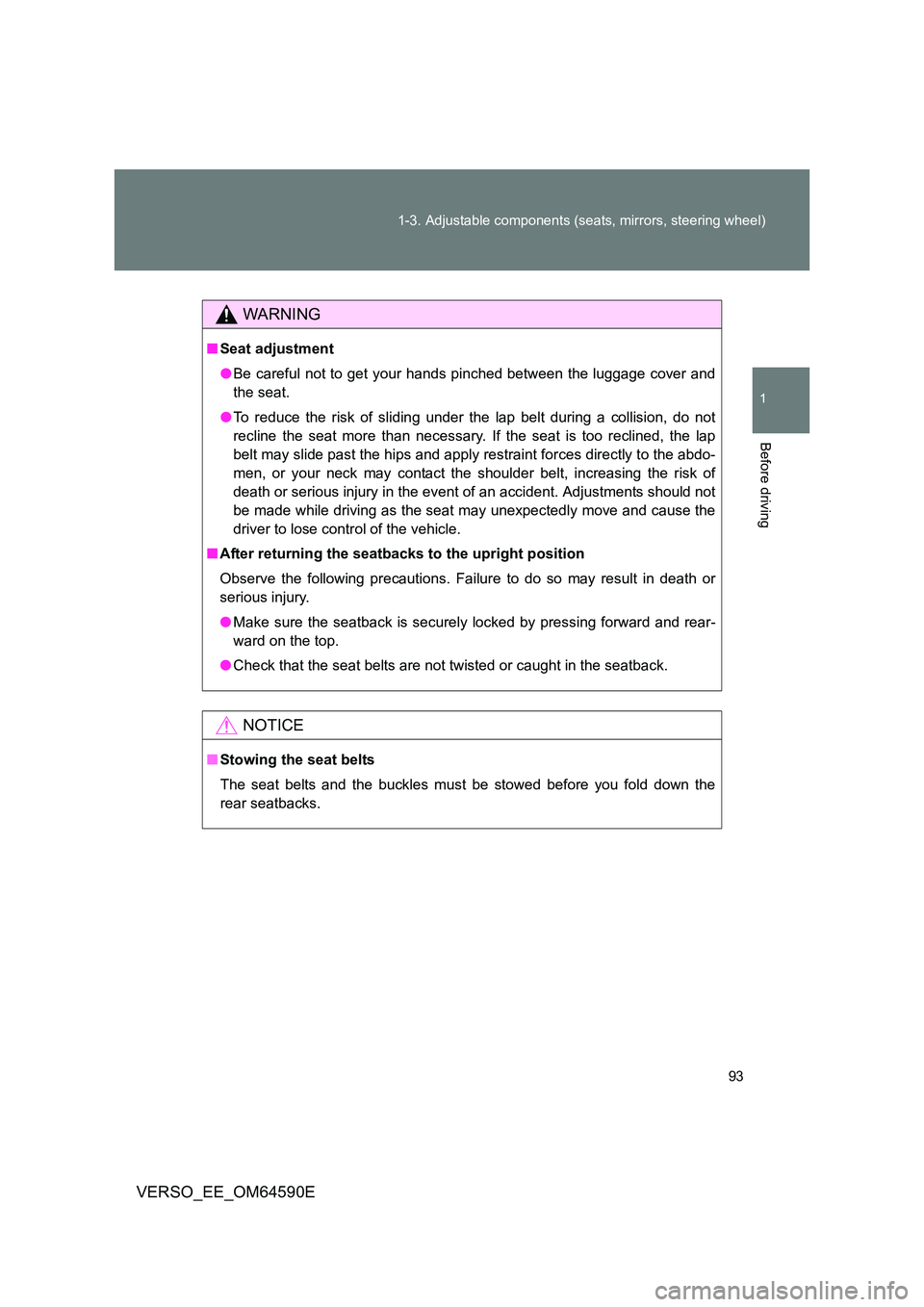

93
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64590E
WARNING
■ Seat adjustment
● Be careful not to get your hands pinched between the luggage cover and
the seat.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary. If the seat is too reclined, the lap
belt may slide past the hips and apply restraint forces directly to the abdo-
men, or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident. Adjustments should not
be made while driving as the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
■ After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pressing forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.

104
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E
Steering wheel
WARNING
■Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.

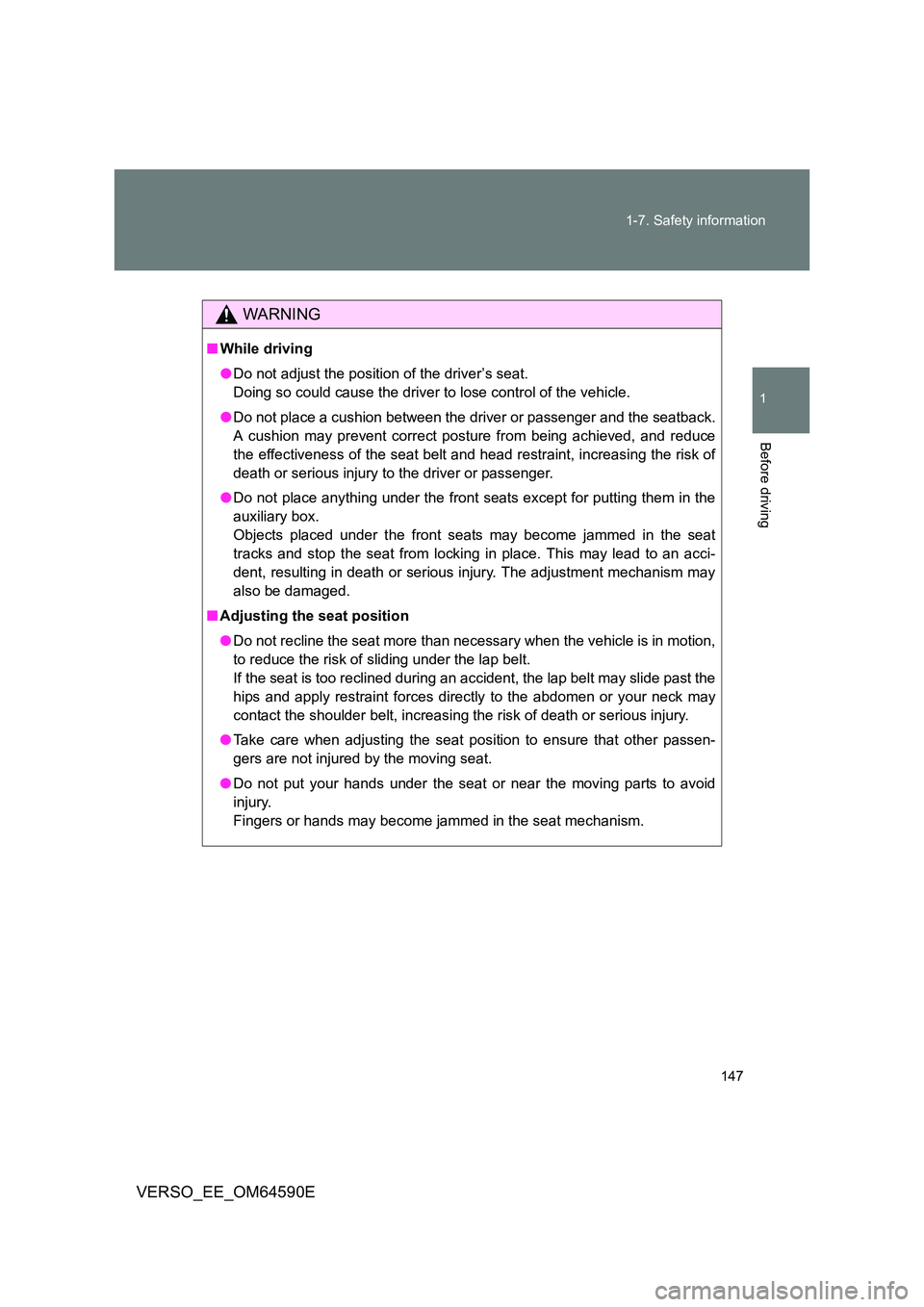

147
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
WARNING
■ While driving
● Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats except for putting them in the
auxiliary box.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
■ Adjusting the seat position
● Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

161
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system suit-
ability for various seating positions.
NOTE:
When you use child restraint system on the passenger seat, you must
turn off the cut off switch.
Also, vehicles with a vertical height adjustment lever, must have the
seat cushion adjusted to the highest position.
Front
passenger seat Second seat Third seat Airbag manual
on-off switch
ONOFFDriver
side
Passenger sideCenter Driver
side
Passenger side
0
Up to 10 kg
(22 lb.)
(0 - 9 months)
X
Never
put
UUUUUU
0+
Up to 13 kg
(28 lb.)
(0 - 2 years)
X
Never
put
UUUUUU
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)
U UUUUU
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
U UUUUU
Mass
group
Seating
position
