2016 TOYOTA VERSO oil filter

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Diesel engine
Washer fluid tank ( P. 459)
Engine coolant reservoir
( P. 452)
Engine oil filler cap
( P. 449)
Engine oil level dipstick
( P. 447)
Fuel filter (P. 460)
Fuse box ( P. 485)
Battery ( P. 455)
Condenser ( P. 454)
Electric cooling fans
Intercooler ( P. 454)
Radiator ( P. 454)

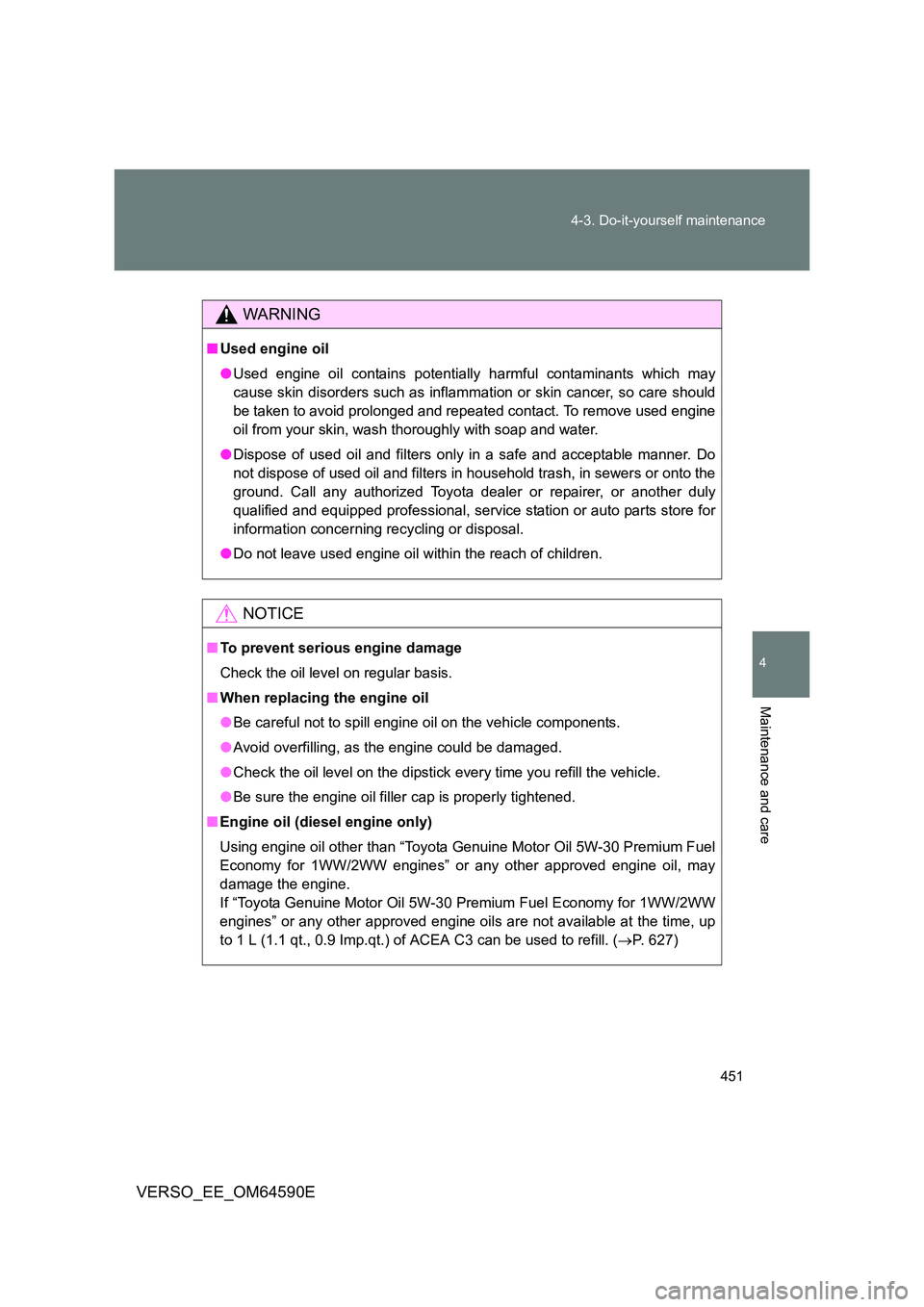

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
WARNING
■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota deal er or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
■ Engine oil (diesel engine only)
Using engine oil other than “Toyota Genuine Motor Oil 5W-30 Premium Fuel
Economy for 1WW/2WW engines” or any other approved engine oil, may
damage the engine.
If “Toyota Genuine Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW
engines” or any other approved engine oils are not available at the time, up
to 1 L (1.1 qt., 0.9 Imp.qt.) of ACEA C3 can be used to refill. ( P. 627)

552
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is lower
than approximately
50 km/h (32 mph) (if
equipped).
Drive the vehicle at
approximately 50 km/h
(32 mph) or higher.
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is out-
side of the operational
range (if equipped).
Drive the vehicle while
lowering the vehicle
speed.
*3
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)
Check the level of
engine oil, and add if
necessary.
If necessary, have the
engine oil changed by
any authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
*3
Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)
Check and have the
engine oil and oil filter
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
Warning messageDetailsCorrection procedure

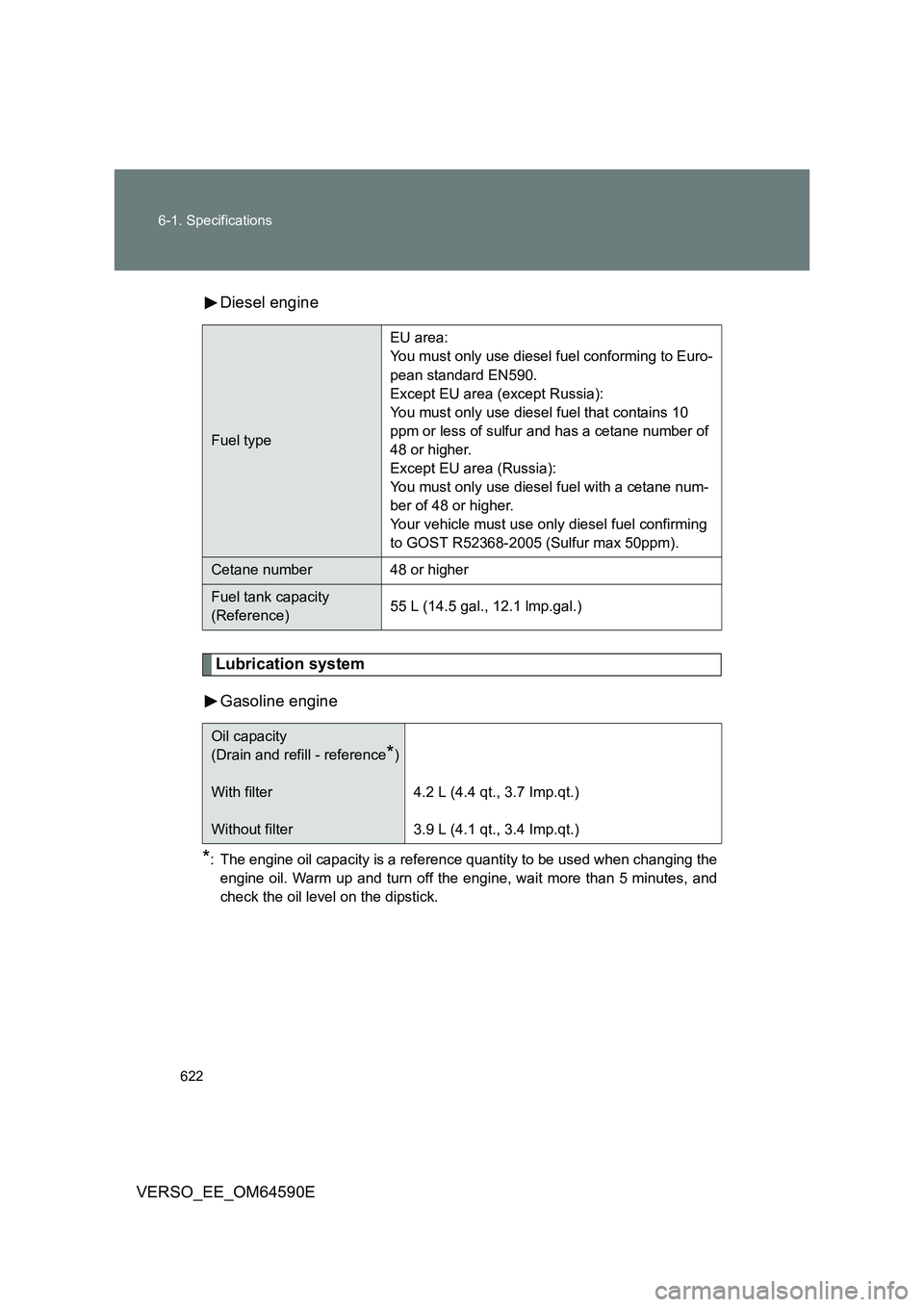

622
6-1. Specifications
VERSO_EE_OM64590E
Diesel engine
Lubrication system
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel type
EU area:
You must only use diesel fuel conforming to Euro-
pean standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that contains 10
ppm or less of sulfur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a cetane num-
ber of 48 or higher.
Your vehicle must use only diesel fuel confirming
to GOST R52368-2005 (Sulfur max 50ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference) 55 L (14.5 gal., 12.1 lmp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

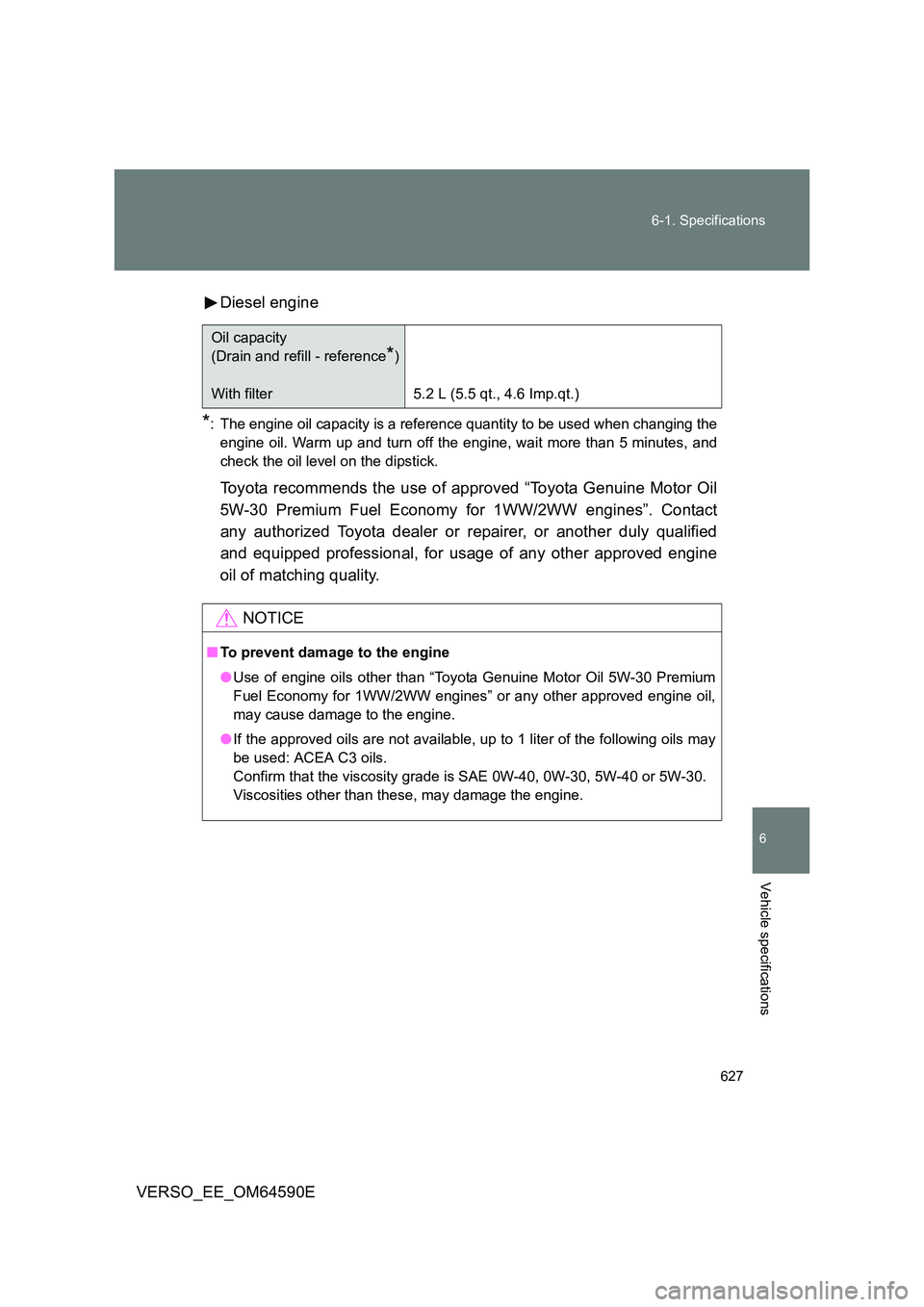

627
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Diesel engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Toyota recommends the use of approved “Toyota Genuine Motor Oil
5W-30 Premium Fuel Economy for 1WW/2WW engines”. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for usage of any other approved engine
oil of matching quality.
Oil capacity
(Drain and refill - reference*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
NOTICE
■ To prevent damage to the engine
● Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
● If the approved oils are not available, up to 1 liter of the following oils may
be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
