CVT FLUID
PERIODIC MAINTENANCE
CVT FLUID
InspectionINFOID:0000000012431172
FLUID LEAKAGE
• Check transaxle surrounding area (oil seal and plug etc.)for fluid
leakage.
• If anything is found, repair or replace damaged parts and adjust
CVT fluid level. Refer to TM-229, "
Adjustment".
ReplacementINFOID:0000000012431173
CAUTION:
• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN
CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-
ranty.
• Always use shop paper. Never use shop cloth.
• Replace a drain plug gasket with new ones at the final stage of the operation when installing.
• Use caution when looking into the drain hole as th ere is a risk of dripping fluid entering the eye.
• After replacement, always perform CVT fluid leakage check.
1. Select “Data Monitor” in “T RANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm t hat the CVT fluid temperature is 40°C (104° F) or less.
3. Check that the selector lever is in the “P ” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and overflow tube and drain the CVT fluid from the oil pan. TM-242, "
Removal and
Installation".
6. Install the charging pipe set (KV311039S0) (A) into the drain hole.
CAUTION:
Tighten the charging pipe by hand.
7. Install the ATF changer hose (B) to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging
pipe until it stops.
8. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.
9. Remove the ATF changer hose and charging pipe, then install the drain plug.
NOTE:
Perform this work quickly because CVT fluid leaks.
10. Lift down the vehicle.
11. Start the engine.
12. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it to the “P” position.
NOTE:
SMA146B
CVT fluid : Refer to TM-265, "General Specification".
Fluid capacity : Refer to TM-265, "
General Specification".
JSDIA1876ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CVT FLUIDTM-229
< PERIODIC MAINTENANCE > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Hold the lever at each position for 5 seconds.
13. Check that the CONSULT “Data monitor” in “FLUID TEMP” is 35°C (95°F) to 45 °C (113 °F).
14. Stop the engine.
15. Lift up the vehicle.
16. Remove the drain plug, and then drain CVT fluid from oil pan.
17. Repeat steps 6 to 16 (one time).
18. Install the overflow tube. Refer to TM-242, "
Removal and Installation".
CAUTION:
Be sure to tighten to the specified torque. If it is not tightened to the specified torque, the tube may
be damaged.
19. Install the charging pipe set (KV311039S0) (A) into the drain hole.
CAUTION:
Tighten the charging pipe by hand.
20. Install the ATF changer hose (B) to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging
pipe until it stops.
21. Fill approximately 3 liter (2-5 /8 lmp qt) of the CVT fluid.
22. Remove the ATF changer hose and charging pipe, then install the drain plug.
NOTE:
Perform this work quickly because CVT fluid leaks.
23. Lift down the vehicle.
24. Start the engine.
25. While depressing the brake pedal, shift the selector leve r to the entire position from “P” to “L”, and shift it
to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.
26. Check that the CONSULT “Data monitor” in “FLUID TEMP” is 35°C (95°F) to 45 °C (113 °F).
27. Lift up the vehicle.
28. Remove the drain plug and confirm that the CV T fluid is drained from the overflow tube.
CAUTION:
Perform this work with the vehicle idling.
NOTE:
If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid.
29. When the flow of CVT fluid slows to a drip, tighten the drain plug to the specified torque. TM-242,
"Removal and Installation".
CAUTION:
Never reuse drain plug gasket.
30. Lift down the vehicle.
31. Select “Work Support” in “T RANSMISSION” using CONSULT.
32. Select “CONFORM CVTF DETERIORTN”.
33. Select “Erase”.
34. Stop the engine.
AdjustmentINFOID:0000000012431174
CAUTION:
• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-
ranty.
JSDIA1876ZZ
CVT fluid : Refer to TM-265, "General Specification".
Fluid capacity : Refer to TM-265, "
General Specification".
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-230
< PERIODIC MAINTENANCE >[CVT: RE0F11A]
CVT FLUID
• During adjustment of the CVT fluid level, check CO
NSULT so that the oil temperature may be main-
tained from 35 to 45 °C (95 to 113 °F).
• Use caution when looking into the drain hole as th ere is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P ” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40 °C (104° F).
NOTE:
The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the
“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.
4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.
5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.
7. Remove the drain plug. Refer to TM-242, "
Removal and Installation".
8. Install the charging pipe set (KV311039S0) (A) into the drain plug hole.
CAUTION:
Tighten the charging pipe by hand.
9. Install the ATF changer hose (B) to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging
pipe until it stops.
10. Fill approximately 0.5 liter (1/2 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose from the charging pipe, and check that the CVT fluid drains out from the charging pipe. If it
does not drain out, perform charging again.
CAUTION:
Perform this work with the vehicle idling.
12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the oil pan.
13. Tighten the drain plug to the specified torque. Refer to TM-242, "
Removal and Installation".
CAUTION:
Never reuse drain plug gasket.
14. Lift down the vehicle.
15. Stop the engine.
JSDIA1876ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CVT SHIFT SELECTORTM-231
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

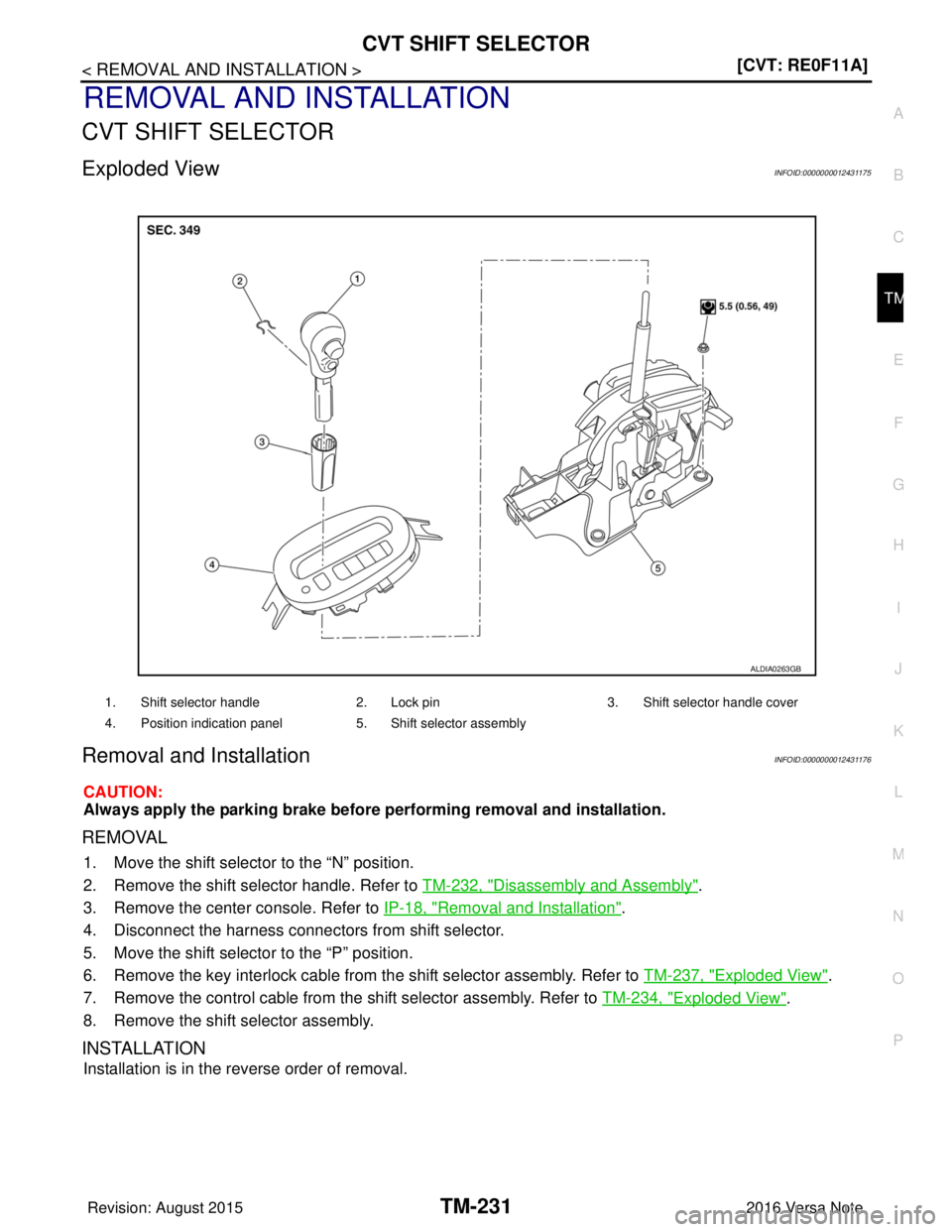

REMOVAL AND INSTALLATION
CVT SHIFT SELECTOR
Exploded ViewINFOID:0000000012431175
Removal and InstallationINFOID:0000000012431176
CAUTION:
Always apply the parking brake before pe rforming removal and installation.
REMOVAL
1. Move the shift selector to the “N” position.
2. Remove the shift selector handle. Refer to TM-232, "
Disassembly and Assembly".
3. Remove the center console. Refer to IP-18, "
Removal and Installation".
4. Disconnect the harness connectors from shift selector.
5. Move the shift selector to the “P” position.
6. Remove the key interlock cable from the shift selector assembly. Refer to TM-237, "
Exploded View".
7. Remove the control cable from the shift selector assembly. Refer to TM-234, "
Exploded View".
8. Remove the shift selector assembly.
INSTALLATION
Installation is in the reverse order of removal.
1. Shift selector handle 2. Lock pin3. Shift selector handle cover
4. Position indication panel 5. Shift selector assembly
ALDIA0263GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-232
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]
CVT SHIFT SELECTOR
• When connecting the control cable (1) to the shift selector assem-
bly (2), face the grooved surface of the rib (A) up and insert the
control cable until it stops.
Disassembly and AssemblyINFOID:0000000012431177
DISASSEMBLY
1. Slide the shift selector handle cover (1) down. CAUTION:
Do not damage the shift selector handle cover.
2. Pull out the lock pin (2).
3. Pull the shift selector handle (3) and shift selector handle cover upward to remove.
4. Remove the position lamp.
5. Disengage the hooks (A) (4 locations), and lift up the position indication panel (1) to separate it from the shift selector assem-
bly (2).
CAUTION:
Do not damage the shift selector assembly.
ASSEMBLY
Assembly is in the reverse order of disassembly.
• Follow the procedure below to install the shift selector handle.
1. Install the lock pin (2) onto the shift selector handle (3).
2. Install the shift selector handle cover (1) onto the shift selectorhandle.
3. Press the shift selector handle onto the shift selector until it clicks.
CAUTION:
• When pressing the shift selector handle onto the shift
selector, do not press the shift selector handle button.
• Do not strike the shift selector handle to install it.
InspectionINFOID:0000000012431178
INSPECTION AFTER INSTALLATION
JSDIA1624ZZ
JSDIA1796ZZ
ALDIA0264ZZ
JSDIA1796ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CVT SHIFT SELECTORTM-233
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Check CVT position. Refer to TM-133, "Inspection".
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-234
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]
CONTROL CABLE
CONTROL CABLE
Exploded ViewINFOID:0000000012431179
Removal and InstallationINFOID:0000000012431180
CAUTION:
Always apply the parking brake before performing removal
and installation.
REMOVAL
1. Remove the battery negative terminal. Refer to PG-70, "Exploded View".
2. Remove the TCM and bracket. Refer to TM-239, "
Removal and Installation".
3. Remove the IPDM E/R. Refer to PCS-30, "
Removal and Installation".
4. Remove the battery tray and bracket.
5. Remove instrument lower panel LH. Refer to IP-24, "
Removal and Installation".
6. Remove the center console assembly. Refer to IP-18, "
Removal and Installation".
7. Remove the control cable from the shift selector assembly.
8. Disengage the pawls (B) of the grommet (A), and pull downward to remove.
9. Remove the control cable nut from the manual lever.
1. Bracket B 2. Lock plate3. Transaxle assembly
4. Bracket A 5. Control cable6. Shift selector assembly
A: Manual lever B: Grommet
JSDIA1921GB
JSDIA1809ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CONTROL CABLETM-235
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

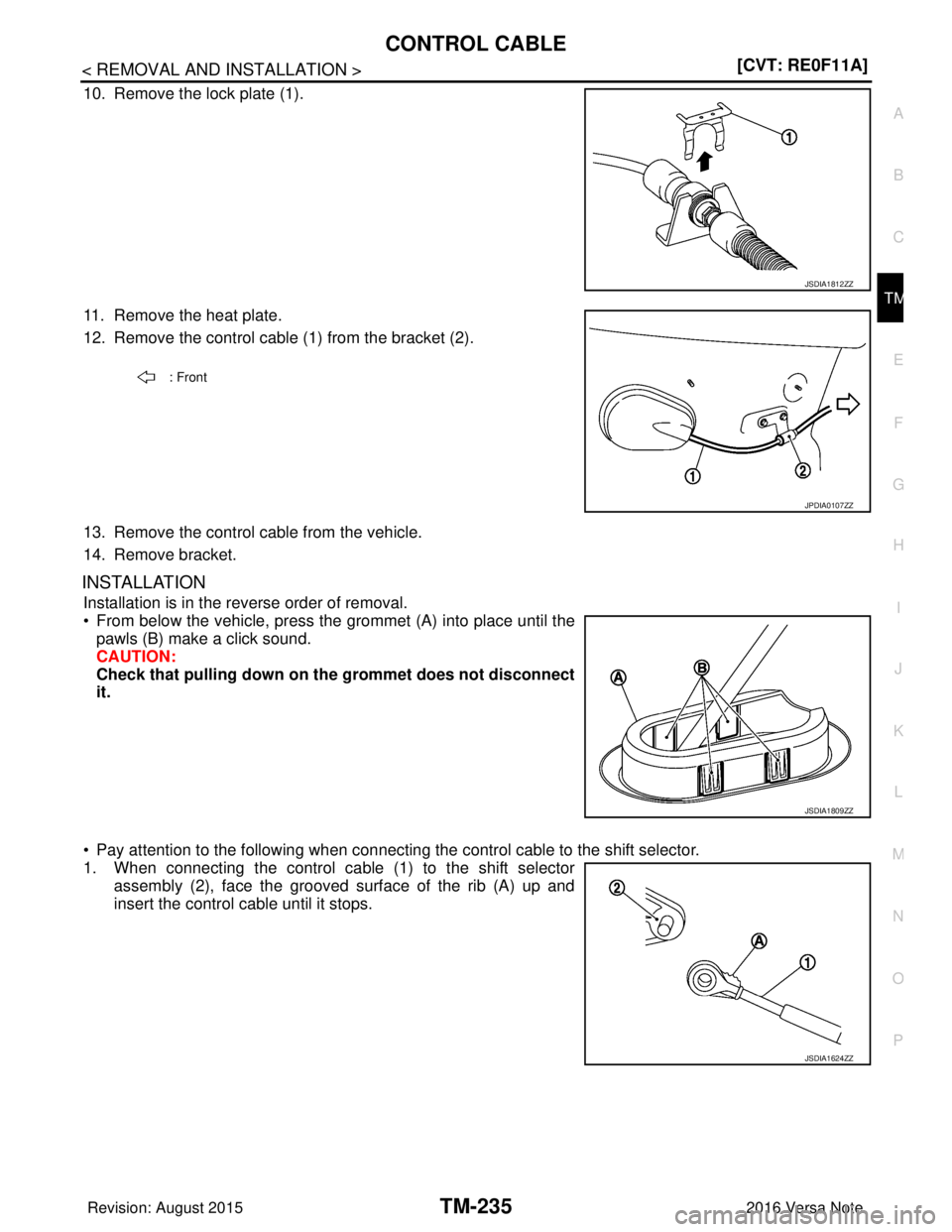

10. Remove the lock plate (1).
11. Remove the heat plate.
12. Remove the control cable (1) from the bracket (2).
13. Remove the control cable from the vehicle.
14. Remove bracket.
INSTALLATION
Installation is in the reverse order of removal.
• From below the vehicle, press the grommet (A) into place until the pawls (B) make a click sound.
CAUTION:
Check that pulling down on the grommet does not disconnect
it.
• Pay attention to the following when connecting the control cable to the shift selector.
1. When connecting the control cable (1) to the shift selector assembly (2), face the grooved surface of the rib (A) up and
insert the control cable until it stops.
JSDIA1812ZZ
: Front
JPDIA0107ZZ
JSDIA1809ZZ
JSDIA1624ZZ
Revision: August 2015 2016 Versa Note
