2016 MAZDA MODEL CX-9 Owners Manual (in English)

3–15
Before Driving
Doors and Locks



y It may require a few seconds for the
doors to unlock after the request switch
is pressed.



y A beep sound is heard for con¿ rmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
  The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-11 .

 Use the following procedure to change
the setting.

1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate lock
and the beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:



y Switching the ignition to ACC or
ON.



y Closing the driver's door.



y Opening the liftgate.



y Not operating the key for 10
seconds.



y Pressing any button except the
LOCK button on the key.



y Pressing a request switch.






y (With theft-deterrent system)
 The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
  Refer to Theft-Deterrent System on page
3-48 .



y The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
  Refer to Personalization Features on
page 9-11 .
  (Auto-lock function)
 A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
À ash once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out of
the operational range before the doors
and the liftgate are completely closed
or another key is left in the vehicle, the
auto-lock function will not work. Always
make sure that all doors and the liftgate
are closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–16
Before Driving
Doors and Locks



y Auto re-lock function
 After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of the
following operations are not performed
within about 60 seconds. If your
vehicle has a theft-deterrent system,
the hazard warning lights will À ash for
con¿ rmation.

 The time required for the doors to lock
automatically can be changed.
  Refer to Personalization Features on
page 9-11 .



y Opening a door or the liftgate.



y Switching the ignition to any position
other than off.


Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).
Locking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when the lock side is
pressed. They unlock when the unlock side
is pressed.
Driver's door

Unlock
Lock

Front passenger's door

UnlockLock

To lock all the doors and the liftgate from
an open front door, press the lock side of
the door lock switch and then close the
door.
N O T E
When locking the doors this way, be
careful not to leave the key inside the
vehicle.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–17
Before Driving
Doors and Locks
Auto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.



y When the vehicle speed exceeds 20
km/h (12 mph), all doors and the liftgate
lock automatically.



y When the ignition is switched off,
all doors and the liftgate unlock
automatically.

These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the driver's door-
lock switch on the interior door panel.
N O T E
 y Function number 3 in the following
table is the factory setting for your
vehicle.



y There are only a total of six auto lock/
unlock settings available. Be sure to
press the unlock side of the driver's
door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly
pressed seven times, the procedure will
be cancelled. If this occurs, start the
procedure from the beginning.


Function
number Function *1
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3 (Factory
Setting) All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
4 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
5 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
6 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer. Refer
to Personalization Features on page 9-11 .


Settings can be changed using the
following procedure.

1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC

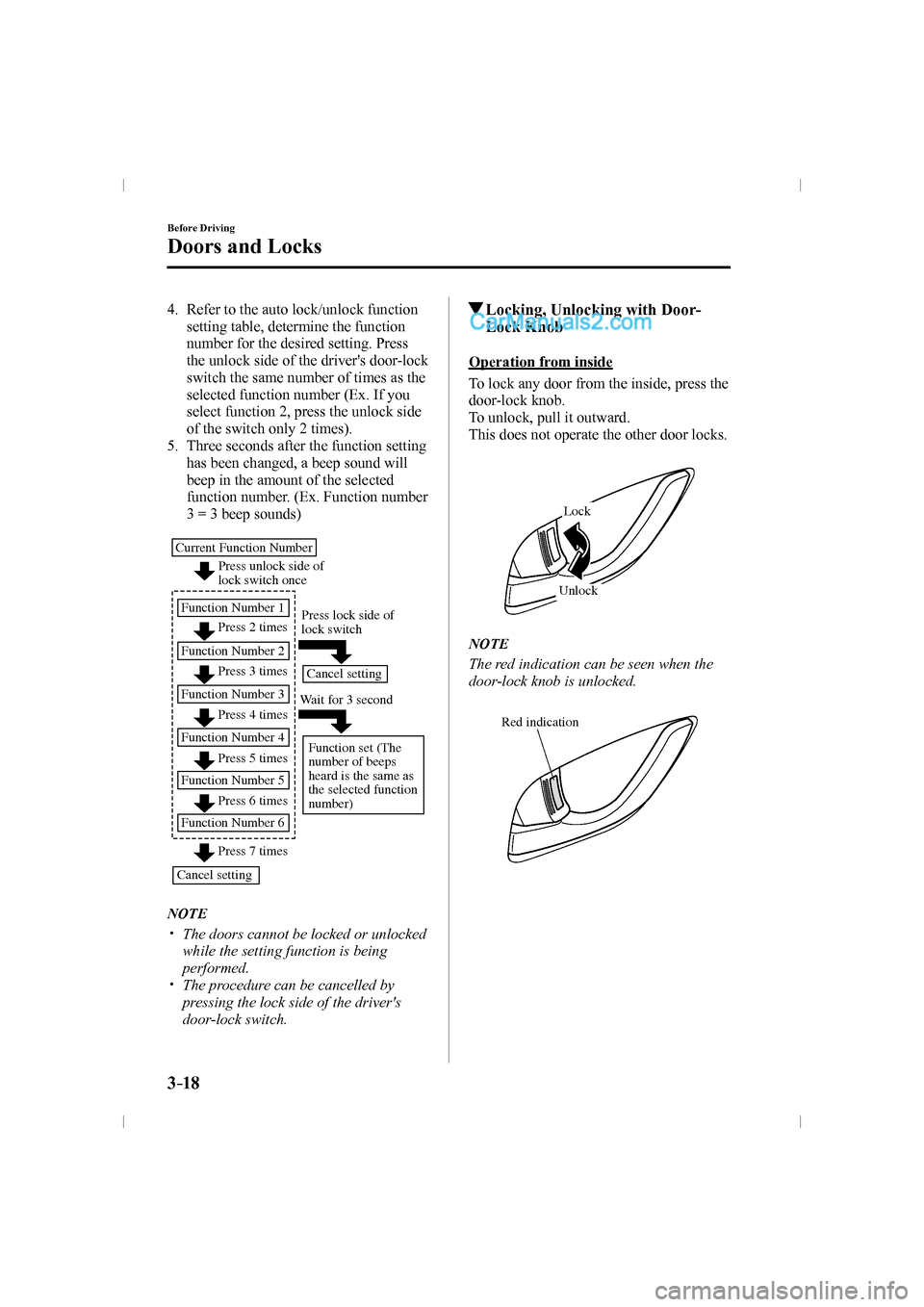

3–18
Before Driving
Doors and Locks
4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the driver's door-lock
switch the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function number
3 = 3 beep sounds)


Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second

N O T E



y The doors cannot be locked or unlocked
while the setting function is being
performed.



y The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.

Locking, Unlocking with Door-
Lock Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.


Lock
Unlock

N O T E
The red indication can be seen when the
door-lock knob is unlocked.


Red indication

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–19
Before Driving
Doors and Locks
Operation from outside
To lock any door with the door-lock knob
from the outside, press the door-lock
knob to the lock position and close the
door (holding the door handle in the open
position is not required).
This does not operate the other door locks.


Door-lock knob

N O T E
When locking the door this way, be careful
not to leave the key inside the vehicle.

Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.


LockUnlock

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–20
Before Driving
Doors and Locks
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden braking
or a collision.

Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate could cause occupants
to fall out in an accident.

Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may aff ect the side or rear fi eld of view.

CAUTION




¾ Before opening the liftgate, remove
any snow and ice accumulation on it.
Otherwise, the liftgate could close under
the weight of the snow and ice resulting
in injury.



¾ Be careful when opening/closing the
liftgate during strong winds. If a strong
gust blows against the liftgate, it could
close suddenly resulting in injury.



¾ Fully open the liftgate and make sure
that it stays open. If the liftgate is only
opened partially, it could slam shut
by vibration or wind gusts resulting in
injury.



¾ When loading or unloading luggage in
the luggage compartment, turn off the
engine. Otherwise, you could get burned
by the heat of the exhaust gas.



¾ Be careful not to apply excessive force
to the damper stay on the liftgate such
as by putting your hand on the stay.
Otherwise, the damper stay may bend
and aff ect the liftgate operation.

Damper stay
 ¾ Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer
if a liftgate damper stay is
deformed or damaged for reasons such
as a collision or if there is some other
problem.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–21
Before Driving
Doors and Locks
Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
and raise the liftgate when the latch
releases.

Electric liftgate
opener

N O T E
(With the advanced keyless function)


y A locked liftgate can also be opened
while the key is being carried.



y When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric liftgate
opener is pressed.



y The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, ¿ rst push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate .



y When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the liftgate
is not operated for a certain period of
time, the liftgate cannot be raised.
  To open
 Press the electric liftgate opener again.
 To close
 To close the liftgate from its slightly
raised position, open it ¿ rst by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.



y If the liftgate is not fully closed, the
driver is noti¿ ed by a warning indicated
in the instrument cluster.



y If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing
the emergency procedure.
  Refer to When Liftgate Cannot be
Opened on page 7-50 .

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–22
Before Driving
Doors and Locks
*Some models.
Closing the liftgate
Lower the liftgate slowly using the liftgate
handle, then push the liftgate closed using
both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.

Liftgate handle

Power Liftgate *
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the buttons on the keyless
entry system transmitter.
Refer to Transmitter on page 3-4 .
WARNING
Be sure to watch the power liftgate as it
opens or closes, and make sure that it
closes completely:
Opening or closing the power
liftgate while not watching it move
is dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely and,
if left unnoticed, could result in serious
injury or death if an occupant were to
fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating it.

Always confi rm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating
it using the power liftgate switch
or the button on the keyless entry
system is dangerous. A person could
become caught between the liftgate
and an obstruction while it is opening
electrically or between the liftgate and
vehicle while it is closing electrically,
resulting in an accident and serious
injury.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
