2016 MAZDA MODEL CX-9 Owners Manual (in English)

3–23
Before Driving
Doors and Locks
Never allow children to operate the
power liftgate system:
Allowing children to operate the power
liftgate switch and the keyless entry
system is dangerous. Children are not
aware of the dangers of people getting
fi ngers and hands caught in a moving
liftgate. If someone's neck, head or
hands get caught in a closing door, it
could result in death or serious injury.

CAUTION



¾ When closing the power liftgate,
make sure there are no foreign objects
around the striker. If foreign objects are
obstructing the striker, the liftgate may
not close properly.

Striker


¾ Do not install accessories to the power
liftgate other than specifi ed accessories.
Otherwise, it cannot be opened/closed
automatically and could result in a
malfunction.



¾ Be careful when switching the power
liftgate from electrical to manual
operation. The power liftgate may open/
close unexpectedly depending on its
position which could result in injury.

N O T E



y Do not apply unnecessary force to
the power liftgate when it is opening/
closing electrically. Unnecessary force
on the liftgate may cause it to reverse
direction of movement automatically.
Also, it could result in a malfunction.



y The power liftgate may not open/close
electrically if the vehicle is parked on
an incline, or there is strong wind, or
the liftgate is laden with snow.



y If a power liftgate system fuse has
blown, the liftgate cannot be opened
using the power liftgate switch or
the electric liftgate opener. Use the
emergency lever to open the liftgate.



y Fully close the power liftgate before
disconnecting the vehicle battery. If
the battery is disconnected with the
liftgate open, it cannot be opened or
closed automatically after the battery is
reconnected. If this happens, fully close
the liftgate manually to restore the auto
full open/close function.

y If the system detects weight such as that
caused by a snow-laden liftgate when
it is opened electrically, after the beep
activates three times, the liftgate stops
after reversing.


y If the power liftgate is snow-laden,
remove the snow before operating the
liftgate.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–24
Before Driving
Doors and Locks
Opening/Closing the power liftgate
If the vehicle has satis¿ ed all the following
operation conditions, the power liftgate
can be opened using the power function.
Operation conditions
(1) All doors and the liftgate are unlocked.
(2) The shift lever is in park (P) when the
ignition is switched ON.

N O T E
 y If condition (2) is not satis¿ ed while the
power liftgate is opening electrically,
the beep sound will be heard and
the liftgate will move in the reverse
direction automatically.



y If condition (2) is not satis¿ ed while the
power liftgate is closing electrically,
the beep sound will be heard and the
liftgate continues closing.



y When condition (2) is satis¿ ed, you
can resume power liftgate open/close
operation with the switches.


Operation using the transmitter
Press the power liftgate button for one
second or more. The hazard warning lights
À ash twice and the liftgate opens/closes
after the beep sounds.
Refer to Transmitter on page 3-4 .
N O T E

y When the ignition is switched ON, the
transmitter does not operate.


y When opening the liftgate by pressing
the power liftgate button on the
transmitter, the liftgate can be opened
even when it is locked.

Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or more while the liftgate is in
the fully closed/open position. The hazard
warning lights À ash twice and the liftgate
opens/closes fully after the beep sound is
heard.

Power liftgate
switch

Operation from outside (To close)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights À ash twice and the liftgate
closes automatically after the beep sound
is heard.

Power liftgate
close switch

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–25
Before Driving
Doors and Locks
N O T E
If the power liftgate switch/power liftgate
close switch/power liftgate button on
the transmitter is pressed or the electric
liftgate opener is operated while the
liftgate is opening/closing electrically, the
beep sound is heard and the liftgate stops.
Then, it reverses when any of the switches
(buttons) are pressed again.

Changing the power liftgate fully open
position
The power liftgate fully-open position can
be changed according to the height of a
garage.
When changing the position
1. Stop the liftgate at the desired position.
2. Press the power liftgate close switch
for about three seconds.
A beep sound is activated two times to
indicate that the position change has
been completed.

NOTE
Set the desired fully-open position of the
liftgate at the position where it is open
more than halfway. The position where it
is less than halfway open cannot be set.

T o r e s e t
1. Open the liftgate.
2. Press the power liftgate close switch
for about seven seconds.
A beep sound is activated three times
to indicated that the reset has been
completed.

Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's
path, the liftgate will move in the reverse
direction automatically and stops.
WARNING
Always check the area around the
power liftgate before opening/closing it:
Not checking for occupants and
objects around the power liftgate
before opening/closing it is dangerous.
The jam-safe equipment is designed
to prevent jamming in the event an
obstruction is in the liftgate's path. The
system may not detect certain objects
obstructing the liftgate depending
on the way they are positioned and
their shape. However, if the jam-safe
function detects an obstruction and
moves the liftgate in the reverse
direction, an occupant in the liftgate's
path could be seriously injured.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–26
Before Driving
Doors and Locks
CAUTION
Sensors are installed on both ends of
the power liftgate. Be careful not to
allow the sensors to be scratched or
damaged by sharp objects, otherwise
the liftgate may no longer open/close
automatically. In addition, if the sensor
is damaged while the liftgate is closing
automatically, the system will stop.

Sensor

N O T E
The jam-safe equipment does not activate
during easy closure operation when the
power liftgate is between the near-shut
position and fully closed position.

When the power liftgate is moving in the
open/close direction and an obstruction is
detected, the beep sound will be heard and
the liftgate moves in the reverse direction
and stops.
Liftgate easy closure
The Easy Closure system automatically
closes the liftgate completely from the
near-shut position.
This system also operates when the liftgate
is closed manually.
WARNING
When closing a liftgate, always keep
hands and fi ngers away from the
liftgate:
Placing hands or fi ngers around a
liftgate is dangerous because the
liftgate closes automatically from the
near-shut position, which could cause
hands and fi ngers to be pinched and
injured.

N O T E



y If the electric liftgate opener is pressed
while the easy closure function is
operating, the liftgate can be opened.
 y If the liftgate is opened/closed
repeatedly in a short period of time, the
easy closure function may not operate.
Wait for about 2 seconds and then try
again.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–27
Before Driving
Doors and Locks

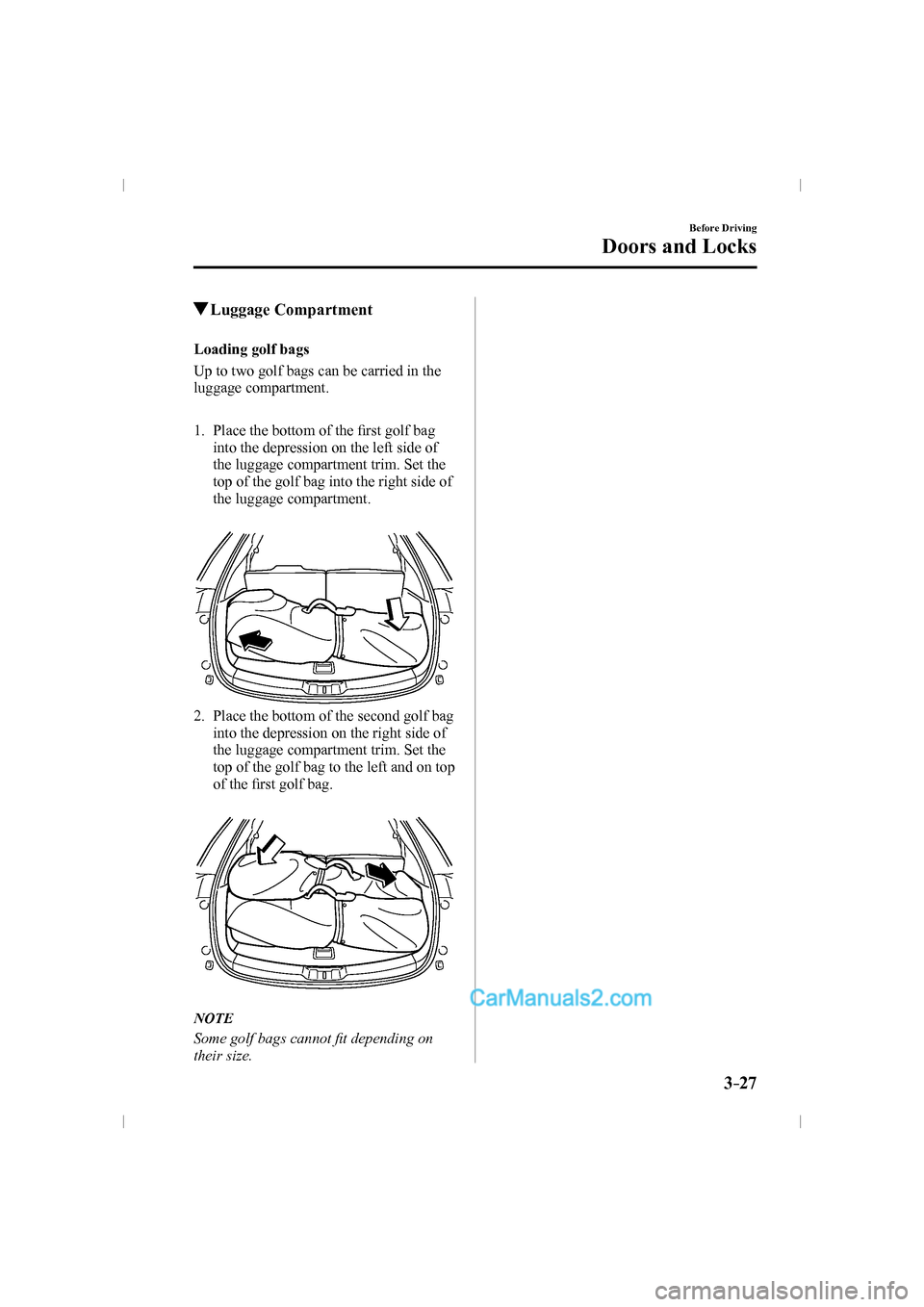

Luggage Compartment
Loading golf bags
Up to two golf bags can be carried in the
luggage compartment.


1. Place the bottom of the ¿ rst golf bag
into the depression on the left side of
the luggage compartment trim. Set the
top of the golf bag into the right side of
the luggage compartment.



2. Place the bottom of the second golf bag
into the depression on the right side of
the luggage compartment trim. Set the
top of the golf bag to the left and on top
of the ¿ rst golf bag.



N O T E
Some golf bags cannot ¿ t depending on
their size.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–28
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.

This vehicle will perform best with fuel listed in the table.

Fuel Octane Rating * (Anti-knock index)
Regular unleaded fuel
87 [(R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.

Fuel with a rating lower than 87 octane (91 RON) will negatively affect the emission control
system performance and could also cause engine knocking and serious engine damage.
CAUTION



¾ USE ONLY UNLEADED FUEL.
 Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.



¾ This vehicle can only use oxygenated fuels containing no more than 10 % ethanol by
volume. Damage to the vehicle may occur when ethanol exceeds this recommendation, or
if the gasoline contains any methanol. Stop using gasohol of any kind if your vehicle engine
is performing poorly.



¾ Never add fuel system additives, otherwise the emission control system could be damaged.
Consult an Authorized Mazda Dealer for details.

Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".

Vehicle damage and drivability problems resulting from the use of the following may not be
covered by the warranty.



y Gasohol containing more than 10 % ethanol.



y Gasoline or gasohol containing methanol.



y Leaded fuel or leaded gasohol.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–29
Before Driving
Fuel and Emission
Emission Control System
This vehicle is equipped with an emission control system (the catalytic converter is
part of this system) that enables the vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything fl ammable:
Parking over or near anything fl ammable, such as dry grass, is dangerous. Even with the
engine turned off , the exhaust system remains very hot after normal use and could ignite
anything fl ammable. A resulting fi re could cause serious injury or death.

CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.



¾ USE ONLY UNLEADED FUEL.



¾ Do not drive your Mazda with any sign of engine malfunction.



¾ Do not coast with the ignition switched off .



¾ Do not descend steep grades in gear with the ignition switched off .



¾ Do not operate the engine at high idle for more than 2 minutes.



¾ Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualifi ed technician.



¾ Do not push-start or pull-start your vehicle.
N O T E




y Under U.S. federal law, any modi¿ cation to the original-equipment emission control
system before the ¿ rst sale and registration of a vehicle is subject to penalties. In some
states, such modi¿ cation made on a used vehicle is also subject to penalties.




y While the engine is off, the sound of a valve opening and closing can be heard at the rear
of the vehicle, however this does not indicate an abnormality. The vehicle has a self-
checking device and it operates while the engine is off.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–30
Before Driving
Fuel and Emission
Engine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness and
death. If you smell exhaust gas inside the vehicle, keep all windows fully open and contact
an Authorized Mazda Dealer immediately.

Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur.

Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When the vehicle is stopped with the windows closed and
the engine running for a long time even in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even death
could occur.

Clear snow from underneath and around your vehicle, particularly the tail pipe, before
starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, it could cause loss of consciousness or
even death to occupants in the cabin.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
