2016 MAZDA MODEL CX-9 Owners Manual (in English)

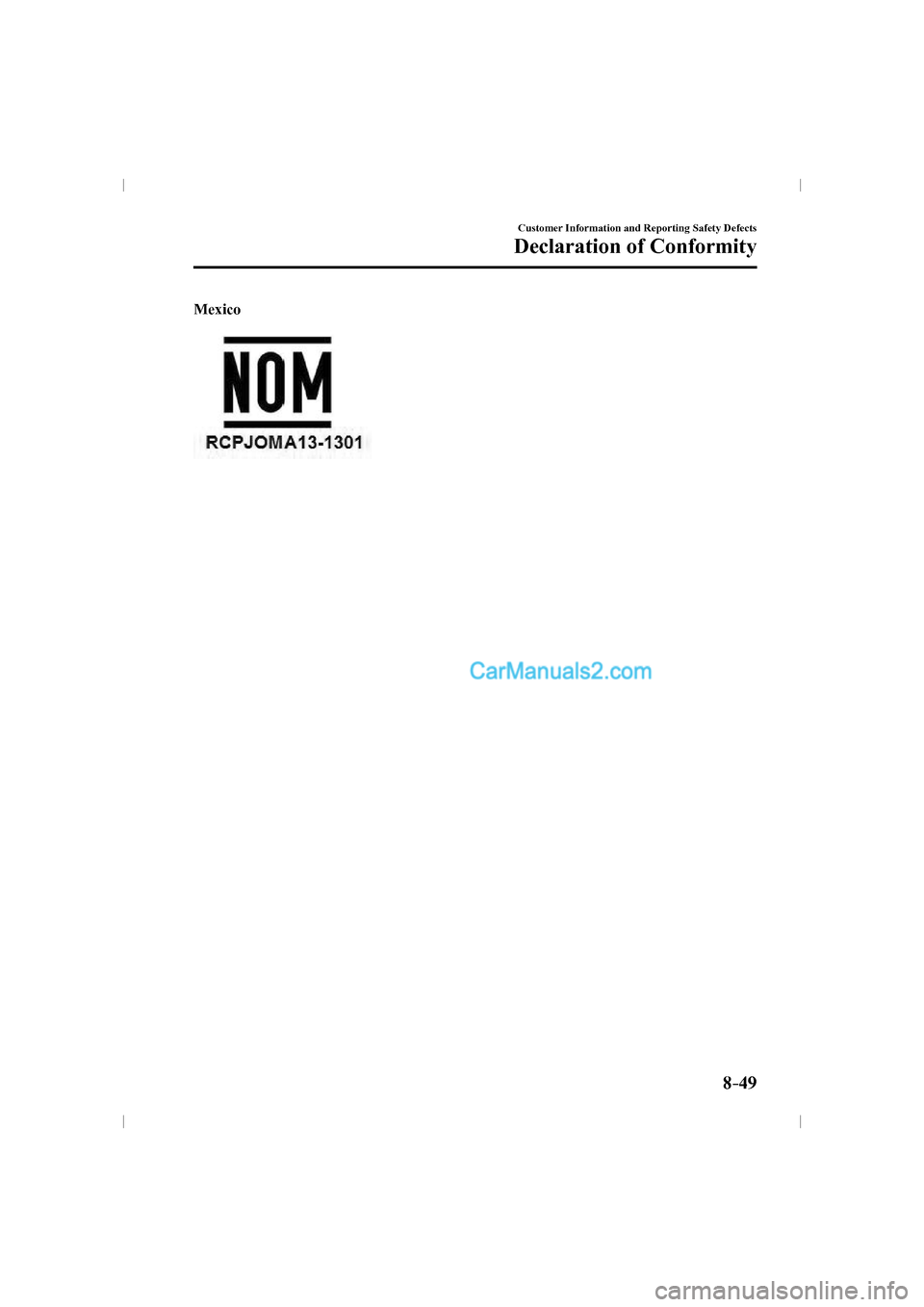

8–49
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










8–50
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mazda Radar Cruise Control (MRCC)/Distance Recognition Support System
(DRSS)/Smart Brake Support (SBS)


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–1

9Speci¿ cations
Technical information about your Mazda.



Identi¿ cation Numbers ...................................................................... 9-2
Vehicle Information Labels ........................................................... 9-2

Speci¿ cations ...................................................................................... 9-4
Speci¿ cations ................................................................................ 9-4

Personalization Features ................................................................. 9-11
Personalization Features ............................................................. 9-11
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–2
Speci¿ cations
Identi¿ cation Numbers
Vehicle Information
Labels
Vehicle Identi¿ cation Number
The vehicle identi¿ cation number legally
identi¿ es your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.


Motor Vehicle Safety Standard
Label (U.S.A. and Canada)

Chassis Number
Open the cover shown in the ¿ gure to
check the chassis number.


Vehicle Emission Control
Information Label (U.S.A. and
Canada)

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–3
Speci¿ cations
Identi¿ cation Numbers
Tire Pressure Label

Engine Number

Forward

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–4
Speci¿ cations
Speci¿ cations
S p e c i¿ cations
Engine
Item Speci¿ cation
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 10.5

Electrical System
Item Classi¿ cation
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1 PY8V-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for
details.


CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on
the iridium alloy and platinum tips could be damaged.

Lubricant Quality
Lubricant Classi¿ cation
Engine oil Refer to Recommended Oil on page 6-26 .
Coolant FL-22 type
Automatic transaxle À uid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake À uid SAE J1703 or FMVSS116 DOT-3

N O T E
Refer to Introduction on (page 6-2 ) for owner's responsibility in protecting your
investment.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–5
Speci¿ cations
Speci¿ cations
Capacities

(Approximate Quantities)
Item Capacity
Engine oil With oil ¿ lter replacement 4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil ¿ lter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant U.S.A. and Canada 9.9 L (10.5 US qt, 8.7 Imp qt)
Mexico 9.8 L (10.4 US qt, 8.6 Imp qt)
Automatic transaxle À uid 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Fuel tank 2WD 72.0 L (19.0 US gal, 15.8 Imp gal)
AWD 74.0 L (19.5 US gal, 16.3 Imp gal)
Check oil and À uid levels with dipsticks or reservoir gauges.

Dimensions
U.S.A. and Canada
Item Vehicle speci¿ cation
Overall length 5,075 mm (199.8 in)
Overall width 1,969 mm (77.5 in)
Overall height 1,752 mm (69.0 in)
Front tread 1,663 mm (65.5 in)
Rear tread 1,663 mm (65.5 in)
Wheelbase 2,930 mm (115.4 in)

Mexico
Item Vehicle speci¿ cation
Overall length 5,075 mm (199.8 in)
Overall width 1,969 mm (77.5 in)
Overall height 1,747 mm (68.8 in)
Front tread 1,663 mm (65.5 in)
Rear tread 1,663 mm (65.5 in)
Wheelbase 2,930 mm (115.4 in)

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–6
Speci¿ cations
Speci¿ cations


Weights
U.S.A. and Canada
Item Weight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,568 kg (5,661 lbs) 2,638 kg (5,816 lbs)
GAWR (Gross Axle Weight Rating) Front 1,217 kg (2,683 lbs) 1,241 kg (2,736 lbs)
Rear 1,386 kg (3,056 lbs) 1,433 kg (3,159 lbs)

Mexico
Item Weight
2WD AWD
GVW (Gross Vehicle Weight) Total 2,490 kg (5,489 lbs) 2,555 kg (5,633 lbs)
Front 1,175 kg (2,590 lbs) 1,195 kg (2,634 lbs)
Rear 1,315 kg (2,899 lbs) 1,360 kg (2,998 lbs)
GAW (Permissible axle load) Front 1,210 kg (2,668 lbs) 1,215 kg (2,679 lbs)
Rear 1,365 kg (3,009 lbs) 1,415 kg (3,120 lbs)


Air Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page 5-2 .
Item Classi¿ cation
Refrigerant Type HFC134a (R-134a)

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
