Maintenance and Care
Scheduled Maintenance
Schedule 1
U.S.A. and Puerto Rico residents - Engine oil À exible maintenance interval
Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-19 )
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 12 24 36 48 60 72 84 96
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Drive belts I I
Engine oil & ¿ lter
*1 Replace when wrench indicator light is ON. (Max interval: 12
months or 12,000 km (7,500 miles))
COOLING SYSTEM
Engine coolant
*2 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air ¿ lter Replace when any equivalent timing of replacing engine oil.
(Max interval: 36 months or 60,000 km (37,500 miles))
Fuel lines and hoses
*3 I I I I
Hoses and tubes for emission
*3 I I
IGNITION SYSTEM
Spark plugs Replace every 64,000 km (40,000 miles).
CHASSIS and BODY
Brake lines, hoses and connections I I I I
Disc brakes I I I I I I I I
Tire (Rotation)
*4 Rotate when any equivalent timing of replacing engine oil.
(Max interval: 12,000 km (7,500 miles))
Steering operation and linkages I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I I
Bolts and nuts on chassis and body T T T T
Exhaust system and heat shields I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter Replace when any equivalent timing of replacing engine oil.
(Max interval: 24 months or 48,000 km (30,000 miles))
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–6
Maintenance and Care
Scheduled Maintenance
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
T : Tighten
Remarks:
*1 The engine oil and ¿ lter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and ¿ lter change. The system must be reset whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–7
Maintenance and Care
Scheduled Maintenance
Schedule 2
U.S.A. and Puerto Rico residents - Severe driving conditions maintenance interval
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I I
Engine oil & ¿ lter Flexible
*1 Replace when wrench indicator light is ON. (Max interval: 12
months or 12,000 km (7,500 miles))
Fixed
*2 R R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*3 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter
*4 Replace when any equivalent timing of replacing engine oil.
(Max interval: 36 months or 60,000 km (37,500 miles))
Fuel lines and hoses
*5
I I I
Hoses and tubes for emission
*5
I
IGNITION SYSTEM
Spark plugs Replace every 64,000 km (40,000 miles).
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–8
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I I I I I I I I I
Disc brakes I I I I I I
Tire (Rotation)
*6 Rotate when any equivalent timing of replacing engine oil.
(Max interval: 8,000 km (5,000 miles))
Tire inÀ ation pressure and tire wear
*6
I I I I I I I I I I I I
Steering operation and linkages I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*7
Transfer oil *7
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
A l l l o c k s a n d h i n g e s L L L L L L L L L L L L
Wa s h e r À uid level I I I I I I I I I I I I
Emergency À at tire repair kit (if installed)
*8
Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Engine oil À exible maintenance is available for U.S.A. and Puerto Rico residents whose vehicle is operated
mainly where none of the following conditions apply.
y Extended periods of idling or low-speed operation such as police car, taxi or driving school car
y Driving in dusty conditions If any do apply, follow ¿ xed maintenance.
The engine oil and ¿ lter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and ¿ lter change. The system must be reset whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Reset the engine oil data after replacing the engine oil.
*3 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–9
Maintenance and Care
Scheduled Maintenance

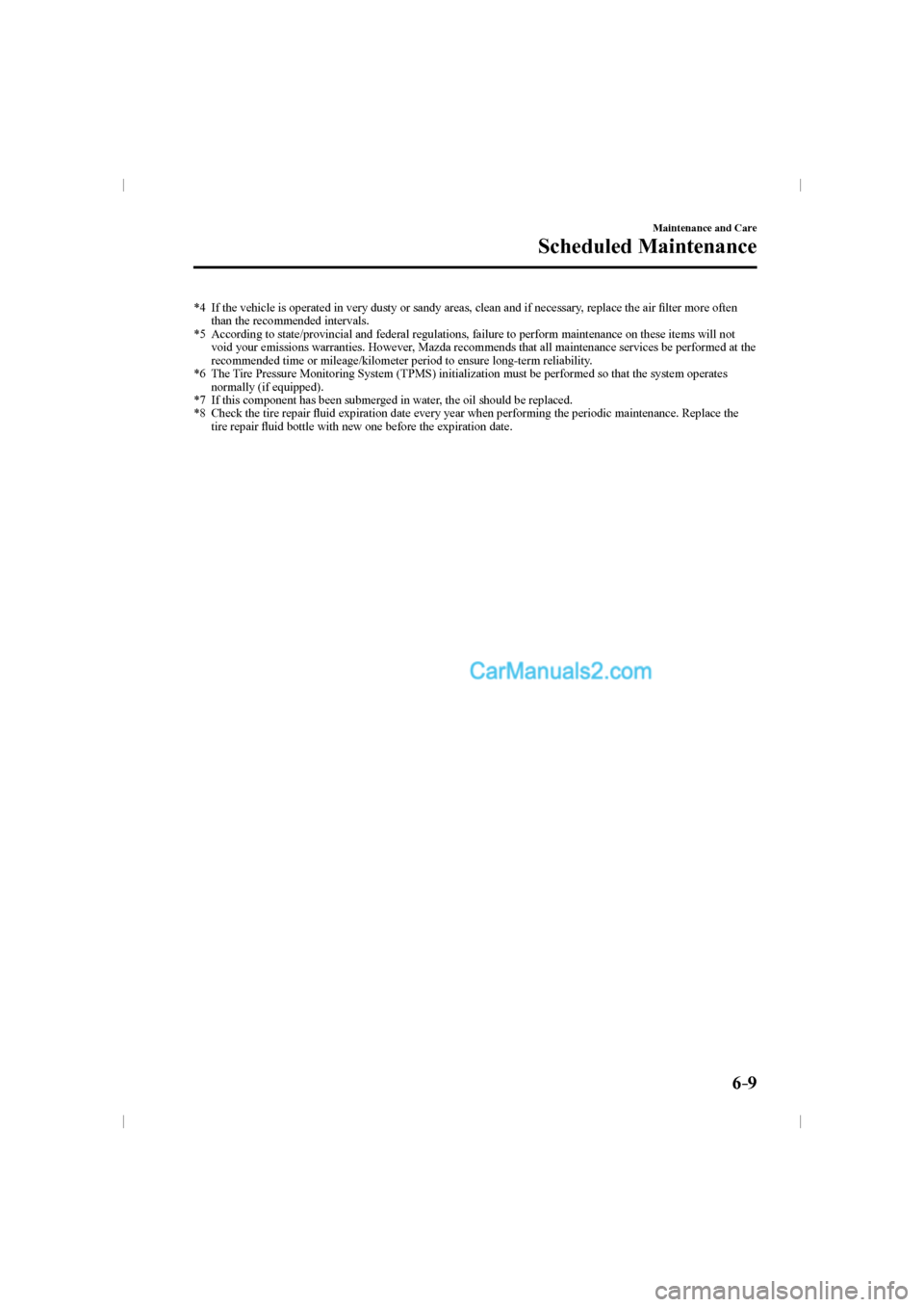

*4 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*5 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*6 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*7 If this component has been submerged in water, the oil should be replaced.
*8 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.




$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–10
Maintenance and Care
Scheduled Maintenance
Canada residents
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 8
16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5
10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I I
Engine oil & ¿ lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*2 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I
I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter I
I I I I I I I I I I I
Replace every 56,000 km (35,000 miles) or 3 years.
Fuel lines and hoses
*3 I I I
Hoses and tubes for emission
*3 I
IGNITION SYSTEM
Spark plugs Replace every 64,000 km (40,000 miles).
ELECTRICAL SYSTEM
Function of all lights I
I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I
I I I I I I I I I I I
Disc brakes Inspect every 24,000 km (15,000 miles) or 1 years.
Tire (Rotation)
*4 Rotate every 8,000 km (5,000 miles).
Tire inÀ ation pressure and tire wear *4 I
I I I I I I I I I I I
Steering operation and linkages I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hinges L
L L L L L L L L L L L
Wa s h e r À uid level I
I I I I I I I I I I I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–11
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 8
16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5
10 15 20 25 30 35 40 45 50 55 60
AIR CONDITIONER SYSTEM
Cabin air ¿ lter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Reset the engine oil data after replacing the engine oil.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–12
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (Mexico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply.



y Repeated short-distance driving



y Driving in dusty conditions



y Driving with extended use of brakes



y Driving in areas where salt or other corrosive materials are used



y Driving on rough or muddy roads



y Extended periods of idling or low-speed operation



y Driving for long periods in cold temperatures or extremely humid climates



y Driving in extremely hot conditions



y Driving in mountainous conditions continually
If any do apply, follow Schedule 2.
N O T E
For maintenance guidelines beyond the kilometers/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
