2016 MAZDA MODEL CX-9 Owners Manual (in English)

3–47
Before Driving
Security System
N O T E



y The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.



y Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.



y If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
  Starting the vehicle with a key that has
not been reset is not possible.

Operation
N O T E



y The engine may not start and security
indicator light may illuminate or À ash
if the key is placed in an area where it
is dif¿ cult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.



y Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.

Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster À ashes every 2 seconds
until the system is disarmed.



Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
À ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
N O T E



y If the security indicator light À ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is À ashing, you will
not be able to restart it.



y Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–48
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and À ashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights À ash for about 30
seconds when the system is triggered by
any one of the following:



y Unlocking a door with the key, door
lock switch, or an inside door-lock knob.



y Forcing open a door, the hood or the
liftgate.



y Opening the hood by operating the hood
release handle.



y Switching the ignition ON without using
the push button start.

If the system is triggered again, the lights
and horn will activate until the driver's
door or the liftgate is unlocked with the
transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
N O T E



y The liftgate does not open while the
theft-deterrent system is operating.



y For vehicles equipped with the power
liftgate, the liftgate can be opened
even while the theft-deterrent system is
operating by pressing the power liftgate
button on the transmitter or the electric
liftgate opener switch while carrying
the key.



y If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will À ash when the battery is charged or
replaced.

How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument panel À ashes twice per
second for 20 seconds.


5. After 20 seconds, the system is fully
armed.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC

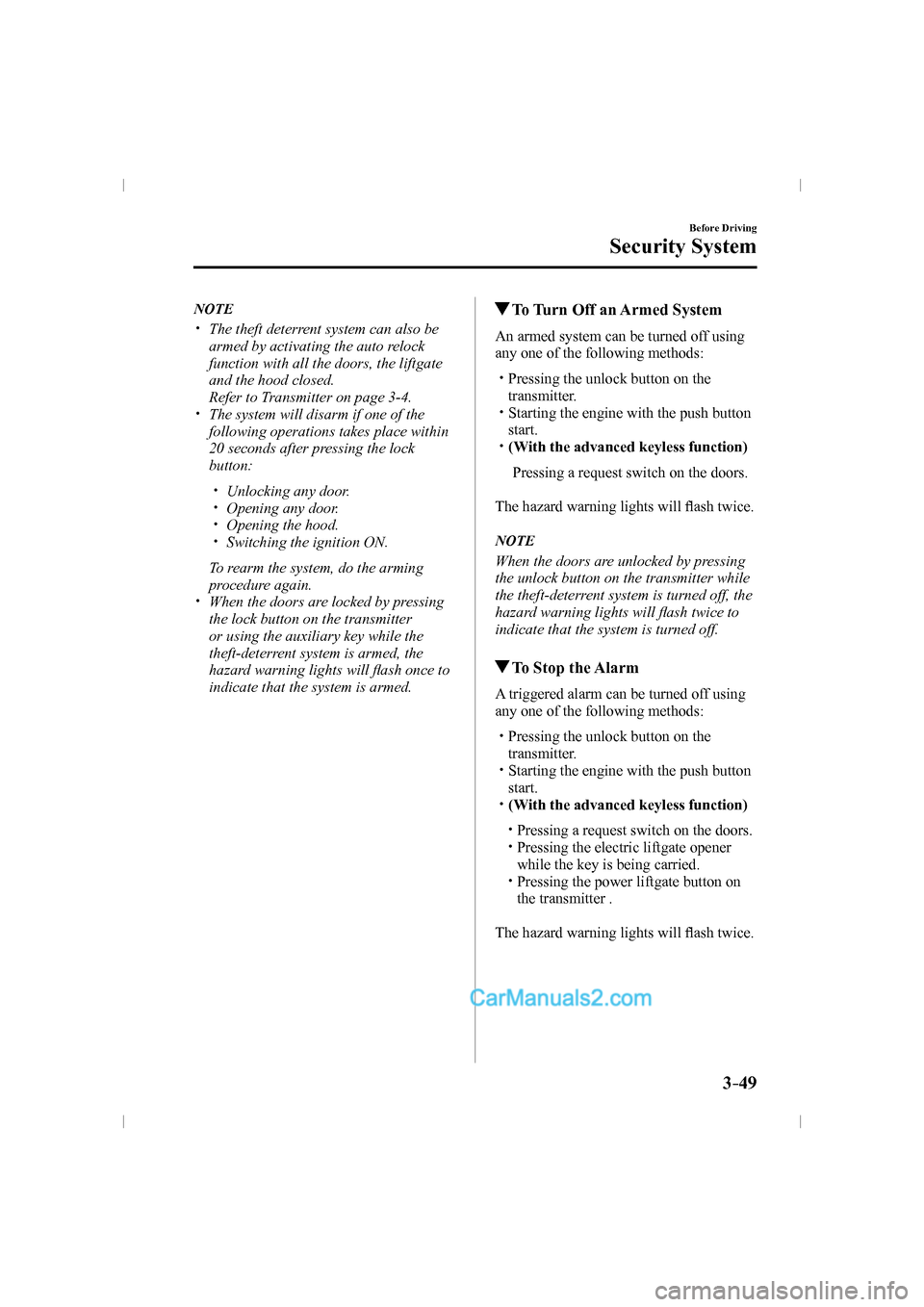

3–49
Before Driving
Security System
N O T E



y The theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate
and the hood closed.
  Refer to Transmitter on page 3-4 .



y The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:



y Unlocking any door.
y Opening any door.



y Opening the hood.



y Switching the ignition ON.







 To rearm the system, do the arming
procedure again.



y When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will À ash once to
indicate that the system is armed.

To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:



y Pressing the unlock button on the
transmitter.



y Starting the engine with the push button
start.



y (With the advanced keyless function)
Pressing a request switch on the doors.

The hazard warning lights will À ash twice.
N O T E
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will À ash twice to
indicate that the system is turned off.

To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:



y Pressing the unlock button on the
transmitter.



y Starting the engine with the push button
start.



y (With the advanced keyless function)


y
 Pressing a request switch on the doors.


y
 Pressing the electric liftgate opener
while the key is being carried.
y Pressing the power liftgate button on
the transmitter .


The hazard warning lights will À ash twice.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–50
Before Driving
Driving Tips
Break-In Period
No special break-in is necessary, but a
few precautions in the ¿ rst 1,000 km
(600 miles) may add to the performance,
economy, and life of the vehicle.



y Do not race the engine.



y Do not maintain one constant speed,
either slow or fast, for a long period of
time.



y Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.



y Avoid unnecessary hard stops.



y Avoid full-throttle starts.



y Do not tow a trailer.
Saving Fuel and
Protection
of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO2.



y Avoid long warm-ups. Once the engine
runs smoothly, begin driving.



y Avoid fast starts.



y Drive at lower speeds.



y Anticipate when to apply the brakes
(avoid sudden braking).



y Follow the maintenance schedule
(page 6-4 ) and have an Authorized
Mazda Dealer perform inspections and
servicing.



y Use the air conditioner only when
necessary.



y Slow down on rough roads.



y Keep the tires properly inÀ ated.



y Do not carry unnecessary weight.



y Do not rest your foot on the brake pedal
while driving.



y Keep the wheels in correct alignment.



y Keep windows closed at high speeds.



y Slow down when driving in crosswinds
and headwinds.

WARNING
Never stop the engine when going down
a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–51
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.

Avoid sharp turns, excessive speed and
abrupt maneuvers when driving this
vehicle:
Sharp turns, excessive speed and
abrupt maneuvering of this vehicle
are dangerous as it could result in the
increased risk of loss of vehicle control,
vehicle roll-over, personal injury or
death.
This vehicle has a higher center of
gravity. Vehicles with a higher center of
gravity such as utility vehicles handle
diff erently than vehicles with a lower
center of gravity.
Utility vehicles are not designed for
cornering at high speeds any more
than low profi le sports cars are
designed to perform satisfactorily
under off -road conditions.
In addition, utility vehicles have a
signifi cantly higher rollover rate than
other types of vehicles.
In a rollover crash, an unbelted person
is signifi cantly more likely to die than a
person wearing a seat belt.

When driving on ice or in water, snow,
mud, sand, or similar hazards:



y Be cautious and allow extra distance for
braking.



y Avoid sudden braking and sudden
maneuvering.



y Do not pump the brakes. Continue to
press down on the brake pedal.
  Refer to Antilock Brake System (ABS)
on page 4-73 .



y If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.



y For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.

N O T E
Use snow chains only on the front wheels.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–52
Before Driving
Driving Tips
Floor Mat
We recommend the use of Genuine
Mazda À oor mats.
WARNING
Make sure the fl oor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a fl oor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.

Do not install two fl oor mats, one on top
of the other, on the driver's side:
Installing two fl oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one fl oor mat from sliding
forward.
If using an all weather mat for winter
use always remove the original fl oor
mat.
Loose fl oor mat(s) will interfere with
the foot pedal and could result in an
accident.


When setting a À oor mat, position the À oor
mat so that its grommets are inserted over
the pointed end of the retention posts.
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.

CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.

If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from D to R.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–53
Before Driving
Driving Tips
Winter Driving
Carry emergency gear, including tire
chains, window scraper, À ares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:



y Have the proper ratio of antifreeze in the
radiator.
  Refer to Engine Coolant on page
6-29 .



y Inspect the battery and its cables. Cold
reduces battery capacity.



y Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-26 ).




y Inspect the ignition system for damage
and loose connections.



y Use washer À uid made with antifreeze—
but do not use engine coolant antifreeze
for washer À uid (page 6-31 ).

N O T E




y Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.



y Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.



y Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.



y Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.

Snow Tires
Use snow tires on all four wheels
Do not go faster than 120 km/h (75 mph)
while driving with snow tires. InÀ ate snow
tires 30 kPa (0.3 kgf/cm
2 , 4.3 psi) more
than recommended on the tire pressure
label (driver's door frame), but never
more than the maximum cold-tire pressure
shown on the tires.

The vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates you
may ¿ nd it necessary to replace them with
snow tires during the winter months to
further improve traction on snow and ice
covered roads.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels:
Using tires diff erent in size or type is
dangerous. Your vehicle's handling
could be greatly aff ected and result in
an accident.

CAUTION
Check local regulations before using
studded tires.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










3–54
Before Driving
Driving Tips
Tire Chains
Check local regulations before using tire
chains.
CAUTION



¾ Chains may aff ect handling.



¾ Do not go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is lower.



¾ Drive carefully and avoid bumps, holes,
and sharp turns.



¾ Avoid locked-wheel braking.



¾ Do not use chains on a temporary spare
tire; it may result in damage to the
vehicle and to the tire.



¾ Do not use chains on roads that are free
of snow or ice. The tires and chains could
be damaged.



¾ Chains may scratch or chip aluminum
wheels.

N O T E

y If your vehicle is equipped with the tire
pressure monitoring system, the system
may not function correctly when using
tire chains.


y Use of tire chains on a vehicle equipped
with P255/50R20 speci¿ cation tires
could cause interference with the
vehicle body and scratching. If tire
chains are to be used, replace both front
and rear tires with P255/60R18 tires.
Please consult an Authorized Mazda
Dealer.

Install the chains on the front tires only.
Do not use chains on the rear tires.
Please consult an Authorized Mazda
Dealer.
Installing the chains
1. Secure the chains on the front tires as
tightly as possible.
Always follow the chain manufacturer's
instructions.
2. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile).

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
