2016 MAZDA MODEL CX-9 Owners Manual (in English)

4–29
When Driving
Instrument Cluster and Display
*Some models.
Active Driving Display *

Optical receiver
Dust-proof sheet

WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.

CAUTION



¾ Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage.



¾ Do not place objects above the active driving display or apply stickers to the dust-proof
sheet/optical receiver as they will cause interference.



¾ A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display diffi cult to view.




¾ Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
N O T E

y It may be dif¿ cult to view the display when wearing polarized sunglasses. Take off your
polarized sunglasses or adjust the luminosity.



y If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.



y The display may be dif¿ cult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.



y If the audio system is removed, the active driving display cannot be operated.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–30
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:  y Blind Spot Monitoring (BSM) Operation Conditions and Warnings
 Refer to Blind Spot Monitoring (BSM) on page 4-92 .



y Distance Recognition Support System (DRSS) Operation Conditions and Warnings
 Refer to Distance Recognition Support System (DRSS) on page 4-98 .



y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-106 .



y Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation
Conditions and Warnings
  Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-117 .




y Smart City Brake Support (SCBS) Warnings
 Refer to Smart City Brake Support (SCBS) on page 4-129 .



y Smart Brake Support (SBS) Operation Conditions and Warnings
 Refer to Smart Brake Support (SBS) on page 4-134 .



y Cruise Control Operation Conditions
 Refer to Cruise Control on page 4-147 .



y Navigation Guidance (vehicles with navigation system)



y Speed limit indicator (vehicles with navigation system)



y Tachometer

y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the center display.
1. Select the icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.


y
 Method for adjusting screen brightness (automatically/manually)


y
 Screen brightness initial settings (automatic adjustment is selected)


y
 Screen brightness adjustment (manual adjustment is selected)


y
 Display position of active driving display (display height)y Active driving display angle adjustment (display angle correction)
y
 Turn by turn (TBT) display/non-display (navigation guidance)

y Street name display timing can be changed (navigation guidance)

y Tachometer display/non-display


y
 Active driving display ON/OFF (indication)


y
 Reset settings (reset)
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–31
When Driving
Instrument Cluster and Display
N O T E
The desired driving position (display position, brightness level, display information) can be
called up after programming the position.
Refer to Driving Position Memory on page 2-8 .

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–32
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and speci¿ cations.

Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas Instrument Cluster
Type A
(With Multi-information Display)
(Without Multi-information Display) Type B

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–33
When Driving
Instrument Cluster and Display
*Some models.
Warning Indication/Warning Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Warning Page

Brake System Warning Indication/Warning Light *1*2 7-30

ABS Warning Light *1 Electronic
Brake Force
Distribution
System Warning
7-30 ,
ABS warning
7-33

Charging System Warning Indication/Warning Light *1 7-30

Engine Oil Warning Light *1 7-30


(Red) * High Engine Coolant Temperature Warning Indication/Warning Light *1 7-30

Power Steering Malfunction Indication/Malfunction Indicator Light *1 7-30

* Master Warning Indication/Warning Light *1 7-33

Electric Parking Brake Warning Indication/Warning Light 7-33

* Engine Oil Level Warning Indication 7-33

Check Engine Light *1 7-33

Automatic Transaxle Warning Indication/Warning Light *1 7-33

* AWD Warning Indication/Warning Light *1 7-33

Air Bag/Front Seat Belt Pretensioner System Warning Light *1 7-33
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–34
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page

* Tire Pressure Monitoring System Warning Light *1 Flashing
7-33 ,
Illuminate
7-38


(Amber) * KEY Warning Indication 7-33


(Red) * KEY Warning Light *1 Malfunction
7-33 ,
Except
malfunction
7-38

(Amber)
* High Beam Control System (HBC) Warning Indication/Warning Light *1 7-33

* Blind Spot Monitoring (BSM) Warning Indication/Warning Light *1 7-33


(Amber) * Mazda Radar Cruise Control (MRCC) Warning Indication 7-33


(Amber) * Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Indication 7-33

LED Headlight Warning Light 7-33

(Amber)
* Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning
Indication 7-38

Low Fuel Warning Indication/Warning Light 7-38

* Check Fuel Cap Warning Indication/Warning Light *1 7-38

Seat Belt Warning Light 7-38

Engine Oil Level Warning Light 7-38
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC

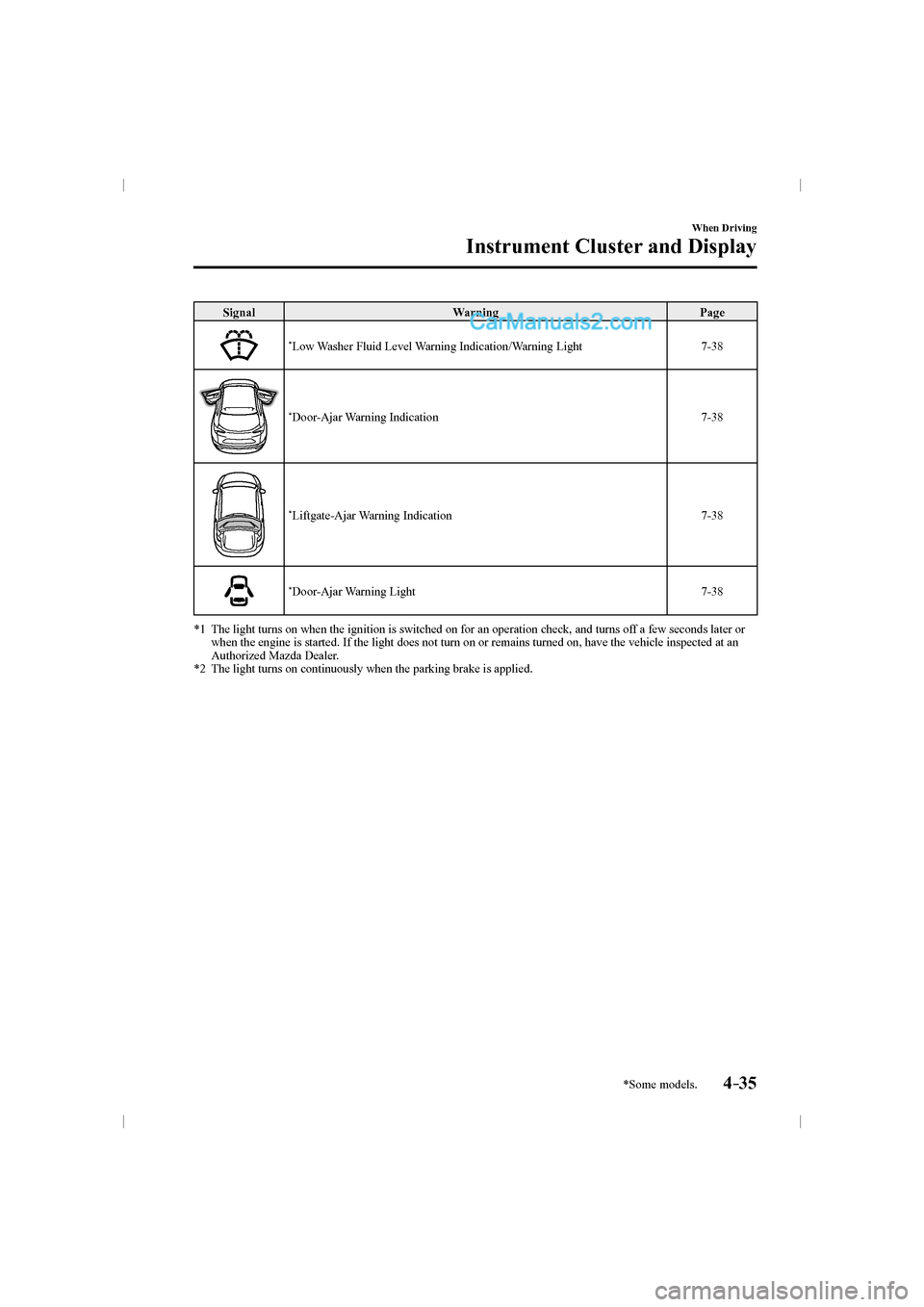

4–35
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page

* Low Washer Fluid Level Warning Indication/Warning Light 7-38


* Door-Ajar Warning Indication 7-38


* Liftgate-Ajar Warning Indication 7-38

* Door-Ajar Warning Light 7-38
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










4–36
When Driving
Instrument Cluster and Display
*Some models.
Indication/Indicator Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Indicator Page

Front Passenger Air Bag Deactivation Indicator Light *1 2-65


(White/Green) KEY Indication/Indicator Light 4-5

Security Indicator Light *1 3-47

Wrench Indication/Indicator Light *1 4-38


(Blue) * Low Engine Coolant Temperature Indicator Light 4-38

Shift Position Indication 4-42

Lights-On Indication/Indicator Light 4-49

Headlight High-Beam Indicator Light Headlight High-Low
Beam
4-53 ,
Flashing the Headlights
4-53

Turn Signal/Hazard Warning Indicator Lights Turn and Lane-Change
Signals
4-55 ,
Hazard Warning Flasher
4-62

Brake Pedal Operation demand Indicator Light 4-68

TCS/DSC Indicator Light *1 (Flashes)
Traction Control System
(TCS)
4-74 ,
Dynamic Stability
Control (DSC)
4-76
(Turns on)
7-33
