7–13
If Trouble Arises
Flat Tire
WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.

8. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.

Locking Lug Nuts
If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This
key is stored in the glove compartment.
Register the key and lug nuts with the
lock manufacturer by ¿ lling out the
card provided in the glove compartment
and mailing it in the accompanying
envelope. If you lose this key, consult an
Authorized Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire
is installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.

Special key Antitheft lug nut

To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–14
If Trouble Arises
Flat Tire
To install the antitheft lug nut
1. Place the special key on top of the nut,
and be sure to hold the key square to
it. If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.

Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)

Mounting the Spare Tire
N O T E
The number and shape of the À at tire
belt differ depending on the vehicle
speci¿ cation.


Belt clips


y The À at tire belts with the clips are for
securing a À at tire.




y The À at tire belts without the clips are
for securing the sub-woofer.

1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.



WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off , resulting in
an accident.

2. Mount the spare tire.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–15
If Trouble Arises
Flat Tire
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.



WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the
lug nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off , resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary.

4. Turn the lug wrench counterclockwise
and lower the vehicle. 5. Use the lug wrench to tighten the nuts
in the order shown.



If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)

WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off . This could result
in loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same confi guration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–16
If Trouble Arises
Flat Tire
6. (Vehicles with sub-woofer)
Secure the sub-woofer to the À at tire
using the À at tire belt.

1. Pass the À at tire belt through the
wheel of the À at tire.



2. Install the sub-woofer to the À at tire.


3. Pass the À at tire belt through the
buckle.



4. Pull the end of the À at tire belt and
secure the sub-woofer and the wiring
harness to the À at tire.



CAUTION
When pulling the fl at tire belt, wrap
the buckle with a cloth. If the buckle
directly contacts the sub-woofer, the
sub-woofer may be damaged.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–17
If Trouble Arises
Flat Tire

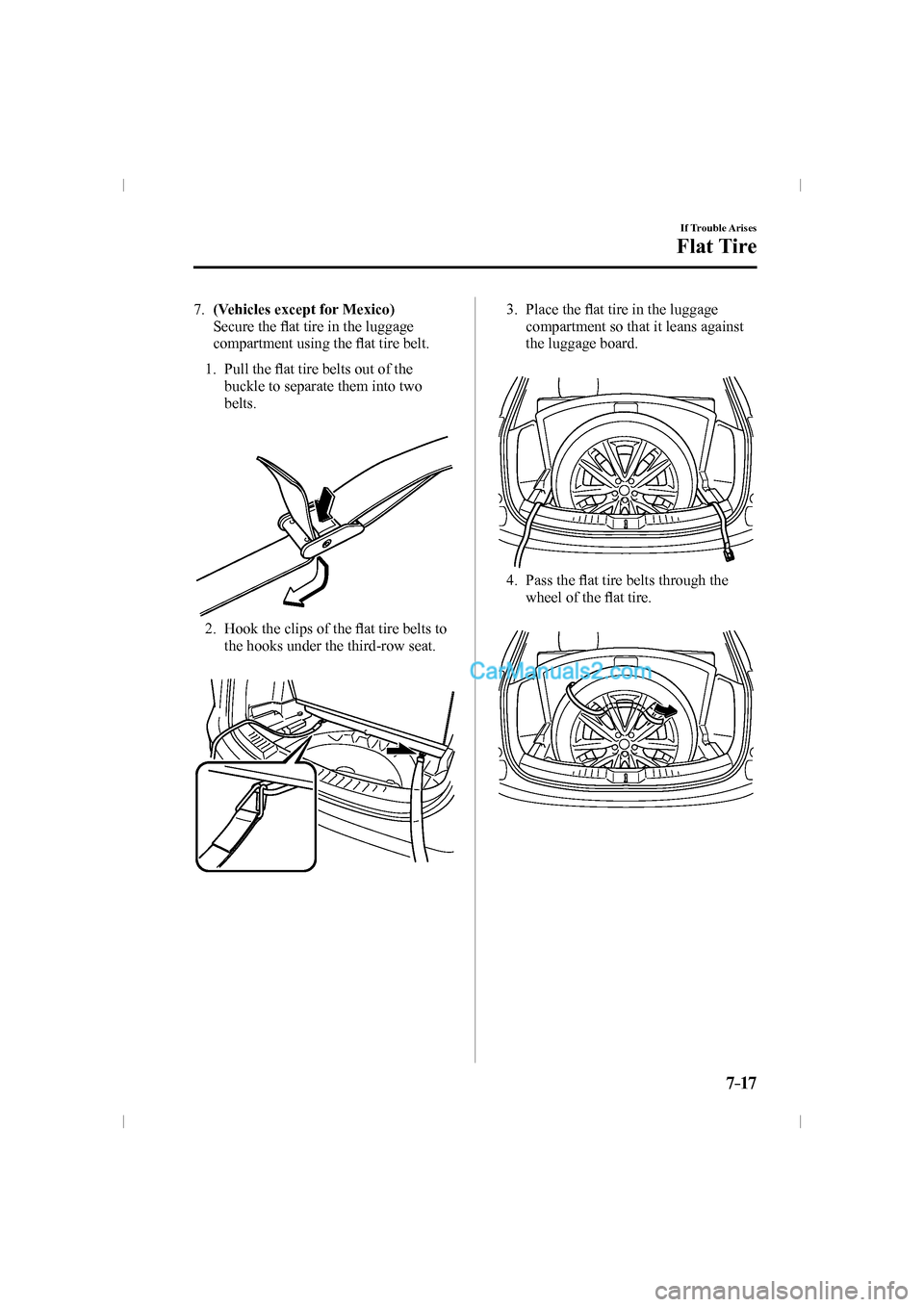

7 . (Vehicles except for Mexico)
Secure the À at tire in the luggage
compartment using the À at tire belt.

1. Pull the À at tire belts out of the
buckle to separate them into two
belts.



2. Hook the clips of the À at tire belts to
the hooks under the third-row seat.


3. Place the À at tire in the luggage
compartment so that it leans against
the luggage board.



4. Pass the À at tire belts through the
wheel of the À at tire.



$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–18
If Trouble Arises
Flat Tire
5. Pass the À at tire belts through the
buckle.



6. While pressing the À at tire against the
third-row seat, pull the ends of the
À at tire belts and secure the À at tire.



CAUTION
When pulling the fl at tire belts, wrap
the buckle with a cloth. If the buckle
directly contacts the aluminum wheel,
the wheel may be damaged.

8 . (Vehicles for Mexico)
Place the À at tire in the luggage
compartment so that it leans against the
luggage board.



CAUTION
Tuck a cloth between the fl at tire and
the vehicle trim. If the fl at tire directly
contacts the vehicle trim, the trim may
be damaged.

9. Slowly close the liftgate while making
sure that the liftgate trim does not
contact the À at tire.
N O T E
If the liftgate trim contacts the À at tire,
adjust the position of the À at tire.

10. Make sure that the liftgate closes
securely.
11. Check the tire inÀ ation pressure.
Refer to the speci¿ cation charts on
page 9-9 .
12. Have the À at tire repaired or replaced
as soon as possible.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–19
If Trouble Arises
Flat Tire
N O T E
(With tire pressure monitoring system)
Do not press the tire pressure monitoring
system set switch after installing the spare
tire. The switch is only to be pressed after
installing the repaired À at tire or installing
a replacement tire (page 4-154 ).

WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could aff ect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.

N O T E
To prevent the jack and tool from rattling,
store them properly.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










7–20
If Trouble Arises
Battery Runs Out
J u m p - S t a r t i n g
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.


Do not allow the positive ( ) terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative ( ) terminal of the battery.


Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.

Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
