Armrest
There is a storage compartment under the arm­
rest.
~ 0
CJ ..,. ID
Fi g. 50 Coc kp it: center armrest
Adjusting the armrest
... To ad just the angle, raise the armrest from the
sta rting posit ion detent by deten t.
... To bring the armrest back into its original posi­
tion, lift it above the top position and then fo ld
it back down.
Opening the storag e compartment
.,. Press the button -arrow- upward.
Please note that the driver's arm movements
may be restr icted w ith the armrest folded down.
F or this reason, t he a rmrest sho uld not be fo lded
down when driving in city traffic.
Head restraints
Front head restraints
App lies to vehicles: with adjustable head restraints
Head restraints that are adjusted according to
body size, along with the seat belt, offer effec­
tive protection.
F ig. 51 Front seat : Adjusting the head restra int
g
0
CJ ..,. ID
Seats and storage
Adjust the head restraint so the upper edge is as
even as possib le with the top of your head. If that
is not possib le, try to adjust the head restraint so
that it is as close to this position as possible.
Move the head restra int so that it is as close to
the back of the head as possible.
... To move the head restraint up or forward, slide
it unti l it locks into place .
... To move the head restraint down or back, press
the side button -arrow-
~ fig. 51 and slide the
head restra int until it locks into place.
Refer to
~ page 129, Proper adjustment of head
restraints
for gu idelines on how to adjust the
height of the front head restraints to suit the oc­
cupant's body s ize.
.&, WARNING
- Driving w ithout head rest raints or with head
restra ints that a re not properly adjusted in ­
creases the risk of ser ious or fatal nec k in­
jury dramat ica lly.
- Re ad and heed all WARNINGS~
page 129,
Proper adjustment of head restraints .
@ Tips
Correctly adjust ed head restraints and safety
belts are an extremely effective combination
of safety features.
55

Seats and storag e
Rear head restraints
Fig. 52 Rear seats: Head rest ra in t
Fig. 53 Rear head restra ints: release
If there is a passenger in the rear center seat ing
position* , slide the center head restraint* upward
at least to the next notch
~ ,&. .
Adjust ing th e he ad res trai nts
• To move the head restra int up, hold it at the
sides with both hands and slide it upward until
you feel it lock into place
c:> A in Proper adjust­
ment of head restraints on page
130.
• To move the head restraint down, press the
button -arrow-
c;> fig. 52 and slide the head re­
stra int downward.
R emo ving the h ead re straint s
• Fold the backrest forward c:> page 64.
• Move the head restra int upward as far as it can
go .
• Press the release
c:> fig. 53 with the mechan ica l
key ~
page 30 and the b utton -a rrow-c:> fig . 52 .
Pull the head restraint out of the backrest at
the same time
c:> .&_ .
56
Installing the he ad re stra ints
• Slide the posts on the head restraint down into
the guides until you feel the posts lock into
place .
• Press the button -arrow-
c:> fig. 52 and s lide the
head restra int all the way down. You should not
be able to pull the head restra int out of the
backrest.
So that the driver can have a better view to the rear, the head restraints should be pushed down
completely when the rear seats are not occupied.
A WARNING
- On ly remove the rear seat head restra ints
when necessary in order to install a c hild
seat . Install the head restraint again imme­
diate ly once the child sea t is removed. Dr iv­
ing without head restraints o r with head re­
straints that are not properly adjusted in ­
creases the risk of serious or fatal neck in­
jury dramatically.
- Read and heed a ll WARN INGS
c:> page 129 .
Memory function
Description
Applies to vehicles : with memory f un ction
Us ing the memory function, you can quickly and
eas ily store a pe rsonal seat profi le for the driver
and front passenger and reca ll the settings . The
memory function is control led using the remote
control key and the memory buttons in the driv­
er's/front passenger's door* .
-
The driver's seat profile is stored aga in and as­
signed to the remote control key each time the
vehicle is locked. When you open the door, the
seat prof ile is automat ica lly recalled. If two peo­
ple use the veh icle, it is recommended that each
person always uses "their own" remote control
key.
Two seat p rofiles can be stored using the memory
buttons in the dr iver's/front passenger's door *.
Once they are stored, these seat profiles can be
selected at any time.
The following sett ings a re stored:

M N <( I.J "". rl I.O
"' N I.O rl
Remote Memory button control key
Driver Driver Front passen-ger
Seat X X X
Stee ring wheel* X X
Both exterior X X
mirrors*
Remote control key
Applies to vehicles: with memory function
The
driver's seat profile can be assigned to the
remote control key when the vehicle is locked.
• Se lect: the ICARI function button > (Car)* Sys­
tems
contro l button > Vehicle settings > Driv­
er's seat
> Remote control key > On .
(D Tips
If you do not wish to have the seat profile for
another driver assigned to the remote control
key, switch the memory function off in the In­
fotainment system or using the IOFFI button
r=;;,page 57.
Memory buttons
Applies to vehicles: with memory function
Fig. 54 Driver's door: Memory function buttons
The memory buttons are located in the dr iver's/
front passenger's door*.
Switching the memory function on/off
• Press the IOFF i button to switch the memory
function on/off. The
LED in the button turns on
Seats and storage
when the memory function is off. Seat profiles
are neither stored nor recalled.
Storing a seat profile
• Press the lSET I button. When the word SET
lights up, the memory is ready to store set­
tings.
.. Now press a memory button briefly.
A tone con­
firms that the settings were stored .
Accessing a seat profile
• If the driver's door is open and the ignition is
switched off, press the memo ry button.
• If the driver's door is closed or the ignition is
switched on, press and hold the memory but­
ton unti l the seat adjustment is complete .
A WARNING
-For safety reasons, the seat setting can on ly
be recalled when the veh icle is stationary­
otherwise you risk having an accident.
- If necessary, you can stop the recall process
by pressing the !O FF ! button or any memory
button .
Adjusting the front passenger's seat in the
Infotainment system
Applies to vehicles: with memory function
The driver can move the front passenger's seat
into various positions.
Adjusting the front passenger's seat from
the driver's seat
• Select: the I CAR I function button > (Car)* Sys­
tems
control button > Vehicle settings > Seats
> Front passenger's seat > Adjust seat posi­
tion .
• Yo u can now adjust the front passenger's seat
using the driver's seat buttons
r::;;, page 53,
fig. 48.
Align with driver's seat
• To transfer the settings from the driver's seat
to the front passenger's seat , select: the I CAR !
function button
> (Car)* Systems control but ­
ton
> Vehicle settings > Seats > Front passeng-
er 's seat > Align with driver 's seat. ...,
57

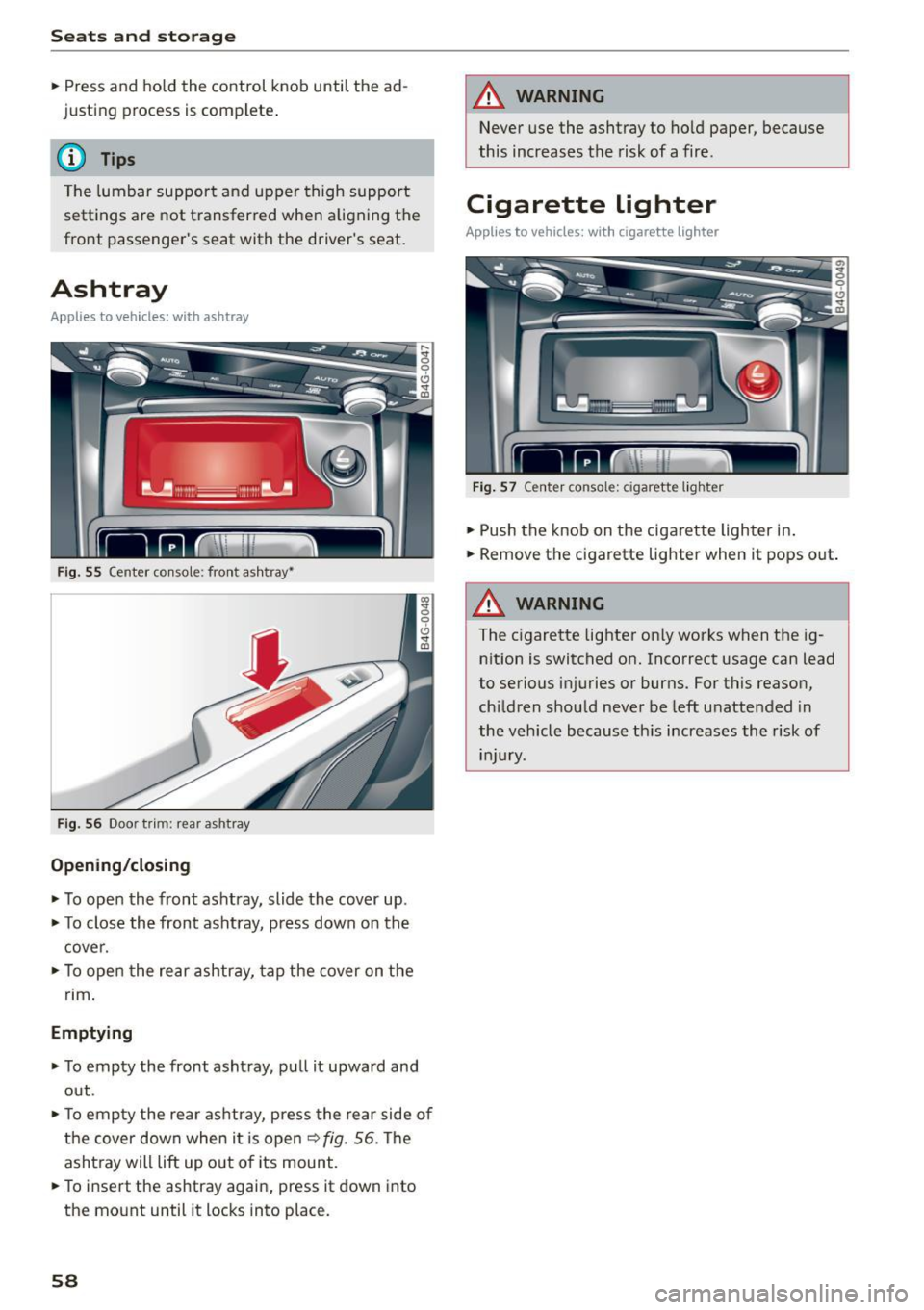

Seats and storag e
.. Press and ho ld the control knob until the ad­
justing process is complete .
@ Tips
The lumbar support and upper thigh support
settings a re not transferred when aligning the
front passenger's seat with the driver's seat .
Ashtray
Applies to vehicles: with ashtray
Fig. 55 Center console: front ashtray~
F ig . 56 Door trim: rear ashtray
Opening /closing
.. To open the front ashtray, slide the cover up .
.. To close the front ashtray, p ress down on the
cover .
.. To open the rear ashtray, tap the cover on the
nm .
Emptying
.. To empty the front asht ray, pu ll it upward and
out .
.. To empty the rea r ashtray, press the rear side of
the cover down when it is open
9 fig . 56. The
asht ray will lift up out o f its mount .
.. To insert the ashtray again, press it down into
the mount until it locks into place.
58
A WARNING
Never use the ashtray to ho ld paper, because
this increases the risk of a fire.
Cigarette lighter
Applies to vehicles: with cigarette lighter
F ig . 57 Center console: cigarette lighter
.. Push the knob on the cigarette lighter in .
.. Remove the c igarette lighter when it pops out .
A WARNING
The cigarette lighter on ly works when the ig­
nition is switched on. Incorrect usage can lead
to serious injuries or burns. For this reason,
ch ildren should never be left u nattended in
the vehicle because th is increases the risk of
injury.

M N <( I.J "". rl I.O
"' N I.O rl
12 Volt sockets
Applies to vehicles: with 12-volt sockets
Fig. 58 Luggage compartme nt s ide trim panel: Socket
Fig. 59 Rear center console example: Sockets
0 0 9 (!) ., ID
~ To reach the 12-volt socket in the luggage com­
partment, press the net down or remove the
bracket from the mounts
c::> fig. 58.
There are additional 12 Volt socket in the center
console under the center armrest* and in the rear
c::> fig. 59.
The 12-volt sockets can be used for electrical ac­
cessories . The power usage must not exceed
120 watts.
_& WARNING
The sockets and the electr ical accessories con­
nected to them operate only when the igni­
tion is switched on. Incorrect usage can lead
to serious injuries or burns. To reduce the risk
of injuries, never leave children unattended in
the vehicle with the vehicle key.
(D Note
- To reduce the risk of damage to the vehicle electrical system, never attempt to charge
the vehicle battery by connecting accesso­
ries that provide power, such as solar panels
Seats and storage
or battery chargers, to the 12 Volt sockets
or the cigarette lighter .
- To reduce the risk of damage to the sockets,
only use plugs that fit correctly .
Storage
(upholder
I
I

Fig. 60 Center console: cupho lder
Fig. 61 Rear center armrest: cup holder * extended
Front cupholder
~ To open the cupholder, tap the cover c::> fig. 60.
Rear cupholder*
~ To open the rea r cupholder, press on the sym­
bol
ii @ c::> fig . 61.
~ To adjust the arm @, swing it in the direction
of the arrow .
~ Place the beverage in the ho lder and release
the arm. The arm swings back by itself and au­
tomatically secures the beverage.
~ To close the rear cupholder, press on the center
section between the two arms and push the cu­
pholder in the slot as far as it will go .
_& WARNING
Spilled hot liquid can cause an accident and
personal injury.
59

Seats and storage
-Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving. In case of an
accident, sudden braking or other vehicle movement, hot liquid could spill, causing
scalding burns . Spilled hot liquid can also
cause an accident and personal injury.
- Use only soft cups in the cupholder. Hard
cups and glasses can cause injury in an acci­
dent.
- Never use the cupholder or adapter as an
ashtray- risk of fire.
(D Note
Only drink containers with lids should be car­
ried in the cupholder. Liquid could spill out
and damage your vehicle's electronic equip­
ment or stain the upholstery, etc.
Cooled glove compartment
A pp lies to ve hicles: w ith coole d glove compart men t
The cooled glove compartment only functions
when the AIC system is switched on.
Fig. 62 Glove compartment: switching cooling mode on/
off
• Turn the knob @counterclockwise to switch
cooling on. The symbols on the knob indicate
the correct position.
• Turn the knob @clockwise to switch cooling
off.
The glove compartment cooling mode only func­ tions when the vehicle A/C system is switched on.
If the heating is switched on, switching the glove
compartment cooling mode off is recomme nded.
60
A WARNING
Always leave the lid on the glove compart­
ment cover closed while driving to reduce the
risk of injury.
Additional storage
There are a variety of storage compartments and
fasteners in various places in the vehicle .
- Storage compartments in the doors
- Compartment in the glove compartment
(cooled*) . The glove compartment can be
locked using the mechanical key¢
page 30.
-Storage compartment for (sun)glasses* in the
roof (near the interior mirror)
- Storage compartments under the center armr­
ests
- Storage compartment on the rear side of the
front
seat* . The compartment can hold a maxi­
mum weight of 1 kg.
- Compartments* on the back of the front seat
backrests
- Garment hooks on the sides of the pillars in the
rear of the vehicle and in the rear grab handles
- Compartment in the rear center armrest
- Storage in the trim panels in the luggage com-
partment
A WARNING
-Always remove objects from the instrument
panel. Any items not stored could slide
around inside the vehicle while driving or
when accelerating or when applying the brakes or when driving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
sole or other storage locations cannot fall
out into the footwells. In case of sudden
braking you would not be able to brake or
accelerate .
- Always keep the lid of the compartment for
(sun)glasses* closed while driving to reduce
the risk of injury during a sudden braking
maneuver or in the event of an accident.
- Any articles of clothing that you have hung
up must not interfere with the driver's view.
~

M N <( I.J "". rl I.O
"' N I.O rl
The coat hooks are designed only for light­
weight clothing . Never hang any clothing
with hard, pointed or heavy objects in the
pockets on the coat hooks. During sudden
braking or in an accident -especially if the
airbag is deployed -these objects could in­
jure any passengers inside the vehicle.
- To reduce the risk of personal injury in an ac­
cident or sudden stop, always keep the
glove compartment closed while dr iv ing.
- Read and follow all WARNINGS
¢ page 163, Important safety instructions
on the side airbag system.
-Hang clothes in such a way that they do not
impair the driver's vision.
- The coat hooks must only be used for light­
we ight clothing . Do not leave any heavy or
sharp edged objects in the pockets which
may in terfere with the sid e curtain airbag
deployment and can cause personal injury in
a crash .
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with proper deployment of the side curtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop.
0 Note
Objects located on the rear shelf that rub
against the rear window could damage the
heating wires for the rear window defogger.
Seats and storage
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof lug­
gage rack.
Fig. 63 Roof rack attachm en t po ints
~ 0
0 ., m
.,. Always read and follow the instructions provid­
ed by the roof rack manufacturer when instal­
ling the roof rack system.
If luggage or cargo is to be carried on the roof,
you must observe the following:
- Only use roof racks approved for your vehicle .
These approved roof racks are the basis for a
complete roof rack system . Additional attach­
ments or carrier systems are needed to trans­
port luggage and sports equipment. We recom­
mend using roof racks from the Audi original
accessories program.
- When installing the roof rack, make sure it is
only mounted on the designated locations on
the roof
c> fig. 63.
- We recommend that you keep the installation
instructions for your roof rack system together
with your Owner's literature in the vehicle.
When should the roof rack be removed?
- Before going through an automatic car wash (it
is best to ask the car wash operator for adv ice).
- When not in use, to reduce fuel consumption,
wind noise and to guard against theft.
A WARNING ,...___
- Use of an unapproved roof rack or incorrect
mounting of an approved roof rack can
cause the roof rack or the items attached to
it to fall off the roof onto the road.
~
61

Seat s and storage
- Objects falling from the roof of a vehicle can
cause a crash and personal injury.
- Only mount the roof rack on the designated
locations on the roof¢
fig. 63.
-The roof rack system must be insta lled ex­
actly according to the instructions provided .
- When driving with a roof rack system, changes to the center of gravity and w ind re ­
sistance can change the vehicle handling
and lead to a collision. A lways adapt your
dr iving and your speed to the current cond i­
t ions.
(D Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using roof
racks or mounting structures not approved
by Aud i for your vehicle . The same app lies to
damage res ulting from incorrect roof rack
i nsta llation.
-A lways check the roof rack mount ings and
hardware before each trip and dur ing a tr ip
to make su re eve rything is securely tight­
ened .
If necessary, re tighten the mo untings
a nd chec k the en tire system from time to
time.
- After mounting a roof rack syste m, or when
you transport objec ts on the roof o f yo ur ve­
hicle, the height of the veh icle is naturally
increased. Be caref ul when driv ing under
l ow bridges or in parking garages for exam­
ple. This cou ld cause damage to the load
and even t he vehicle itself.
- Make sure the open rear lid and the sun­ roof* do not come into contact with the roof
rack .
Loading the roof rack
Always distribu te loads evenly. Make sure any­
t hing on the roof rack is securely tied down.
~ A lways distribute the loads on the roo f rack
evenly .
~ Always attach items to the roof rack secure ly
before you drive off .
The max imum permissib le roof weight is
220 lb
( 100 kg ).
The roof weight is the total of the
62
weight o f the roof rack, the attachments and the
cargo you are carry ing . You must a lso not exceed
the maximum load weight for the roof rack yo u
a re using .
When using a roof rack system which has a lower
l oad car rying capacity, you must not use up the
total max imum permissib le load carrying capaci ­
ty specified above. Inste ad, you should load the
roo f rack system only to the maximum capacity
specified by the manufacturer of the roof rack
system.
A WARNING
Weak, damaged or improper straps used to
secure i tems to the roof rack can fail d uring
hard br aking o r in a collision and cause ser i­
ous persona l injury.
- Ma ke su re the roof ra ck is ins talled exactly
as spe cified above
c::> page 61 .
-Always use su itable mount ing straps for se ­
cur ing ite ms to the roof rack to help p reven t
i t ems from shifting o r flying forwa rd .
- It ems on t he roof rac k must always be se­
curely mounted .
-The use of a roof rack ca n negat ively affect
the way a vehicle handles. C argo th at i s
large, heavy, bulky, long or flat will have a
greater negative influence on the vehi cle's
aerodynamics, center of gravity and overall
handling . A lways drive slowly, avoid sudden
brak ing and maneuvers whe n transporting
cargo on the roof of your veh icle.
- Never exceed the maxim um permissible
load carrying capacity of the roof of your ve­
hicle, the perm iss ible axle weig hts and the
pe rm issib le tota l we ight of your vehicle
c::>page 271, Weights.
@) For the sake of the environment
As a result of the increased wind resistance
created by a roof rack, you r vehicle is using
fuel u nnecessarily . So remove the roof rack af­
ter using it.
-
