2015 TOYOTA VERSO S Owners Manual

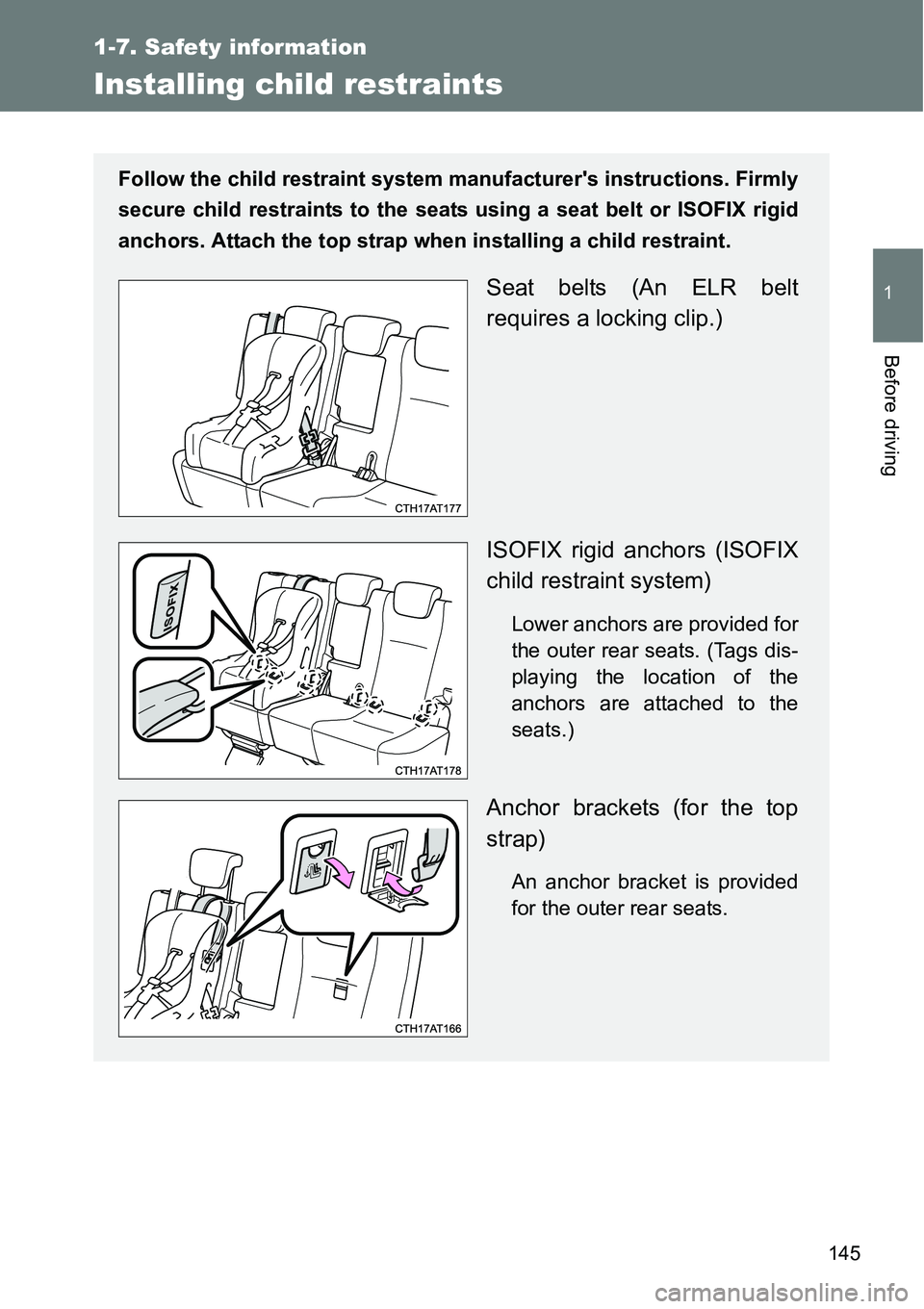

145
1
1-7. Safety information
Before driving
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap when installing a child restraint.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for
the outer rear seats. (Tags dis-
playing the location of the
anchors are attached to the
seats.)
Anchor brackets (for the top
strap)
An anchor bracket is provided
for the outer rear seats.

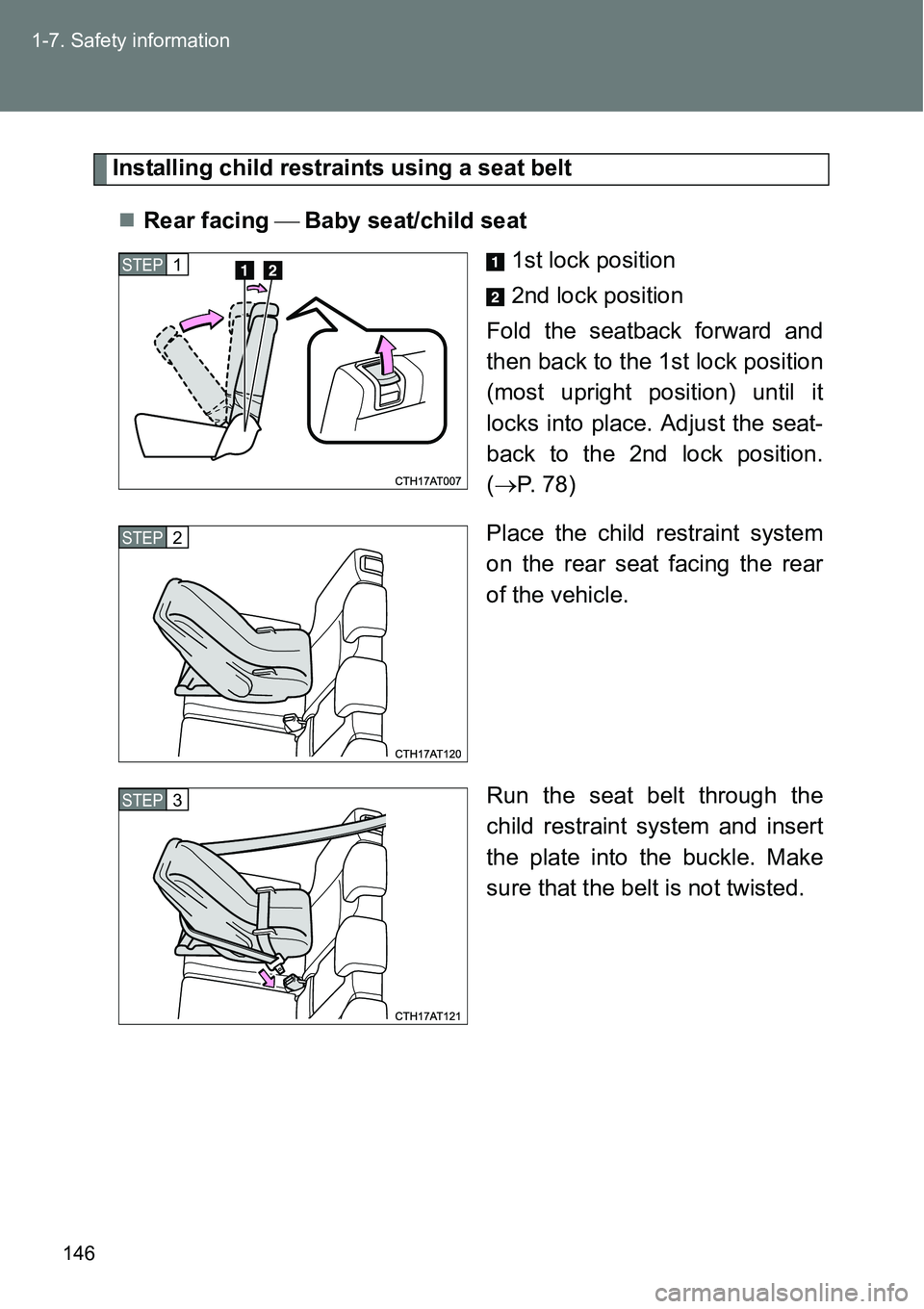

146 1-7. Safety information
Installing child restraints using a seat belt
Rear facing Baby seat/child seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 7 8 )
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

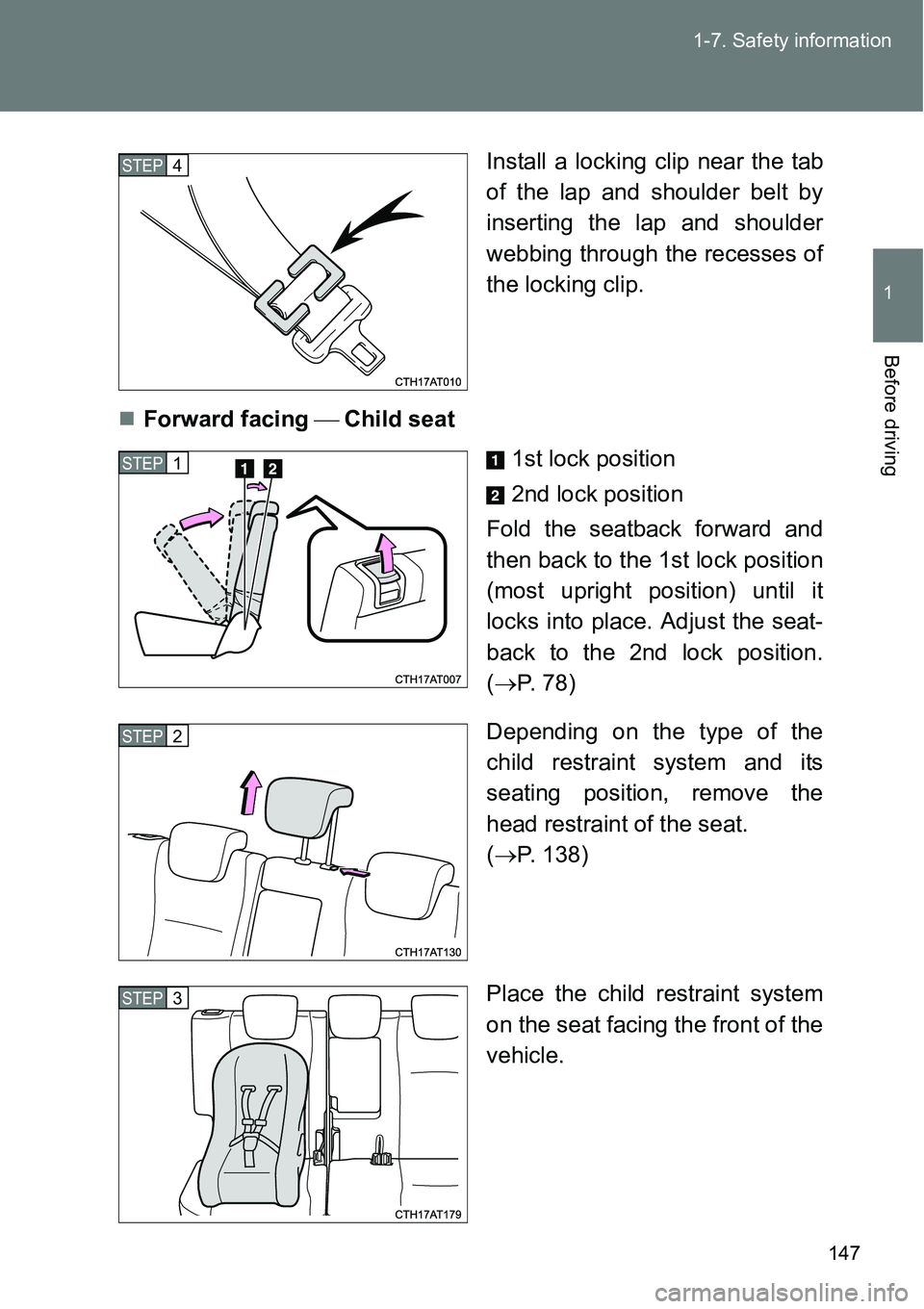

147 1-7. Safety information
1
Before driving
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Forward facing Child seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 7 8 )
Depending on the type of the
child restraint system and its
seating position, remove the
head restraint of the seat.
(P. 138)
Place the child restraint system
on the seat facing the front of the
vehicle.STEP4
STEP1
STEP2
STEP3

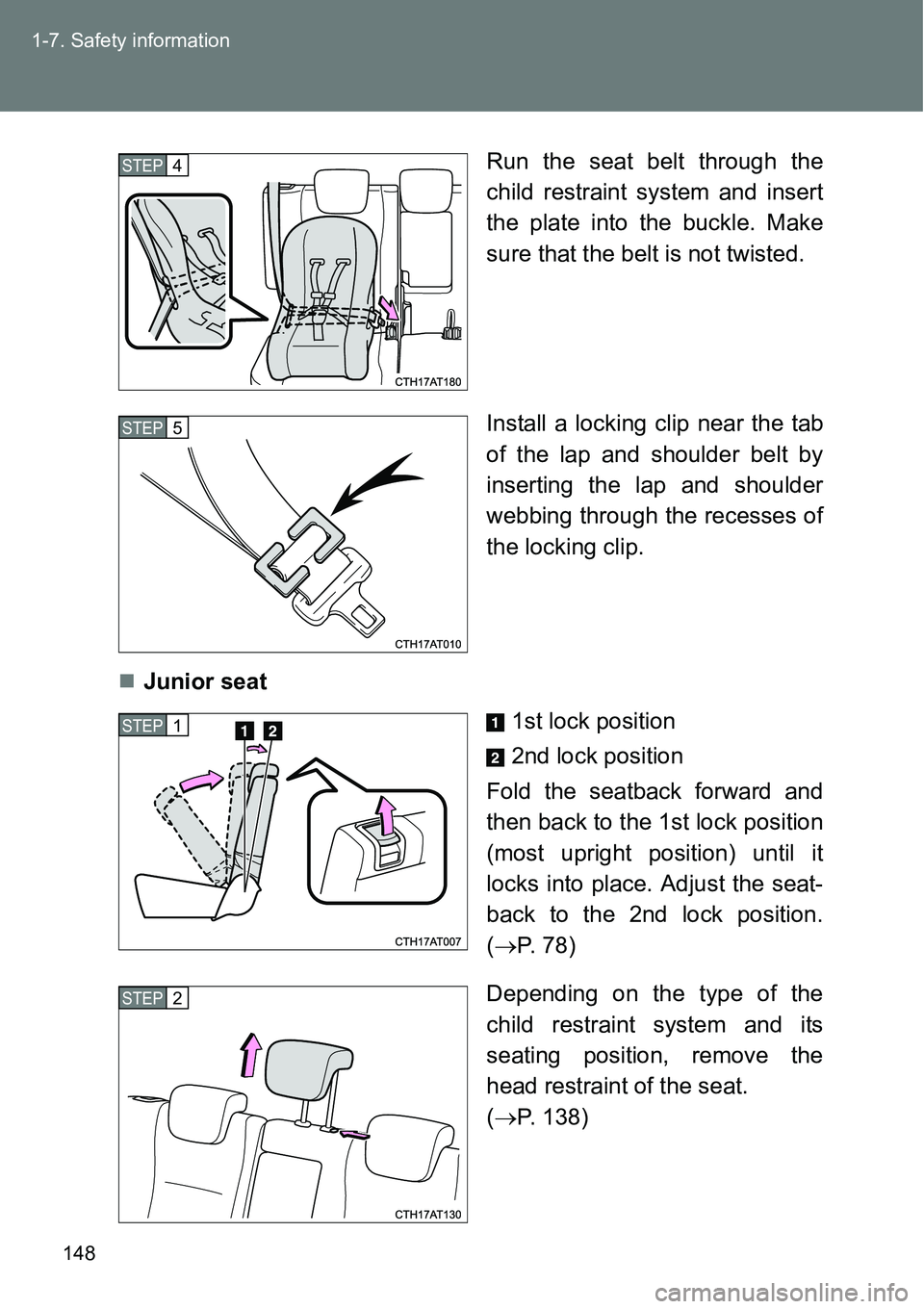

148 1-7. Safety information
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Junior seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 7 8 )
Depending on the type of the
child restraint system and its
seating position, remove the
head restraint of the seat.
(P. 138)STEP4
STEP5
STEP1
STEP2

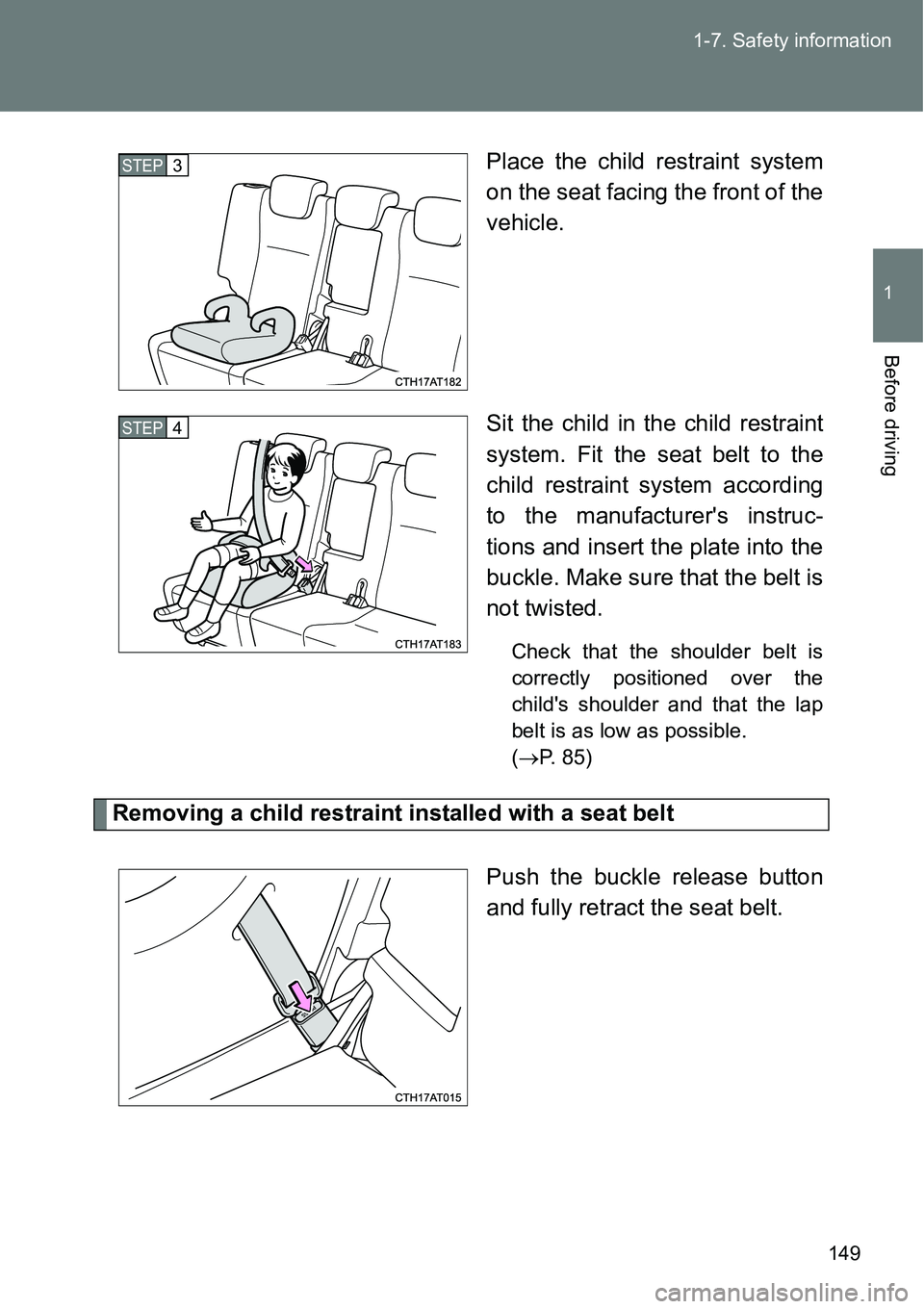

149 1-7. Safety information
1
Before driving
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer's instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder and that the lap
belt is as low as possible.
(P. 85)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP3
STEP4

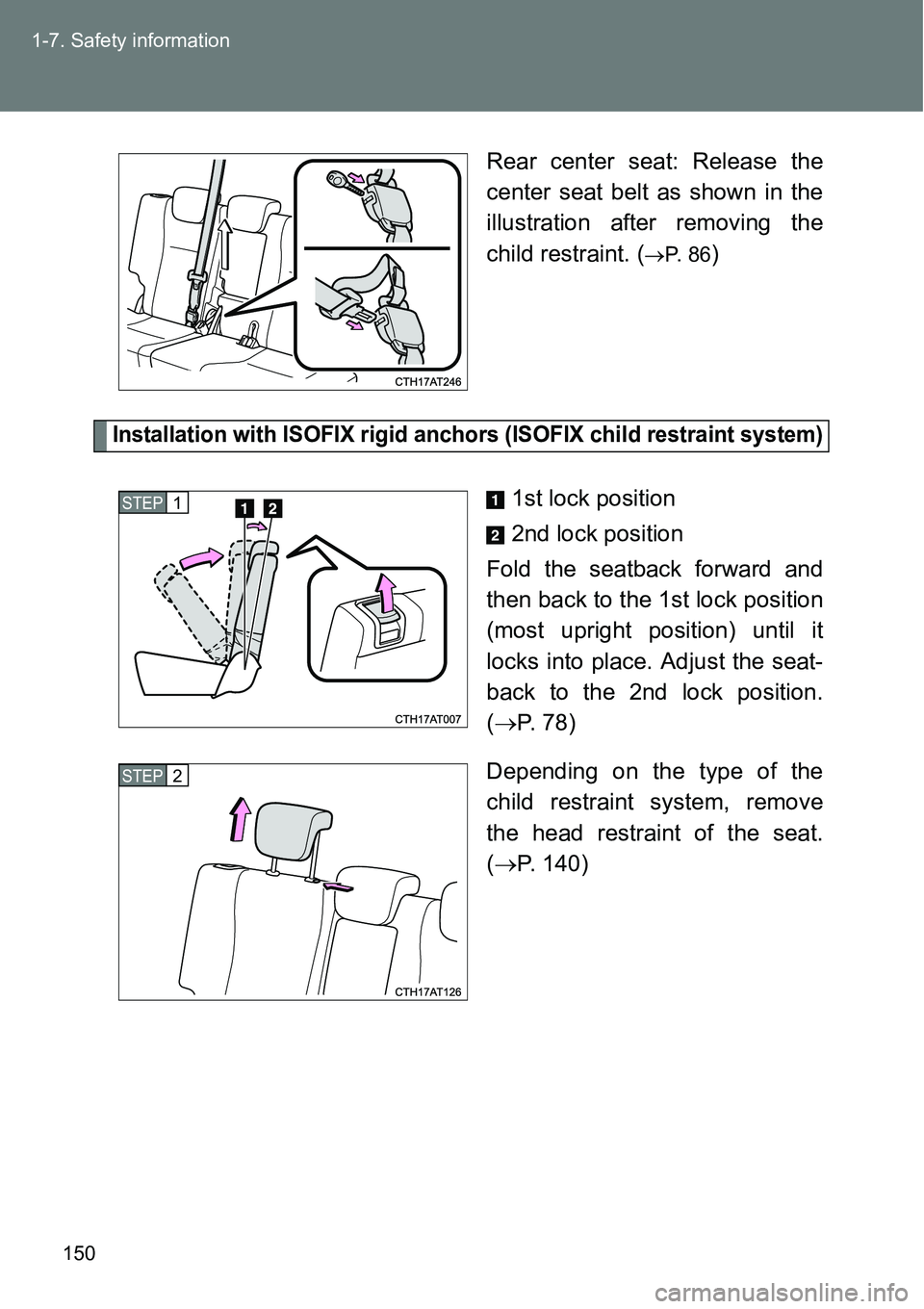

150 1-7. Safety information
Rear center seat: Release the
center seat belt as shown in the
illustration after removing the
child restraint. (
P. 8 6)
Installation with ISOFIX rigid anchors (ISOFIX child restraint system)
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 7 8 )
Depending on the type of the
child restraint system, remove
the head restraint of the seat.
(P. 140)STEP1
STEP2

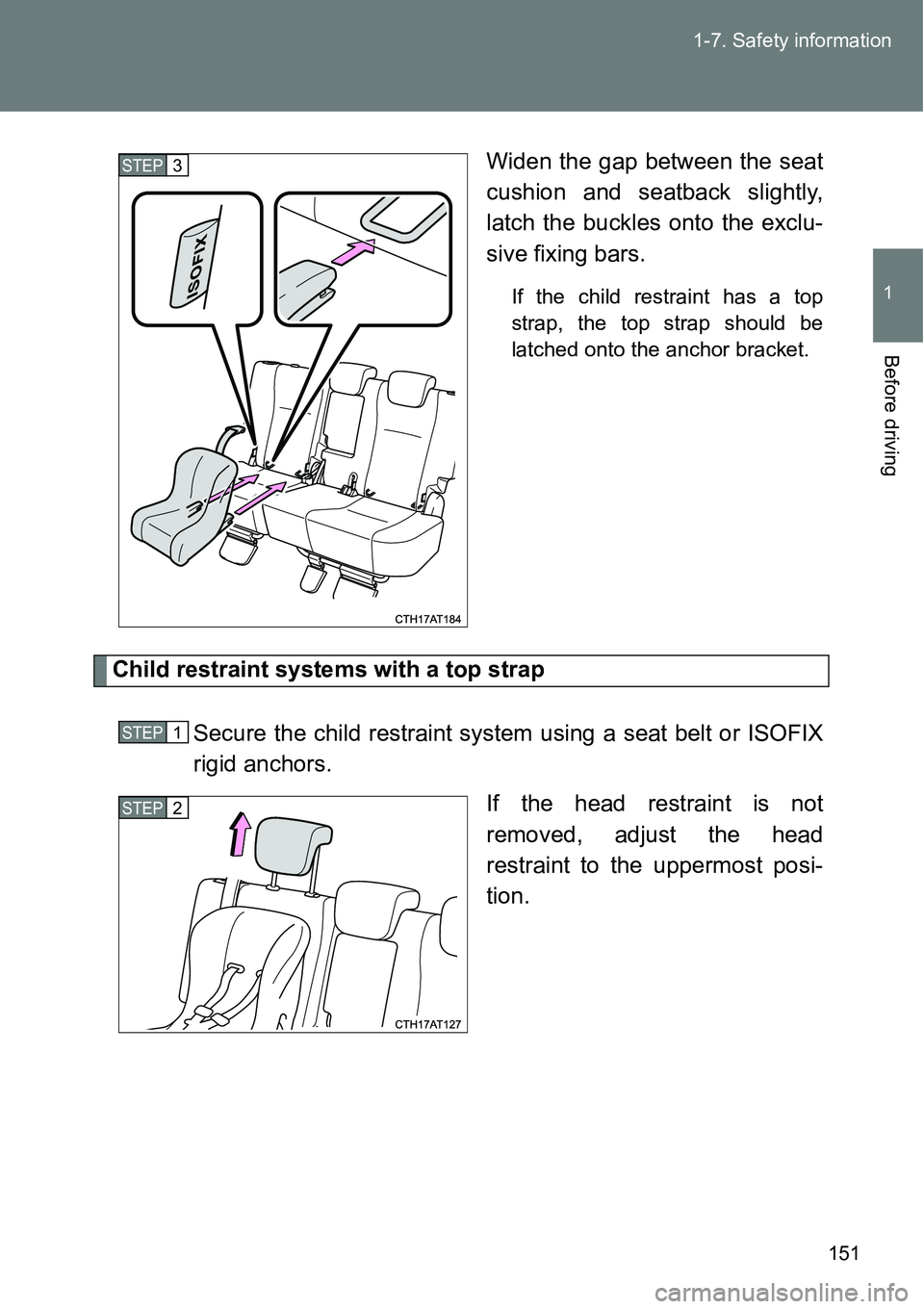

151 1-7. Safety information
1
Before driving
Widen the gap between the seat
cushion and seatback slightly,
latch the buckles onto the exclu-
sive fixing bars.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.
Child restraint systems with a top strap
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors.
If the head restraint is not
removed, adjust the head
restraint to the uppermost posi-
tion.
STEP3
STEP1
STEP2

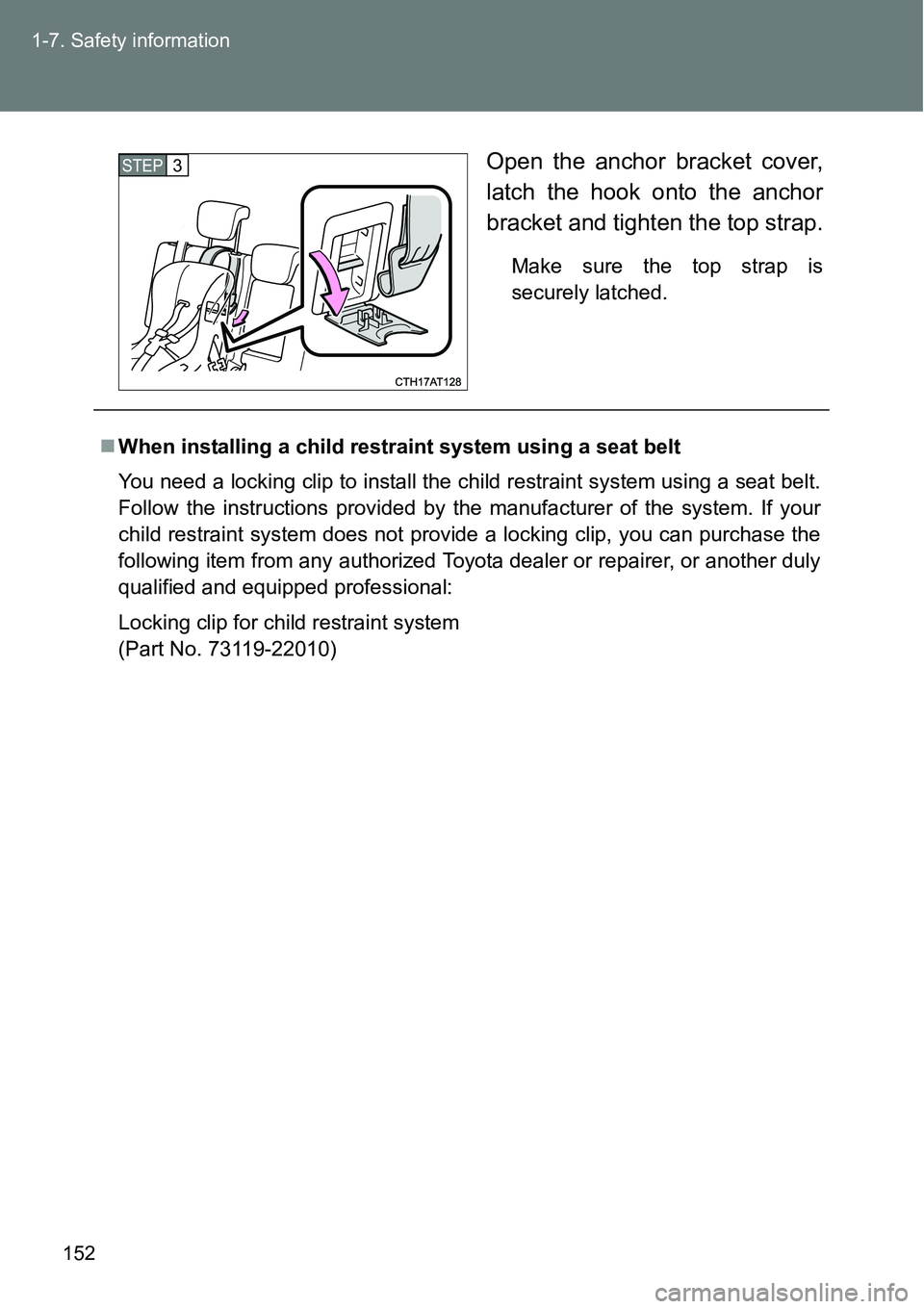

152 1-7. Safety information
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
STEP3
When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
