2015 TOYOTA VERSO S Owners Manual

425 4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
Install the cover.
STEP3
STEP4
STEP5
STEP1STEP6

426 4-3. Do-it-yourself maintenance
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
STEP1
*
STEP2
STEP3

427 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
STEP4
STEP5
STEP6
STEP1STEP7STEP1STEP2
STEP1STEP1

428 4-3. Do-it-yourself maintenance
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP1STEP6STEP3

429 4-3. Do-it-yourself maintenance
4
Maintenance and care
Rear turn signal lights
Open the back door and remove
the 2 bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing the light bulb, install by conducting
and with the directions reversed.
STEP1
STEP2
STEP3
STEP1STEP6STEP3STEP4STEP1STEP3
STEP1STEP2

430 4-3. Do-it-yourself maintenance
Install the lamp assembly and
then install the 2 bolts.
Align the guide and pin on
the lamp assembly with the
mounting when installing it.
Back-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
STEP5
STEP1
STEP2

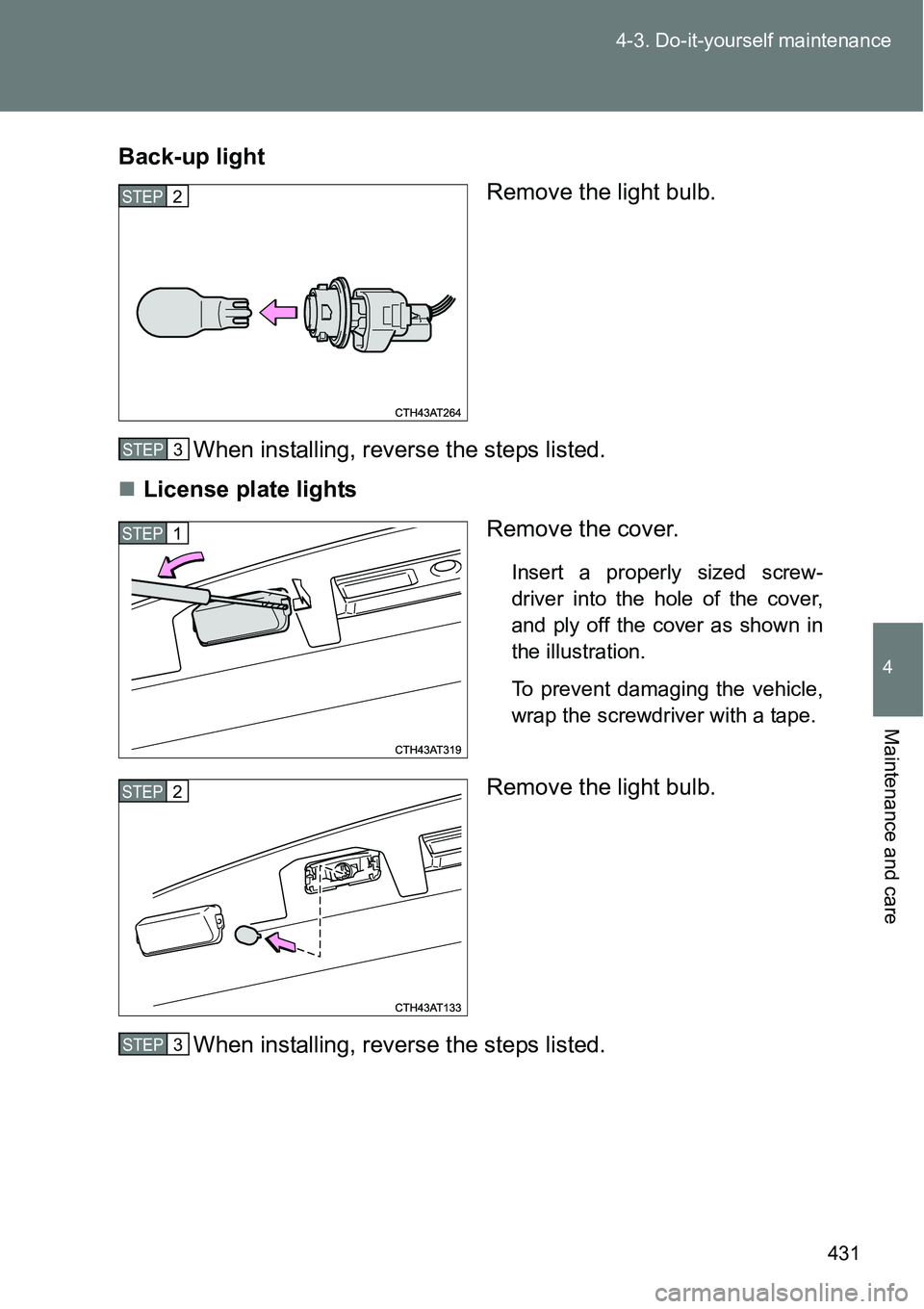

431 4-3. Do-it-yourself maintenance
4
Maintenance and care
Back-up light
Remove the light bulb.
When installing, reverse the steps listed.
License plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
STEP2
STEP1STEP6STEP3STEP4STEP3
STEP1
STEP2
STEP1STEP6STEP3STEP4STEP3

432 4-3. Do-it-yourself maintenance
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Front position lights/daytime running lights
Side turn signal lights
Stop/tail lights
High mounted stoplight
LED light bulbs
The front position lights, daytime running lights, high mounted stoplight and
stop/tail light consists of a number of LEDs. If any of the LEDs burn out, take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 422
