2015 TOYOTA VERSO S Owners Manual

529 6-1. Specifications
6
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environmen-
tal protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.

530 6-1. Specifications
1ND-TV engine
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred

531 6-1. Specifications
6
Vehicle specifications
Cooling system
Ignition system (gasoline engine only)
Capacity
(Refer-
ence)
1NR-FE
engineMultidrive
4.8 L (5.1 qt., 4.2 Imp. qt.)
Manual transmission
4.6 L (4.9 qt., 4.0 Imp. qt.)
1ND-TV
engineWithout power heater
4.9 L (5.2 qt., 4.3 Imp. qt.)
With power heater
5.3 L (5.6 qt., 4.7 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
GapDENSO SC16HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

532 6-1. Specifications
Electrical system
Multidrive
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Battery
Open voltage* at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights turned
off)
Charging rates 5 A max.
Fluid capacity (Reference) 6.42 L (6.79 qt., 5.65 Imp. qt.)
Fluid type Toyota Genuine CVT FLUID FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT FLUID FE” may
cause deterioration in shift quality, locking up of your transmission accompa-
nied by vibration, and ultimately damage the transmission of your vehicle.

533 6-1. Specifications
6
Vehicle specifications

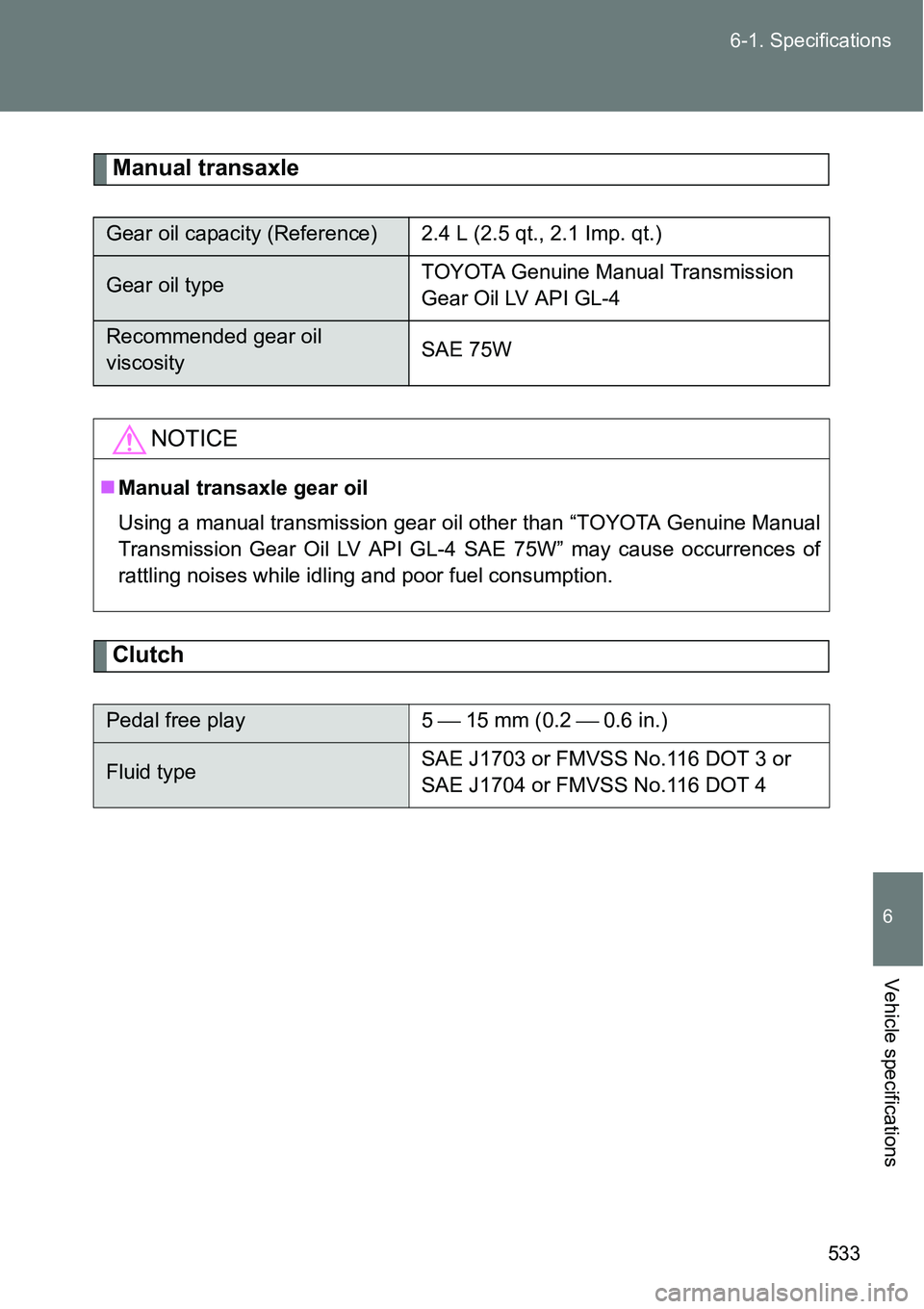

Manual transaxle
Clutch
Gear oil capacity (Reference) 2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeTOYOTA Genuine Manual Transmission
Gear Oil LV API GL-4
Recommended gear oil
viscositySAE 75W
NOTICE
Manual transaxle gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine Manual
Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of
rattling noises while idling and poor fuel consumption.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

534 6-1. Specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44
lbf)
Steering
Pedal clearance*1
1NR-FE
engineLeft-hand drive vehicles
88 mm (3.46 in.) Min.
Right-hand drive vehicles
79 mm (3.11 in.) Min.
1ND-TV
engine85 mm (3.35 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *28  11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)

535 6-1. Specifications
6
Vehicle specifications
Tires and wheels
Tire size185/65R15 88H, 185/60R16 86H,
T135/70D16 100M
Tire inflation pressure
(Recommended cold tire
inflation pressure)230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size15  5 1/2 J, 16  5 1/2 J, 16  4T (compact
spare)
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

536 6-1. Specifications
Light bulbs
A: HIR2 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs
*1: Vehicles without a panoramic roof shade
*2: Vehicles with a panoramic roof shade
Light bulbsWTy p e
ExteriorHeadlights 55 A
Front fog lights (if equipped) 55 B
Front turn signal lights 21 D
Back-up light 16 C
Rear fog light 21 C
License plate lights 5 C
Rear turn signal lights 21 D
InteriorPersonal lights
*18C
Personal/interior lights
*28C
Interior light 8 E
Luggage compartment light 5 E
