2015 TOYOTA VERSO S Owners Manual

73 1-2. Opening, closing and locking the doors
1
Before driving

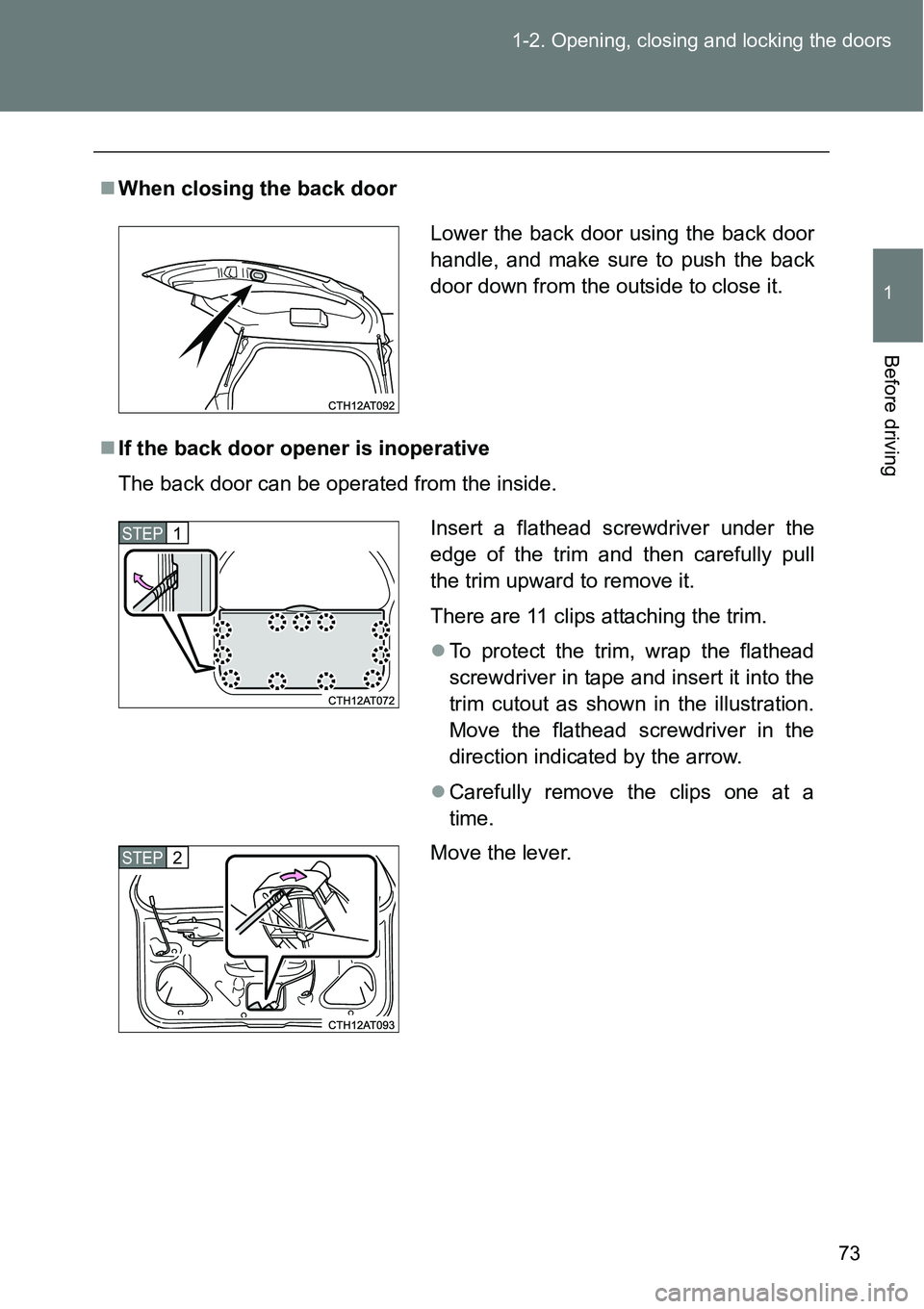

When closing the back door
If the back door opener is inoperative
The back door can be operated from the inside.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Insert a flathead screwdriver under the
edge of the trim and then carefully pull
the trim upward to remove it.
There are 11 clips attaching the trim.
To protect the trim, wrap the flathead
screwdriver in tape and insert it into the
trim cutout as shown in the illustration.
Move the flathead screwdriver in the
direction indicated by the arrow.
Carefully remove the clips one at a
time.
Move the lever.STEP1
STEP2

74 1-2. Opening, closing and locking the doors
If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. (P. 57, 497)
CAUTION
Caution while driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injures.
Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

75 1-2. Opening, closing and locking the doors
1
Before driving

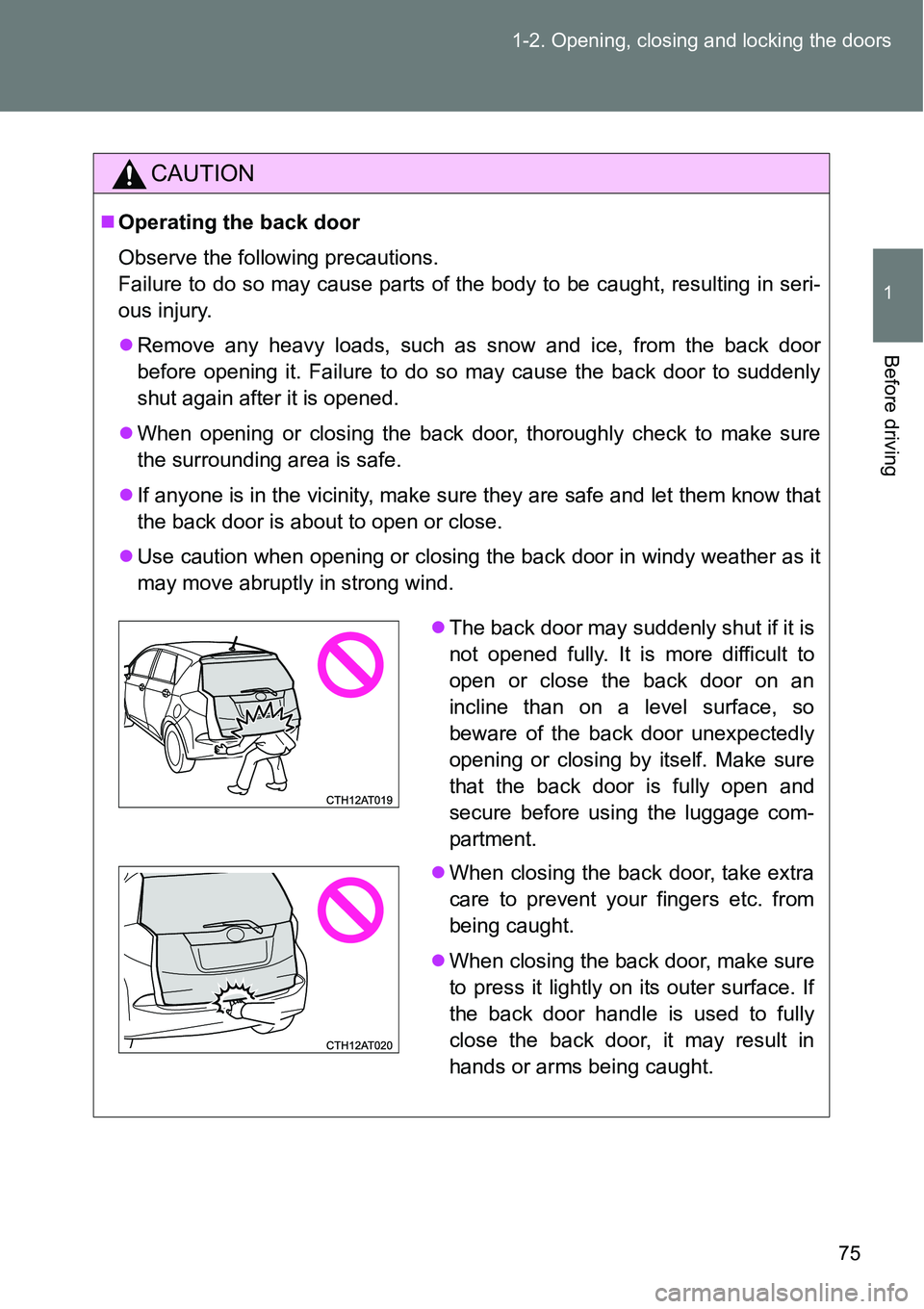

CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

76 1-2. Opening, closing and locking the doors

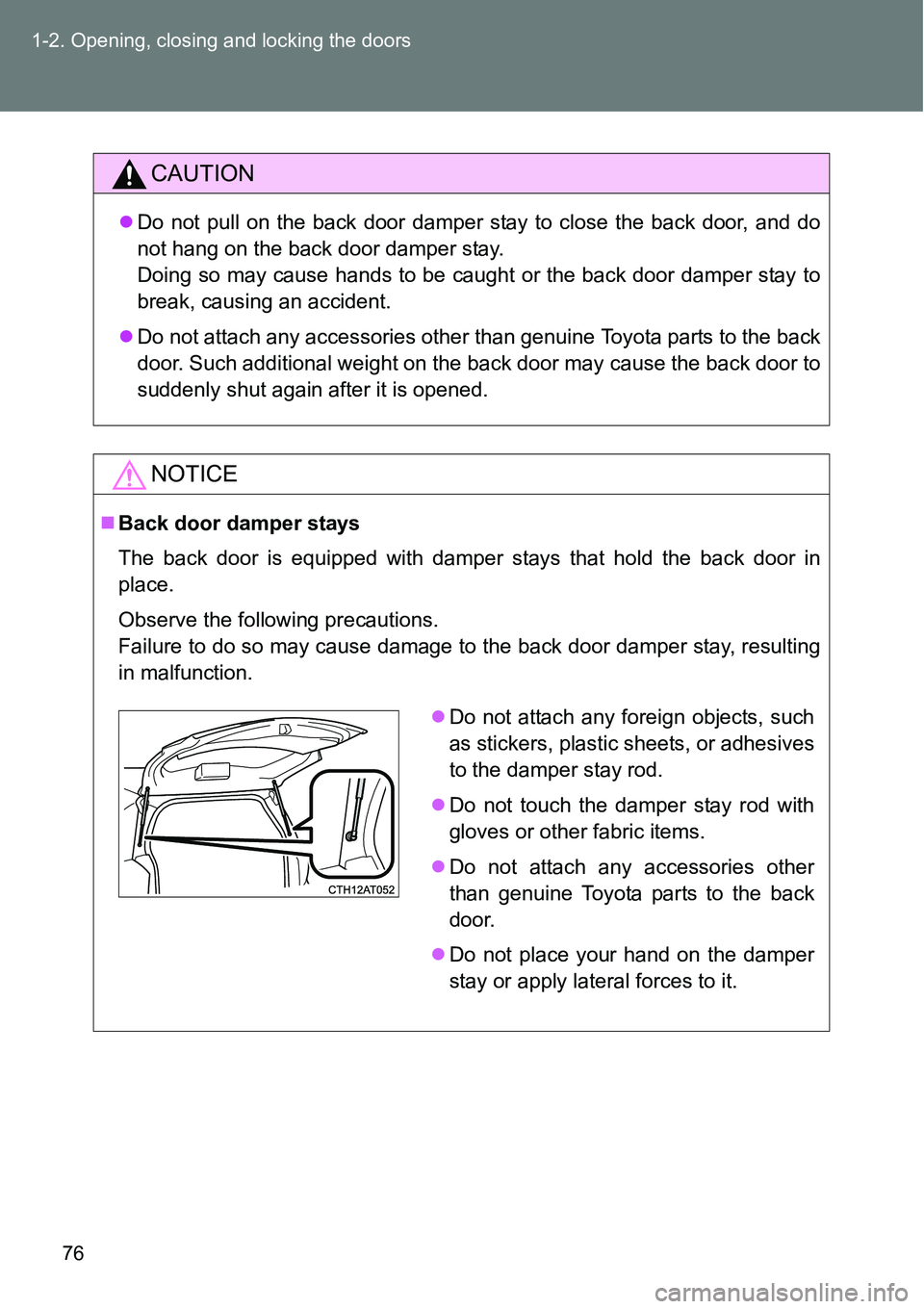

CAUTION
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
Do not attach any accessories other than genuine Toyota parts to the back
door. Such additional weight on the back door may cause the back door to
suddenly shut again after it is opened.
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.

77
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

78
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Pull up the seatback angle
adjustment lever until the lock
is released.

79 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Folding down the rear seatbacks
Before folding down the rear seatbacks
Stow the seat belts.
Center
P. 8 6
Outside
Use the seat belt hangers to pre-
vent the belts from being tan-
gled.
Adjust the head restraints to the
downmost position.
Vehicles with a rear armrest:
Raise the armrest.
STEP1
STEP2
STEP3

80 1-3. Adjustable components (seats, mirrors, steering wheel)
Folding down rear seatbacks
From inside
Fold the seatback down while
pulling the seatback angle
adjustment lever.
Pull the lever until the lock is
released.
From outside
Pull the lever.
Folds down the left side and
center seats
Folds down the right side seat
