2015 TOYOTA VERSO S Owners Manual

409 4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment (type C fuse box for the right-hand drive
vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.

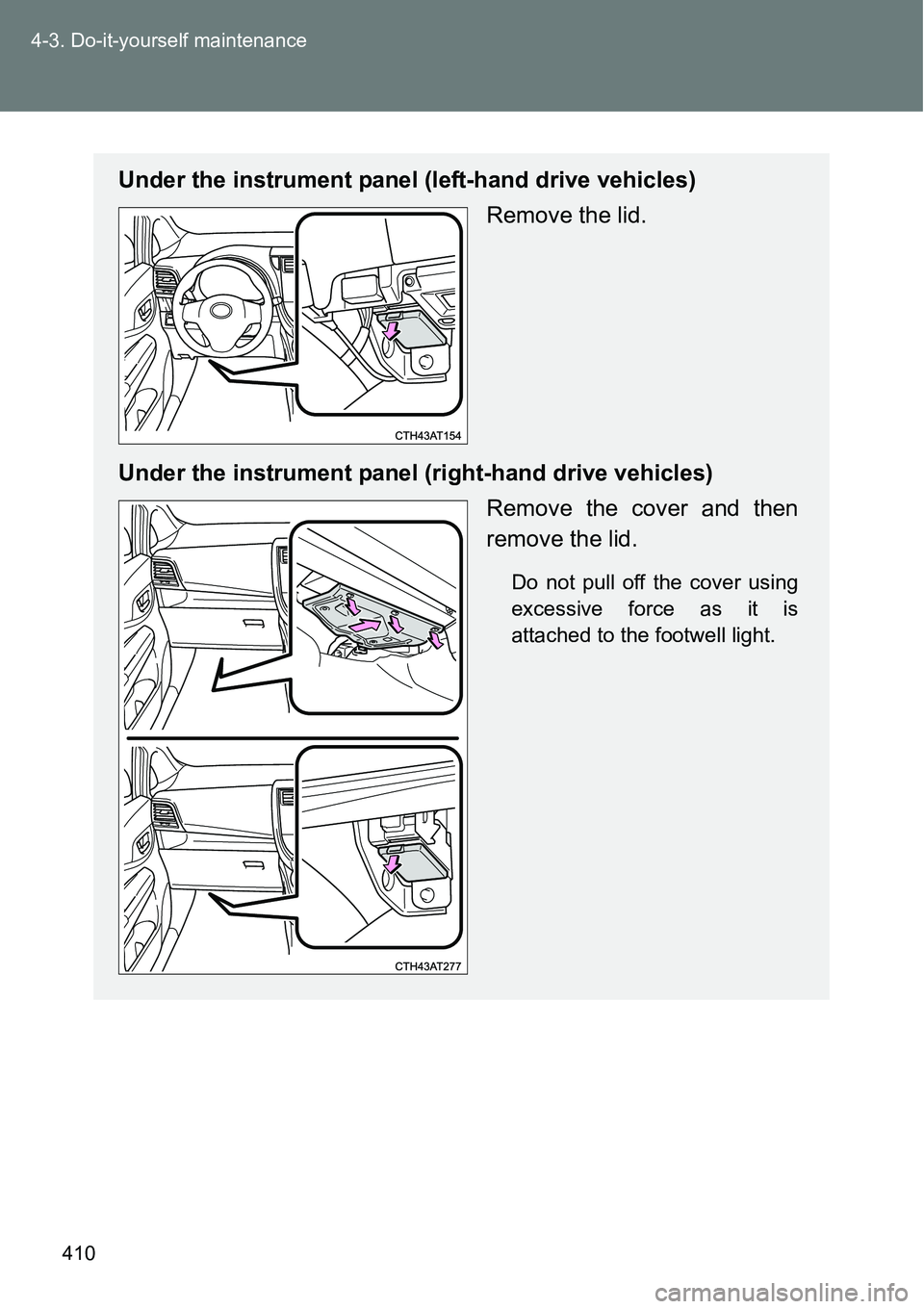

410 4-3. Do-it-yourself maintenance
Under the instrument panel (left-hand drive vehicles)
Remove the lid.
Under the instrument panel (right-hand drive vehicles)
Remove the cover and then
remove the lid.
Do not pull off the cover using
excessive force as it is
attached to the footwell light.

411 4-3. Do-it-yourself maintenance
4
Maintenance and care
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 414) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
The pullout tool is located on
the back of the type A fuse box
cover.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP3
STEP4
STEP5

412 4-3. Do-it-yourself maintenance
Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e E
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.

413 4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e F
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Reinstall the cover and rubber strip. (type C fuse box cover
only)
Left hand drive vehicles
Right hand drive vehiclesSTEP6

414 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
Engine compartment
Ty p e A
FuseAmpereCircuit
1EFI MAIN
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
ECD MAIN
*230 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
2 EFI NO.3 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 HORN 10 A Horn
4 EFI NO.2 10 AStop & Start system, multiport fuel
injection system/sequential multi-
port fuel injection system

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
5 IG2 10 ASmart entry & start system, multi-
port fuel injection system/sequen-
tial multiport fuel injection system,
SRS airbag system, steering lock
system, stop lights, Stop & Start
system
6 IGN 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
7MET 7.5 AGauge and meters, Stop & Start
system
8PWR HTR
*225 APower heater, multiport fuel injec-
tion system/sequential multiport
fuel injection system
9 EPS 50 A Electric power steering
10 ABS NO.2 30 A ABS, VSC
11 DEF 30 A Rear window defogger
12 SPARE 10 A Spare fuse
13 PTC 80 APTC heater, outside rear view mir-
ror defoggers
14 HTR 40 A Air conditioning system
15 H-LP CLN 30 A
16 RDI FAN 30 A Electric cooling fan
17 ABS NO.1 50 A ABS, VSC
18 BBC
*340 A Stop & Start system
19 ST 30 A Starting system
20 AMP 15 A
21 D/L NO.2 25 A
Power door lock
22 D.C.C. 30 A DOME, ECU-B NO.1
23 STR LOCK 20 A Steering lock system
FuseAmpereCircuit

416 4-3. Do-it-yourself maintenance
*1: Vehicles with a gasoline engine
*2: Vehicles with a diesel engine
*3: Vehicles with a 1NR-FE engine (with a Stop & Start system) 24 ECU-B NO.1 5 AMain body ECU, smart entry & start
system
25 DOME 15 A Interior lights, audio system, VSC
26 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
27 HAZ 10 A Turn signal lights
28 AM2 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart entry & start system,
starting system
29 ECU-B NO.2 5 AGauge and meters, power door
lock, wireless remote control, Stop
& Start system, smart entry & start
system, air conditioning system,
tire pressure warning system
30 ALT-S 7.5 A
31 R/I 50 AEFI MAIN, ECD MAIN, EFI NO.2,
EFI NO.3, IG2, IGN, MET, HORN
32 SPARE 20 A Spare fuse
33 SPARE 30 A Spare fuse
34 MIR-HTR 10 A
35 ID/UP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit
