2015 TOYOTA VERSO S Owners Manual

209 2-2. Instrument cluster
2
When driving
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.

210
2-2. Instrument cluster
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 199)
Trip meter (P. 199)
Stop & Start system opera-
tion time (if equipped)
(P. 199)
Stop & Start system total
operation time (if equipped)
(P. 200)
Trip information (P. 2 1 1 )
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Meter light control (P. 200)
Eco Driving Indicator Light
customization (if equipped)
(P. 201)

211 2-2. Instrument cluster
2
When driving
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
P. 199
Tr ip m eter
P. 199
Stop & Start system operation time (if equipped)
P. 199
Stop & Start system total operation time (if equipped)
P. 200
Instantaneous fuel consumption
Displays instantaneous fuel consumption.

212 2-2. Instrument cluster
Average fuel consumption
Driving range
Meter light control
P. 200Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
Vehicles with a smart entry & start system: When
refueling, turn the “ENGINE START STOP” switch
off. If the vehicle is refueled without turning the
“ENGINE START STOP” switch off, the display
may not be updated.
Vehicles without a smart entry & start system:
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

213
2
When driving
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
the lights listed above
turn on.
Vehicles without a
smart entry & start
system: The head-
lights, front position
lights and so on turn
on and off automati-
cally
(when the engine
switch is in the “ON”
position.)
Vehicles with a smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the “ENGINE START
STOP” switch is in
IGNITION ON mode.)
(If equipped)
(If equipped)

214 2-3. Operating the lights and wipers
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Left-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights

215 2-3. Operating the lights and wipers
2
When driving

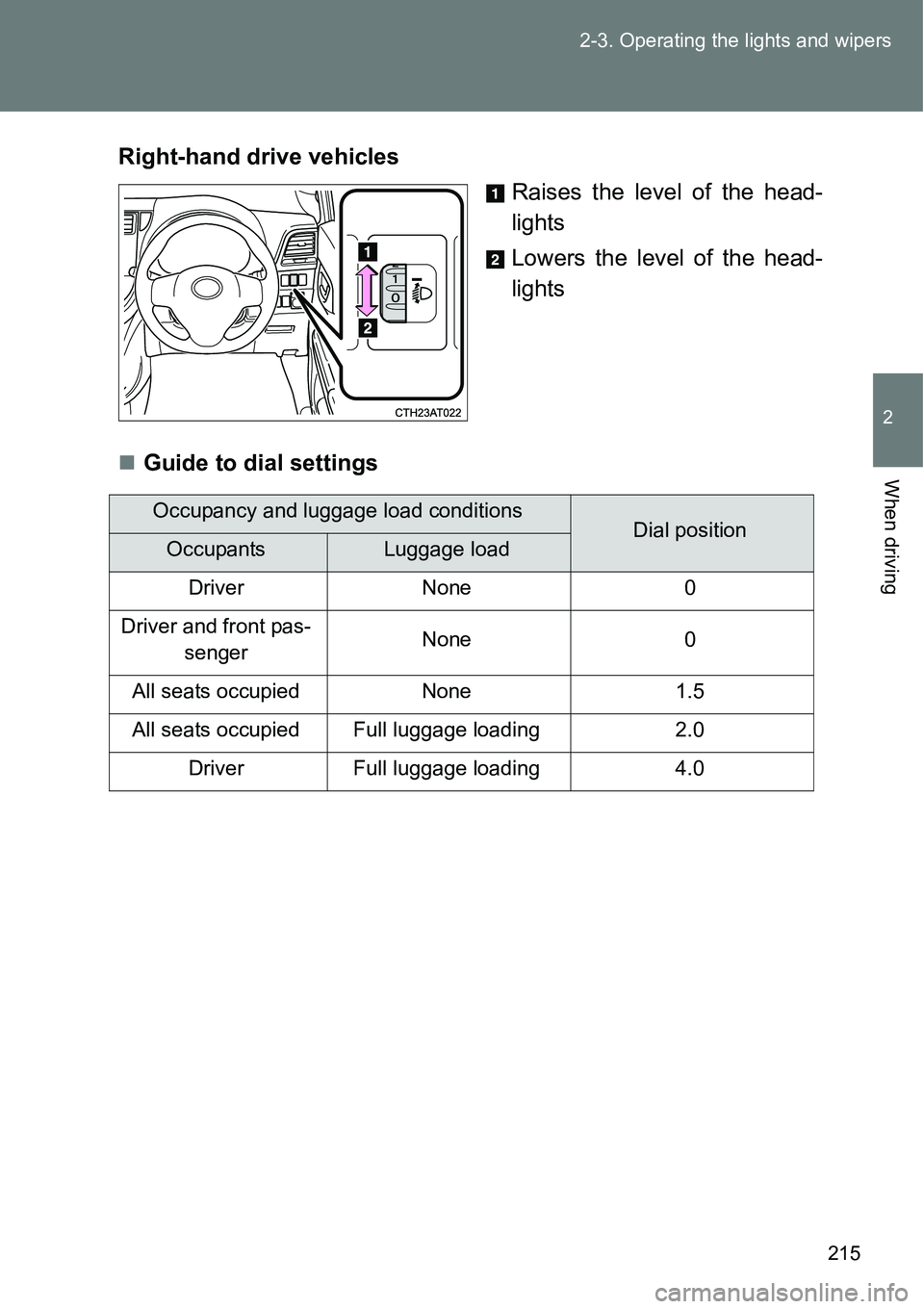

Right-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights
Guide to dial settings
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
Driver None 0
Driver and front pas-
sengerNone 0
All seats occupied None 1.5
All seats occupied Full luggage loading 2.0
Driver Full luggage loading 4.0

216 2-3. Operating the lights and wipers
Daytime running light system
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
Headlight control sensor (if equipped)
Automatic light off system (if equipped)
Vehicles without a smart entry & start system
When the light switch is in
or : The headlights and front fog
lights turn off automatically when the engine switch is turned to the
“LOCK” position.
When the light switch is in : The headlights and all the lights turn
off automatically when the engine switch is turned to the “LOCK” posi-
tion.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or .
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
