397
4-3. Do-it-yourself maintenance
4
Maintenance and care
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width and inset*.
Replacement wheels are available at any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Aluminum wheel precautions (if equipped)
Use only Toyota wheel nuts and wrenches designed for use
with your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using
tire chains.
Use only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
522

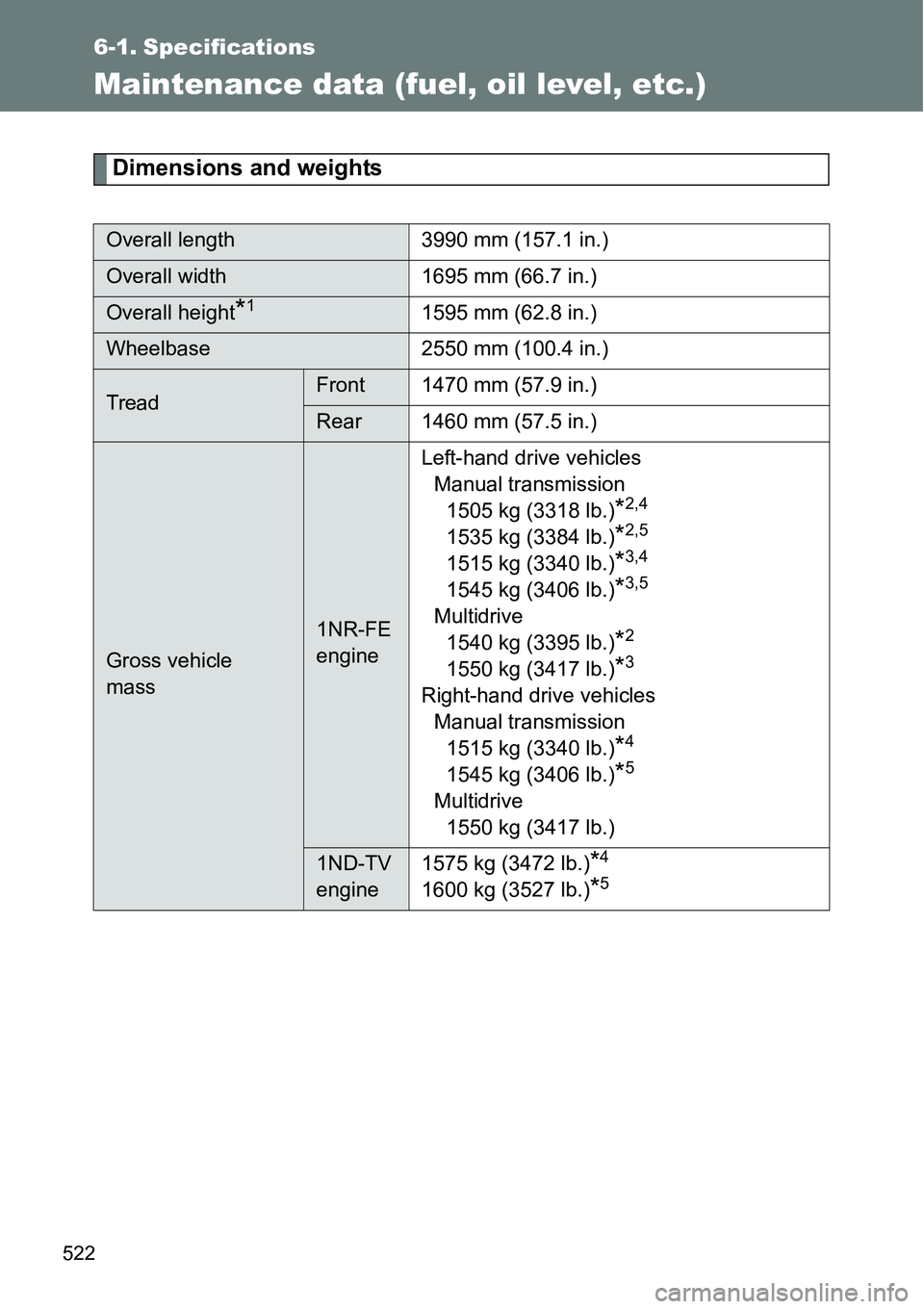

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 3990 mm (157.1 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11595 mm (62.8 in.)
Wheelbase 2550 mm (100.4 in.)
TreadFront 1470 mm (57.9 in.)
Rear 1460 mm (57.5 in.)
Gross vehicle
mass
1NR-FE
engineLeft-hand drive vehicles
Manual transmission
1505 kg (3318 lb.)
*2,4
1535 kg (3384 lb.)*2,5
1515 kg (3340 lb.)*3,4
1545 kg (3406 lb.)*3,5
Multidrive
1540 kg (3395 lb.)
*2
1550 kg (3417 lb.)*3
Right-hand drive vehicles
Manual transmission
1515 kg (3340 lb.)
*4
1545 kg (3406 lb.)*5
Multidrive
1550 kg (3417 lb.)
1ND-TV
engine1575 kg (3472 lb.)*4
1600 kg (3527 lb.)*5
